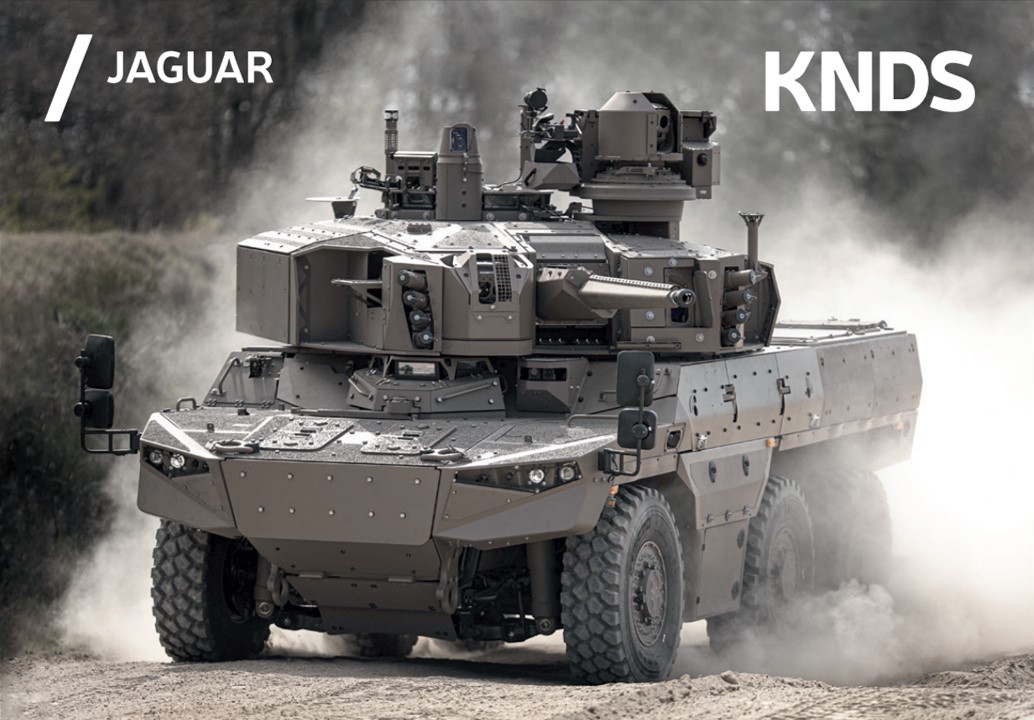

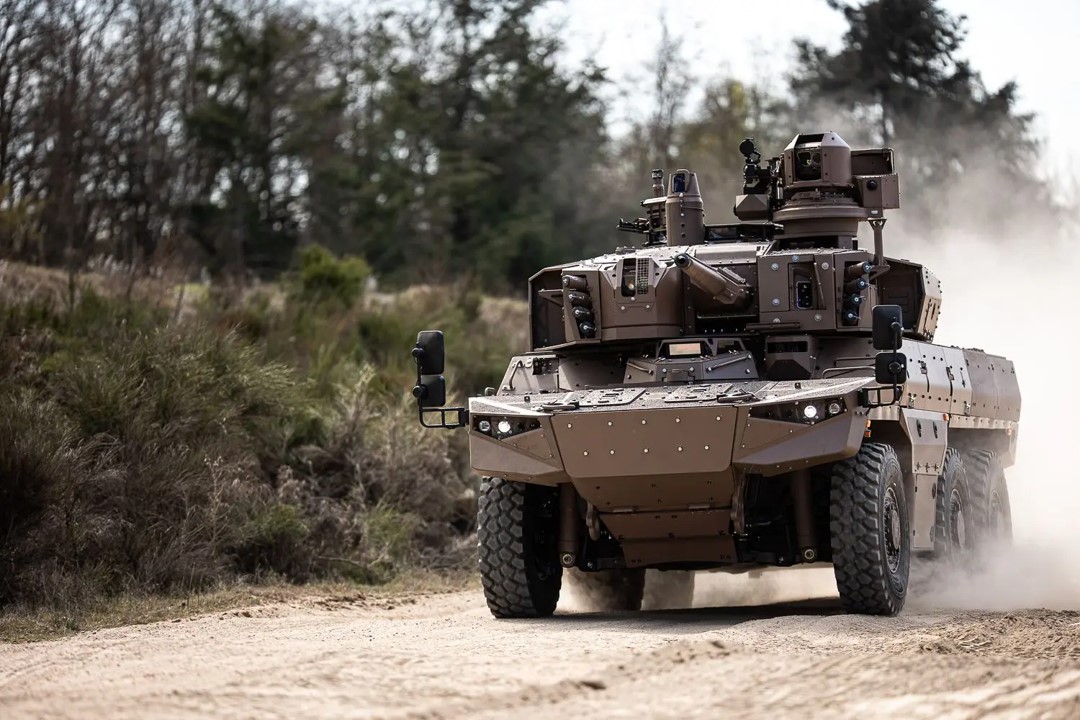

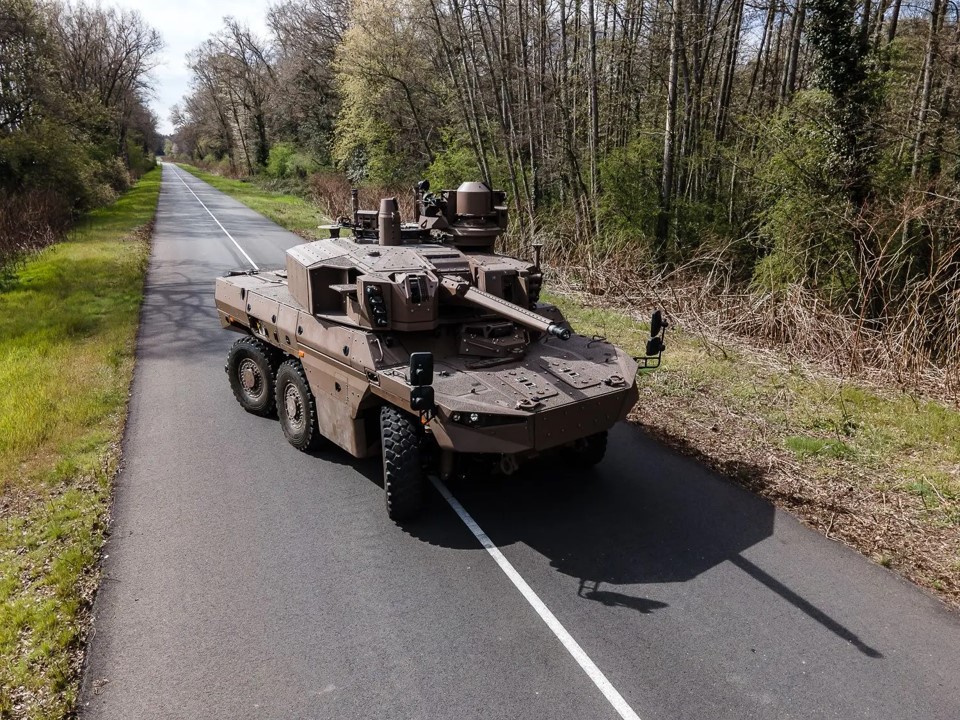

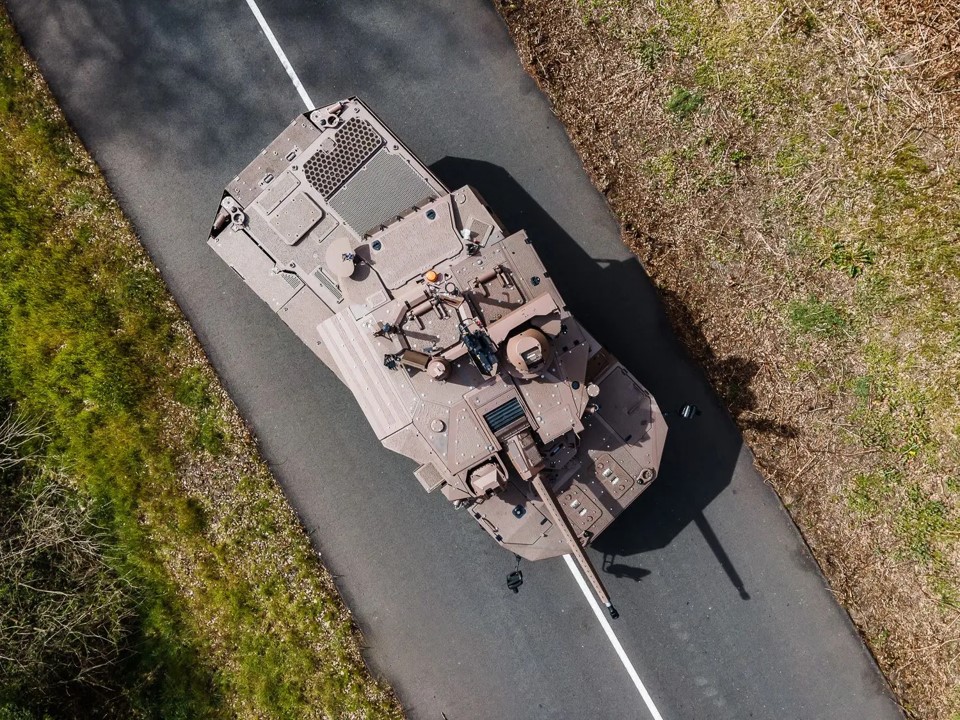

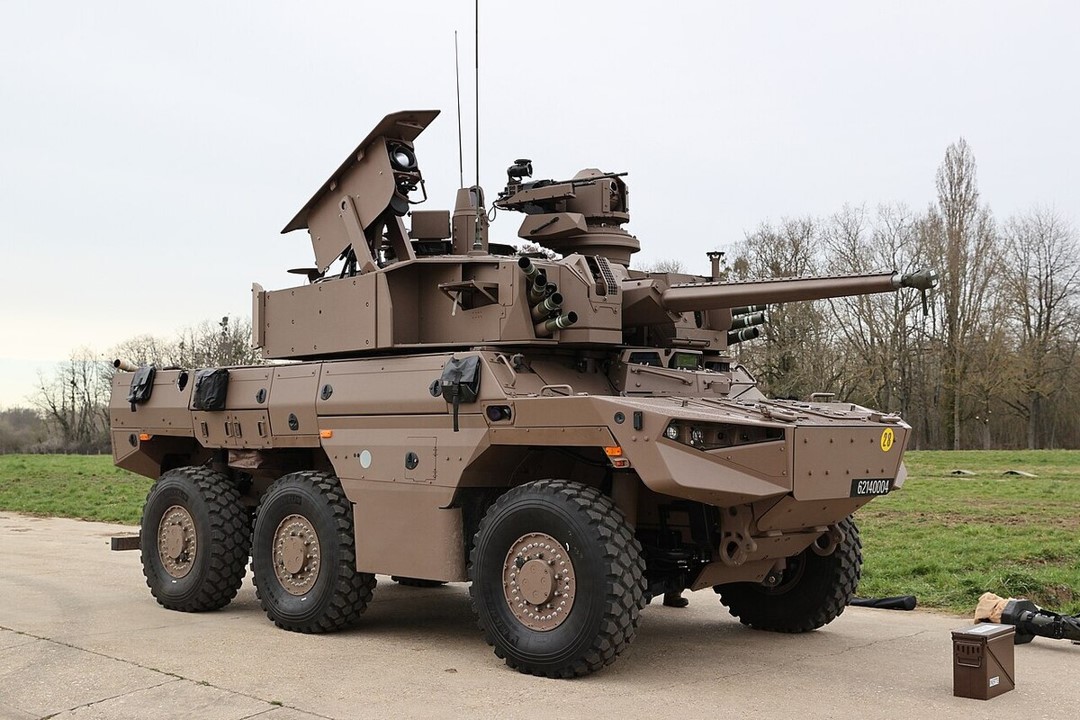

JAGUAR French 6x6 Armored Fighting Vehicle
JAGUAR
Armored Combat Vehicle
Other
Basic Information
Name
JAGUAR French 6x6 Armored Fighting Vehicle
Designation
JAGUAR
Alternate Designation
JAGUAR
Equipment Type
Armored Combat Vehicle
Manufacturer
Arquus
Date of Introduction
2022
Description
The JAGUAR French 6x6 Armored Fighting Vehicle R is an advanced armored fighting vehicle that also serves as a native armored reconnaissance vehicle. Utilizing the Common Scorpion Equipment, which includes vetronics, sensors, radios, and Battle Management Systems (BMS), the JAGUAR can operate at full capacity alongside Main Battle Tanks and Infantry Fighting Vehicles within an integrated battle group. It provides friendly forces with updated tactical information while significantly contributing to combat operations.
Ground Specifications
Crew
3
Mobility Type
Wheeled (6x6)
Main Weapon
40mm Cased Telescoped Armament System (CTAS) autocannon
Engine
Diesel (500 hp)
NBC Protection
Yes
Max Speed
90.0 km/h
Range
800.0 km
System
Alternative Designation
JAGUAR
Type
Armored Fighting Vehicle
Manufacturer
Arquus
Configuration
6x6
Crew
3 ea
Dimensions
Length
7.8 m
Width
3.0 m
Height
3.5 m with Turret
Weight, Combat
23.34 tons (with standard add-on armour kit),
24.7 tons (with additional Add-on armour kit)
Automotive
Engine Name
INA
Engine Type
Diesel
Engine Power
500 hp at 1 700 rpm
Maximum Range
800 km
Maximum Speed
90 km/h
Amphibious
No
Main Weapon System
Note
The JAGUAR's main weapon is a 40mm Cased Telescoped Armament System (CTAS) autocannon, which can fire a variety of ammunition at a rate of up to 200 rounds per minute. It also carries two launchers for the Akeron MP (MMP) anti-tank missile for engaging heavily armored targets at longer ranges.
Auxiliary Weapon System
Note
1 x Remote operated 7.62mm turret
Protection
Armor
High level of protection against ballistic threats, mines, IED and RPG.
Applique Armor
Modular protection configuration (kits) according to missions
NBC Protection
Yes
Detection of Threats
Acoustic Sound Localization System, laser
warning detector and missile Warning System (option) connected to the common SCORPION vetronic
Smoke Equipment
Yes
Details
Country of Origin
France
Category
Land
Land
Filter Label
J
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7.8 m
Width
3 m
Height
3.5 m
Weight
23340 kg
Operators (1)
France
