WJ-700 Chinese Unmanned Aerial Vehicle (UAV)
WJ-700
Tactical Unmanned Aerial Vehicle (UAV)
Other
Basic Information
Name
WJ-700 Chinese Unmanned Aerial Vehicle (UAV)
Designation
WJ-700
Alternate Designation
WJ-700
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
CASIC
Date of Introduction
2021
Description
The WJ-700 Chinese Unmanned Aerial Vehicle (UAV) can be equipped with a variety of attack-related payloads or weaponized munition fits.
Air & Air Defense Specifications
Engine
Turbojet
Max Speed
600.0 km/h
Endurance
20.00 hrs
Service Ceiling
15000 m
Wingspan
18.00 m
Payload Capacity
800 kg
System
Alternate Designation
WJ-700
Type
Unmanned Aerial Vehicle (UAV)
Manufacturer
Aerospace Science and Industry Corporation (CASIC)
Crew
Unmanned
Payload Capacity
800 kg
Reconnaissance Equipment
INA
Launching System
Conventional wheeled take-off.
Recovery System
Conventional wheeled landing.
Dimensions
Length
9.5 m
Wingspan
18 m
Maximum Takeoff Weight
3,500 kg
Automotive
Engine Name
INA
Engine Type
Turbojet Engine
Engine Power
INA
Maximum Speed
INA
Cruising Speed
600 km/h
Service Ceiling
15,000 m
Maximum Distance
INA
Endurance
20 hours
Armament
Note

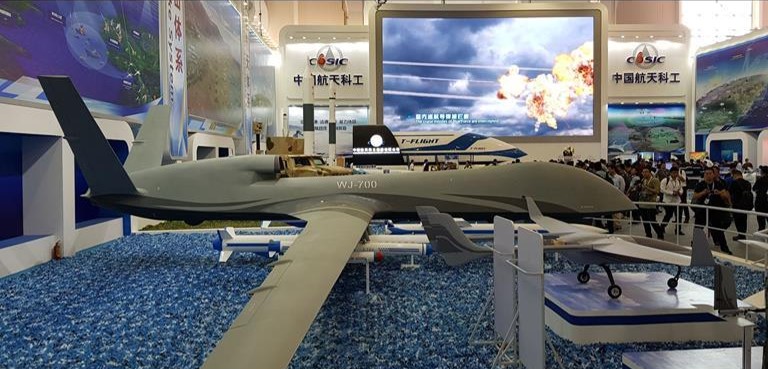

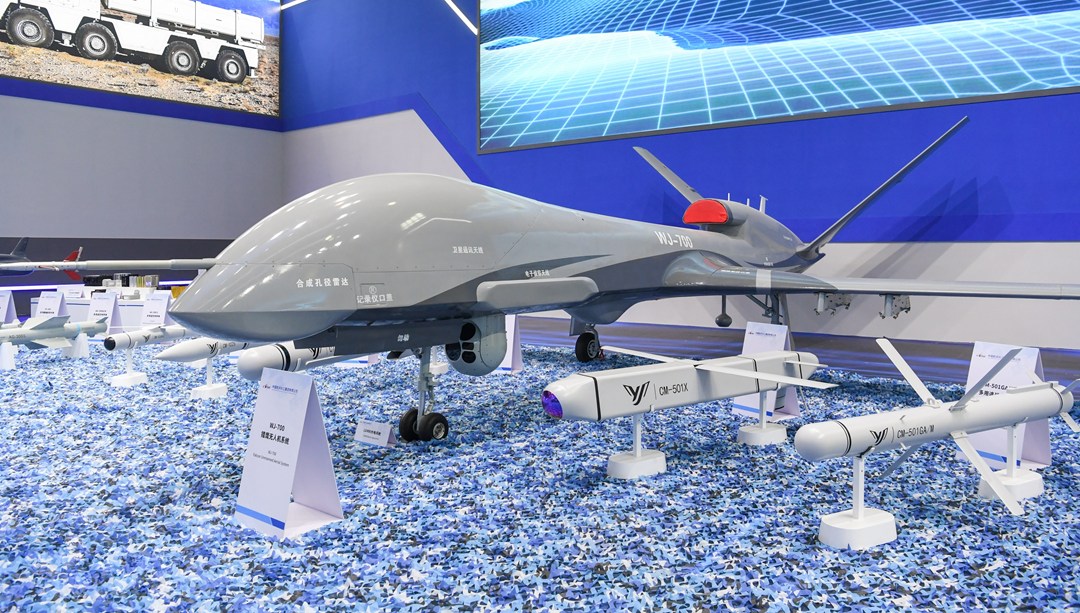

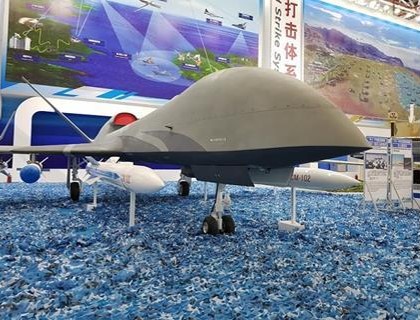

The first public display showed the AV configured for long-range attack with a CM-102 anti-radiation missile, C-701, and C-705KD guided anti-ship missiles. It was also reported that the WJ-700 could be configured for land-attack missions with the company's precision air-to-ground munitions.
Details
Country of Origin
China
Category
UAVs
Air > UAVs
Filter Label
W
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
9.5 m
Width
18 m
Height
—
Weight
3500 kg
Operators (1)
China
