KAMRAT C-130 Ukrainian 4x4 Armored Personnel Carrier (APC)
KAMRAT C-130
Amphibious Armored Personnel Carrier (APC)
Other
Basic Information
Name
KAMRAT C-130 Ukrainian 4x4 Armored Personnel Carrier (APC)
Designation
KAMRAT C-130
Alternate Designation
KAMRAT C-130
Equipment Type
Amphibious Armored Personnel Carrier (APC)
Manufacturer
Ukrainian Armor
Date of Introduction
2017
Description

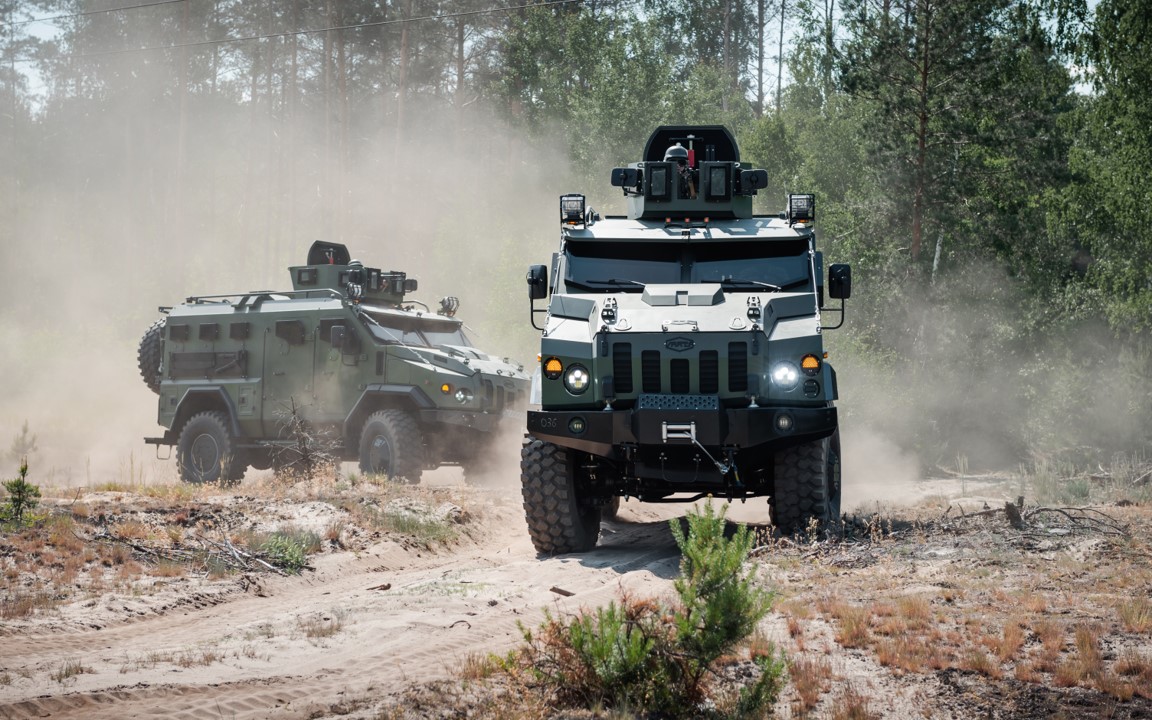

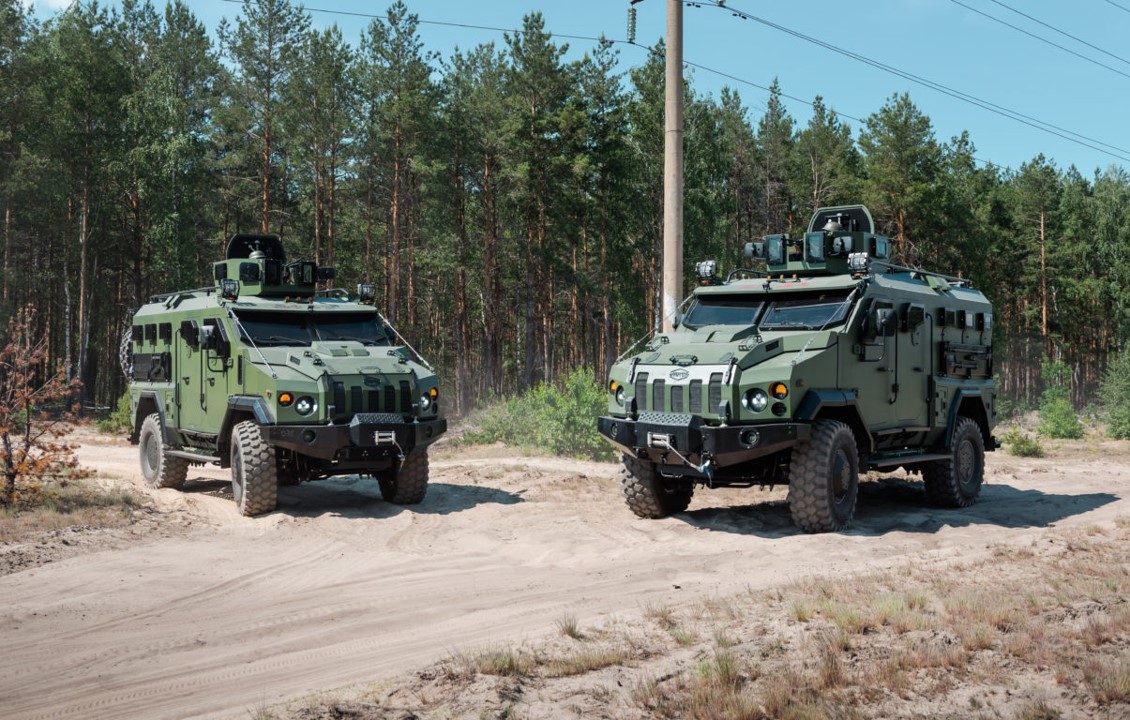

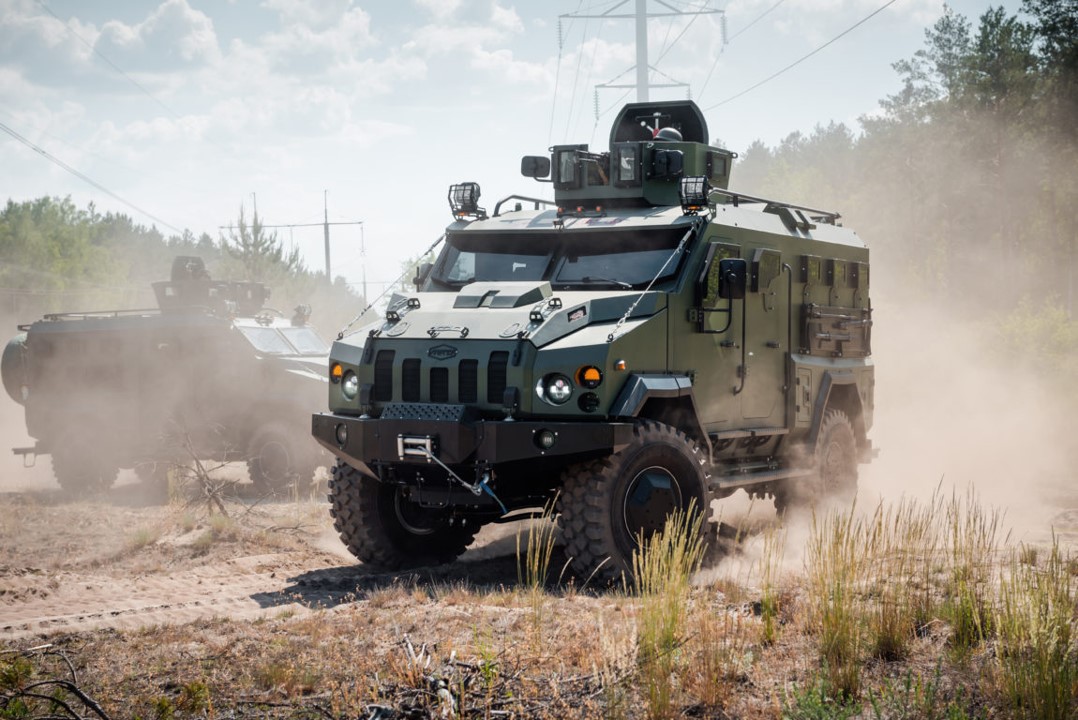

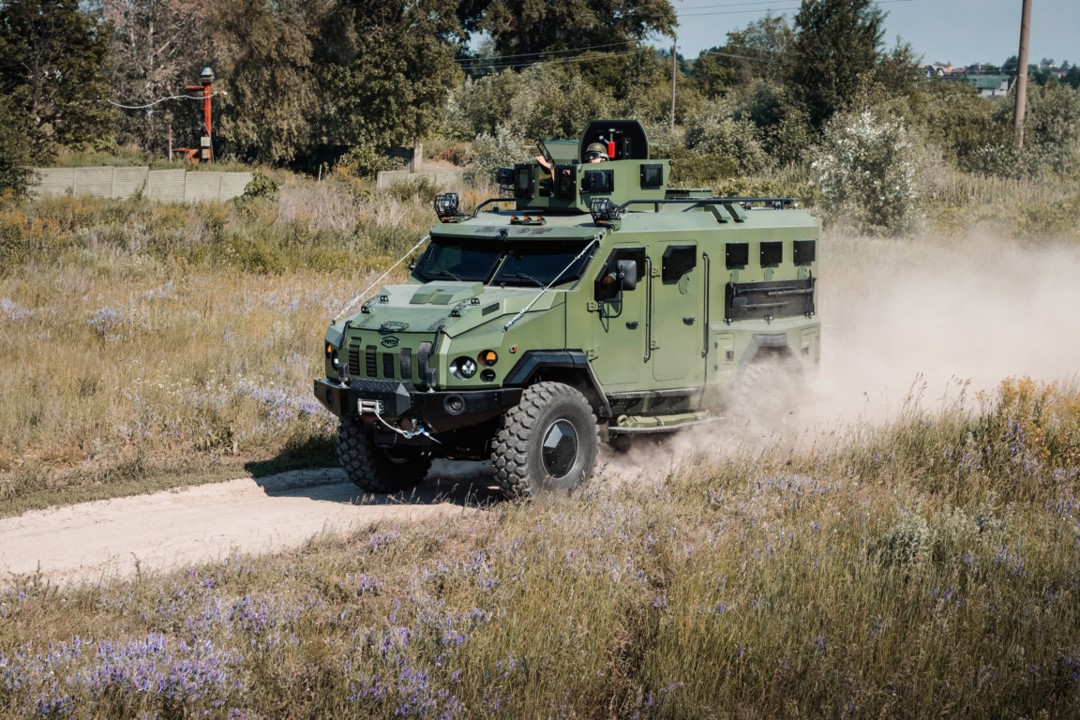

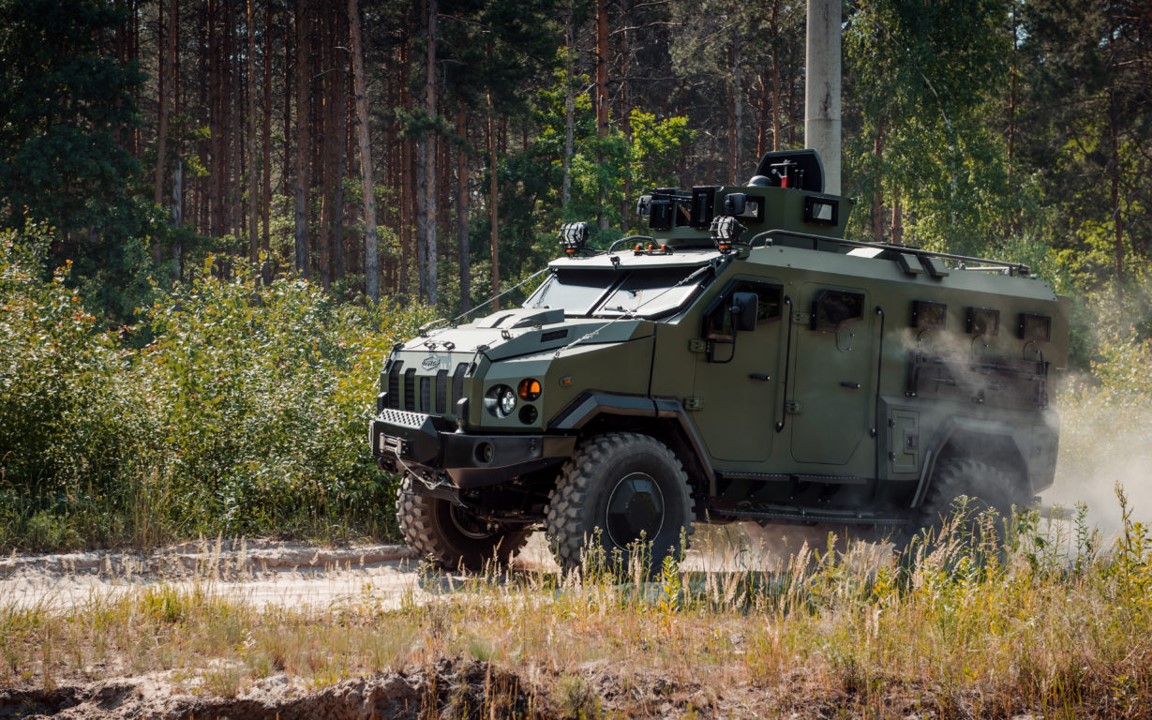

The KAMRAT C-130 Ukrainian 4x4 Armored Personnel Carrier (APC) is the first Ukrainian APC to feature the maximum protection class PZSA-6, which is equivalent to STANAG 4569 level 3. The Kamrat armoured vehicle is based on the chassis of the KrAZ-5233 4×4 domestic off-road vehicle. It can accommodate two crew members and eight passengers.
Ground Specifications
Crew
2
Mobility Type
Wheeled (4x4)
Main Weapon
12.7 mm caliber "Sarmat" with an anti-tank missile system "Corsar" (107 mm caliber) or "Skif" (130 mm and 152 mm caliber)
Engine
6-Cylinder Turbocharged Diesel (320 hp)
NBC Protection
Yes
Max Speed
100.0 km/h
Range
700.0 km
Variant
Kamrat-M
The Kamrat-M, a variant of the Kamrat APC, is based on the Novator wheeled armoured combat vehicle. It is equipped with the Stugna-P anti-tank missile launcher.
The Kamrat-M vehicles equipped with the LRAD-1000Xi long-range acoustic devices participated in the joint special tactical training exercises of the Ministry of Internal Affairs (MIA), Ukraine, in November 2021.
Kamrat-L
Kamrat-L, which is a Varta mine-resistant ambush-protected (MRAP) vehicle-based multi-function tactical level control unit, along with Kamrat-M was displayed at the Army’s Digital Future exhibition in October 2021. The Digital Future was held on the occasion of Defenders of Ukraine Day, which is celebrated to honour the veterans of the nation’s armed forces.
System
Alternative Designation
KAMRAT C-130
Type
Armored Personnel Carrier (APC)
Manufacturer
Ukrainian Armor
Configuration
4x4
Crew
2 ea
Passengers
8 ea
Winch
The vehicle has an electric shock protection and water proof winch with towing capacity 10 t and synthetic rope or steel cable 30 m. In order to increase traction, a set of pulley blocks can be installed.
Lighting
Front headlights, taillights, brake lights, marker lights, direction indicators, fog lights, convoy lights, spotlights and blackout lights.
All lights are made from polycarbonate materials that are 200 times stronger than glass.
All lights are dust, water and chalk-resistant. Interior lighting with several settings: full, partial camouflage and specific night lighting.
Dimensions
Length
7,190 mm
Width
2,550 mm
Height
2,600 mm
Weight, Combat
14,600 kg
Automotive
Engine Name
INA
Engine Type
6-cylinder in-line turbo diesel
Engine Power
320 hp
Fuel Capacity
350 liters
Electrical System
24 V
Maximum Range
700 km
Maximum Speed
100 km/h
Amphibious
No
Gradient
30 deg
Side Slope
20 deg
Vertical Step
INA
Trench
INA
Fording
0.75 m
Ground Clearance
INA
Main Weapon System
Note
APC KAMRAT can be equipped with a combat unit “Sarmat” (12.7 mm caliber) with an anti-tank missile system “Corsar” (107 mm caliber) or “Skif” (130 mm and 152 mm caliber).
Protection
Armor
Built with Swedish Armor from 560 Steel, the KAMRAT can withstand a direct hit from armor-piercing incendiary 7.62 mm armor.
The KAMRAT engages bulletproof glass of the same protection level as the armor, and its external installation method enables quick replacement if damaged.
Ballistic plates surround the engine for additional protection.
The V-shaped hull of the KAMRAT armoured crew compartment provides protection for the passengers and can withstand a detonation charge equivalent to 6 kg of TNT.
Anti-Mine Seats
Military blast protection and absorbing seats have five-point seat belts. EQUIPPED WITH:
• advanced energy damper attenuation system
• wall-mounted
• 5-point seatbelt system
• folding seat
• foldable headrest
• waterproof external coating
Applique Armor
Available
NBC Protection
Yes
Smoke Equipment
Yes
Image Sources
Details
Country of Origin
Ukraine
Category
Land
Land
Filter Label
K
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7.19 m
Width
2.55 m
Height
2.6 m
Weight
14600 kg
Operators (1)
Ukraine
