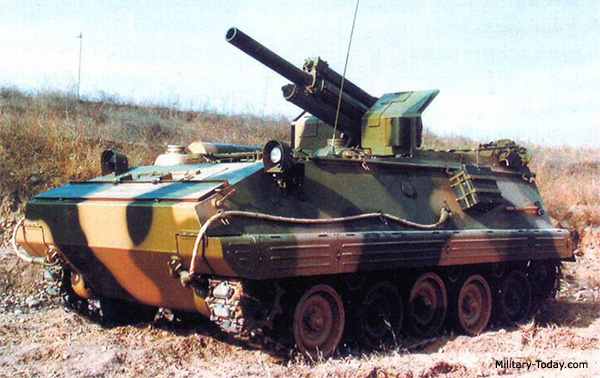

Type 70-I Chinese 122mm Self-Propelled Howitzer (SPH)
Type 70-I
Self-Propelled Howitzer (SPH)
Other
Basic Information
Name
Type 70-I Chinese 122mm Self-Propelled Howitzer (SPH)
Designation
Type 70-I
Alternate Designation
Type 70-I
Equipment Type
Self-Propelled Howitzer (SPH)
Manufacturer
—
Date of Introduction
1970
Description
It is estimated that no more than 200 Type 70-Is were ever manufactured. It was build to fill a gap in self propelled artillery in the Chinese army. It is believed that the Soviet Union assisted in the development and manufacture of the Type 70-I because of the use of the Type 54 cannon which is similar to the M1938 / M-30. The vehicle has no roof and thus no overhead protection for the crew of 6-7 soldiers.
Ground Specifications
Crew
6
Engine
Diesel (260 hp)
Variants
Type 85
The Type 85 self-propelled 122mm howitzer has a turretless design, based on the YW531H APC chassis. It has the Soviet D-30 howitzer. The maximum range of fire is 21 km. The Type 85 is a significant improvement to its predecessor, however it still lacks gun enclosure.
System
Alternative Designation
Type 70-I
Type
Self-Propelled Howitzer (SPH)
Caliber
122 mm
Chassis
Based on the Type 63-I (YW531 / Type B531) APC
Crew
6-7 ea
Emplacement Time
INA
Displacement Time
INA
Dimensions
Length
5.6 m
Width
3.07 m
Height
2.69 m
Weight, Combat
15.3 tons
Automotive
Engine Name
6150L
Engine Type
Diesel
Engine Power
260 hp
Cruising Range
450 km
Speed, Maximum Road
56 km/h
Speed, Average Cross
INA
Speed Maximum Swim
INA. Can be fitted with a swim kit. Propulsion is provided by the track rotation.
Gradient
60 %
Side Slope
30 %
Vertical Step
0.6 m
Fording Depth
1.0 m
Main Weapon System
System
Name
Type 54
Type
Howitzer
Caliber
122 mm
Maximum Rate of Fire
6 rds/min
Maximum Elevation
63 deg
Minimum Elevation
-2.5 deg
Traverse Range
45 deg
Traverse Left
INA
Traverse Right
INA
Maximum Firing Range
11.8 km
Sights
Basic
Direct Fire Capable
Yes
Basic Load
40 rounds
Ammunition
Note
Compatible with 122mm projectiles of the M-30. The Type 70-I is also capable of direct firing.
Auxiliary Weapon System
System
Type
7.62 mm Machine Gun
Fire Control System
Note
There is no fire control system. Basic sights are used for aiming the cannon.
Protection
Hull Armor
INA
Turret Armor
INA
Applique Armor
INA
Explosive Reactive Armor
INA
Active Protection System
INA
Mine Clearing
INA
Self-Entrenching Blade
INA
NBC Protection
INA
Smoke Equipment
INA
Details
Country of Origin
China
Category
Self-Propelled Gun/Howitzer Artillery Systems
Land > Artillery > Self-Propelled Gun/Howitzer Artillery Systems
Filter Label
T
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
5.6 m
Width
3.07 m
Height
2.69 m
Weight
15300 kg
Operators (1)
China
