JPMRC VISMOD CSK-141 Chinese 4x4 Light Tactical Vehicle

CSK-141

Light Utility Vehicle

Spotted an error? Sign in to suggest an edit.

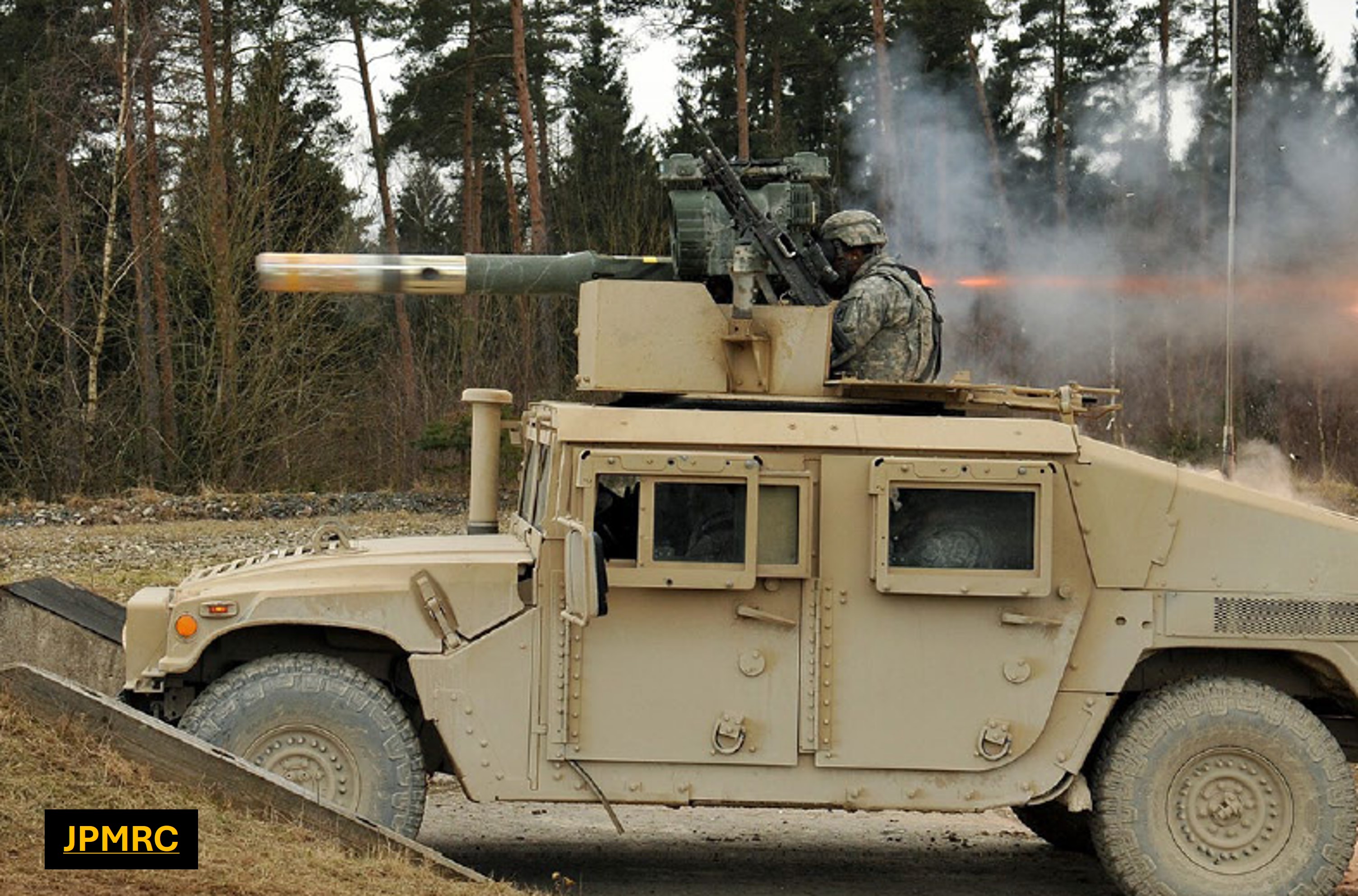

JPMRC VISMOD CSK-141 Chinese 4x4 Light Tactical Vehicle — JPMRC_VISMOD_CSK-141_(A)TRADOC ODIN WEG

Basic Information

Name

JPMRC VISMOD CSK-141 Chinese 4x4 Light Tactical Vehicle

Designation

CSK-141

Alternate Designation

CSK-141; CSK141; CS/VN11

Equipment Type

Light Utility Vehicle

Manufacturer

Dongfeng

Date of Introduction

2015

Description

The CSK-141 Chinese 4x4 Light Tactical Vehicle is a Gen 2.5 vehicle described as a “protective assault” platform. It provides an infantry section with protected mobility and several mission system options. It appears to be the PLA's primary general-purpose vehicle. The layout of the CSK141 is as per the CSK131, but it has an extended wheelbase (believed to be increased to 4 m over the 3.3 m of the CSK131) that allows additional room for dismounts. As a result, the vehicle can carry eight dismounts in the rear compartment, arranged on two rows of four seats that face inwards. The second set of doors is also modified to be more suitable for the vehicle's role, focusing more on armoured assault operations. The resultant doors open horizontally, the two halves folding up or down, facilitating access and faster. The door at the rear of the platform is as per the CSK131.

Ground Specifications

Crew 2

Mobility Type Wheeled (4x4)

Main Weapon 12.7 mm machine gun

Engine Turbocharged Diesel (200 hp)

Active Protection None

NBC Protection Yes

Max Speed 135.0 km/h

Range 500.0 km

Variants

CSK-141A The CSK-141A is a variant of the CSK1-41. The differences between the two vehicles are unclear, however, it is possible that the “A” is a production-improved variant equipped with more modern systems.

CS/VN11 Export Version

System

Alternative Designation CSK-141; CSK141; CS/VN11

Type Light Tactical Vehicle

Manufacturer Dongfeng

Configuration 4X4

Crew 2 ea

Passenger Capacity 9 ea

Note The CSK-141 and other variants can tow the CQG-141 off-road trailer during operations. Dongfeng states that the trailer can carry 1,100 kg of equipment and has a base weight of 900 kg. It can achieve a top speed greater than or equal to 100 km/h on roads, climb a 40% gradient, and overcome a 380 mm vertical obstacle. Its dimensions are length 3.97 m × width 2.14 m × height 1.91 m. The company also states that a field kitchen variant is available.

Dimensions

Length 5.8 m

Width 2.35 m

Height 1.86 m

Weight, Combat 6,100 kg

Payload Capacity 1,200 kg

Automotive

Engine Name Cummins ISDe 200-41

Engine Type Turbocharged Diesel

Engine Power 200 hp

Cruising Range 500 km

Speed, Maximum Road 135 km/h

Speed, Average Cross Country INA

Speed, Maximum Swim Not Amphibious

Fording Depth 0.75 m

Fording Depth With Preparation 1.2 m

Gradient 60 %

Side Slope 30 %

Vertical Step 0.5 m

Trench 0.5 m

Main Weapon System

Note There is a roof hatch and a roof-mounted 12.7 mm machine gun, or alternatively, a 35 mm automatic grenade launcher. Depending on customer requirements other weapons can be mounted on the roof, including remotely-controlled weapon stations.

Protection

Armor Standard protection for the crew and passengers against small arms fire, up to 7.62x39, and artillery shell splinters. Frontal arc protection is against 7.62x39 mm armor-piercing rounds.

Applique Armor Available

Explosive Reactive Armor No

Active Protection System None

Smoke Equipment INA

NBC Protection Yes

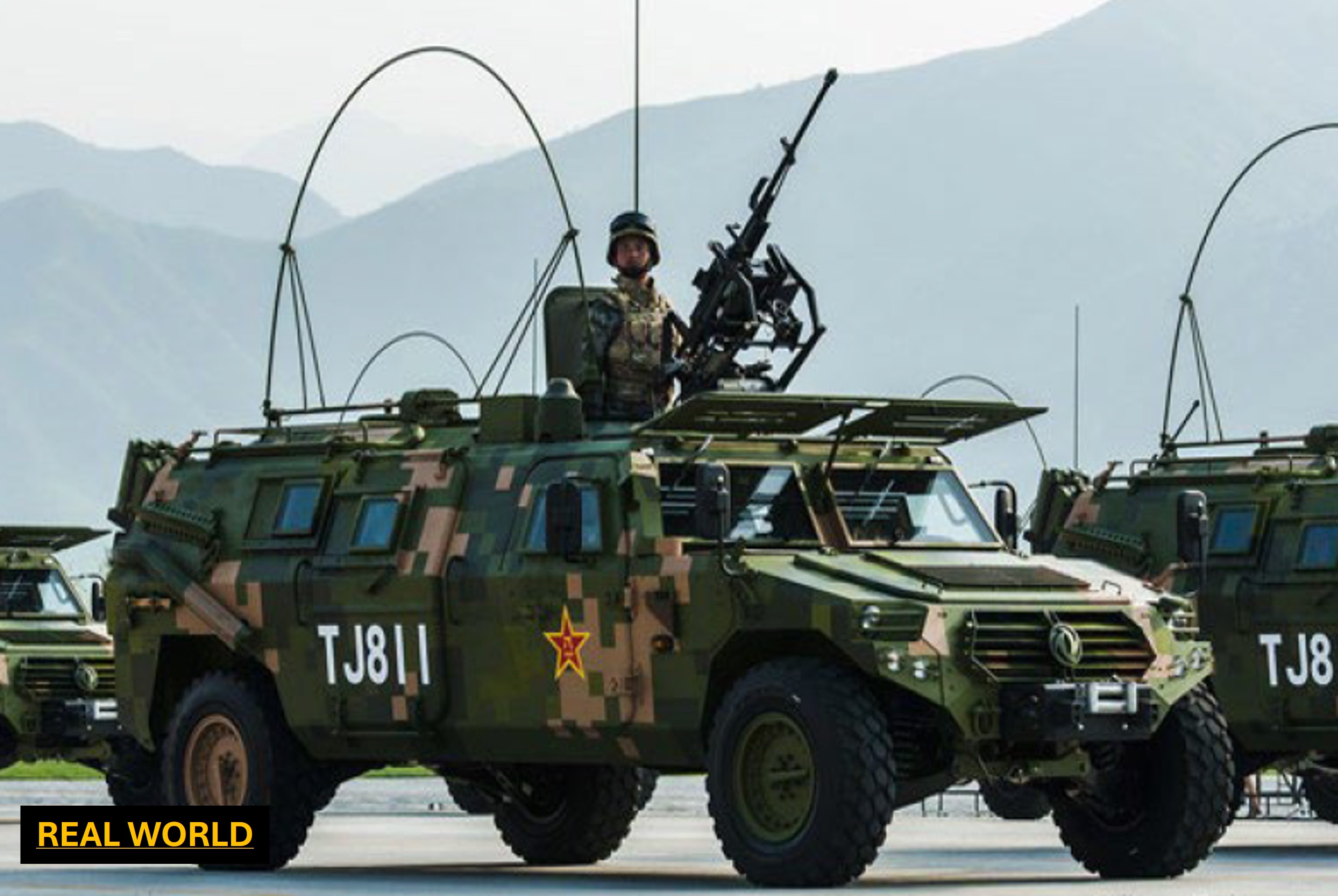

Real World Image Sources

Note https://www.militarytoday.com/trucks/dongfeng_csk141.htm; https://www.armyrecognition.com/armies_in_the_world_analysis_focus/list_and_analysis_of_military_equipment_and_armoured_for_china_army_parade_of_3_september_2015_12908152.html;

Details

Country of Origin China

Category Wheeled Light Armored Vehicles

Land > Infantry Vehicles > Wheeled Light Armored Vehicles

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

5.8 m

Width

2.35 m

Height

1.86 m

Weight

6100 kg

Operators (1)

China
