Watercat M12

Watercat M12

Landing Crafts
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Watercat M12
Designation
Watercat M12
Alternate Designation
Equipment Type
Landing Crafts
Manufacturer
Marine Alutech
Date of Introduction
2000
Description

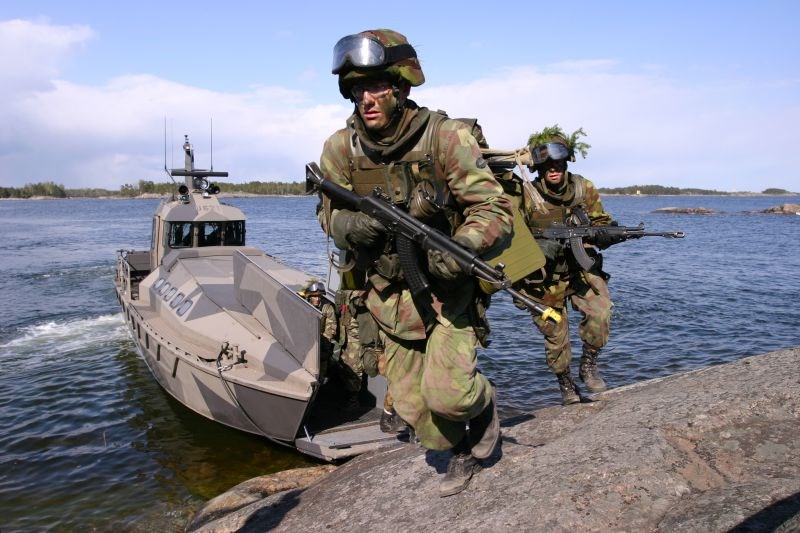

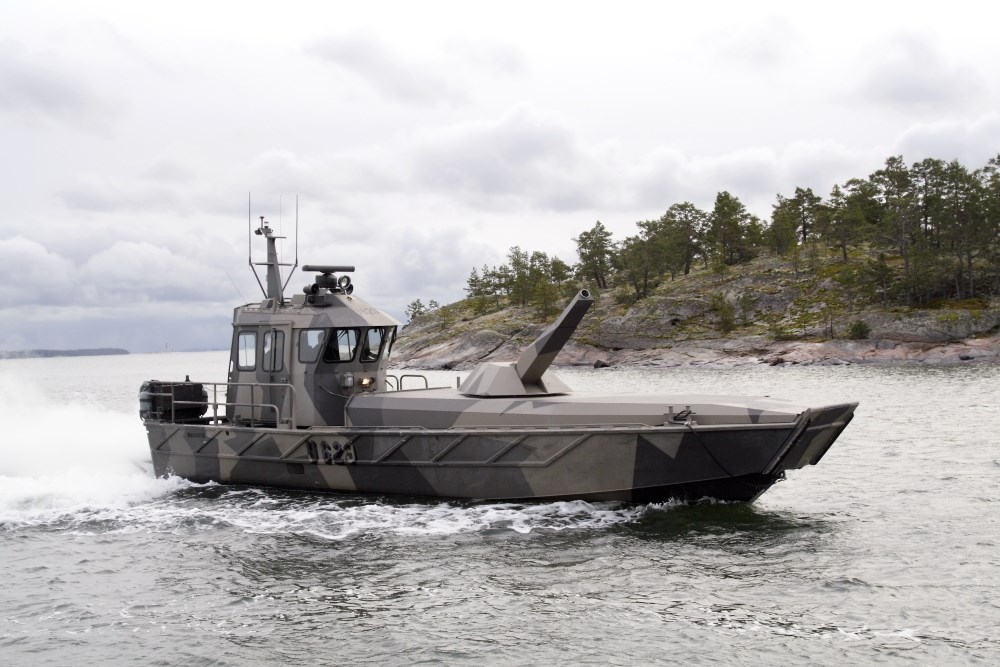

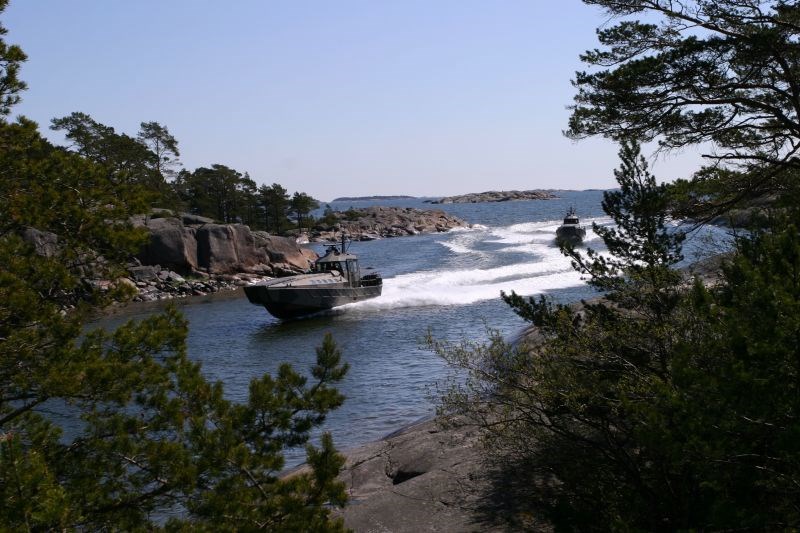

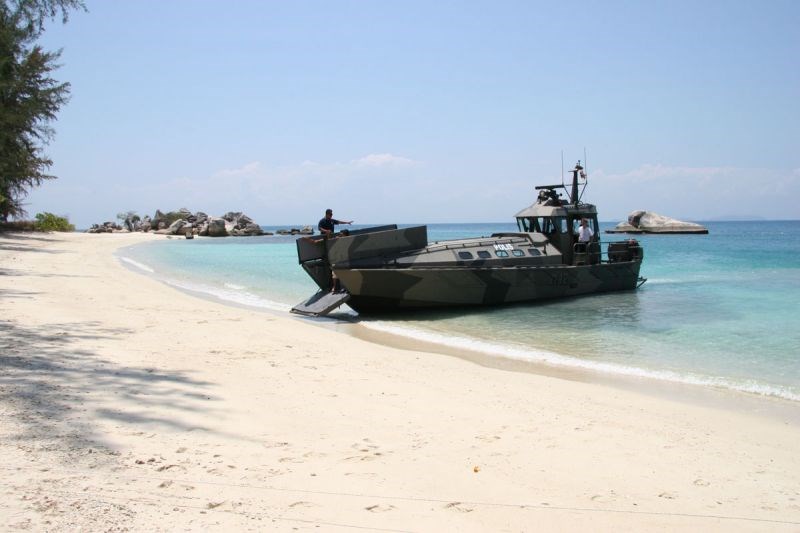

The Watercat M12 is a water jet craft designed by Marine Alutech to serve the Finnish Marines as transport and landing ship in all weather conditions. The Finnish Navy ordered the development of this ship in the late 1990s as part of a modernization plan for its coastal defense forces. The resulting Watercat M12 features outstanding maneuverability and the ability to stop almost within one hull length. The first landing craft was delivered to the Finnish Navy in 2000 with 38 units produced so far. The main compartment of Watercat M12 has a seating capacity for 20 fully equipped troops. A bow ramp ensures rapid loading/offloading of cargo and personnel. Powered by two FF 375 jets, each developing 331 kW of power, the craft achieves a top speed in excess of 35 knots. Due to jet propulsion the boat's bottom is perfectly smooth enabling operations in very shallow waters. In addition to the troop transport and landing role, the Watercat M12 can provide fire support utilizing Patria's Nemo 120mm mortar system. Optionally, the Watercat M12 can be equipped with two 12.7mm machine guns.

Naval & Littoral Specifications
Displacement 10.30 tonnes
Beam 3.70 m
Draft 0.75 m
Max Speed 35.0 knots
Overview (Deagel)
Group Landing Crafts
Status Active
Origin Finland
Contractor Marine Alutech
Initial Operational Capability (IOC) 2000
Total Production 38
Specifications (Deagel)
Troops 20
Dimensions — Beam 3.7 meter
Dimensions — Draft 0.75 meter
Dimensions — Length 14.2 meter
Dimensions — Main Gun Caliber 120 millimeter
Mass — Full Displacement 10.3 ton
Power — Total Combined Power 662 kW
Speed — Top Speed 35 knot
Gear (Deagel)
Item 1 Weapon Stations: Nemo (1)
Variants
Variant 1 Watercat M12

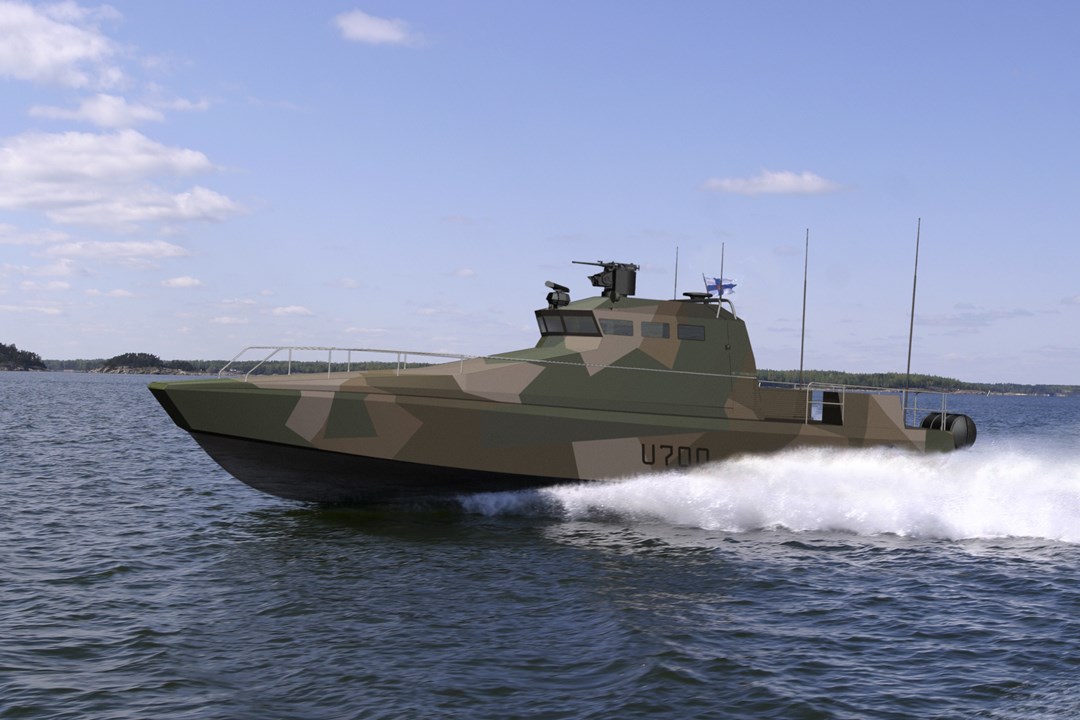

Variant 2 Watercat M18 AMC
Details
Country of Origin Finland
Category Landing Ships and Amphibious Assault Ships
Naval > Landing Ships and Amphibious Assault Ships
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
14.2 m
Width
3.7 m
Height
Weight
10300 kg
Operators (1)
Finland
