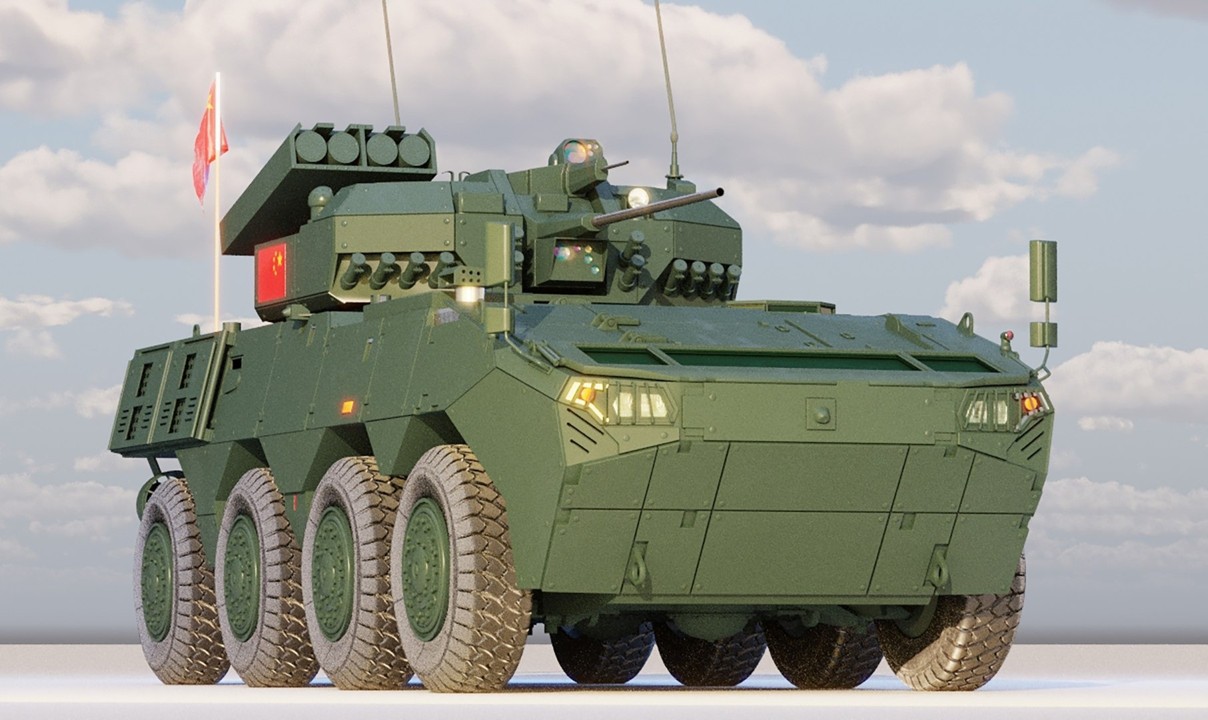

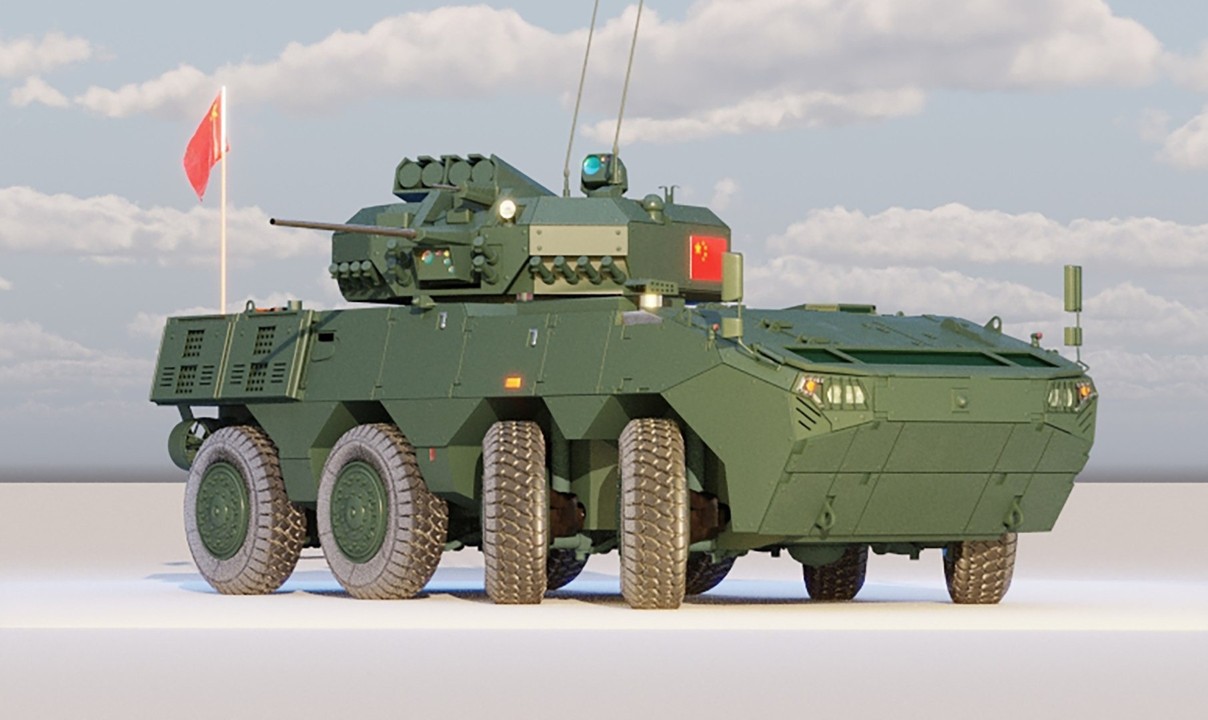

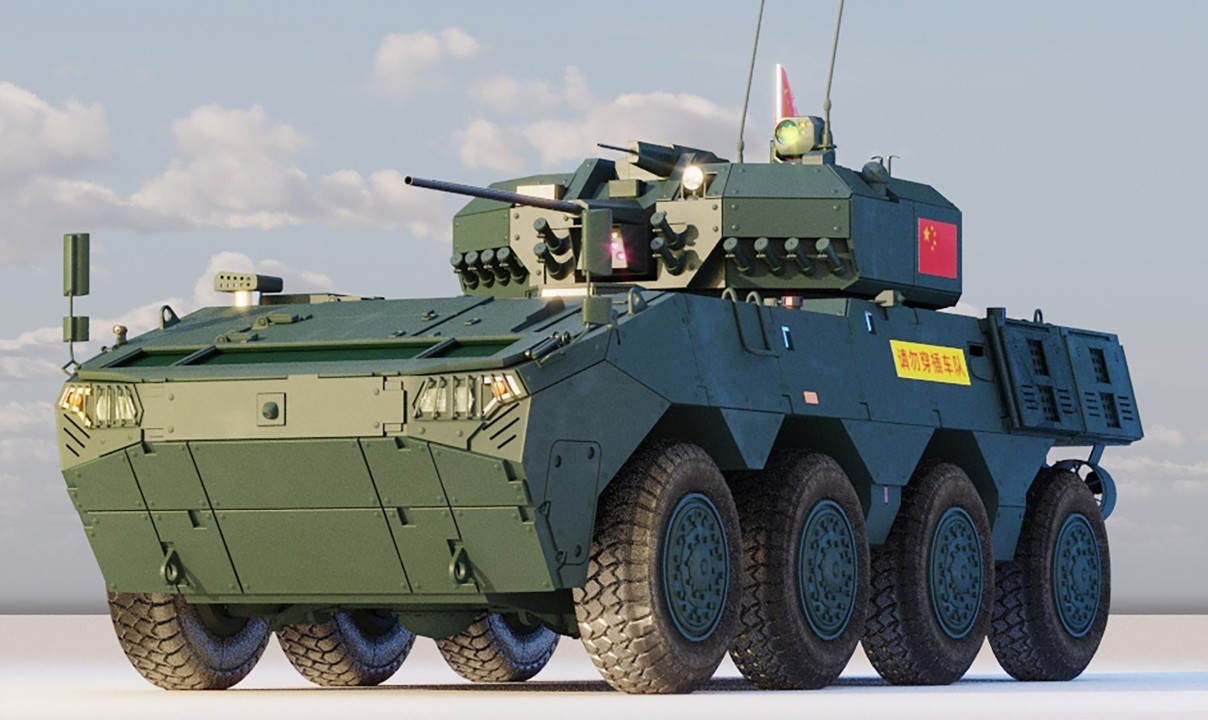

ZBL-19 (Type 19) Chinese Amphibious Infantry Fighting Vehicle (IFV)

ZBL-19

Amphibious Infantry Fighting Vehicle (IFV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
ZBL-19 (Type 19) Chinese Amphibious Infantry Fighting Vehicle (IFV)
Designation
ZBL-19
Alternate Designation
ZBL-19; Type 19
Equipment Type
Amphibious Infantry Fighting Vehicle (IFV)
Manufacturer
NORINCO
Date of Introduction
2024
Description

The ZBL-19 (Type 19) Chinese Amphibious Infantry Fighting Vehicle (IFV) is China’s third-generation wheeled armored fighting vehicle, designed to replace or supplement the widely used Type 08 (ZBL-08) family in the People's Liberation Army (PLA) Medium Combined Arms Brigades. First observed in testing around 2019–2020 and confirmed in operational service with the Western Theater Command (76th Group Army) by late 2024/early 2025, the Type 19 represents a significant leap in lethality and survivability, featuring an unmanned turret, top-attack anti-tank missiles, and enhanced modular armor. The deployment of the Type 19 to the 76th Group Army (Western Theater Command) highlights China's focus on high-altitude and rapid-reaction warfare. The 76th GA operates in the rugged terrain bordering India and Central Asia, where the high mobility of wheeled 8x8 platforms is preferred over heavier tracked armor. The shift to "fire-and-forget" missiles significantly increases the independent combat power of these units, allowing them to threaten enemy tanks without exposing themselves for the duration of the missile's flight.

Ground Specifications
Crew 3
Mobility Type Wheeled (8x8)
Main Weapon 30mm autocannon
Engine Diesel (440 hp)
NBC Protection Yes
Amphibious Yes
Max Speed 100.0 km/h
Range 500.0 km
Variants
ZTL-19 Replaces the ZTL-11. It features a 105mm rifled gun in a rear-mounted manned turret. Key ID Feature: The gun lacks a muzzle brake (unlike the ZTL-11), utilizing an advanced recoil system to reduce signature and crew blast overpressure. Role: Provides direct fire support and anti-tank capability for the wheeled brigade.
System
Alternative Designation ZBL-19; Type 19
Type Amphibious Infantry Fighting Vehicle (IFV)
Manufacturer Norinco
Configuration 8x8
Crew 3 ea
Passengers 7 ea
Dimensions
Length INA
Width INA
Height INA
Weight, Combat 25 tons
Automotive
Engine Name Deutz-derived
Engine Type Diesel
Engine Power 440 hp
Maximum Range 500 km
Maximum Speed 100 km/h
Amphibious Yes
Amphibious Speed Like its predecessor, the Type 19 is fully amphibious. It uses twin ducted water jets at the rear, allowing for swimming speeds of 8–10 km/h—critical for river crossing operations in the boundless terrain of Western China or potential island-landing scenarios.
Gradient INA
Side Slope INA
Vertical Step INA
Trench INA
Fording INA
Main Weapon System
Turret The most distinct feature of the Type 19 is its unmanned turret, which separates the crew from the ammunition and weapon mechanisms.
30mm Autocannon The primary armament is a stabilized 30mm autocannon, capable of firing armor-piercing (APDS) and high-explosive incendiary (HEI) rounds. It is optimized for engaging light armor, infantry, and low-flying helicopters.
Anti-Tank Guided Missiles (ATGM)
Next-Gen ATGMs (HJ-16 / QN-502C) Unlike the Type 08, which relied on the older, wire-guided HJ-73D (Sagger derivative), the Type 19 carries four box-launched anti-tank guided missiles in a retractable or armored side housing. Capability: These missiles are reported to use infrared imaging (IIR) guidance, offering "fire-and-forget" capability. Top-Attack: Crucially, they possess a top-attack mode to defeat modern main battle tanks (MBTs) by striking their thinner roof armor, a capability previously lacking in PLA medium brigades.
Fire Control System
Note The vehicle is equipped with a hunter-killer fire control system, featuring independent panoramic sights for the commander and high-definition thermal imagers for the gunner.
Protection
Armor The hull features bolt-on modular composite armor blocks. Base protection is estimated to withstand 14.5mm AP rounds over the frontal arc, with the potential to resist 25mm/30mm rounds when up-armored.
Applique Armor Available
Active Protection The turret is designed with mounting points for laser warning receivers and potentially a hard-kill Active Protection System (APS) in future blocks, though standard variants currently feature soft-kill smoke dischargers.
Mine Resistance The hull floor has been reinforced to better withstand IEDs and mines, a lesson learned from global conflicts involving wheeled armor.
NBC Protection Yes
Smoke Equipment Yes
Details
Country of Origin China
Category Land
Land
Filter Label
Z
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
Width
Height
Weight
25000 kg
Operators (1)
China
