DT-3PM
DT-3PM
Tracked Armored Vehicles
Basic Information
Name
DT-3PM
Designation
DT-3PM
Alternate Designation
Vityaz
Equipment Type
Tracked Armored Vehicles
Manufacturer
Uralvagonzavod production association
Date of Introduction
2026
Description

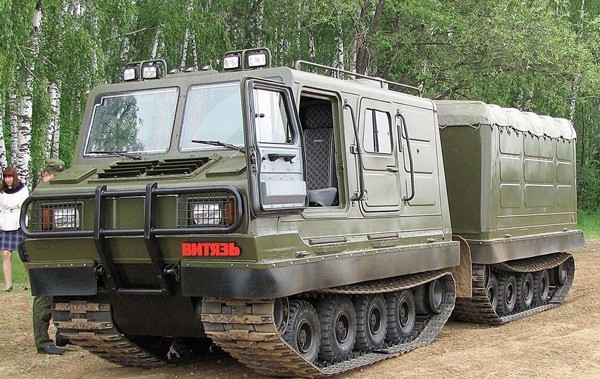

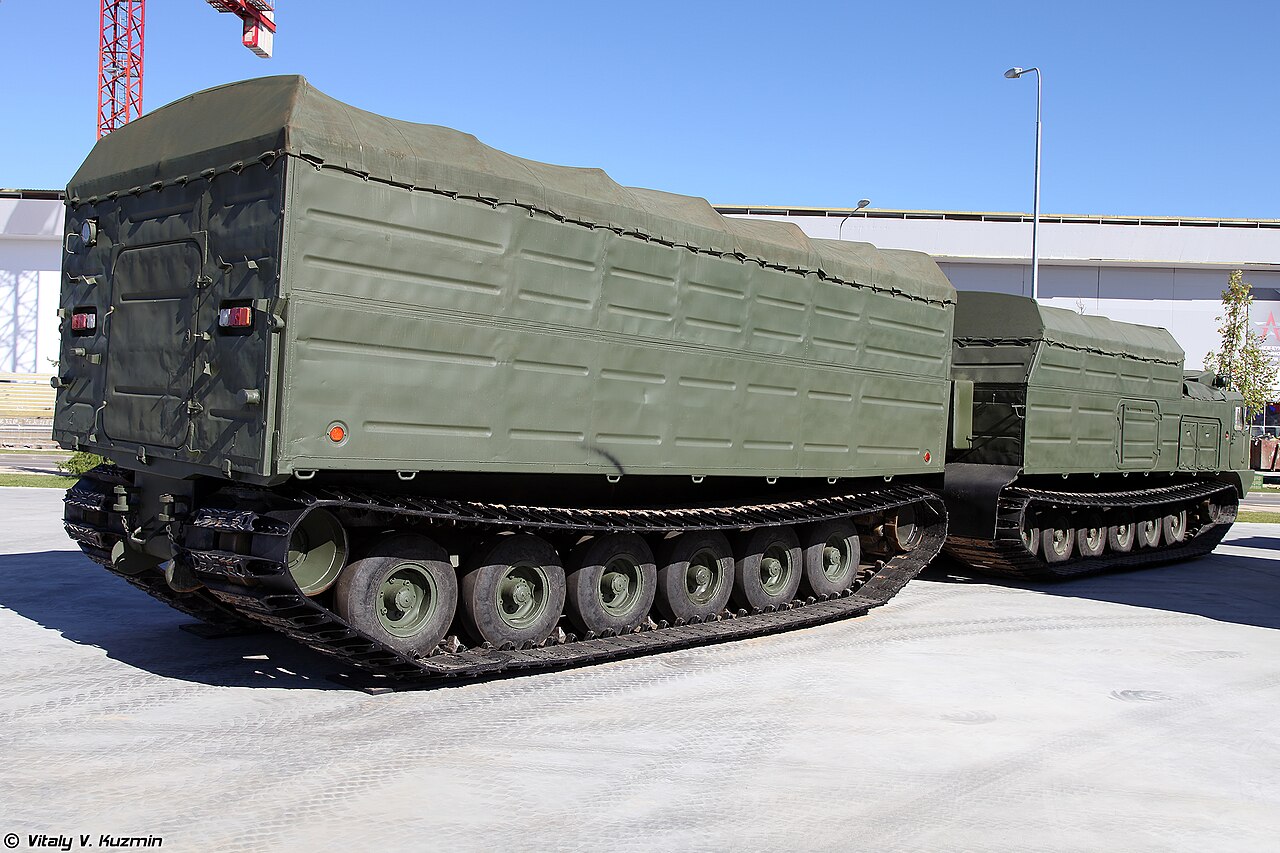

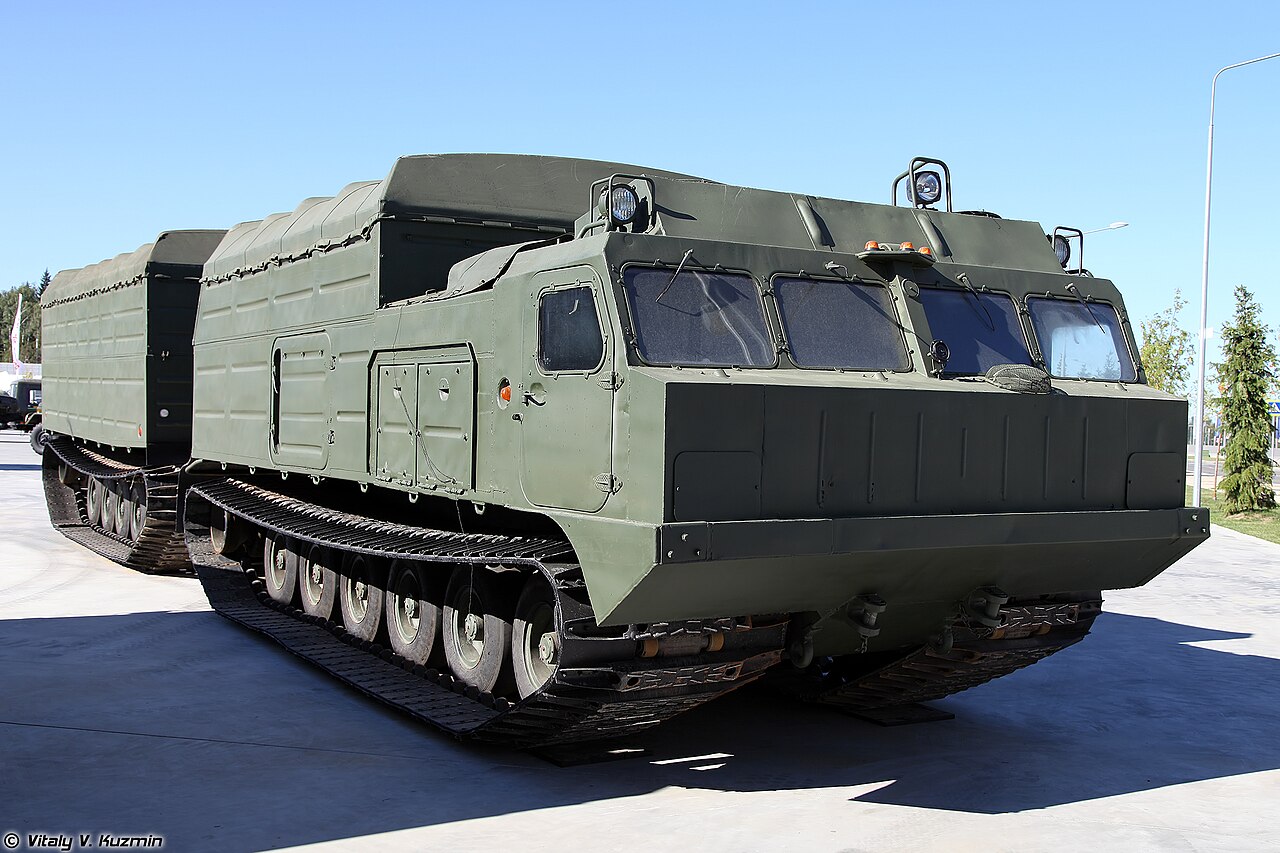

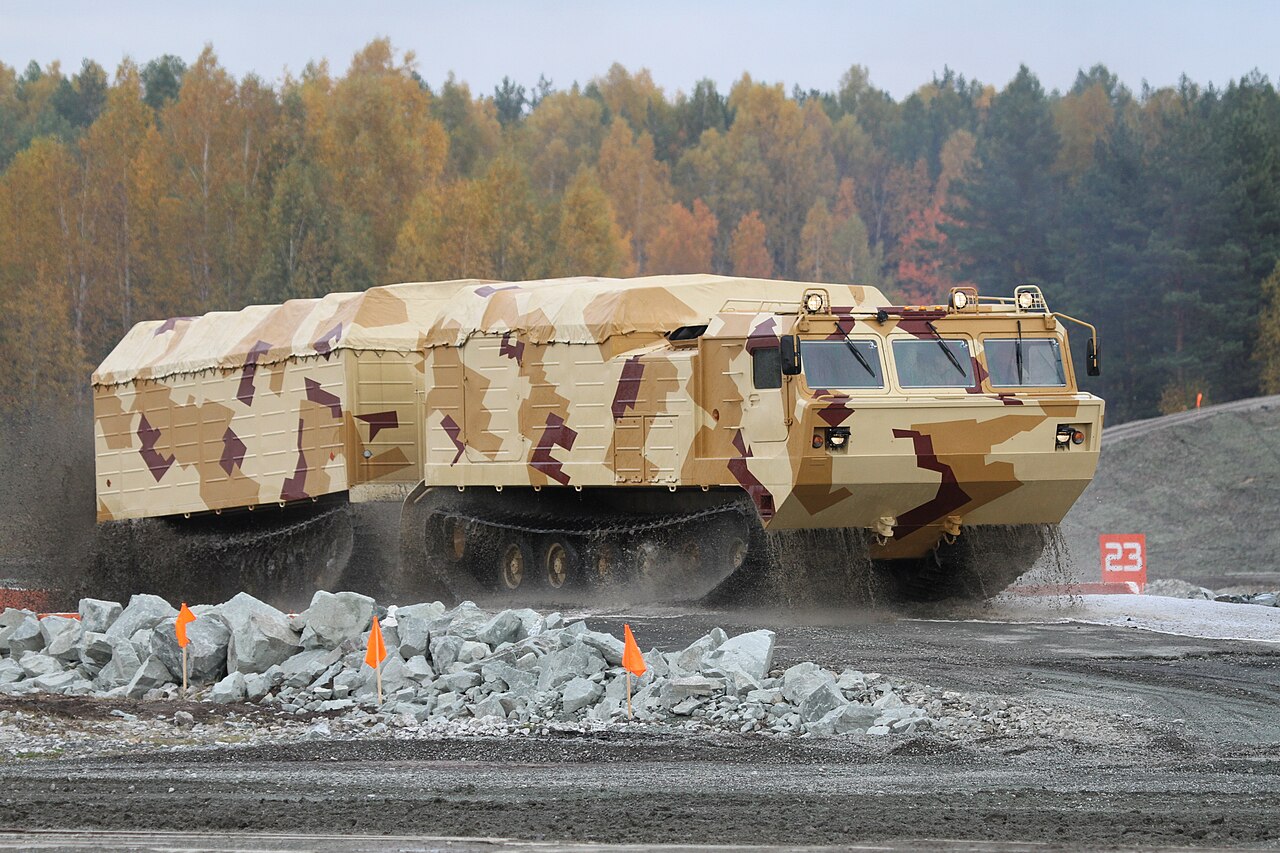

The DT-3PM Vityaz lightweight, two-link, tracked all-terrain vehicle is a further variant unveiled in May 2026 and is intended for both military and civilian customers. The vehicle’s universal chassis allows a wide range of equipment to be integrated onto it. Powered by a 312-hp diesel engine, the DT-3PM can carry a payload of 3.5 tons or up to 17 passengers cruising at 50 kilometers per hour (kph) or up to 5 kph afloat.
Ground Specifications
Troop Capacity
17
Max Speed
50.0 km/h
Range
700.0 km
Overview (Deagel)
Group
Tracked Armored Vehicles
Status
Active
Also Known As
Vityaz
Origin
Russia
Contractor
Uralvagonzavod production association
Initial Operational Capability (IOC)
May 2026
Total Production
?
Specifications (Deagel)
Rolling Rubber Wheels
5
Troops
17
Dimensions — Ground Clearance
350 millimeter
Dimensions — Length
9.1 meter
Dimensions — Track
600 millimeter
Dimensions — Width
2.1 meter
Mass — Empty Weight
7,600 kilogram
Mass — Payload
3,500 kilogram
Percentage — Gradient
70 %
Percentage — Side Slope
36 %
Performance — Ditch Crossing Ability
3 meter
Performance — Max Range
700 kilometer
Performance — Step Climbing Ability
1 meter
Power — Power
312 hp
Pressure — Ground Pressure
0.16 kg/cm2
Speed — Top Speed
50 kph
Speed — Top Swimming Speed
5 kph
Temperature — Max Operating Temperature
45 ° Celsius
Temperature — Min Operating Temperature
-50.00 ° Celsius
Variants
Variant 1
DT-3P
Variant 2
DT-3PM
Details
Country of Origin
Russia
Sources
deagel.com: https://www.deagel.com/x/x/a003706
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
9.1 m
Width
2.1 m
Height
—
Weight
7600 kg
Operators (1)
Russia
