R-330 Mandat (Р-330 Мандат) Russian Electronic Warfare System

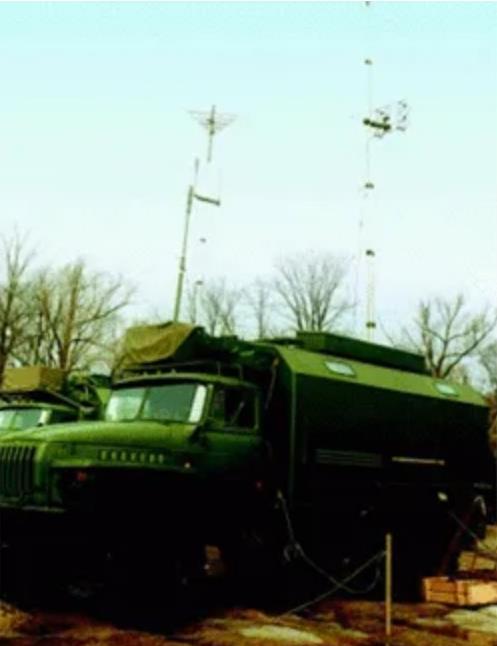

Radio reconnaissance and suppression complex designed to counter adversarial Bandwidth/Frequencies: Operating frequency 1.5–100 MHz Range: up to 60km Variants: R-330T, R-330U, R-330B, Borisoglebsk-2101 Variants: R-330T, R-330U, R-330B, Borisoglebsk-2101 Additional Information: • Complex is composed of the R-330K control point/points management module and automated jamming stations R-325U, R-378A/R-378B, and R-330B101.102 • Capable of operation in three modes including PU-SK (control point-by means of the complex), PU-T (control point-tactical), or PU-T-VG (control point-tactical- independent) • Used in PU-SK mode, system controls the combat operation of individual automated jamming station assets and the transmission of relevant information to higher levels of command • Used in PU-T mode, system processes information from individual R-330K units operating in systems control mode • Used in PU-T-VG mode, system controls individual automated jamming station assets and processes information for command needs R-330 MANDAT / R-330K R-330K control point module, functioning as part of the R-330 Mandat EW complex. Source: © 31 May 2023, Armed Conflicts Performance Specifications: • Signal technical analysis range [MHz]: 1.5–100 • Radio emission source (RES) detection range [km]: 60x • Remote control of jamming stations range [km]: whip antenna: up to 12, directional antenna: up to 30 • Communication directions per R-330 Mandat control point: ≤ 6 • Computing speed [operations per second]: 750,000 Source: COGINT Analytic Insight Report - Russian EW Systems, 7 June 2023 (UNCLASSIFIED)
