Armtrac 400 British Minefield Breaching Vehicle
Armtrac 400
Mine Clearing Vehicle
Other
Basic Information
Name
Armtrac 400 British Minefield Breaching Vehicle
Designation
Armtrac 400
Alternate Designation
Armtrac 400
Equipment Type
Mine Clearing Vehicle
Manufacturer
Armtrac
Date of Introduction
2018
Description

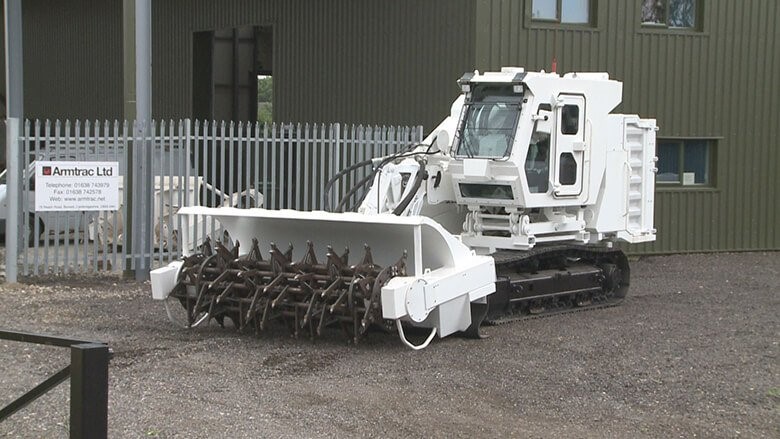

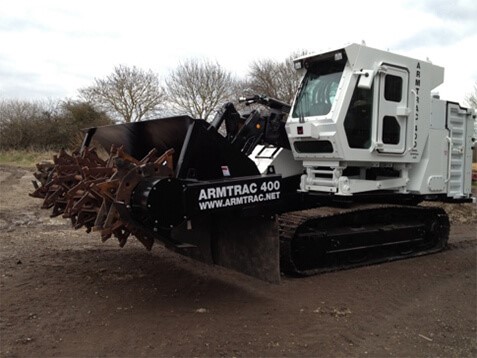

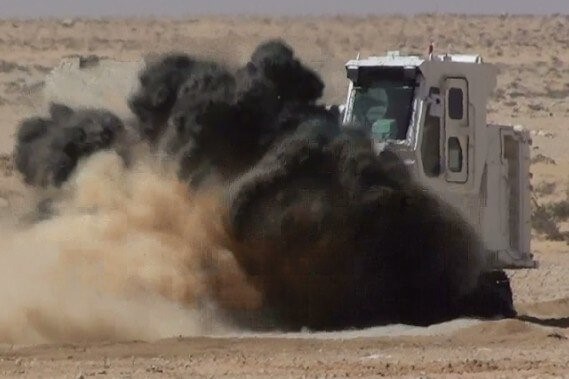

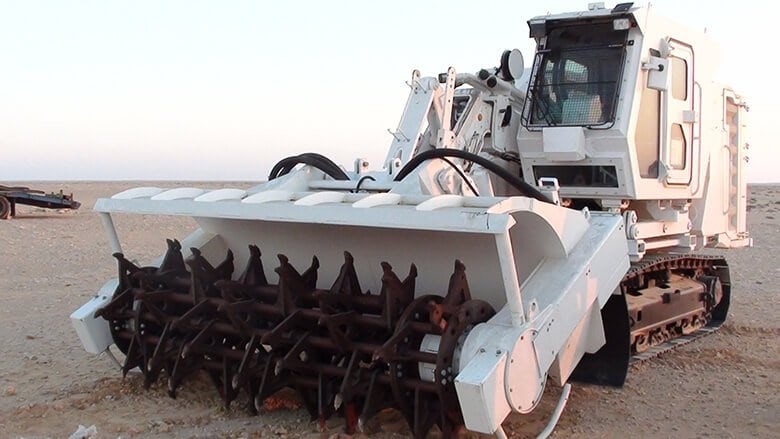

The Armtrac 400 British Minefield Breaching Vehicle is the largest and most powerful of the Armtrac range. With its hydraulically driven 3 meter Tiller rotor, it is capable of clearing 2,400 square meters per hour (depending on terrain & operator experience). With an effective tilling depth of 55cm the Armtrac 400 is designed to destroy & withstand 10kg Anti-Tank mines.
Ground Specifications
Crew
1
Engine
Diesel (425 hp)
System
Alternative Designation
Armtrac 400
Type
Minefield Breaching Vehicle
Manufacturer
Armtrac
Configuration
Track
Crew
1 ea
Remote Control
The A400 is fully remote controlled up to 1000 meters allowing the Operator to remain at a safe distance while still maintaining 100% control of all the machine’s functions, or alternatively with its fully armored, sound proofed & air-conditioned cabin (which can withstand NATO Ball at point blank range), an Operator can maintain a detailed “bird’s eye” view of demining operations in complete comfort & safety.
Scissor-Lift
As an optional extra, we can add a unique “scissor-lift” cab mounting so that shocks are absorbed & the ride height can be adjusted for the best possible view.
Boom
The Armtrac 400 has a Telescopic Boom to which different demining toolkits can be attached. This boom can be extended to clear mines and UXO in difficult locations such as on river banks and on inclines, while remaining completely stationary. This is a unique feature to the Armtrac tracked machines.
Toolkits
A variety of toolkits are available for demining and clearing UXO. As well as a tiller and flail, the Armtrac Mine Comb or screener/segregator can extract buried mines and UXO down to 50 cms. When the Armtrac Sifter is fitted to the rear of the machine, this extracts items & potentially missed ordnance down to 50 cms which provides a comprehensive quality assurance tool when fitted together with a front mounted tiller or flail. A Robotic Arm fitted
with a standard scrape bucket or a grapple can also be fitted onto the 3 point linkage
which provides a very versatile and far reaching tool for extracting difficult to access
UXO.
Dimensions
Length, Overall
5,550 mm
Length, with Attachment
8,037 mm
Width
2,795 mm
Height
3,395 mm
Weight, Combat
INA
Automotive
Engine Name
Duetz BF6M
Engine Type
Diesel
Engine Power
425 hp
Maximum Range
INA
Maximum Speed
INA
Protection
Armor
Fully armored, sound proofed & air-conditioned cabin (which can withstand NATO Ball at point blank range).
Applique Armor
Available
NBC Protection
INA
Smoke Equipment
No
Image Sources
Notes
https://www.wg-plc.com/product/wg-400-mine-clearance-vehicle; https://www.quora.com/What-is-the-best-kind-of-car-to-have-steal-in-case-of-zombie-apocalypse; https://assets-global.website-files.com/5edf9e74d5a7585ab5e77dc2/624ea7d824946bec918bdc04_4020-04%20WG%20400%20Mine%20Clearance%20Vehicle%20Product%20Sheet.pdf; https://www.wg-plc.com/product/wg-400-mine-clearance-vehicle;
Details
Country of Origin
United Kingdom
Category
Mobility
Land > Combat Support Vehicles > Mobility
Filter Label
A
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
5.55 m
Width
2.8 m
Height
3.4 m
Weight
—
Operators (2)
United Kingdom
Ukraine
