Kolkata Class (Project 15A Class) Indian Destroyer

Kolkata Class

Destroyer
Spotted an error? Sign in to suggest an edit.
Kolkata Class (Project 15A Class) Indian Destroyer
Other
Kolkata Class India Ship (A)TRADOC ODIN WEG

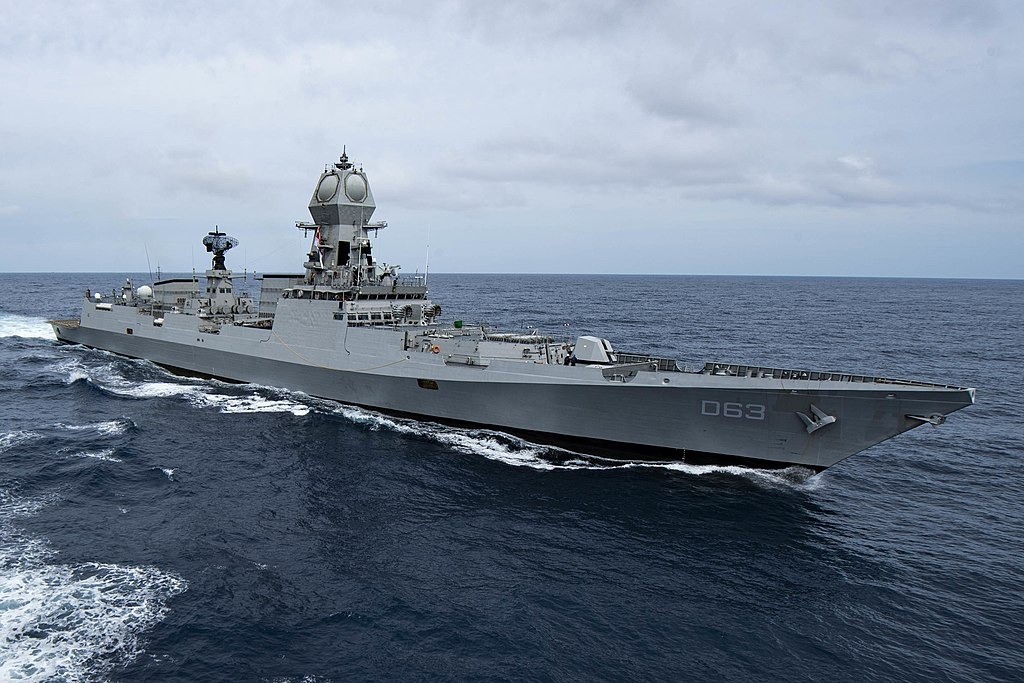

Kolkata Class India Ship (A)

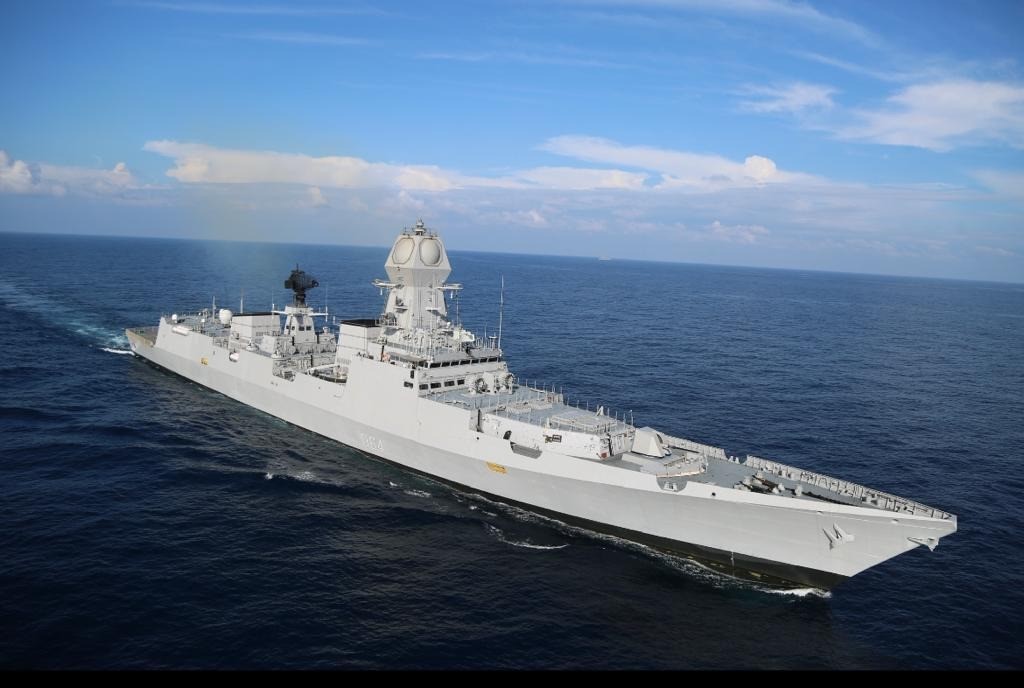

Kolkata Class India Ship (B)

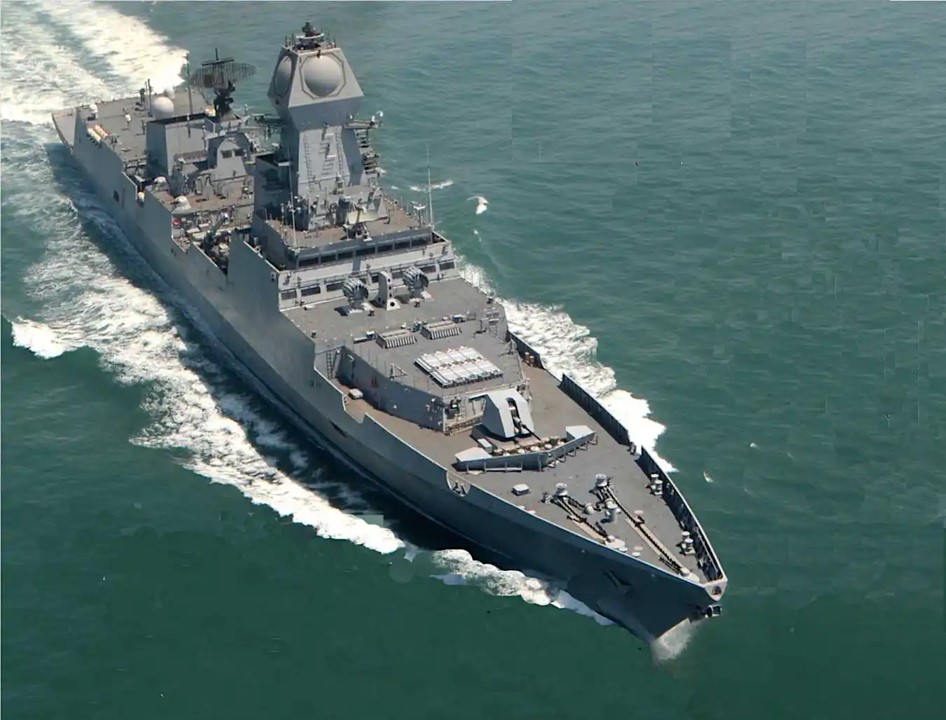

Kolkata Class India Ship (C)
Basic Information
Name
Kolkata Class (Project 15A Class) Indian Destroyer
Designation
Kolkata Class
Alternate Designation
Kolkata Class; Project 15A Class
Equipment Type
Destroyer
Manufacturer
Mazagon Dock Shipbuilders Limited (MDL)
Date of Introduction
2014
Description

The Kolkata Class (Project 15A Class) Indian Destroyer are a class of stealth guided-missile destroyers constructed for the Indian Navy.

Naval & Littoral Specifications
Crew 250
Beam 17.40 m
Draft 6.50 m
Variants
Kolkata Commissioned: 2014 Status: Active
Kochi Commissioned: 2015 Status: Active
Chennai Commissioned: 2016 Status: Active
System
Alternative Designation Kolkata Class; Project 15A Class
Type Destroyer
Builder Mazagon Dock Shipbuilders Limited (MDL)
Crew 250 Enlisted; 50 Officers
Dimensions
Length 163.0 m
Height INA
Beam 17.4 m
Draft 6.5 m
Displacement, Full Load 7,400 tons
Propulsion System
Engine Name 4 x Zorya-Mashproekt DT-59
Engine Type Gas Turbines
Engine Power 16.55MW each
Maximum Range 6,000 km at 18 kt (33.3 km/h)
Maximum Speed 30 knots (56 km/h)
Main Weapon Systems
Missile System
Surface-to-Surface Missiles (SSM) 2 x octuple VLS; 16 Brahmos PJ-10; inertial guidance and active/passive radar terminal homing to 292 km (157.7 n miles) at Mach 2.5 (high level)/Mach 2.0 (sea level); warhead 300 kg; sea skimmer. Extended range (ER) Brahmos PJ-10 (D 68)
Surface-to-Air Missiles (SAM) 2 x 16 cell VLS launchers; 32 x IAI Barak LR/Barak-8; inertial/GPS guidance with mid-course update and active radar terminal homing to 70 km (37.8 n miles); warhead 23 kg.
Gun System
Guns 1 x Oto Melara 76 mm/62 Super Rapid (D 63–65, 68); 120 rds/min to 16 km (8.6 n miles); weight of shell 6 kg or 1 x BAE Systems Mk 45 Mod 4 127 mm/62; 20 rds/min to 23 km (12.4 n miles); weight of shell 32 kg. Additionally there are 4 x AK-630M 30 mm/65; 6 barrels per mounting; 5,000 rds/min combined to 4 km.
Radar Systems
Air Search Radar 1 x BEL RAWL-02 Mk 3 (LW08); D-band.
Air/Surface Search Radar 1 x ELTA EL/M-2248 MF-STAR; 3D; E/F-band.
Surface Search Radar 1 x Terma SCANTER 6002; I-band.
Surface Search/Fire Control Radar 1 x BEL APARNA (3Ts-25E Garpun B [Plank Shave]) (for SSM); I-band
Fire Control Radar 1 x BEL Lynx; I-band (for gun).
Navigation Radar 1 x Sperry Marine; E/F-band. 2 x Sperry Marine; I-band.
Sonar
Note 1 x BEL HUMSA-NG; bow-mounted; medium frequency. 1 x Atlas Elektronik ACTAS; low frequency active towed array.
Aviation
Helicopters 2 x Sea King Mk 42B
Hangar Dual Enclosed hangar
Protection
Hull INA
Physical Countermeasures 4 x Kavach decoy launchers; Mareech torpedo decoy.
Electronic Countermeasures 1 x Ellora EW suite. 1 x Shakti EW suite.
NBC Water Washdown System Yes
Source Images
Note https://www.facebook.com/people/The-Navy-Blog/100063488659520/?locale=lv_LV; https://defencehub.live/threads/india-deploys-three-destroyers-to-the-arabian-sea-following-attack-on-merchant-vessel.18800/; https://en.wikipedia.org/wiki/Kolkata-class_destroyer
Details
Country of Origin India
Category Naval
Naval
Filter Label
K
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
163 m
Width
17.4 m
Height
—
Weight
7400000 kg
Operators (1)
India
