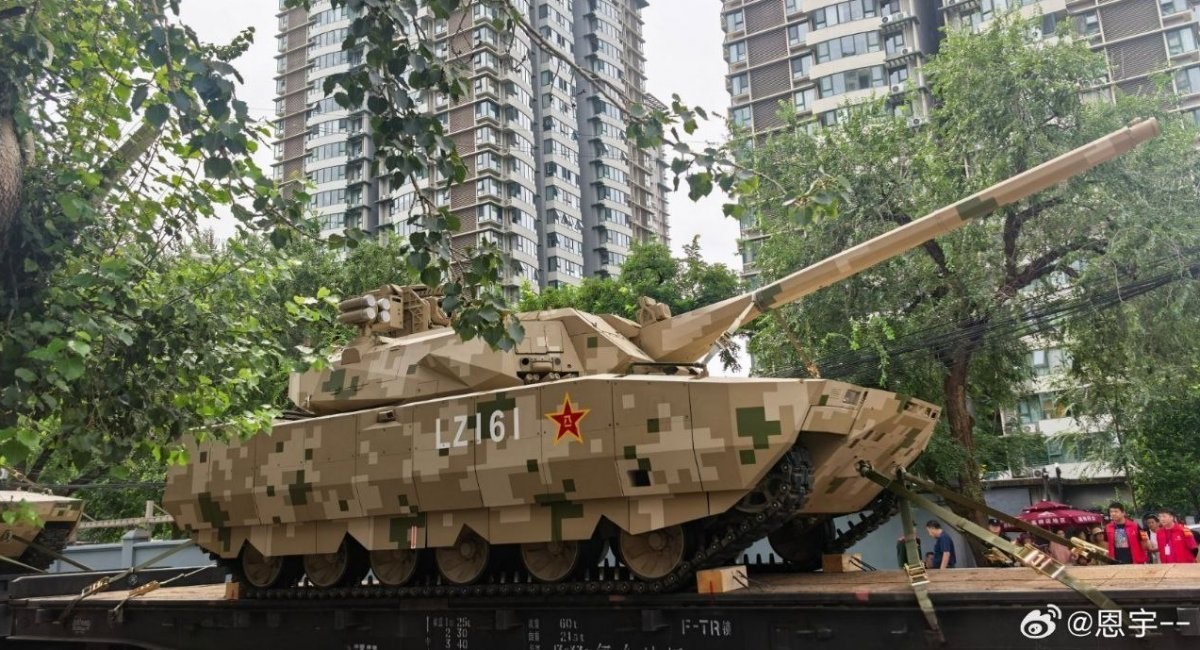

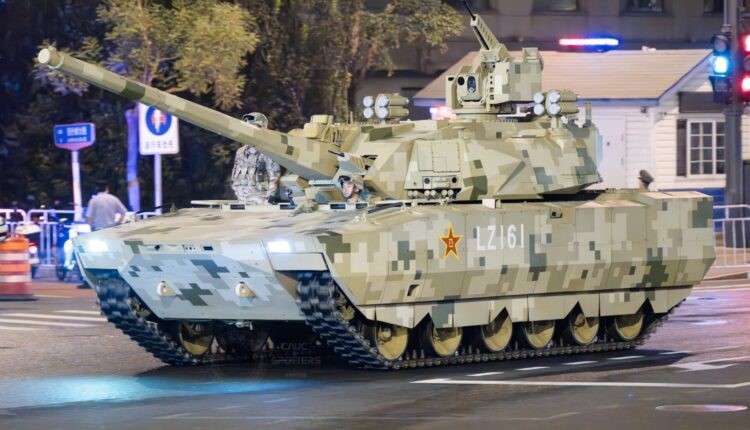

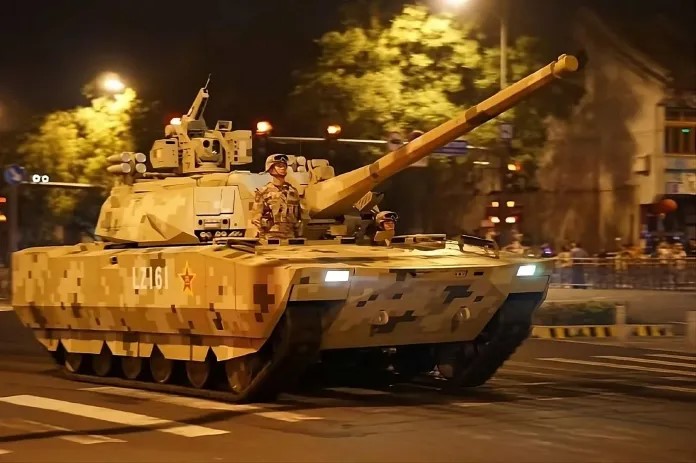

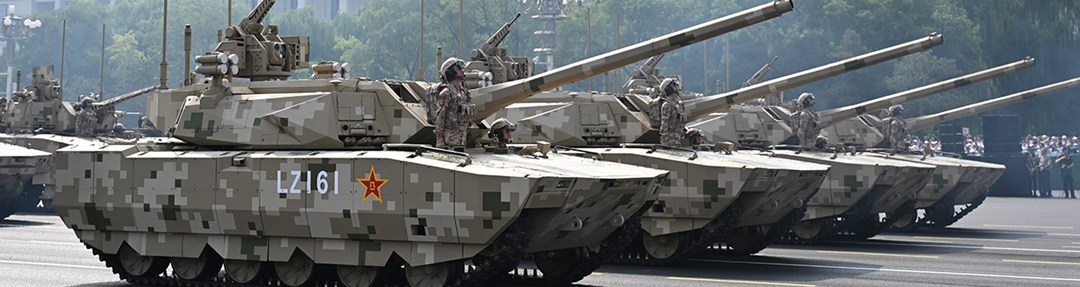

ZTZ-100 (Type 100) Chinese Medium Tank
ZTZ-100
Medium Tank
Other
Basic Information
Name
ZTZ-100 (Type 100) Chinese Medium Tank
Designation
ZTZ-100
Alternate Designation
ZTZ-100; Type 100; ZTZ-201; ZTZ-20
Equipment Type
Medium Tank
Manufacturer
NORINCO
Date of Introduction
2025
Description
The ZTZ-100 (Type 100) Chinese Medium Tank may indicate a strategic shift towards lighter and more versatile designs within the People’s Liberation Army Ground Force (PLAGF). Its introduction is seen as a response to the need for incorporating new technologies, learning from recent conflicts, and potentially consolidating several existing tank categories into a single platform. The design of this tank is intended to facilitate flexible deployment across various regions. Its weight class allows it to operate effectively in high-altitude areas, such as the Himalayas, where heavier tanks encounter logistical challenges. Additionally, this tank is better suited for amphibious operations, which could include potential scenarios involving Taiwan. Reports indicate that its dimensions and weight make it more easily transportable by Y-20 aircraft or landing ships compared to heavier tanks like the Type.
Ground Specifications
Crew
3
Main Weapon
105 mm smoothbore cannon
Engine
Diesel-Electric Hybrid (1500 hp)
Active Protection
Yes
Max Speed
84.5 km/h
System
Alternative Designation
ZTZ-100; Type 100; ZTZ-201; ZTZ-20
Type
Medium Tank
Manufacturer
Norinco
Crew
The crew configuration is believed to comprise three operators situated within an armored capsule at the front of the hull, accompanied by an unmanned turret mounted above. This design, akin to that of the Russian T-14 Armata, effectively separates the crew from the ammunition while providing a reduced profile that may enhance operational survivability. The crew is reported to utilize augmented reality headsets, potentially in the form of helmet-mounted displays, to achieve comprehensive situational awareness without the necessity of a direct line of sight.
Note
Recent reports indicate that quad-aspect radar, along with at least 13 optical-lidar sensors, are integrated into the hull and turret, offering 360-degree coverage for both navigation and targeting. While these features demonstrate a significant level of digitization, the exact degree of their operational maturity is still uncertain.
Dimensions
Length
INA
Barrel Length
INA
Width
INA
Height
INA
Weight, Combat
35-40 tons
Automotive
Engine Name
INA
Engine Type
hybrid diesel-electric powertrain
Engine Power
1,500 hp
Maximum Road Speed
84–85 km/h
Maximum Off-Road Speed
40–60 km/h
Maximum Range
INA
Note
The hybrid arrangement allows for silent movement in electric mode, reducing both acoustic and thermal signatures, a feature designed to improve stealth in reconnaissance or ambush scenarios.
Main Weapon System
Note
The primary armament of ZTZ-100 is reported to be a next-generation 105 mm smoothbore cannon, engineered to fire advanced ammunition capable of achieving muzzle velocities of approximately 1,706 meters per second. This capability is comparable to that of NATO-standard 120 mm and Russian 125 mm systems, despite the smaller caliber of the 105 mm. Several sources from China have indicated the potential for a modular design that may accommodate a 125 mm variant, thereby providing adaptability to meet diverse operational requirements or export demands.
The vehicle appears to be equipped with a remote-controlled weapon station designed to counter aerial threats, including drones and the increasingly prevalent small first-person view (FPV) systems commonly used in contemporary conflicts. Reports suggest that the gun system incorporates advanced thermal shrouds and autoloading mechanisms, which, in conjunction with the unmanned turret, could significantly reduce crew workload and enhance operational efficiency.
Protection
Hull Armor
The ZTZ-100 prioritizes active defenses over passive armor thickness for protective purposes. Current reports indicate the presence of a medium-sized hard-kill Active Protection System (APS) that features four radar panels positioned at the corners of the turret and two launchers mounted on the turret roof, thereby providing comprehensive 360-degree coverage and the capability to address top-attack threats.
The vehicle's modular armor units and side grilles are believed to be interchangeable, allowing for adaptation to various operational environments. Moreover, electronic warfare systems have been noted as part of the vehicle's defensive suite. This design approach acknowledges the escalating challenges of defending against drones, precision-guided munitions, and anti-tank missiles, as demonstrated in the conflict in Ukraine, where reliance on heavy armor alone has proven inadequate. Nonetheless, in the absence of official specifications, the precise configuration of the balance between passive protection and active systems remains unclear at this time.
Applique Armor
Available
Explosive Reactive Armor
INA
Active Protection System
Yes
NBC Protection
INA
Smoke Equipment
Smaller launch tubes observed on the vehicle may function either as smoke grenade launchers or countermeasure systems, although the specific roles of these components remain a subject of debate among analysts.
Image Sources
Notes
https://defencesecurityasia.com/en/china-ztz201-medium-tank-hybrid-ai-drone-killer/; https://armyrecognition.com/news/army-news/2025/could-chinas-new-ztz-201-medium-tank-challenge-nato-and-russias-most-advanced-tanks; https://forum.warthunder.com/t/ztz-201-aka-new-chinese-mbt/258525; https://defence-blog.com/more-details-emerge-on-chinas-next-gen-tank/; https://www.zona-militar.com/en/2025/08/19/during-the-preparations-for-victory-day-the-chinese-army-unveiled-the-new-ztz-201-medium-tank/; https://en.defence-ua.com/analysis/did_chinas_new_ztz_201_tank_copy_russian_armata_what_sets_it_apart-15515.html
Details
Country of Origin
China
Category
Tanks
Land > Tanks
Filter Label
Z
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
35000 kg
