Type GJW410 Chinese Wheeled Ditch and Trench Digging Machine
Type GJW410
Wheeled Ditch and Trench Digging Machine
Other
Basic Information
Name
Type GJW410 Chinese Wheeled Ditch and Trench Digging Machine
Designation
Type GJW410
Alternate Designation
Type GJW410
Equipment Type
Wheeled Ditch and Trench Digging Machine
Manufacturer
NORINCO
Date of Introduction
1989
Description
The Type GJW410 Chinese Wheeled Ditch and Trench Digging Machine is mainly used in the coastal plains, dig ditches, municipal cables, along the pipe laying excavation work, and the construction of irrigation and water conservancy, and mining area of oil and gas pipelines. As the excavation work, dig a hole, digging ditches (pit), and other functions of soil homework, pottery with a rotating impeller, direction, distance is adjustable. And you can choose different tools, and complete the different mining depths and thicknesses.
Ground Specifications
Crew
2
Mobility Type
Wheeled
Engine
8.3-liter six-cylinder water-cooled diesel (217 hp)
Max Speed
60.0 km/h
System
Alternative Designation
Type GJW410
Type
Wheeled Ditch and Trench Digging Machine
Manufacturer
Norinco
Crew
2 ea
Chassis

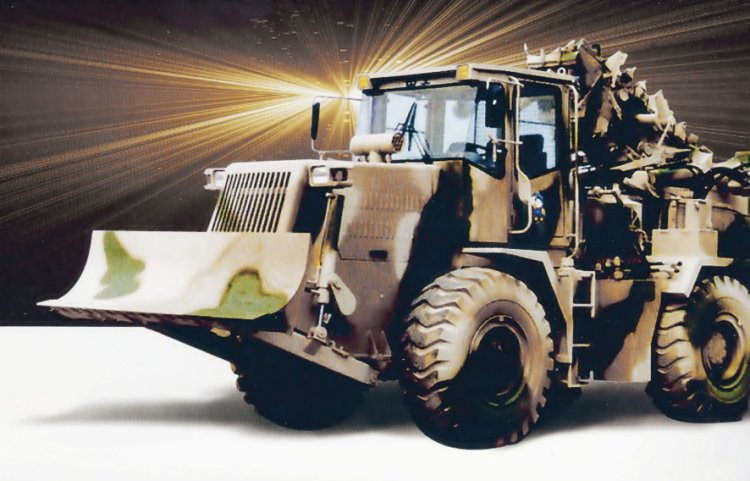

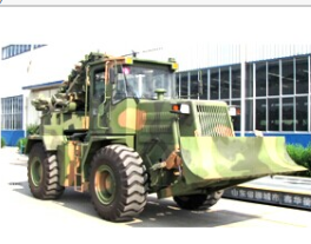

The Type GJW410 wheeled ditch and trench digging machine is based on the chassis of a wheeled loader to which a front-mounted dozer blade and rear-mounted trenching equipment are fitted.
Trench-Digging Equipment
DIgging Assembly

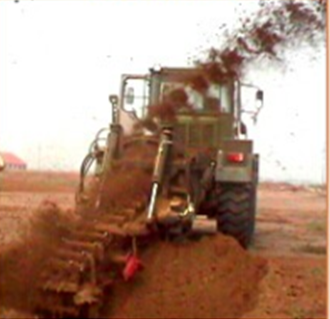

The main digging assembly is located to the rear of the vehicle and consists of a roller chain with digging buckets driven mechanically from the main engine.
Operating Rate
For ditch-digging, the maximum operating rate is 141 m³/h in Class II soil for a ditch of 3.5 m width and 3 m depth, this is achieved by three excavating passes.
Frozen Soil Capable
Yes
Soft Soil Maximum Trench-Digging Speed
180 m per hour
Maximum Digging Depth
1.2 m and the width of the trench can vary from 650 at the bottom to 900 mm at the top.
Dozer Blade
A Hydraulically operated dozer blade fitted to the front of the machine is used to clear brush, scrub, and general debris to prepare the ground for trench digging, but may also be used for earthmoving, grading, and general dozing operations.
Dimensions
Length
INA
Width
INA
Height
INA
Weight
16,500 kg
Automotive
Engine Name
Cummins 6CT8.3-C215
Engine Type
8.3-litre six-cylinder water-cooled diesel
Engine Power
217 hp (162 kW) at 2,200 rpm and 872 Nm torque at 1,500 rpm
Transmission
ZF 6WG181 transmission
Maximum Speed
60 km/h
Range
INA
Tires
20.5–25 with an industrial/earthmoving tread pattern
Main Weapon System
Note
There are no crew-served weapons mounted on the Type GJW410 Chinese Wheeled Ditch and Trench Digging Machine
Protection
Hull Armor
INA
Applique Armor
INA
Mine Clearing
INA
NBC Protection
INA
Smoke Equipment
No
Image Sources
Details
Country of Origin
China
Category
Land
Land
Filter Label
T
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
16500 kg
Operators (2)
Russia
China
