1V111 Russian 6x6 Artillery Command and Reconnaissance Vehicle
1V111
Armored Reconnaissance Vehicle
Spotted an error? Sign in to suggest an edit.
Other
Basic Information
Name
1V111 Russian 6x6 Artillery Command and Reconnaissance Vehicle
Designation
1V111
Alternate Designation
—
Equipment Type
Armored Reconnaissance Vehicle
Manufacturer
—
Date of Introduction
1979
Description

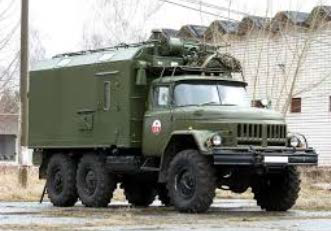

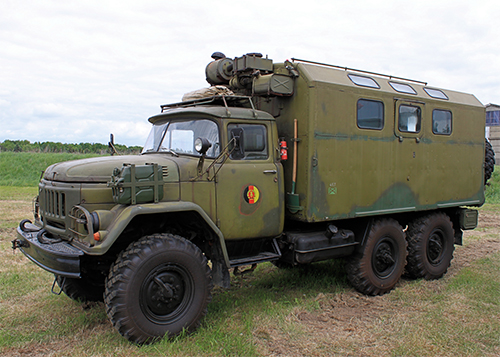

The 1V111 is a battalion-level artillery and rocket fire direction and control vehicle. It is based on the ZIL-131 (6 x 6) BBV truck.
Ground Specifications
Crew
5
Mobility Type
Wheeled (6x6)
Engine
V-8 Gasoline
Max Speed
80.0 km/h
Range
850.0 km
System
Alternative Designations
1V111
Type
Artillery Command and Reconnaissance Vehicle
Chassis
ZIL-131
Configuration
6x6
Crew
5 ea
Dimensions
Length
6.90 m
Height
2.48 m
Width
2.50 m
Weight
6.7 tons
Automotive
Vehicle

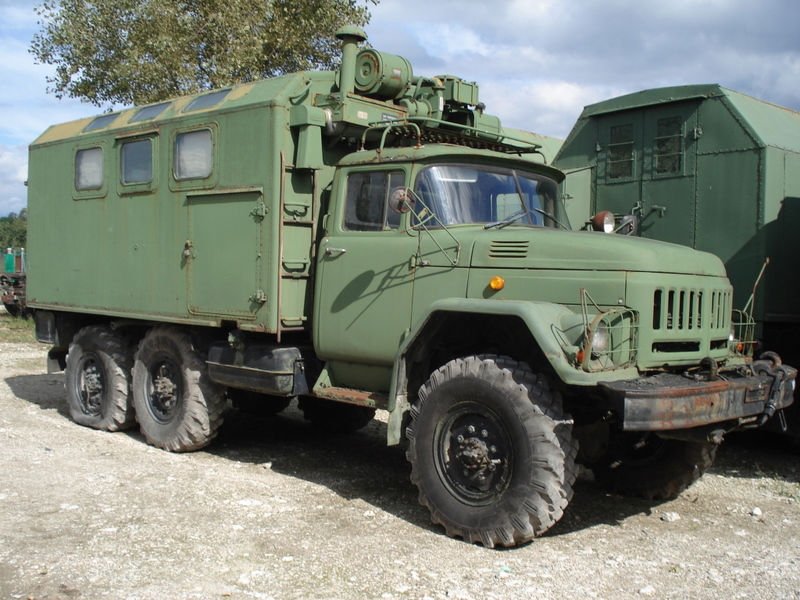

ZIL 131 6x6 box body van
Engine Type
V8 gasoline
Cruising Range (km)
850 km
Max Road Speed (km/h)
80 km/h
Max Off-Road Speed (km/h)
35 km/h
Cross-Country Speed (km/h)
INA
Fording Depth
1.4 m
Communication
Radios
R-111M (1 each), R-123M (2 each) radios; R-130M short-wave radio (1 each), and R-326 receiver (1 each)
Sensors/Components
Fire direction
9V59 fire-control computer
Protection
Note
The ZiL-131 is a light skinned vehicle and provides no protection to the crew
NBC
Shelter may have an overpressure system to provide protection against an NBC attack
Image Sources
Notes
https://www.facebook.com/340860576558041/posts/going-to-be-signing-off-facebook-for-a-bit-if-anyone-fancies-looking-after-this-/404938990150199/; https://commons.wikimedia.org/wiki/File:ZIL_131_mit_Koffer_mechanische_Werkstatt_MSMU-1A.JPG; https://commons.wikimedia.org/wiki/File:Zil131_nva.jpg;
Details
Country of Origin
Russia
Category
Land
Land
Filter Label
1
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
6.9 m
Width
2.5 m
Height
2.48 m
Weight
6700 kg
