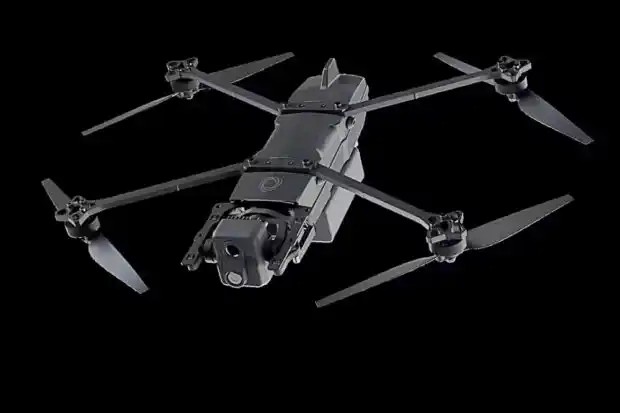

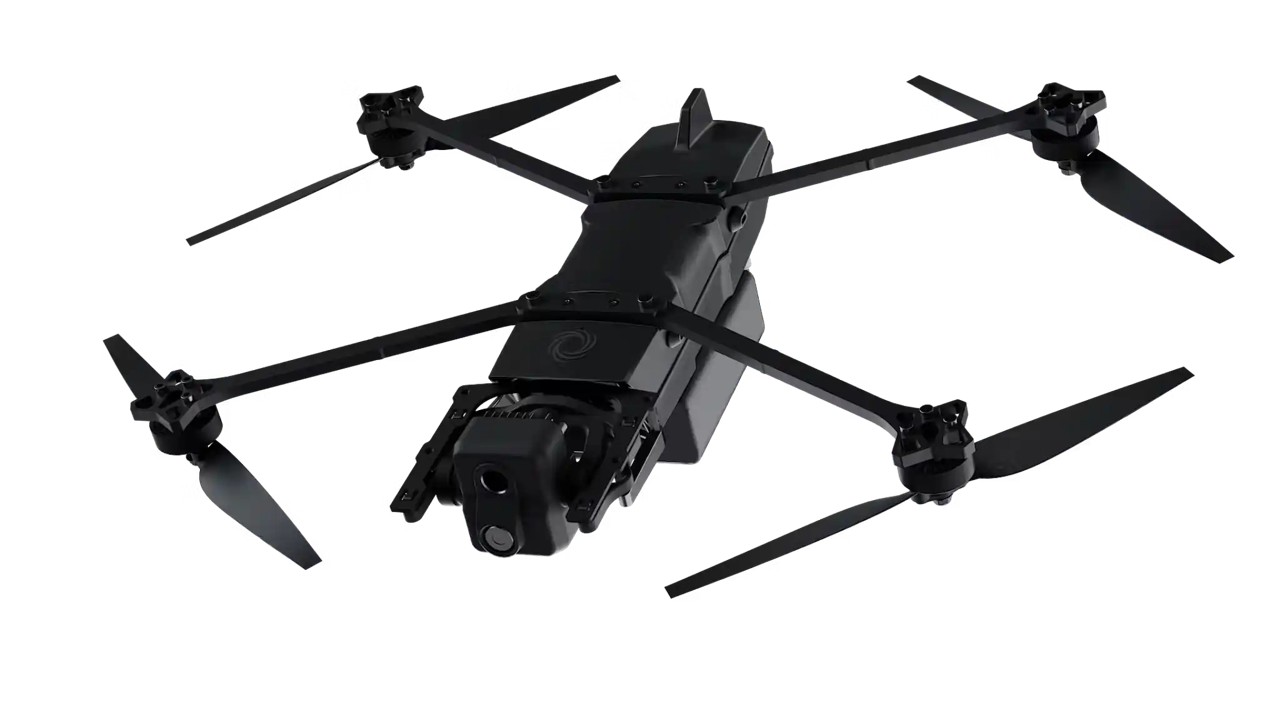

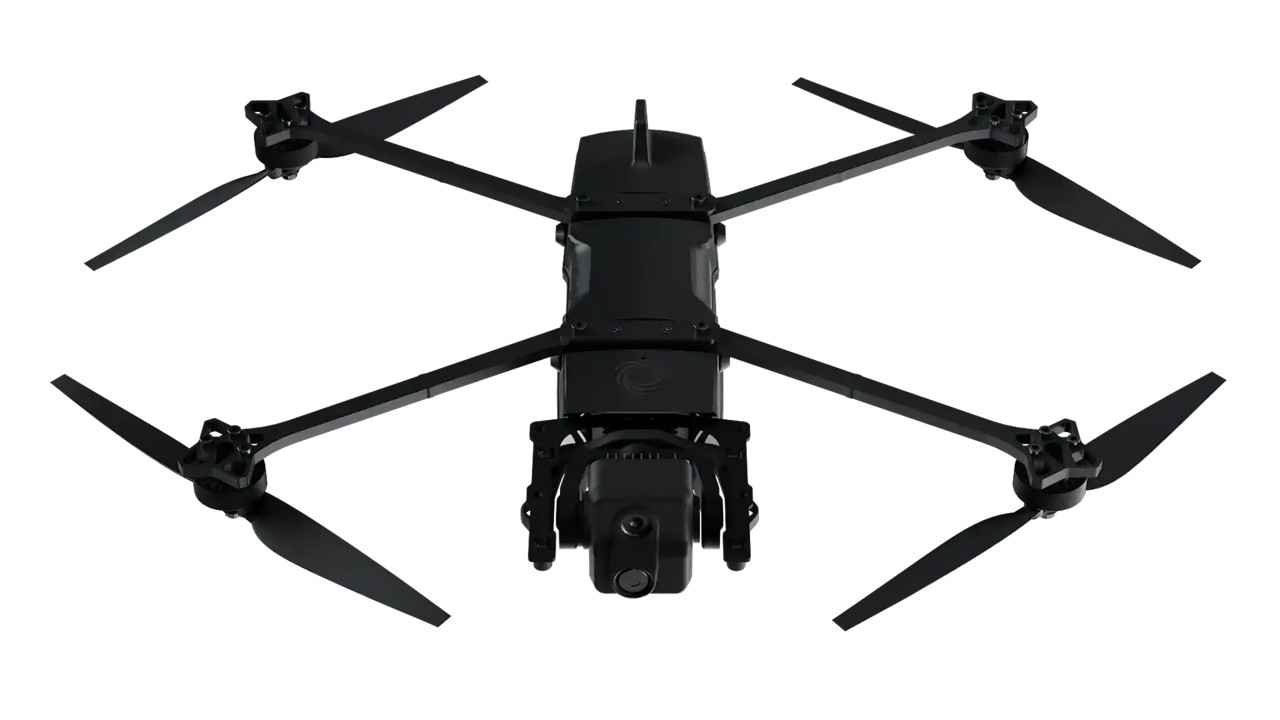

SONORA French Unmanned Aerial Vehicle (UAV)

SONORA

Tactical Unmanned Aerial Vehicle (UAV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
SONORA French Unmanned Aerial Vehicle (UAV)
Designation
SONORA
Alternate Designation
SONORA
Equipment Type
Tactical Unmanned Aerial Vehicle (UAV)
Manufacturer
Harmattan AI
Date of Introduction
2024
Description

The SONORA French Unmanned Aerial Vehicle (UAV) is equipped with advanced electro-optical (EO) and infrared (IR) sensors, which provide clear and actionable intelligence that enhances mission effectiveness during both day and night training operations. The UAV's fully modular architecture facilitates the replacement or repair of components, thereby extending its operational lifespan. This design minimizes downtime, simplifies maintenance, and ensures long-term value in demanding training environments. Additionally, the SONORA UAV is designed for ease of use and requires minimal training, enabling operators to focus on mission objectives rather than navigating complex controls. Engineered for frequent deployment, the SONORA delivers reliable intelligence, surveillance, and reconnaissance (ISR) capabilities at a significantly lower cost compared to conventional UAVs, making it particularly well-suited for large-scale exercises and iterative training initiatives.

Air & Air Defense Specifications
Engine Battery
Range 5.0 km
Endurance 40.00 hrs
System
Alternate Designation SONORA
Type Unmanned Aerial Vehicle (UAV)
Manufacturer Harmattan AI
Payload Capacity INA
EO Camera EO camera Low Light sensor; ZoomX6 including X3 lossless; End-User Resolution 1280 x 720 pixels; Frame Rate 30 fp.
IR Camera End-User Resolution 320 x 240; Frame Rate 30 fps.
Stabilization 2 axis mechanical stabilization
Dimensions
Length 35 cm
Width 42 cm
Height 11 cm
Maximum Takeoff Weight 1.8 kg
Automotive
Engine Name INA
Engine Type Battery
Engine Power INA
Maximum Speed INA
Maximum Range 5 km
Service Ceiling INA
Endurance 40 min
Details
Country of Origin France
Category Very Low-Cost, Close-Range UAVs (Less than 5 km Range)
Air > Very Low-Cost, Close-Range UAVs (Less than 5 km Range)
Filter Label
S
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
0.35 m
Width
0.42 m
Height
0.11 m
Weight
1.8 kg
Operators (1)
France
