RG-31

RG-31

Tactical Vehicles
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
RG-31
Designation
RG-31
Alternate Designation
MRAP Category II, Nyala, RG-31 MK3, RG-31 Mk5, RG-31 Mk5E (MRAP Category II version), RG-31 Mk6E, RG-31A1 (US Army variant), RG-31A2 (USMC RG-31 Mk5E), RG-31M
Equipment Type
Tactical Vehicles
Manufacturer
Denel Vehicle Systems, General Dynamics Land Systems-Canada
Date of Introduction
1996
Description

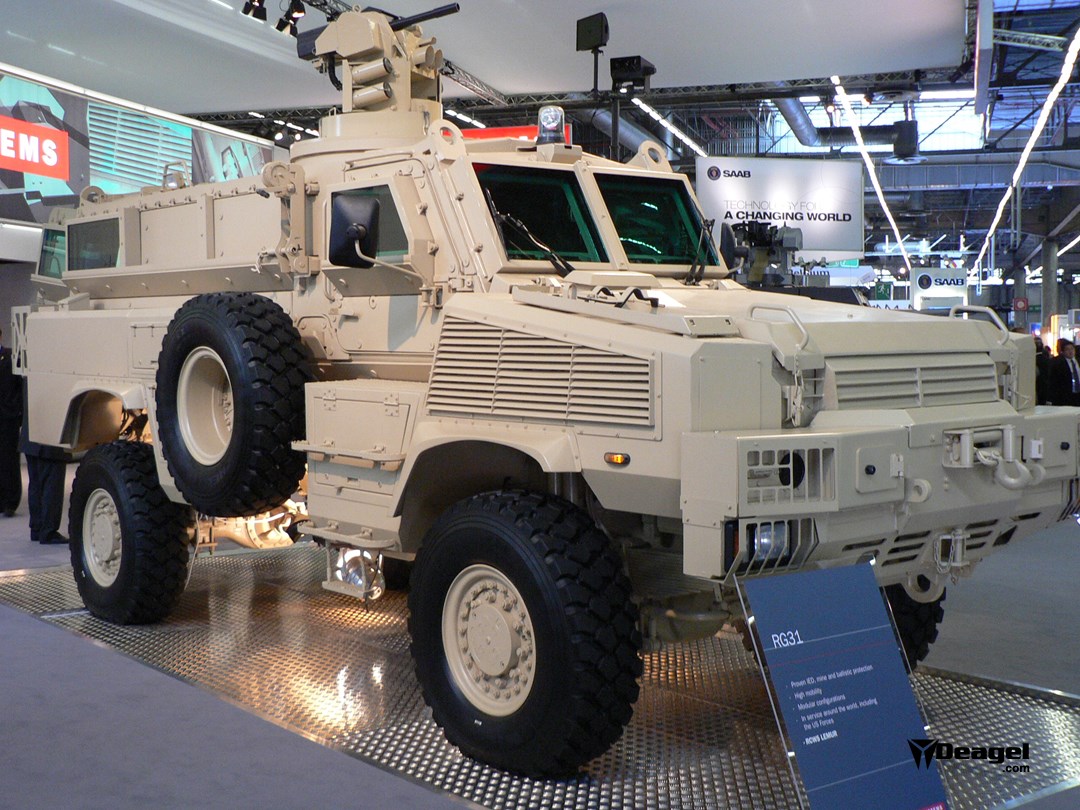

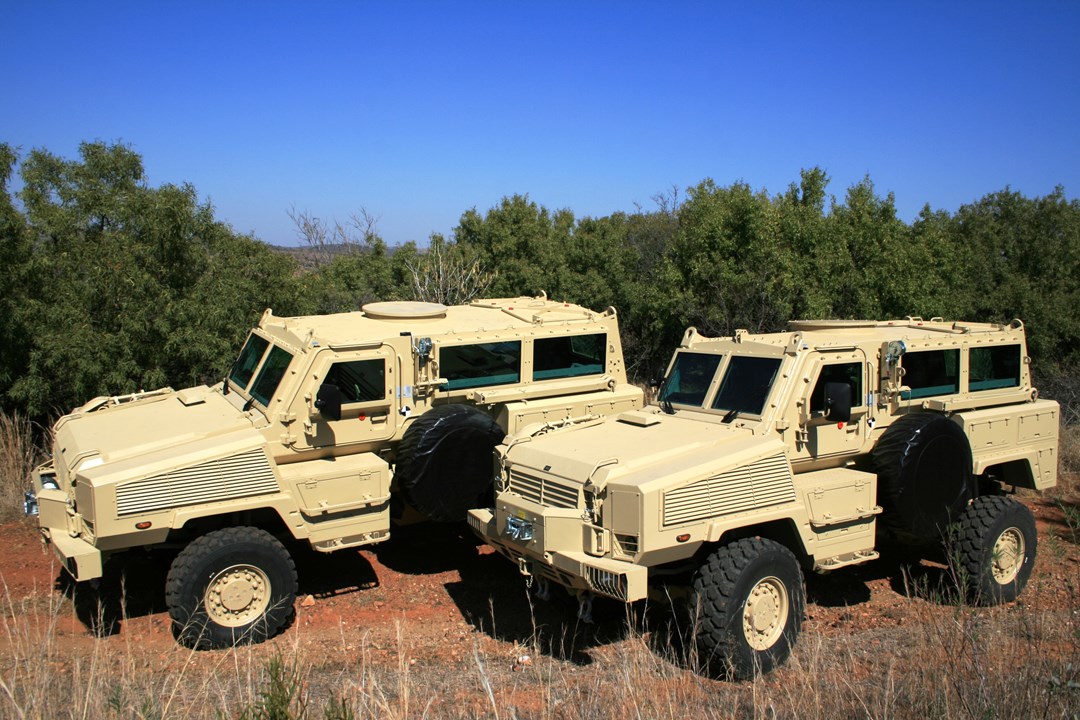

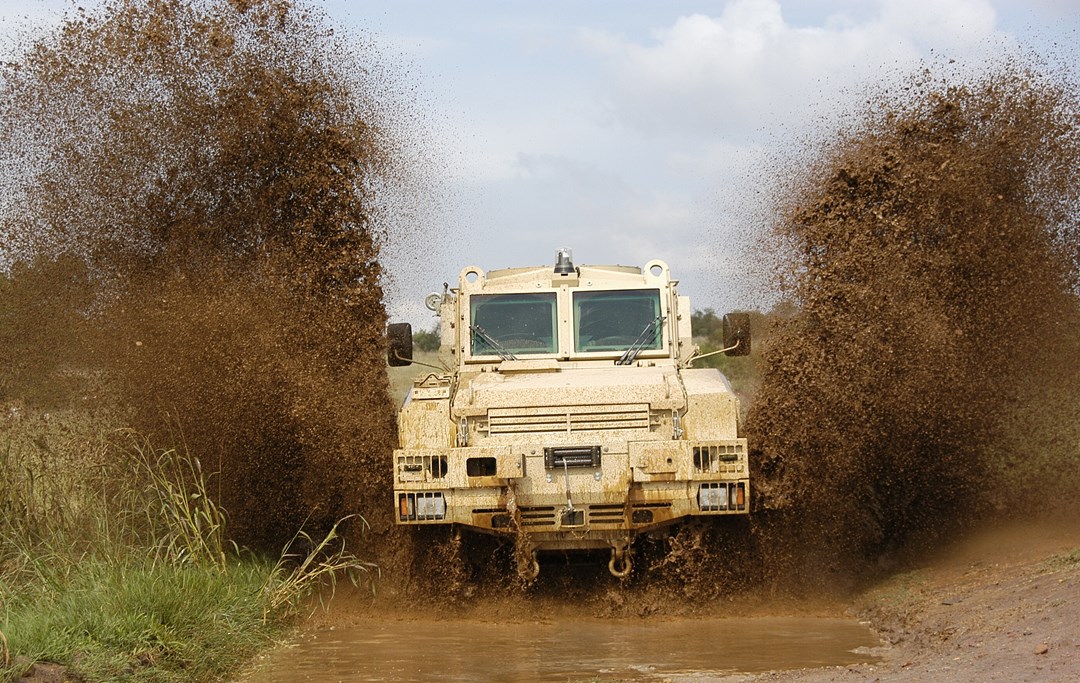

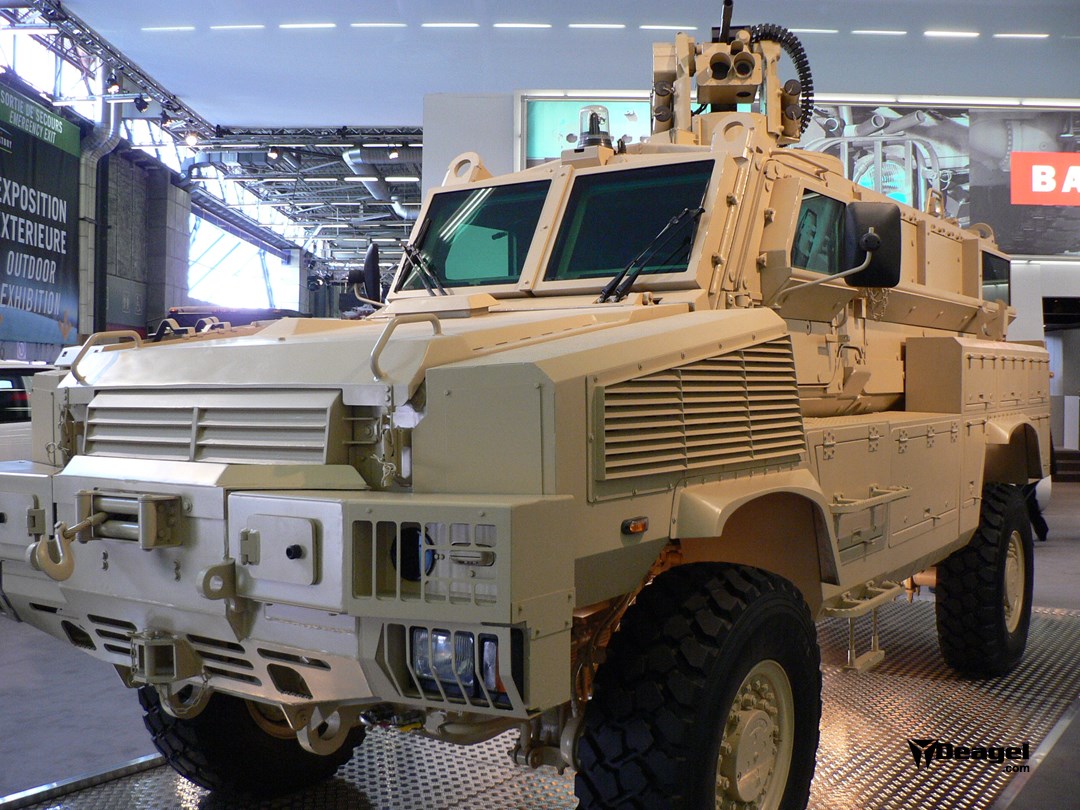

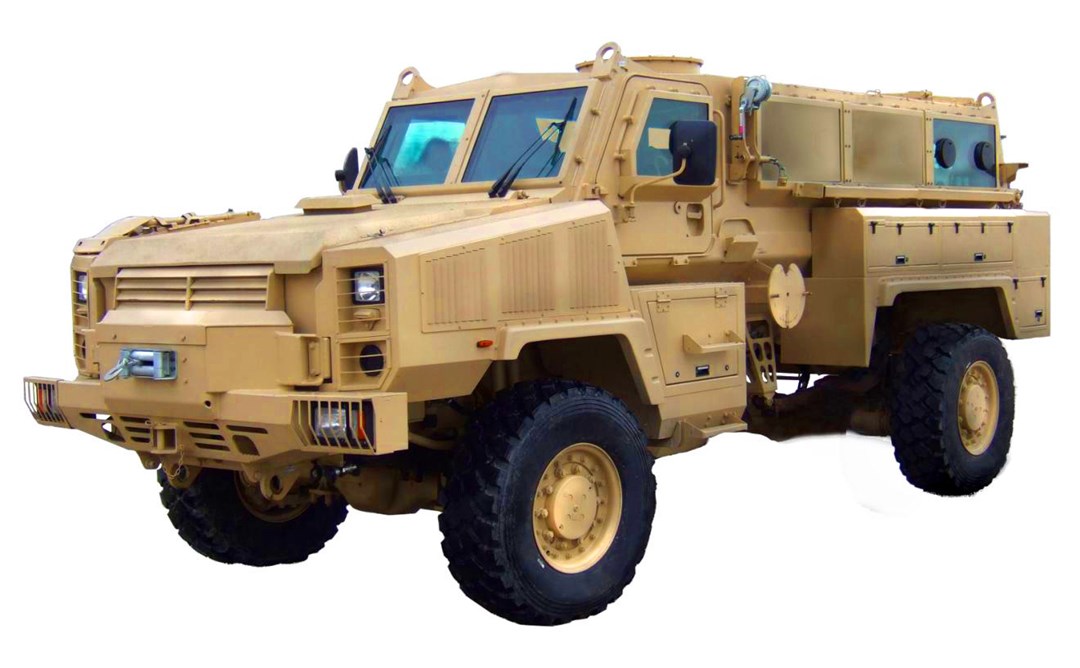

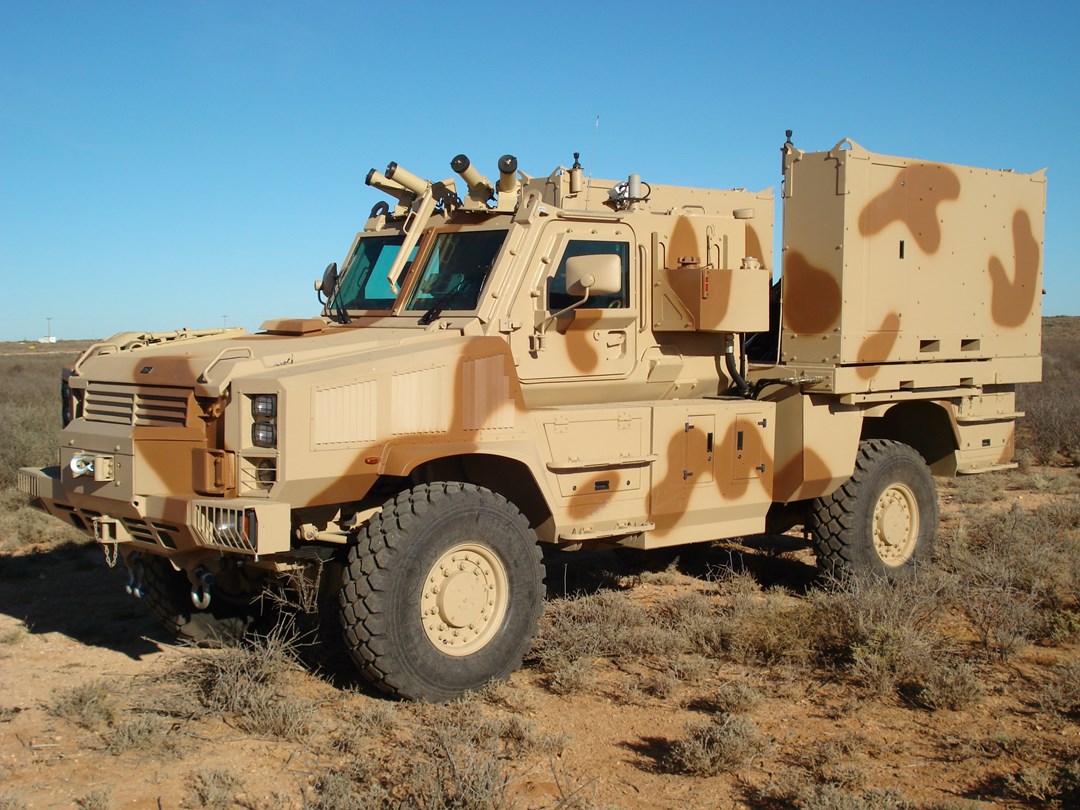

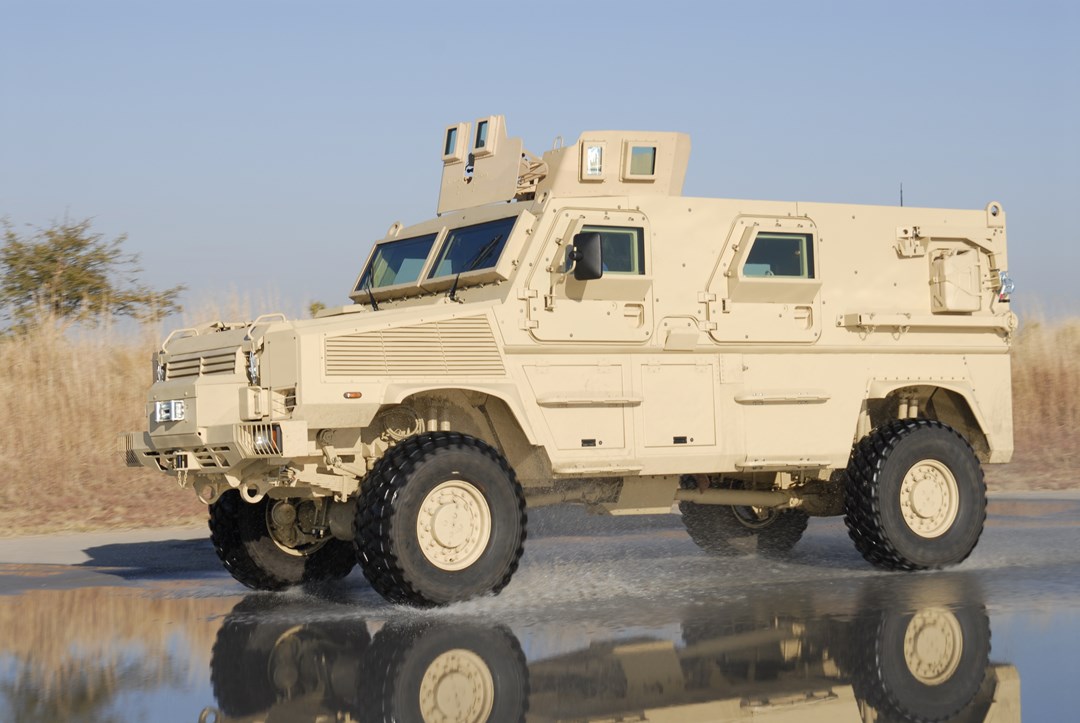

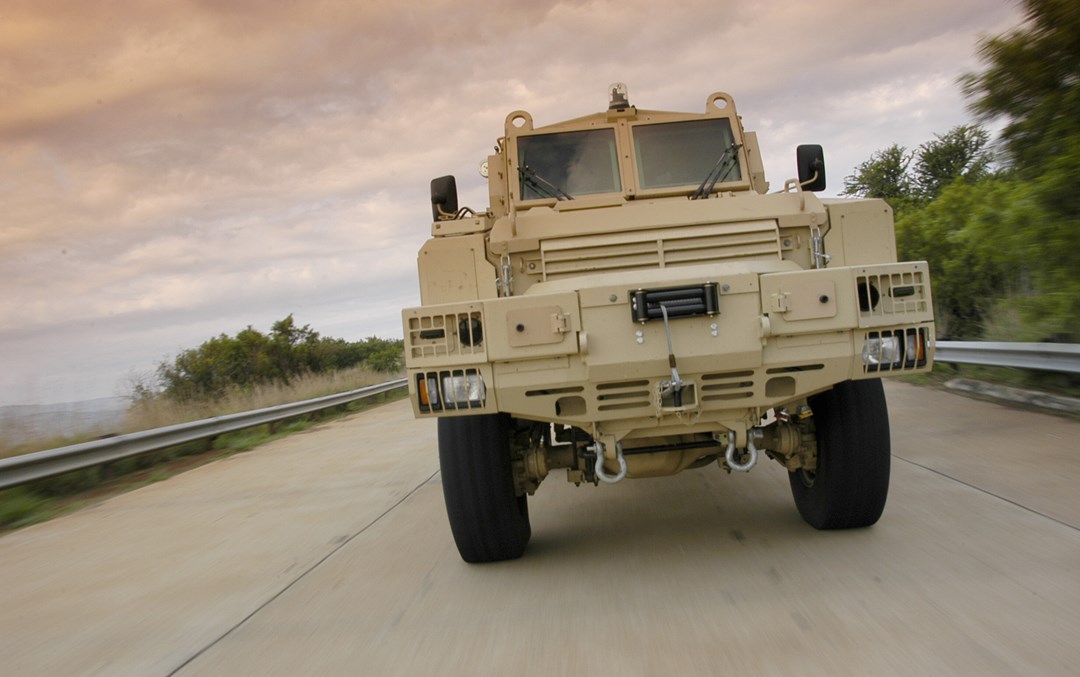

The BAE Systems Land Systems South Africa RG-31 Nyala is a 4x4 mine-protected, all-terrain armored personnel carrier capable of carrying nine passengers in addition to the driver. Besides, it can transport a 3,500 kg payload and has maximum combat mass of 17,000 kg. Its all-steel, welded armor, monocoque hull has been designed specifically to withstand ballistic impacts from small arms fire and anti-tank mine detonations. Its standard equipment includes air-conditioned. Additional equipment can be provided to meet a wide range of mission requirements including weapon stations such as Protector (US Army and US Marine Corps) and RCWS. RG-31 can assume a wide spectrum of roles such as APC (Armored Personnel Carrier), command vehicle, ambulance and surveillance vehicle. It has been widely used during peacekeeping missions all over the world. Alvis, now BAE Land Systems OMC, introduced the RG-31 mine protected vehicle with high on- and off-road mobility in the mid-1990s. More than 2,200 vehicles have been ordered so far from at least 14 customers worldwide. The United States Army and Marine Corps have become the largest operators of RG31 vehicles under the Mine Resistant Ambush Protected (MRAP) program launched in support of the Global War in Terror and the military campaigns in Iraq and Afghanistan. Production for the United States military is being carried out in partnership between BAE Systems and General Dynamics in locations in Canada and South Africa. In addition to the United States, Canada and Spain also purchased the RG-31 to support their NATO commitments in Afghanistan. The RG-31 Mk5 remains the standard production model as of August 2008. In September 2008 Land Systems OMC launched the Mk6E variant featuring anti-mine seats.

Ground Specifications
Crew 1
Troop Capacity 9
Mobility Type Wheeled (4x4)
Overview (Deagel)
Group Tactical Vehicles
Status Active
Also Known As MRAP Category II, Nyala, RG-31 MK3, RG-31 Mk5, RG-31 Mk5E (MRAP Category II version), RG-31 Mk6E, RG-31A1 (US Army variant), RG-31A2 (USMC RG-31 Mk5E), RG-31M
Origin South Africa
Contractors Denel Vehicle Systems*, General Dynamics Land Systems-Canada
Initial Operational Capability (IOC) 1996
Total Production 2,590
Unitary Cost USD $372,000
Specifications (Deagel)
Crew 1
Troops 9
Wheel Drive 4
Wheels 4
Mass — Max Weight 17,000 kilogram
Mass — Operational Weight 11,500 kilogram
Mass — Payload 3,500 kilogram
Gear (Deagel)
Item 1 Weapon Stations: M151 Protector (1)
Item 2 Weapon Stations: RCWS (1)
Details
Country of Origin South Africa
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
Width
Height
Weight
17000 kg
Operators (15)
United States
Italy
South Africa
Spain
Canada
Colombia
Côte d'Ivoire
Eswatini
Georgia
Iraq
Mali
Nigeria
Rwanda
Uganda
United Arab Emirates
