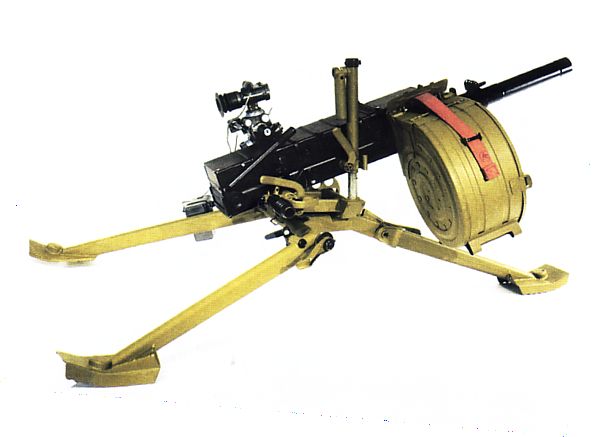

AGS-30 Atlant Russian 30mm Automatic Grenade Launcher

AGS-30

Spotted an error? Sign in to suggest an edit.
Basic Information
Name
AGS-30 Atlant Russian 30mm Automatic Grenade Launcher
Designation
AGS-30
Alternate Designation
Equipment Type
Manufacturer
Date of Introduction
1995
Description

The AGS-30 Atlant is a Russian-designed automatic grenade launcher currently in production in the Russian Federation and in service with the Russian armed forces. Designed on the basis of AGS-17, the AGS-30 provides better mobility, longer range and better accuracy during firing. Significantly lighter than its previous version but far more advanced and powerful, the AGS-30 weighs 30 kg loaded, meaning it can be carried by one person. Using a specially designed GPD-30 grenade, recently put into serial production, the AGS-30 can engage targets at 2100 m. Recoil is lessened with a much smoother grenade ejection mechanism. An adjustable SAG-30 tripod mount (GRAU index 6P17) is also included. After the dissolution of the USSR, Russia found itself in a difficult position in the First Chechen war. After the success of the AGS-17 in Afghanistan, the KBP Instrument Design Bureau immediately began work on the new grenade launcher. The Russian army needed a weapon that could easily flush militants out of their fortified building hideouts, leveling them in seconds. The new design proved to be reliable and lethal. Another improvement to the weapon is its ability to stay undetectable by the enemy—reduced sound when firing, reduced flash and the lightning speed of the grenade make the AGS-30 very hard to detect. It can be operated from almost everywhere—from attaching it to a window, to mud and grassy surfaces. Officially adopted in 2002. Adopted by the Russian Interior Ministry Troops.

Variants
AG-30M Vehicle mounted version with electric trigger mechanism.
System
System
Name AGS-30 Atlant
Type Automatic Grenade Launcher
Caliber 30 mm
Manufacturer ZID
In Service 1995-Present
Length 1,165 mm
Weight, Unloaded 16 kg
Action Blowback
Rate of Fire 400 round/min
Muzzle Velocity 185 m/s
Effective Firing Range 2,100 m
Feed System 29 grenades belt
Sights Adjustable telescopic sight, day-night sight, mechanical sight, portable radar
Note Main service grenade launcher in the Russian Armed Forces. Completely replaced complex AGS-17
Ammunition
Name VOG-17M
Type HE
Caliber 30 mm
Armor Penetration INA
Available Ammunition Options VOG-17M (HE) IO-30 (HE) IO-30TP (Practice) VOG-30 (HE) VOG-30D (HE) VUS-30 (Smoke) GPD-30 (HE)
Basic Load 200 Rounds
Details
Country of Origin Russia
Category Land
Land
Filter Label
A
Classification
Domain
Ground
Equipment Status
Active
Operators (11)
Russia
Ukraine
India
North Korea
Algeria
Azerbaijan
Laos
Namibia
North Macedonia
Saudi Arabia
Syria
