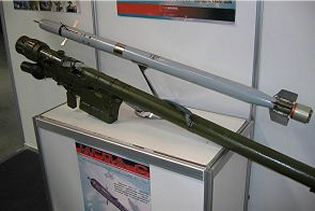

9K388 Igla-S (SA-24 Grinch) Russian Man-Portable Air-Defense Missile

Igla-S

Man-Portable Air Defense System (MANPADS)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
9K388 Igla-S (SA-24 Grinch) Russian Man-Portable Air-Defense Missile
Designation
Igla-S
Alternate Designation
Igla-S; NATO: SA-24 Grinch
Equipment Type
Man-Portable Air Defense System (MANPADS)
Manufacturer
KB Mashinostroyeniya - Developer of the system
Date of Introduction
2004

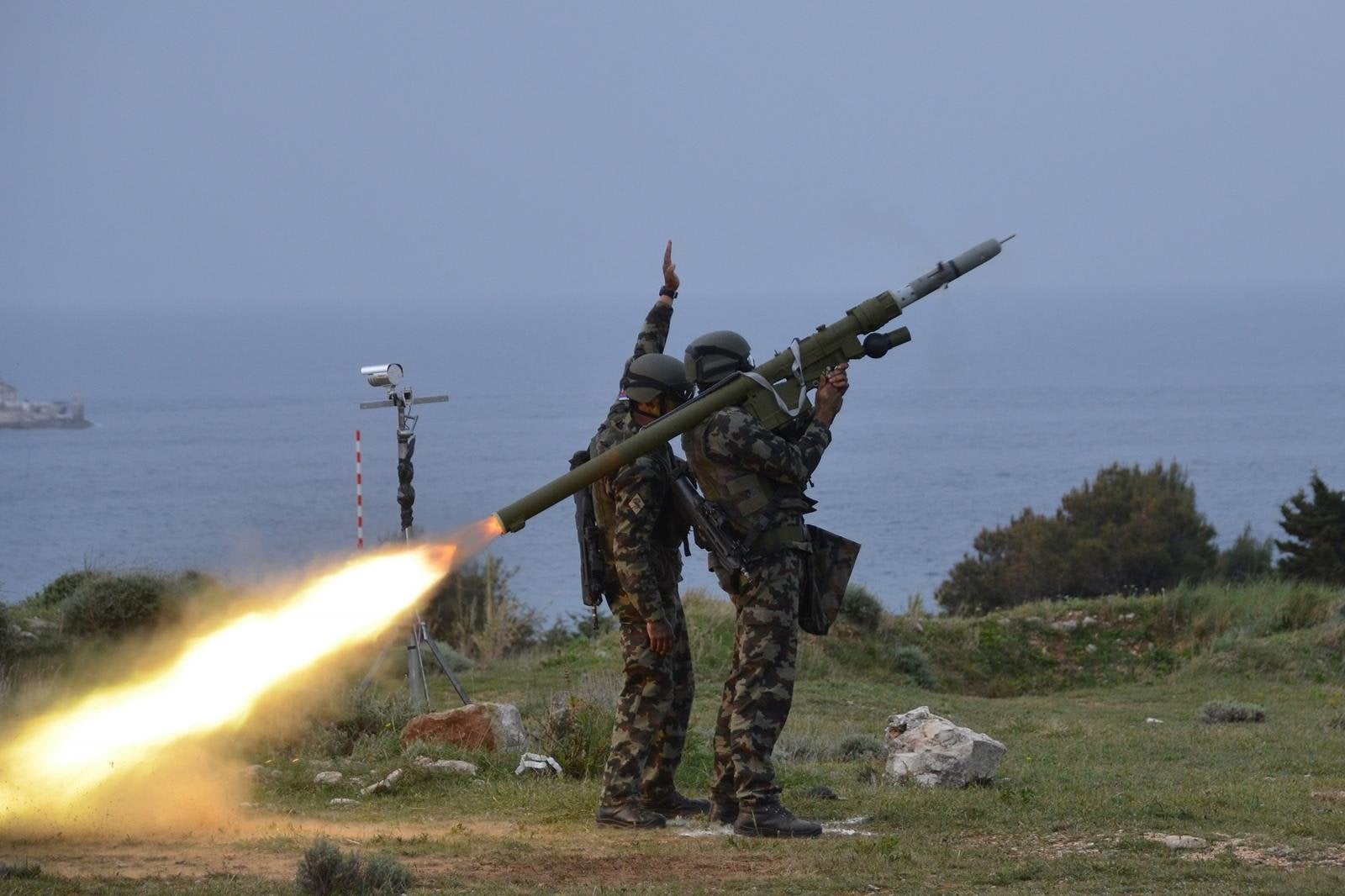

Description

The Igla man-portable air-defense systems (MANPADS) are one of the best-selling arms. This system belongs to the second-generation MANPADS meeting the most stringent requirements to combat effectiveness in a harsh jamming environment. In 2004 the Russian army adopted the new MANPADS - Igla-S (sometimes called "Igla-Super") which is much more sophisticated and efficient in countering air threats. Serial production of the "Igla-S" ("Needle-S") portable antiaircraft missile complex (PAAMC) is conducted at the Degtyarev factory in the city of Kovrov. This newest PAAMC was awarded the State premium. The "Igla-S" PAAMC by its capabilities is significantly superior to the "Igla" PAAMC, which entered service in 1983. The "Igla-S" tactical and technical characteristics enable it to destroy targets at altitudes up to 5-7 km. The limiting altitude of effective target destruction for the "Igla-S" complex is 3.5 km, according to Deputy Director-General of the enterprise Vasily Russu. According to him, foreign customers also display serious interest in the "Igla-S" PAAMC.

Air & Air Defense Specifications
Crew 1
Max Speed 1980.0 km/h
Range 6.0 km
Variants
Igla-1E Export version.
Igla-1M Improved version of 9K38 Igla. Entered service in Soviet Military during the late 1980s.
Igla-1D Igla-1D.
Igla-1V Air-launched version, mainly for combat helicopters.
Igla-1N A version with heavier warhead at the cost of a slight reduction in range and speed.
Igla-1A Export version.
Strelets Igla-S / Igla The Strelets is designed for remote automated firing of the Igla and Igla-S surface-to-air missile by single shot, ripple or in salvo. In service with Syria
3M-47 Gibka A turret for ships that is equipped with Igla missiles.
Komar Another turret for ships that is equipped with Igla missiles.
System
Alternative Designation Igla-S; NATO: SA-24 Grinch
Type Man-Portable Air-Defense Missile System (MANPADS)
Manufacturer KB Mashinostroyeniya – Developer of the system
Family 9K38 Igla
Type of Targets Tactical aircraft, helicopter, UAV and cruise missile
Crew 1 ea
Igla-S Package The Igla-s (SA-24 Grinch) System includes: Combat equipment including the 9M342 missile and the 9P522 launching mechanism - Maintenance equipment, including the 9V866-2 mobile test station and the 9F719-2 test set - Training facilities - Night firing devices
Reaction Time 5-10 Seconds
Dimensions
Length, Missile 1.574 m
Diameter, Missile 72 mm
Height INA
Weight, Combat See Missile Information
Missile System

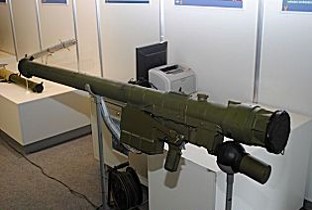

Missile Launcher
Name 9P522 launching mechanism
Type Portable Air-Defense Missile System (MANPADS)

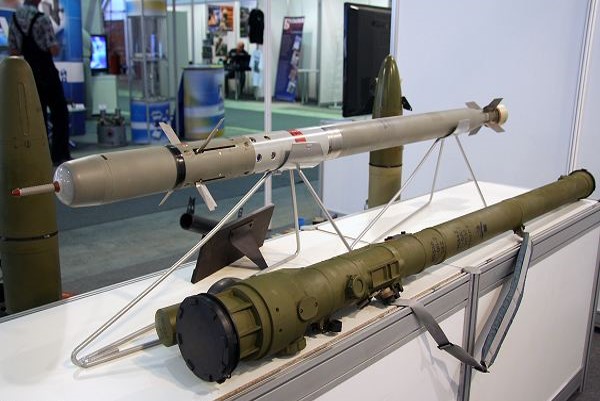

Missile
Name 9M342 missile
Type Portable Air-Defense Missile System (MANPADS)
Length 1.635 m
Diameter 72 mm
Weight, Full System 19 kg
Weight, Missile 11.7 kg
Weight, Warhead 2.5 kg
Warhead Type Directed-energy blast fragmentation
Fuze Type Delayed impact, magnetic and grazing
Target Engagement 6 km
Speed 570 m/s
Maximum Effective Range 6,000 m
Maximum Target Speed, Receding 400 m/s
Maximum Target Speed, Approaching 320 m/s
Seeker Head Type INA
Seeker Scanning FM-modulated
Maximum Altitude 3,500 m
Minimum Altitude 10 m
Guidance System Passive IR homing device and night vision (operating in the medium IR range)
Details
Country of Origin Russia
Category Man-Portable Air-Defense Systems (MANPADS)
Land > Air Defense > Man-Portable Air-Defense Systems (MANPADS)
Filter Label
9
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
Width
0.07 m
Height
Weight
19 kg
Operators (10)
Russia
Brazil
Armenia
Azerbaijan
Libya
Slovenia
Syria
Thailand
Venezuela
Vietnam
