Shrek Ukrainian 4x4 Mine Resistant Ambush Protected (MRAP)

Shrek

Mine-Resistant Ambush Protected (MRAP)

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

Shrek Ukrainian 4x4 Mine Resistant Ambush Protected (MRAP)

Designation

Shrek

Alternate Designation

Shrek

Equipment Type

Mine-Resistant Ambush Protected (MRAP)

Manufacturer

AutokrAZ

Date of Introduction

2014

Description

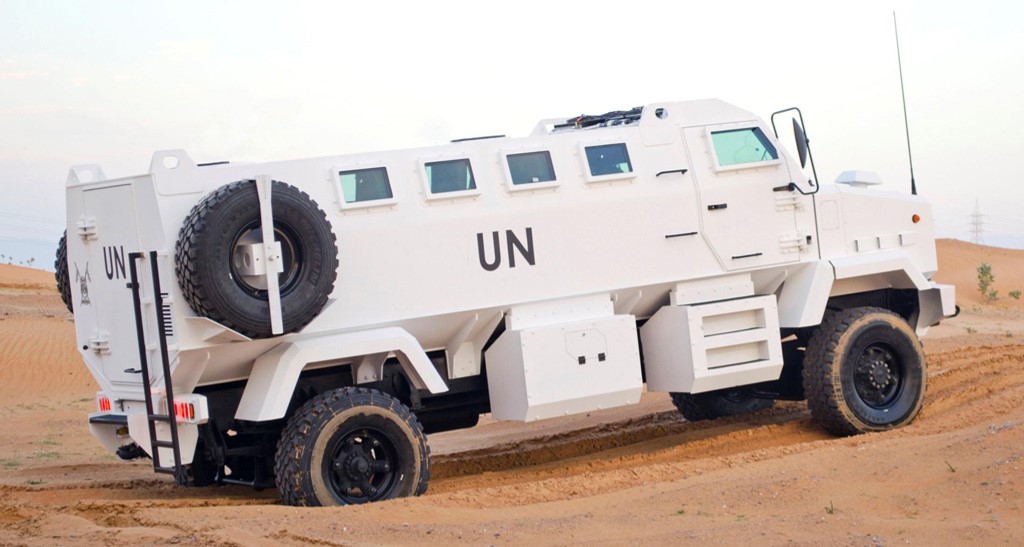

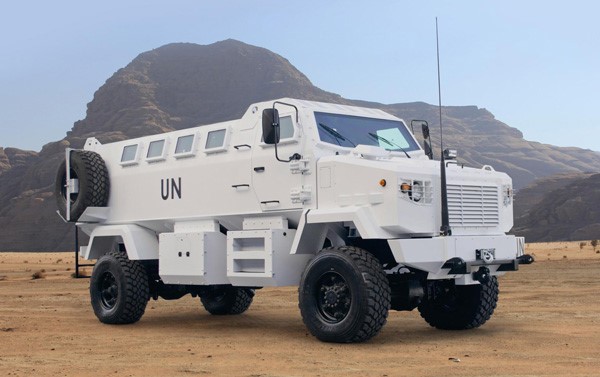

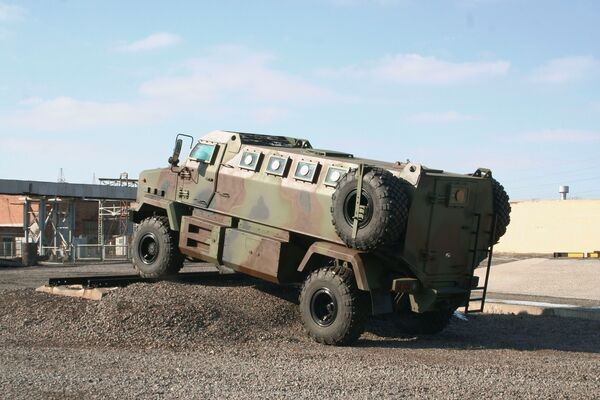

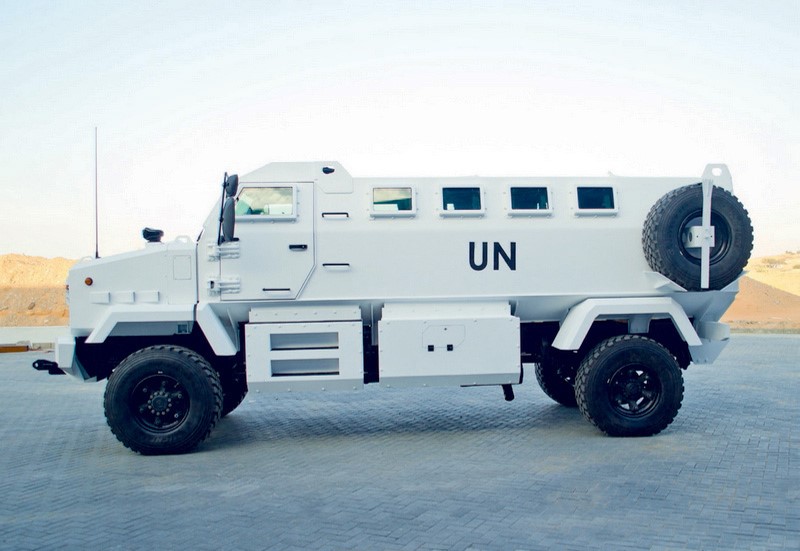

The Shrek Ukrainian 4x4 Mine Resistant Ambush Protected (MRAP) is the base variant of the family. The vehicle primarily functions as troop or logistics transport, but its cabin can be modified to perform as an ambulance. The vehicle is built largely to consumer-defined specifications.

Ground Specifications

Crew 2

Mobility Type Wheeled (4x4)

Engine Diesel (330 hp)

NBC Protection Yes

Max Speed 100.0 km/h

Range 1200.0 km

Variants

Shrek RCV 4x4 EOD. Designed for mine clearance.

Fiona 6x6 APC/Ambulance.

System

Alternative Designation Shrek

Type Mine Resistant Ambush Protected (MRAP)

Manufacturer AutokrAZ

Configuration 4x4

Crew 2 ea

Passenger Capacity 10 ea

Payload Capacity 2,000 kg

Dimensions

Length 8.0 m

Width 2.6 m

Height 3.15 m

Weight, Combat 18,000 kg

Automotive

Engine Name YaMZ-238D

Engine Type Diesel

Engine Power 330 hp

Power-to-Weight Ratio 23 hp/t

Maximum Range 1,200 km

Maximum Speed 100 km/h

Amphibious No

Gradient 60%

Side Slope 30%

Vertical Obstacle 0.5 m

Trench 0.5 m

Fording 1.5 m

Turing Radius 13 m

Communications

Note HF and VHF radio systems may be added for the driver and commander.

Main Weapon System

Note A protected weapon station (PWS) can be installed on top of the vehicle, which can also function as an escape hatch. In its base APC configuration, gun ports can be installed either through the windows or underneath each window. The number of windows and gun ports are dependent on customer requests.

Protection

Hull Armor The armor of the vehicle is provided up to ballistic protection STANAG 4569 Level 2 and mine protection up to STANAG 4569 Level 2a or 2b. The V-shaped hull helps to minimize the effects of a blast by reducing the vehicle?s projected area and its drag coefficient.

Applique Armor Available

Mine Clearing No, but the Shrek RCV variant is designed for mine clearance.

NBC Protection Yes

Smoke Equipment INA

Image Sources

Notes https://www.militarytoday.com/apc/shrek_one.htm; https://www.autosite.ua/novosti_aktivisti-i-volonteri-sdelali-dlya-armii-bolee-260-broneavtomobiley_41046.html;

Details

Country of Origin Ukraine

Category Mine-Resistant Ambush Protected (MRAP)

Land > Infantry Vehicles > Mine-Resistant Ambush Protected (MRAP)

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

8 m

Width

2.6 m

Height

3.15 m

Weight

18000 kg

Operators (1)

Ukraine
