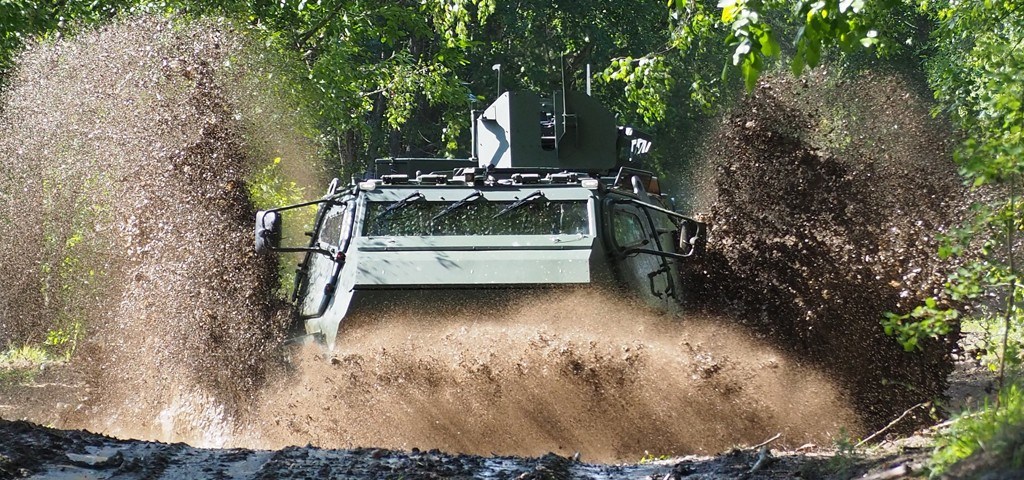

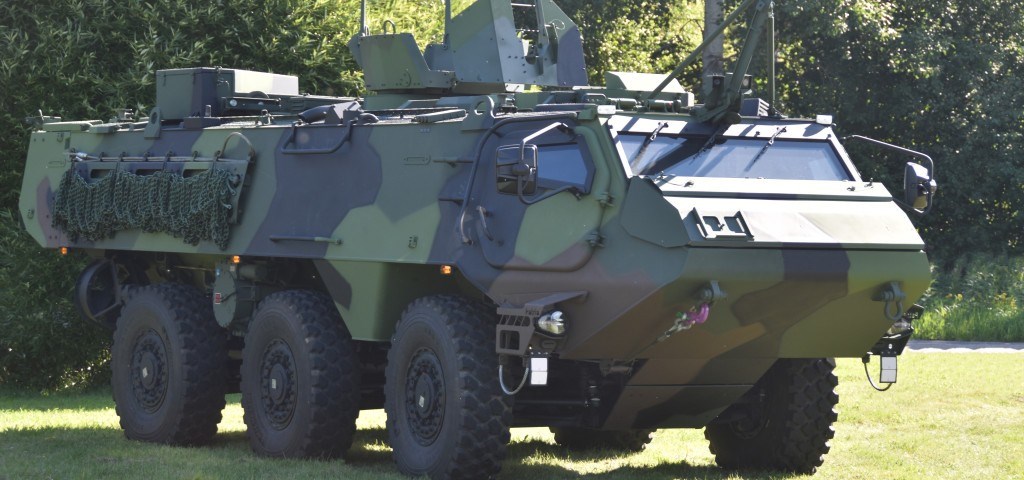

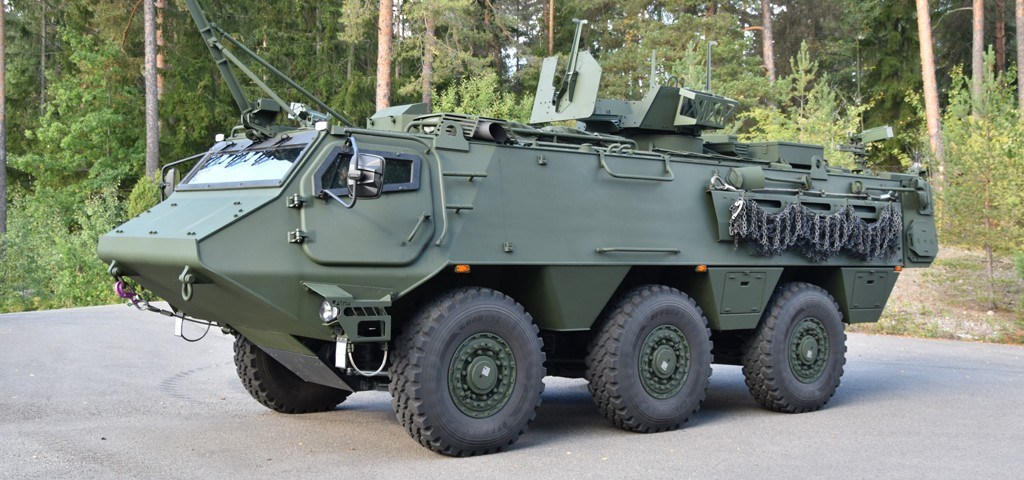

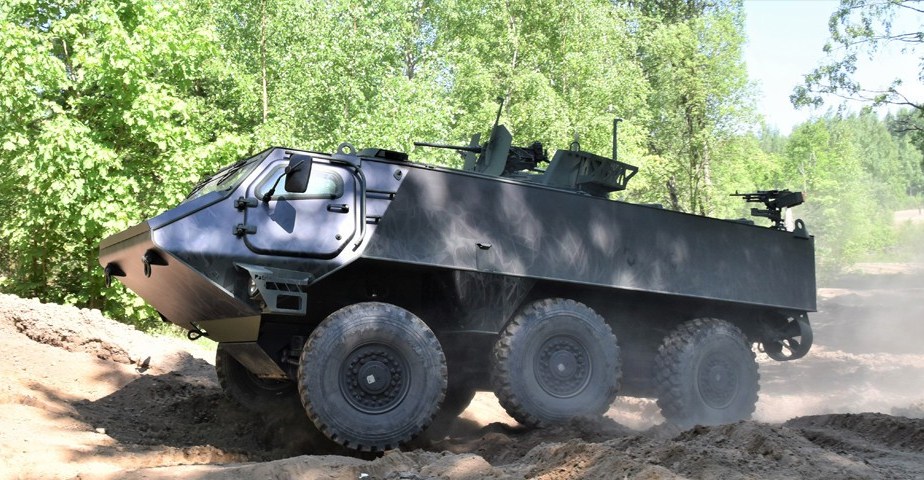

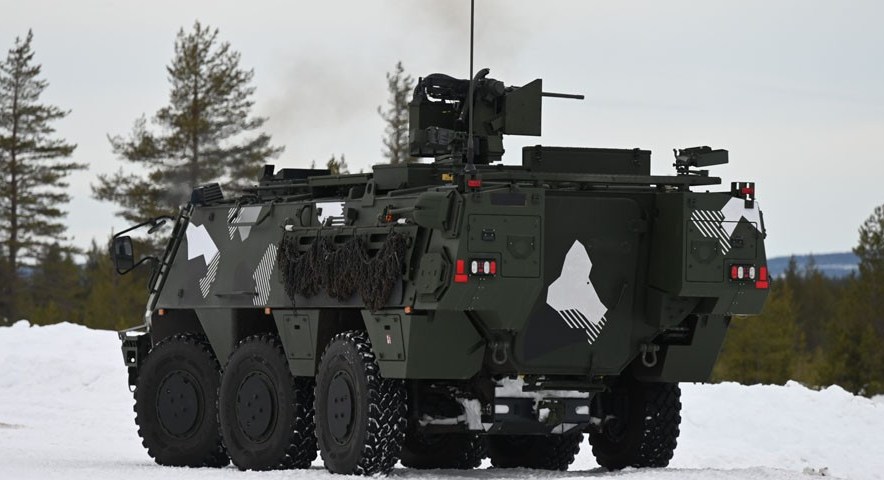

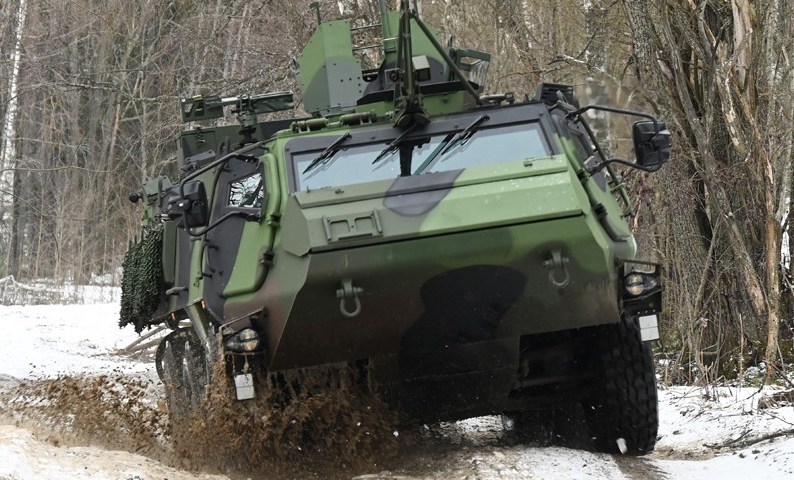

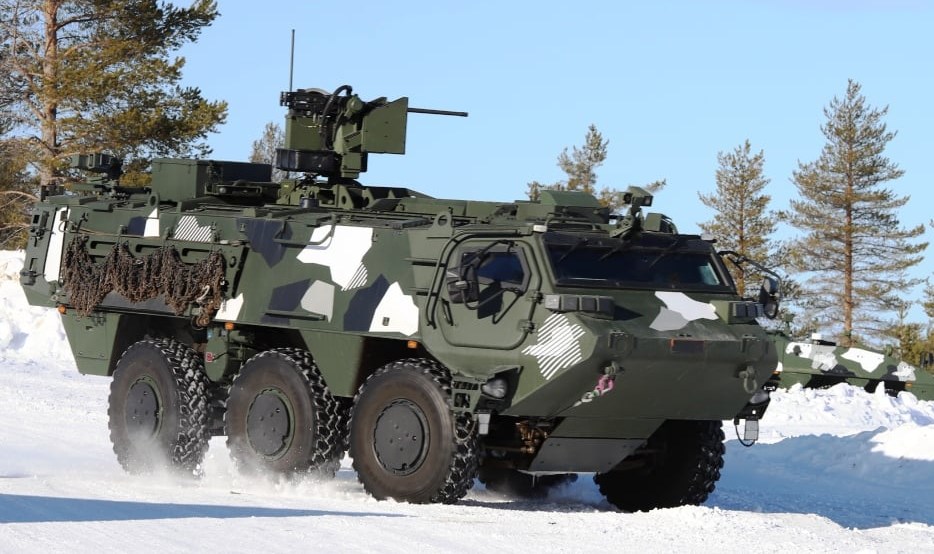

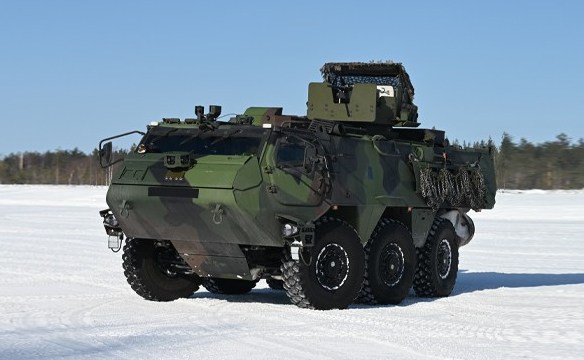

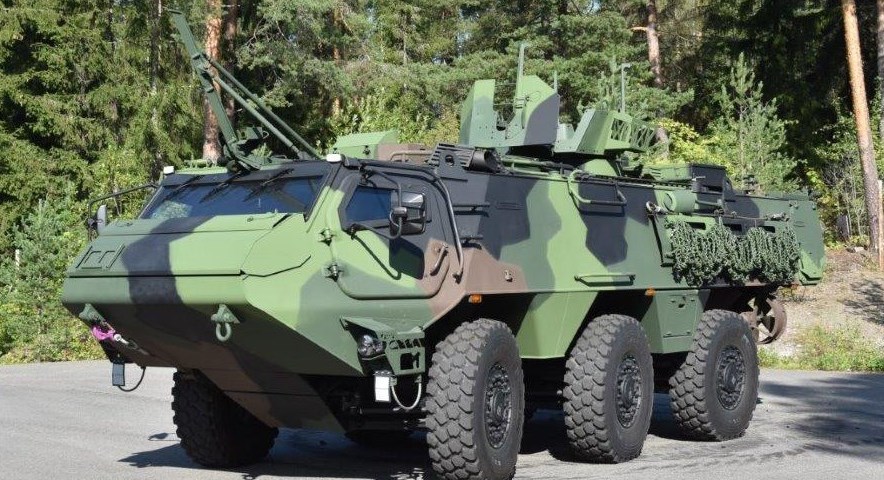

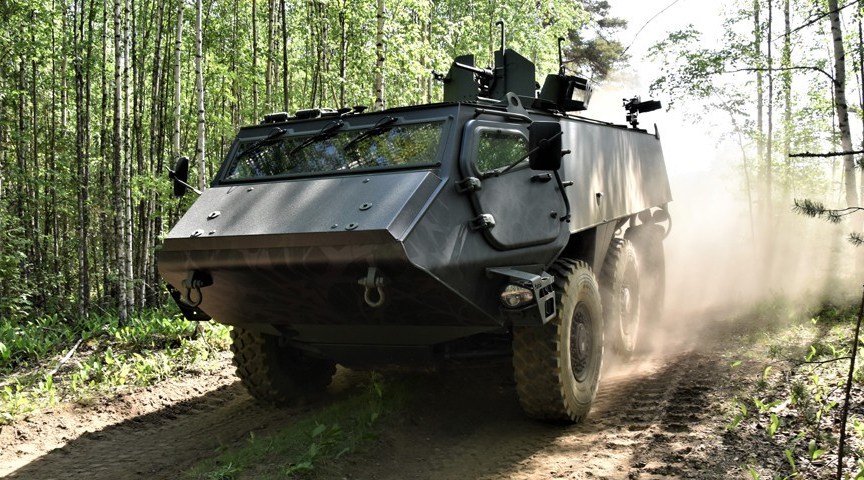

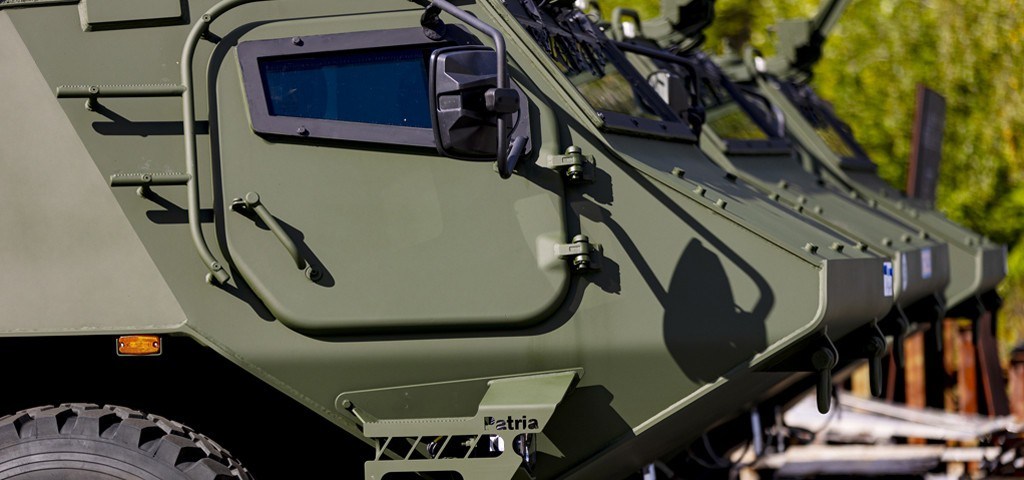

Patria 6×6 Finnish Amphibious Armored Personnel Carrier (APC)

Patria 6x6

Amphibious Armored Personnel Carrier (APC)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Patria 6×6 Finnish Amphibious Armored Personnel Carrier (APC)
Designation
Patria 6x6
Alternate Designation
Patria 6x6
Equipment Type
Amphibious Armored Personnel Carrier (APC)
Manufacturer
Patria
Date of Introduction
2018
Description

The Patria 6×6 Finnish Amphibious Armored Personnel Carrier (APC) is modular and high-performance, while simple, robust and affordable to provide protected tactical troop transport capability in larger fleet quantities. It provides modern protection capability and high mobility. Patria 6x6’s modular design allows a wide variety of specific configurations for diverse missions. Robust and fully independent suspension, together with high performance drive line, ensures unforeseen mobility and crew comfort in the 6x6 category. Patria 6x6 carries up to 10 soldiers in the rear plus a crew of two (driver and commander) in the front cabin; all their equipment being hosted inside the protected hull, and equipment being based on a72-hour mission requirement. The vehicle has mobility optimized continuous all-wheel drive and steering by two front axles. Amphibious capability for water crossing and amphibious operations is available as an option.

Ground Specifications
Crew 2
Engine 5-cylinder inline turbodiesel (394 hp)
NBC Protection Yes
Amphibious Yes
Max Speed 100.0 km/h
Range 700.0 km
System
Alternative Designation Patria 6x6
Type Amphibious Armored Personnel Carrier (APC)
Manufacturer Patria
Configuration 6x6
Crew 2 ea
Passengers 10 ea
Payload Capacity 8,500 kg
Dimensions
Length 7.5 m
Width 2.9 m
Height 2.5 m
Weight, Combat 24,000 kg
Automotive
Engine Name Scania
Engine Type 5-cylinder inline turbodiesel
Engine Power 394 hp
Transmission ZF automatic, 7+2 gears
Maximum Range 700 km
Maximum Speed 100 km/h
Amphibious Yes
Amphibious Speed 6-8 km/h
Gradient 60%
Side Slope 30%
Vertical Step 0.6 m
Trench 1.2 m
Fording 1.5 m
Main Weapon System

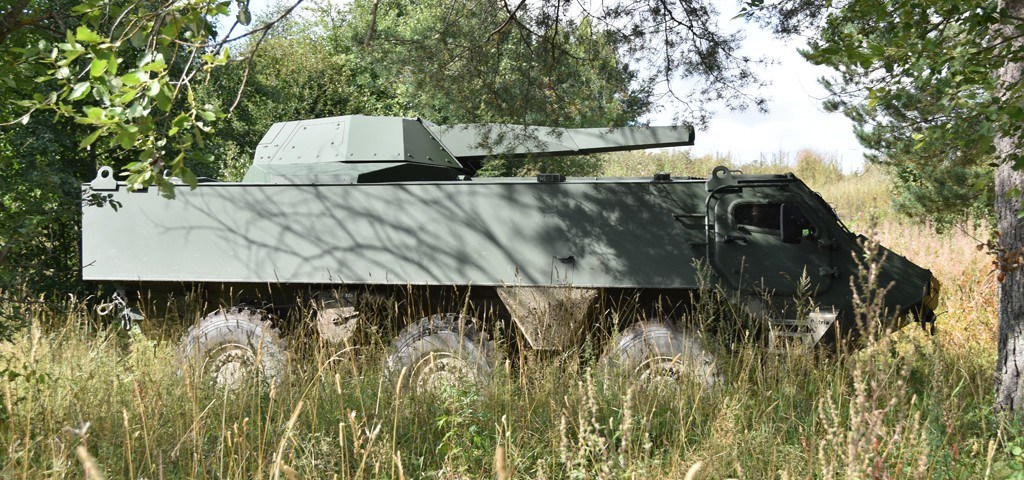

Armament Options 7.62 mm machine gun (pintle-mounted). 12.7 mm M2 HB heavy machine gun. 40 mm automatic grenade launcher. 25/30 mm medium-caliber RWS. 105 mm/120 mm cannon. Patria NEMO 120 mm turreted mortar system (1,900 kg turret, 360° traverse, -3° to +85° elevation, >10 km range, 10 rds/min, MRSI capable). Kongsberg PROTECTOR RS4 remote weapon station.
Protection
Armor Ballistic: STANAG Level 2 (upgradable to Level 4). Mine/IED: Up to 10 kg TNT (under wheel and belly).
Applique Armor Available
NBC Protection Yes
Smoke Equipment INA
Details
Country of Origin Finland
Category Land
Land
Filter Label
P
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7.5 m
Width
2.9 m
Height
2.5 m
Weight
24000 kg
Operators (6)
Germany
Ukraine
Sweden
Denmark
Finland
Latvia
