Rajput Class (Kashin II Class) Indian Destroyer

Rajput Class

Destroyer
Spotted an error? Sign in to suggest an edit.
Rajput Class (Kashin II Class) Indian Destroyer
Other

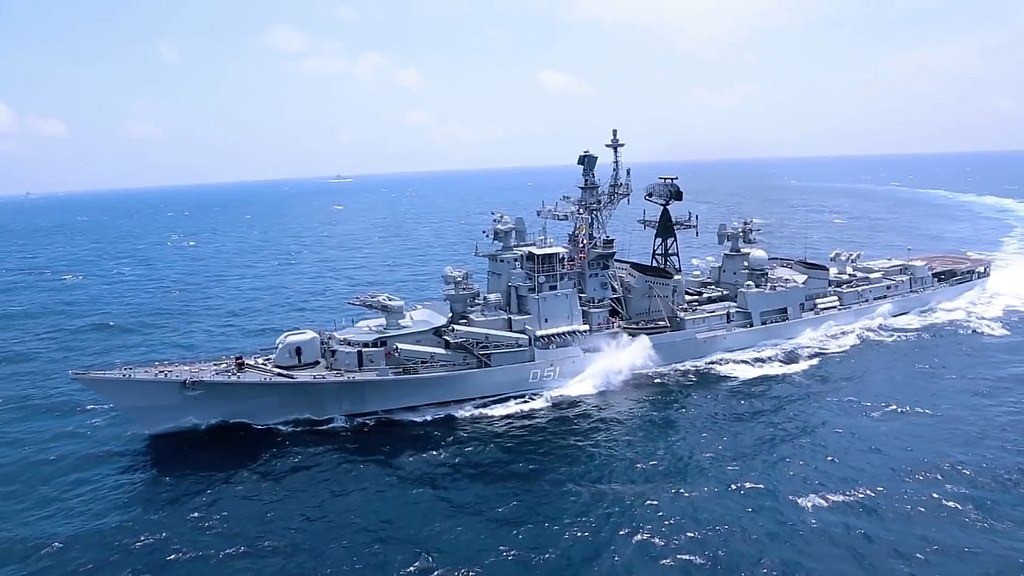

Rajput Class India Destroyer (A)TRADOC ODIN WEG
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Basic Information
Name
Rajput Class (Kashin II Class) Indian Destroyer
Designation
Rajput Class
Alternate Designation
Rajput Class; Kashin II Class
Equipment Type
Destroyer
Manufacturer
61 Kommunara Shipbuilding Plant
Date of Introduction
1982
Description

The Rajput Class (Kashin II Class) Indian Destroyer are modified versions of Soviet Kashin-class destroyers. They are also known as Kashin-II class. The ships were built in the former Soviet Union after considerable Indian design modifications to the Kashin design.

Naval & Littoral Specifications
Crew 320
Beam 15.80 m
Draft 4.80 m
Variants
Rajput (ex-Nadezhniy) Commissioned: 1982 Status: Decommissioned 2021
Rana Commissioned: 1982 Status: Active
Ranjit Commissioned: 1983 Status: Sunk during TROPEX-21 as a live target.
Ranvir Commissioned: 1986 Status: Active
Ranvijay Commissioned: 1988 Status: Active
System
Alternative Designation Rajput Class; Kashin II Class
Type Destroyer
Builder 61 Kommunara Shipbuilding Plant
Crew 320 Enlisted; 35 Officers
Dimensions
Length 146.5 m
Height INA
Beam 15.8 m
Draft 4.8 m
Displacement, Standard 3,950 tons
Displacement, Full Load 4,975 tons
Propulsion System
Engine Name 4 x DE-59
Engine Type Gas Turbines
Engine Power 72,000 hp
Maximum Range 4,500 n miles (8,334.0 km) (5,178.5 miles) at 18 kt (33.3 km/h) (20.7 mph); 2,600 n miles (4,815.2 km) (2,992.0 miles) at 30 kt (55.6 km/h)
Maximum Speed 35 kt (64.8 km/h) (40.3 mph)
Main Weapon Systems
Combat Data System 1 x BEL Ghaziabad.
Missile System
Surface-to-Surface Missiles (SSM) 4 x Raduga 4K-51T/P-15MT Termit-R (SS-N-2D); inertial guidance and IR terminal homing to 80 km (45 n miles) at Mach 0.9; warhead 513 kg; sea-skimmer. 1 x octuple VLS launcher for BrahMos PJ-10; inertial guidance and active/passive radar terminal homing to 290 km (157 n miles) at Mach 2.6; warhead 200 kg; sea-skimmer.
Surface-to-Air Missiles (SAM) M-1 Volna (SA-N-1 Goa) (1 twin launcher); 32 x 4K-90/V-600 missiles; command guidance to 14.8 km (9.2 n miles) at Mach 2.2; altitude 100–10,000 m (328–32,808 ft); warhead 60 kg. 2 x octuple IAI/Rafael Barak-1 VLS; command line of sight radar or optical guidance to 12 km (6.5 n miles) at Mach 2.0; warhead 22 kg. 1 x VLS for VL-SRSAM.
Gun System
Guns 1 x Leonardo 76 mm. 2 x AK-630 30 mm/65 (6 barrels per mounting); 3,000 rds/min combined to 4 km. 2 x 12.7 mm remotely-controlled guns.
Torpedo System
Torpedo Tubes 5 x 533mm Tubes.
Torpedoes Combination of SET-65E; anti-submarine; passive homing to 13 km (7 n miles) at 35 kt; electric; warhead 205 kg; depth to 350 m and Type 53-65; anti-surface ship; passive wake homing to 19 km (10.3 n miles) at 45 kt; thermal; warhead 300 kg. BDL Varunastra.
Anti-Submarine Mortars
Mortars RPS Smerch-2 system; 2 x RBU-6000 12-barrel launchers; RGB-60 rocket-propelled depth charges; range 300–6,000 m; depth 15–450 m, warhead 25 kg.
Radar Systems
Air Search Radar 1 x BEL RAWL-02 Mk 2 (LW04); D-band.
Air/Surface Search Radar 1 x ELTA EL/M-2238 STAR or 1 x BEL Revathi; 3D; E/F-band.
Surface Search Radar 1 x Terma SCANTER 6002; I-band.
Fire Control Radar 1 x 4R90 Yatagan (Peel Group); I/J-band (for SA-N-1). 1 x BEL Lynx; I-band (for 76 mm). 2 x EL/M-2221 STGR; I/J/K-band (for Barak). 1 x fire-control radar for VL-SRSAM.
Navigation Radar 3 x Sperry Marine; I-band.
IFF 2 x High Pole B.
Sonar
Note 1 x MG-311 Vychegda (Wolf Paw); hull mounted; active search and attack; high frequency. 1 x MG-325 Vega (Mare Tail) VDS; active search; medium frequency. 1 x BEL HUMSA; hull mounted; medium frequency.
Aviation
Helicopters 1 x Ka-28 Helix
Protection
Hull INA
Physical Countermeasures Decoys: 4 x 16 barrel SR Kavach decoy launchers. 4 x 8 barrel LRMR Kavach decoy launchers.
Electronic Countermeasures ESM: 1 x BEL Ajanta Mk 2 ESM suite or 1 x Rafael SEWS; intercept. Shakti EW suite. ECM: 1 x Elettronica TQN-2; jammer.
NBC Water Washdown System Yes
Source Images
Note https://weaponsystems.net/system/1101-Rajput+class; https://en.wikipedia.org/wiki/Rajput-class_destroyer
Details
Country of Origin India
Category Naval
Naval
Filter Label
R
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
146.5 m
Width
15.8 m
Height
—
Weight
—
Operators (1)
India
