Korsar

Korsar

Tactical Unmanned Air Vehicles
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Korsar
Designation
Korsar
Alternate Designation
Equipment Type
Tactical Unmanned Air Vehicles
Manufacturer
Date of Introduction
2018
Description

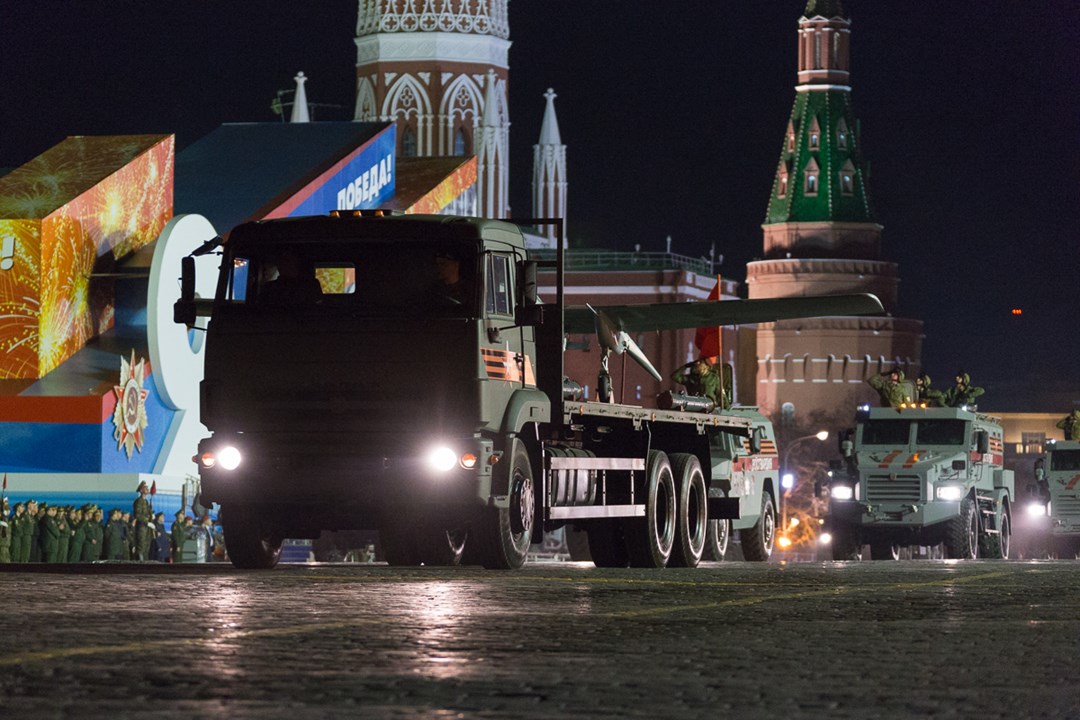

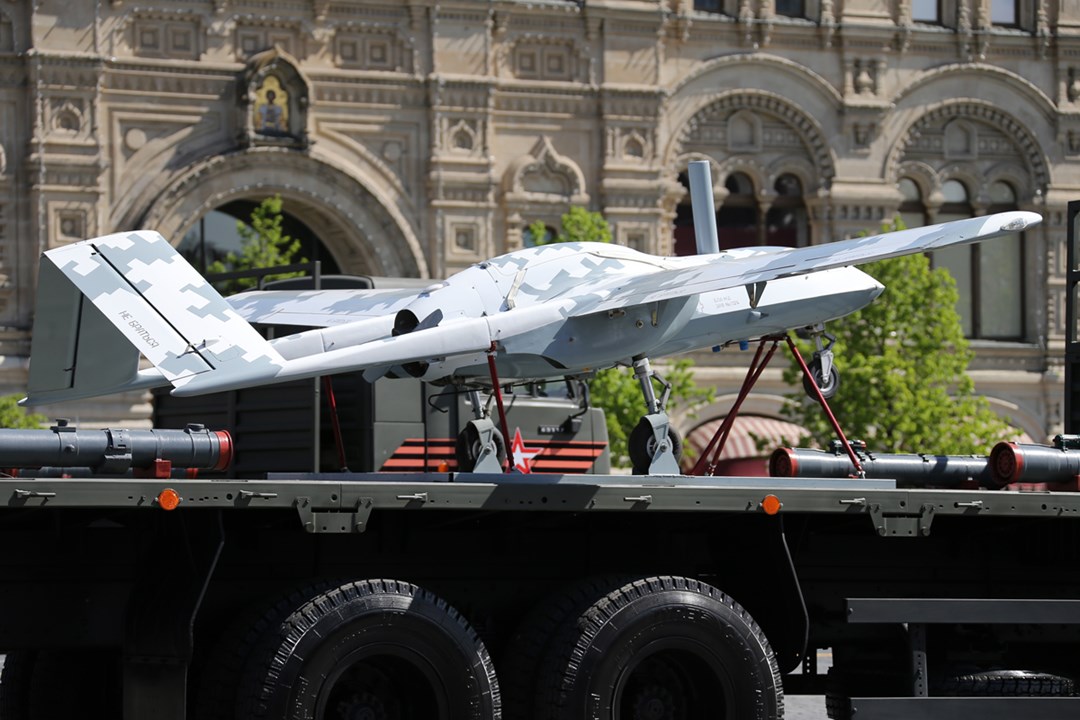

The Korsar is a tactical unmanned air vehicle (TUAV) developed in secrecy by Russia to conduct 24/7, all-weather surveillance missions as well as target acquisition, battle damage assessment and delivery of light cargoes. Besides, the Korsar air vehicle can be equipped with Ataka air-to-surface missions to conduct strike missions in support of infantry units and other military units. The aircraft is able to operate at a distance of up to 100 kilometers from its operating base. It was deployed successfully by the Russian Armed Forces in Syria between 2017 and 2018 where it was employed for the first time. Externally, the Korsar airframe is similar to the US Army’s RQ-7 Shadow 200 tactical air vehicle but with a bulky back section which may explain the longer range and increased specifications. The Korsar was showcased to the public during May 2018 military parade in Moscow.

Air & Air Defense Specifications
Max Speed 150.0 km/h
Range 120.0 km
Service Ceiling 5100 m
Wingspan 6.50 m
Overview (Deagel)
Group Tactical Unmanned Air Vehicles
Status Active
Origin Russia
Initial Operational Capability (IOC) 2018
Total Production ?
Specifications (Deagel)
Crew 0
Number of Engines 1
Dimensions — Height 1.2 meter
Dimensions — Length 4.2 meter
Dimensions — Wingspan 6.5 meter
Mass — Max Takeoff Weight 200 kilogram
Performance — Ceiling 5,100 meter
Performance — Max Range 120 kilometer
Power — Max Power at TakeOff 70 hp
Power — Power 50 hp
Speed — Cruise Speed 120 kph
Speed — Top Speed at High Altitude 150 kph
Time — Flight Endurance 10 hour
Gear (Deagel)
Item 1 Anti-Tank Guided Missiles: 9M120F (2)
Item 2 Anti-Tank Guided Missiles: Ataka (2)
Details
Country of Origin Russia
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
4.2 m
Width
6.5 m
Height
1.2 m
Weight
200 kg
Operators (1)
Russia
