Telemax Hybrid German Tracked Unmanned Ground Vehicle (UGV)
Telemax Hybrid
Unmanned Ground Vehicle (UGV)
Other
Basic Information
Name
Telemax Hybrid German Tracked Unmanned Ground Vehicle (UGV)
Designation
Telemax Hybrid
Alternate Designation
Telemax Hybrid
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
Faulhaber
Date of Introduction
2021
Description

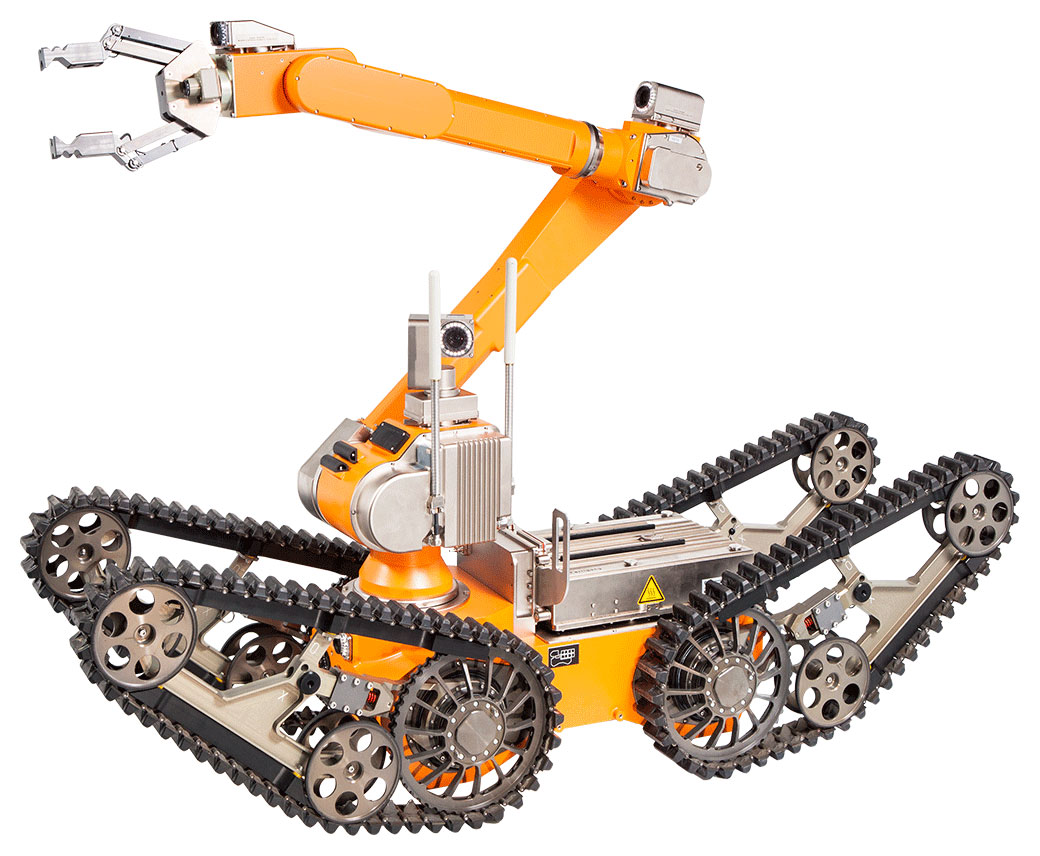

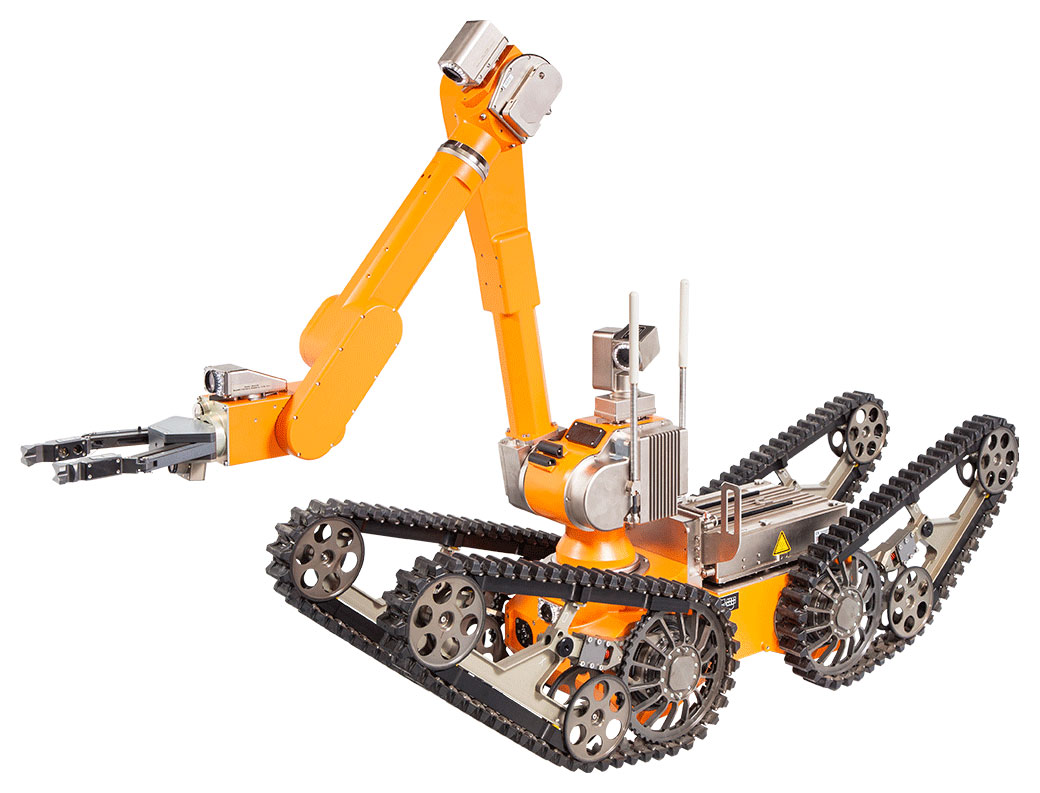

Telemax HYBRID The best of both worlds – Compact and strong! The combination of a powerful arm and compact dimensions for the toughest challenges. Features: *Strong precision 6-axis manipulator with TCP control and automatic tool change *Reinforced axes on lower arm and gripper *Lifting capacity up to 37 kg (82 lbs.) *Compact dimensions *4-track drive system with a top speed of up to 10 km/h (6.2 mph) *More than 30 pre-programmed automatic motion sequences for manipulator and flippers *Interchangeability of accessories within the telemax family, e.g. batteries, tools, cameras and sensors *Optional version for CBRN defense
Ground Specifications
Crew
1
Mobility Type
Tracked
Max Speed
10.0 km/h
Variants
Telemax 4x4
elemax with wheels:
Versatile and cost-efficient!
The starter version with a broad wheelbase and 4-wheel drive for rapid deployments on challenging terrains and delicate flooring requiring protection.
Telemax PRO
The original telemax:
Compact design and high reach!
A truly versatile robot capable of handling significant gradients and obstacles, it boasts an impressive manipulator reach, both vertically and horizontally, combined with minimal dimensions. Perfect for deployments in built-up areas and confined spaces.
Telemax HYBRID
The best of both worlds – Compact and strong!
The combination of a powerful arm and compact dimensions for the toughest challenges.
Telemax PLUS
The biggest and strongest telemax:
Versatile and strong!
Our largest and strongest telemax, its exceptional ability to handle gradients and terrains makes it ideal for a particularly broad range of applications.
Telemax RECCE
Fast solution for reconnaissance:
Agile and smart!
Compact and high performance reconnaissance system without a manipulator provides detailed information from the site, especially when equipped with our autonomy/3D mapping accessory.
System
Alternative Designation
Telemax Hybrid
Type
Tracked Unmanned Ground Vehicle (UGV)
Manufacturer
Faulhaber
Crew
1 ea
Payload Capacity
Lifting capacity up to 37 kg
Firing Port
3 ea
Flipper Swiveling
-85° to +80°
Dimensions
Length
810 mm
Width
400 mm
Height
780 mm

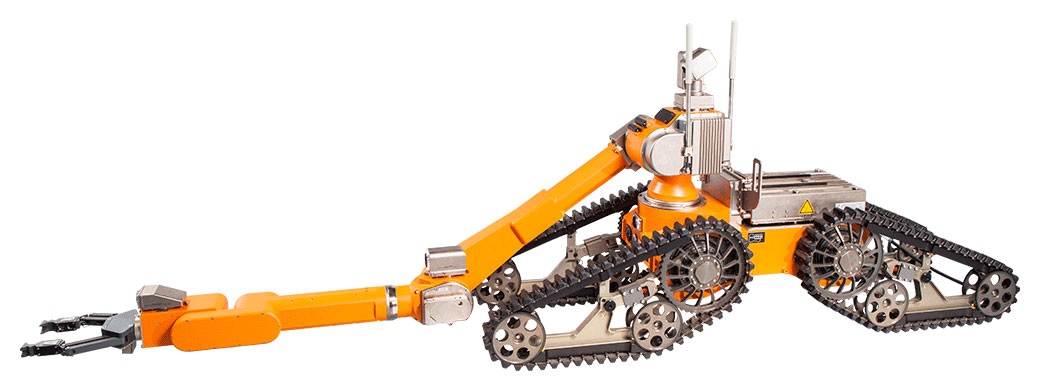

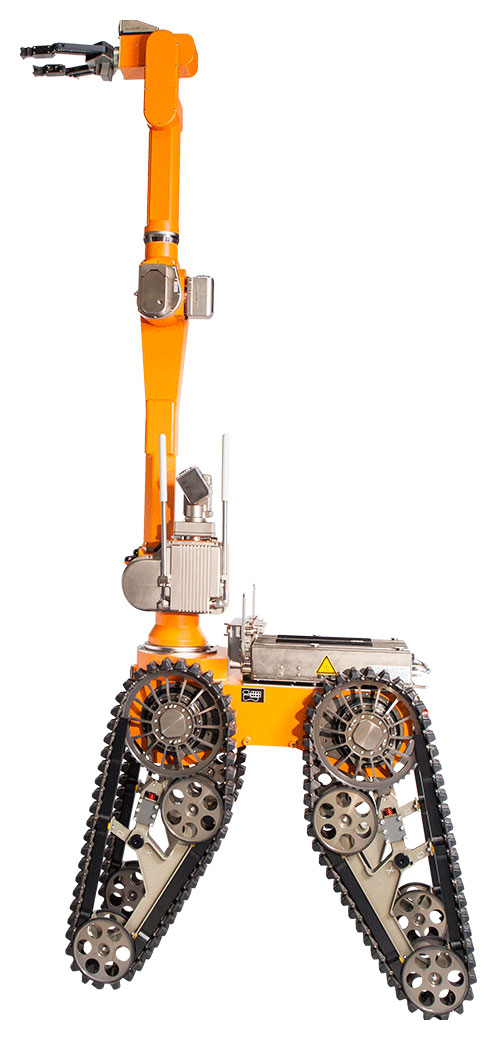

Manipulator, Upward Reach
2505 mm
Manipulator, Forward Reach
1615 mm
Manipulator, Downward Reach
1130 mm
Weight
Standard speed version: 78 kg (172 lbs.) (standard configuration
w/o battery)
High speed version: 80 kg (176 lbs.) (standard configuration w/o
battery)
Automotive
Engine Name
INA
Engine Type
INA
Engine Power
INA
Drive
Track
Maximum Speed
Standard speed version: max. 4 km/h (2.4 mph)
High speed version: max. 10 km/h (6.2 mph)
Operational Range
INA
Mobility, Slopes
45° (depending on surface)
Mobility, Stairs
45° (depending on surface)
Mobility, Obstacle Height
500 mm
Mobility, Gap Width
600 mm
Fording Depth
266-660 mm
Battery
NiMh battery (24 V, 15 Ah) or Li-ion battery (26 V, 40 Ah
Endurance
NiMh battery (24 V, 15 Ah):
approx. 2 h with 1 battery; approx. 4 h with 2 batteries
Li-ion battery (26 V, 40 Ah):
approx. 5 h with 1 battery; approx. 10 h with 2 batteries
Payload Range
31 k
Protection
Hull Armor
INA
Applique Armor
INA
Details
Country of Origin
Germany
Category
Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
T
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
0.81 m
Width
0.4 m
Height
0.78 m
Weight
35.38 kg
Operators (1)
Germany
