Type 903A

Type 903A

Replenishment Ships
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Type 903A
Designation
Type 903A
Alternate Designation
Fuchi I, Fuchi II, Qiandaohu, Type 903
Equipment Type
Replenishment Ships
Manufacturer
Guangzhou Huangpu Shipyard, Hudong-Zhonghua Shipbuilding
Date of Introduction
2004
Description

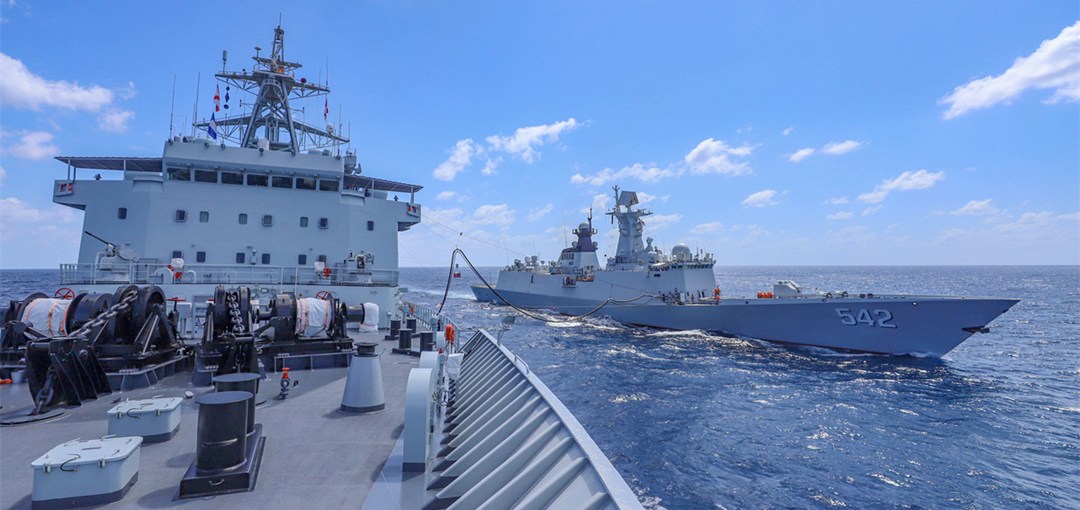

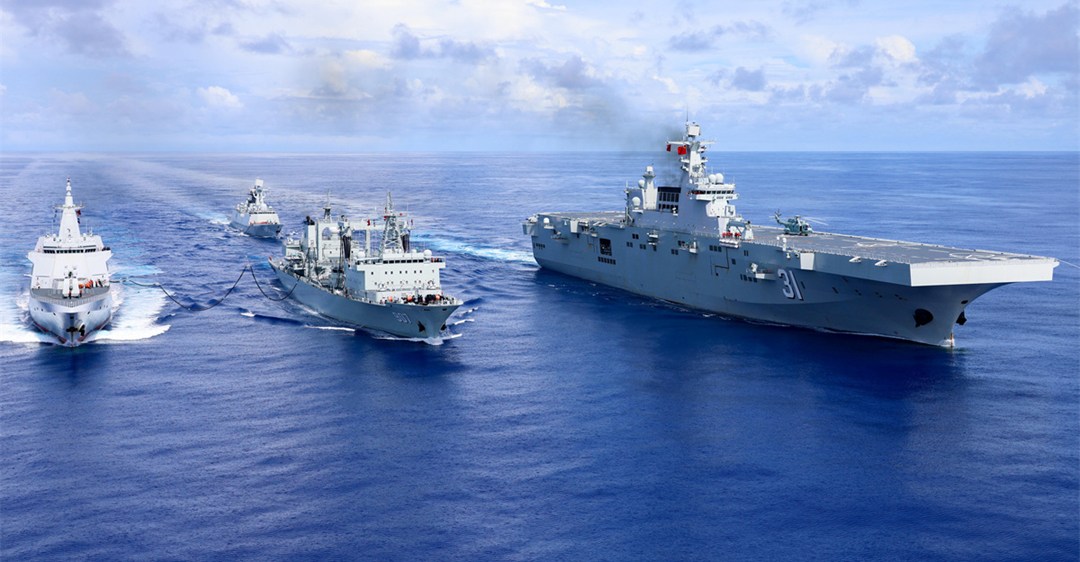

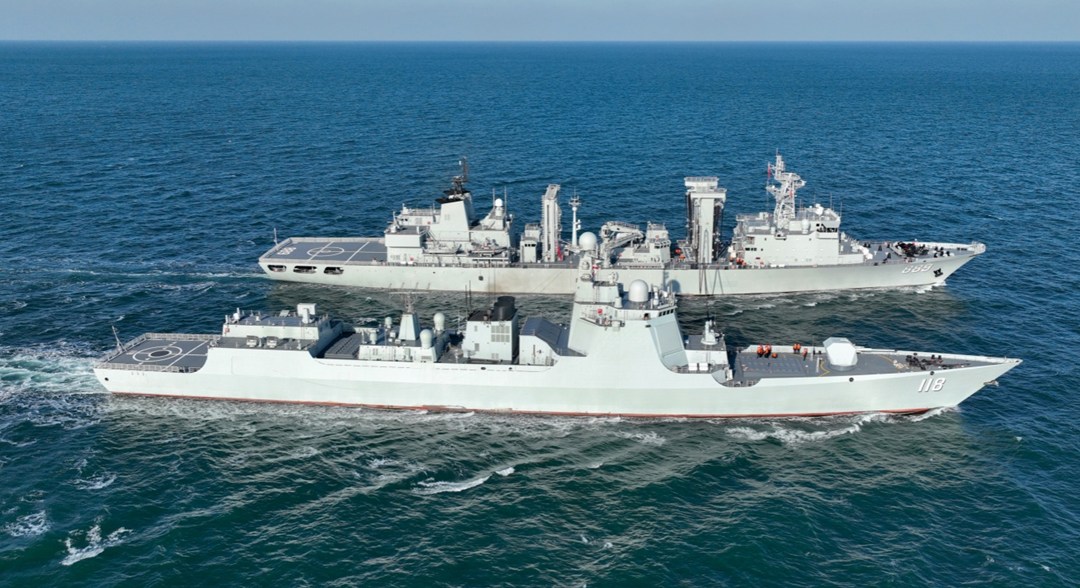

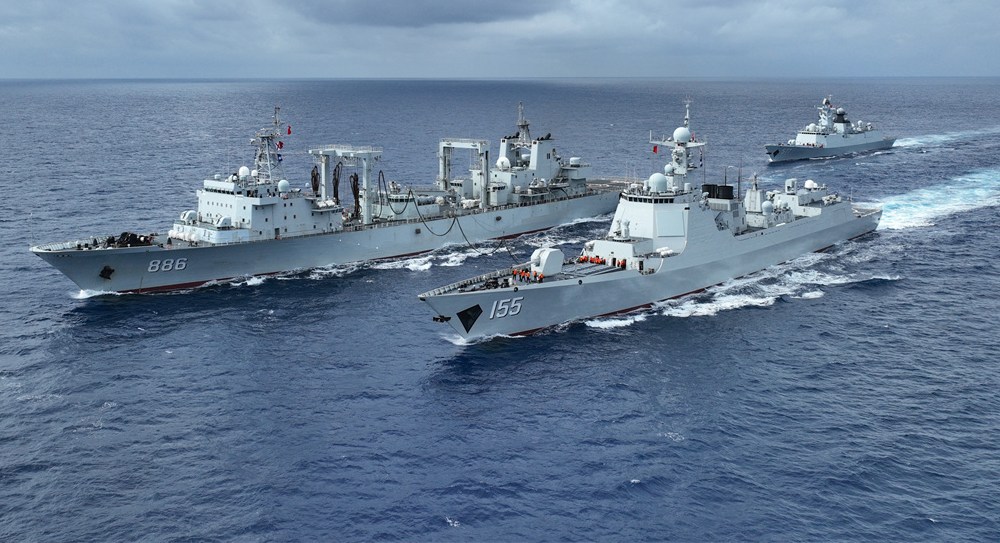

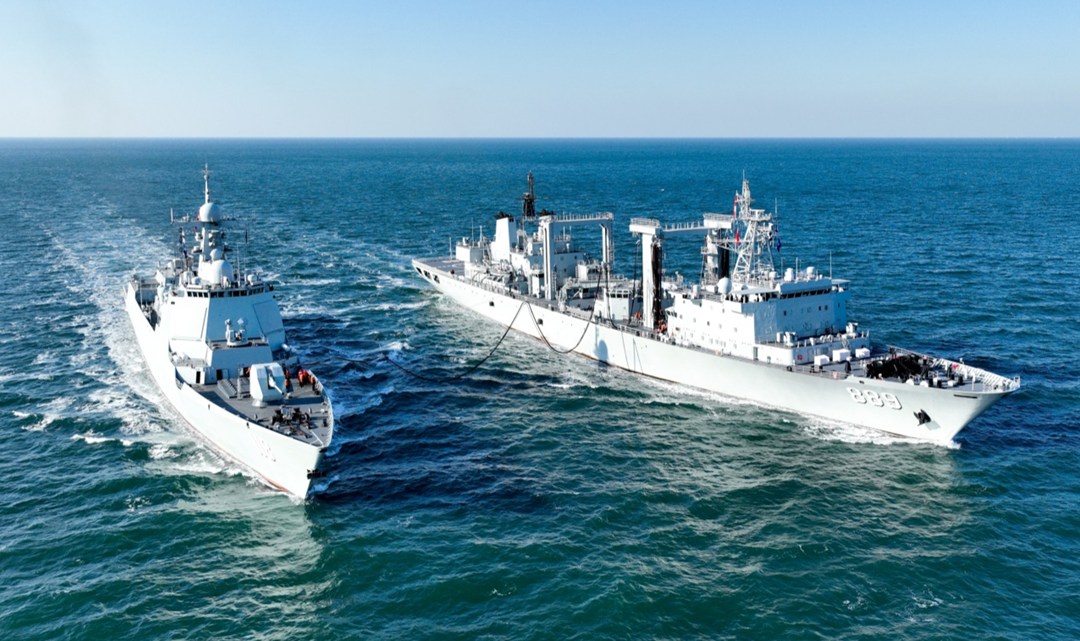

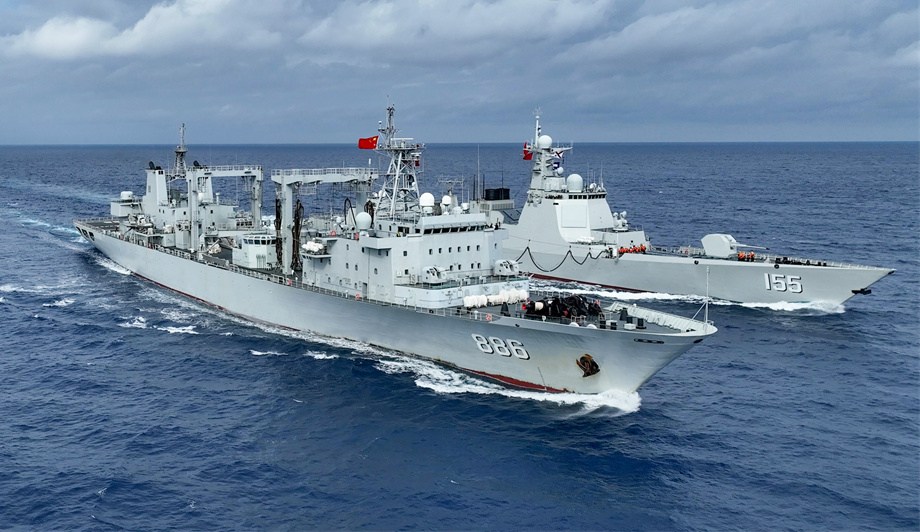

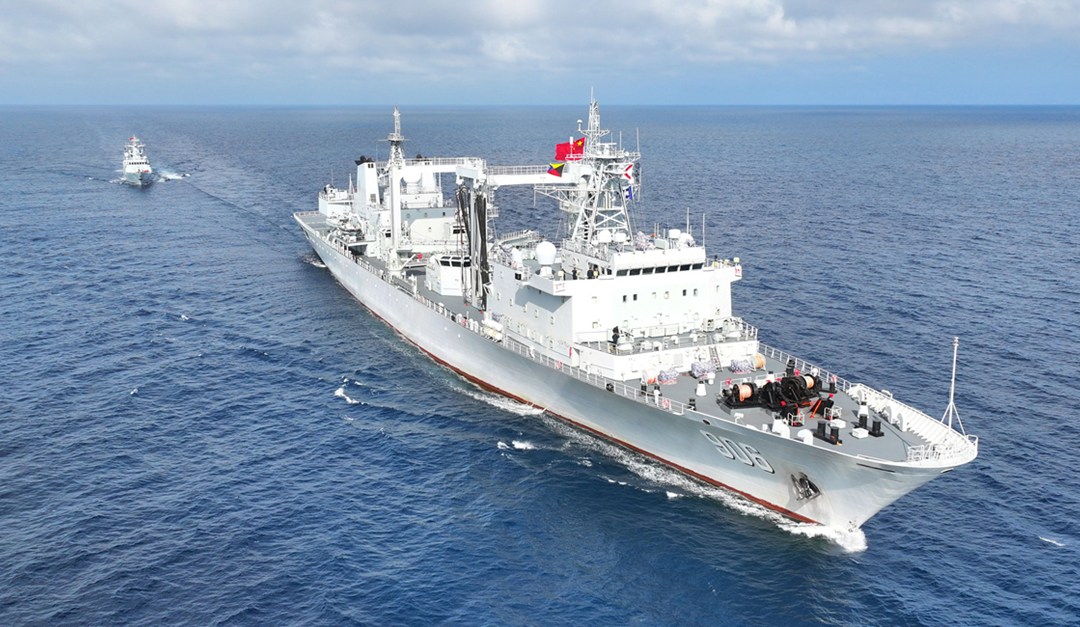

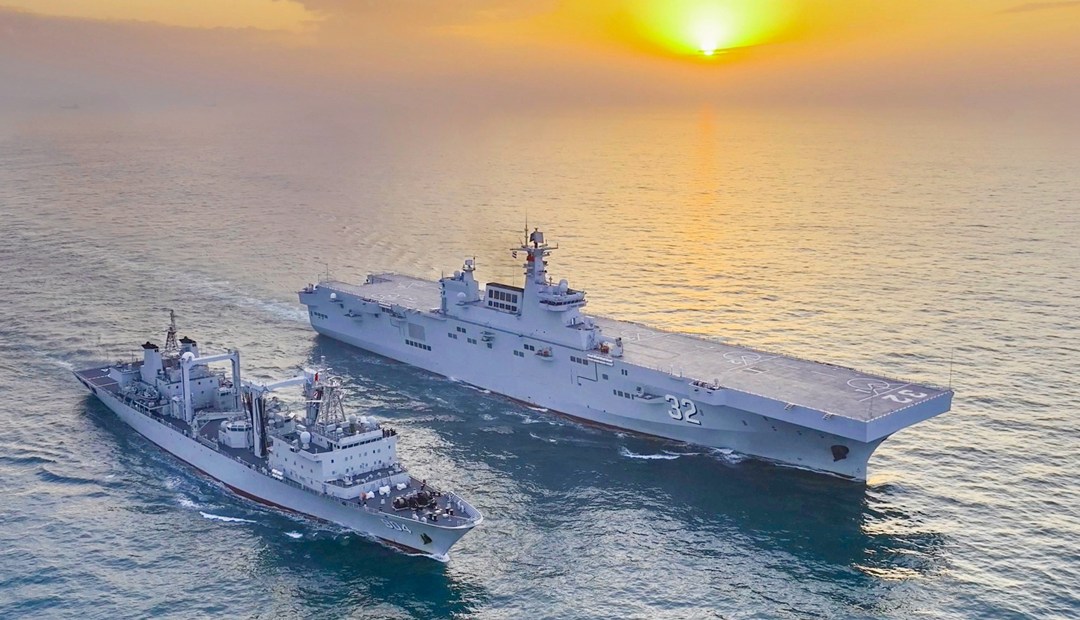

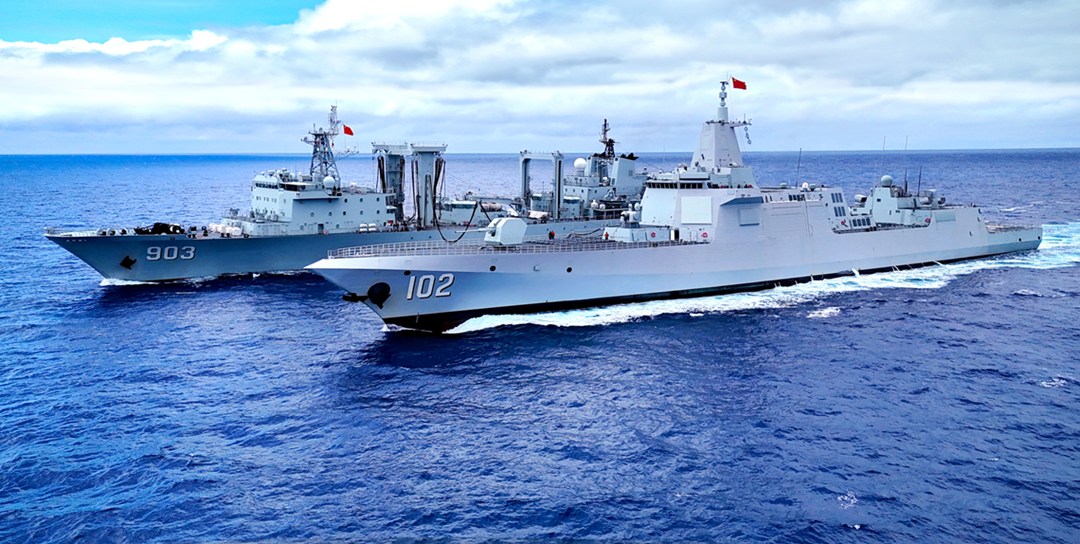

The People's Liberation Army Navy (PLAN) Type 903A, also knwon as Fuchi II, is a new class of large comprehensive supply ships designed to support military naval operations far away from China. These ships feature high degree of automation, easy operation, strong adaptability, fast-speed replenishment and high-efficiency support. A flight deck allows operation of a single helicopter. The ship is equipped with two naval guns at the bow. The Type 903A ships have been designed for integration into the maritime mobile taskforce in wartime carrying out underway and mooring replenishment for destroyers and frigates. Besides, these ships accompany the destroyer or frigate taskforce to perform tasks of long-distance navigation and good-will visits in peacetime. Overall, the PLAN deems these ships slow compared to its surface combatant ships and requires larger and faster replenishment vessels to supply its projected aircraft carrier battle groups.

Naval & Littoral Specifications
Crew 130
Displacement 23000.00 tonnes
Beam 24.80 m
Draft 8.70 m
Max Speed 20.0 knots
Overview (Deagel)
Group Replenishment Ships
Status Active
Also Known As Fuchi I, Fuchi II, Qiandaohu, Type 903
Origin China
Contractors Guangzhou Huangpu Shipyard, Hudong-Zhonghua Shipbuilding
Initial Operational Capability (IOC) 2004
Total Production 9
Specifications (Deagel)
Crew 130
Number of Aircraft 2
Number of Engines 2
Dimensions — Beam 24.8 meter
Dimensions — Draft 8.7 meter
Dimensions — Length 179 meter
Mass — Full Displacement 23,000 ton
Performance — Max Range 10,000 nautical mile
Speed — Economical Speed 14 knot
Speed — Top Speed 20 knot
Gear (Deagel)
Item 1 Utility & Transport Helicopters: Z-8 (2)
Details
Country of Origin China
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
179 m
Width
24.8 m
Height
Weight
23000000 kg
Operators (1)
China
