AAV7

AAV7

Tracked Armored Vehicles
Spotted an error? Sign in to suggest an edit.
AAV7

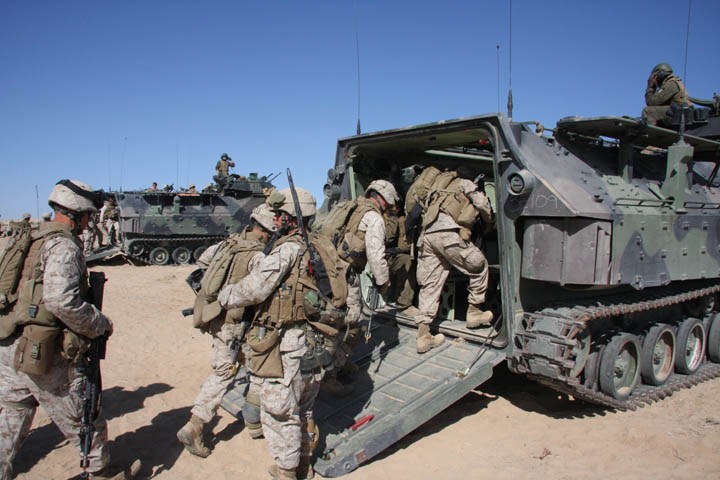

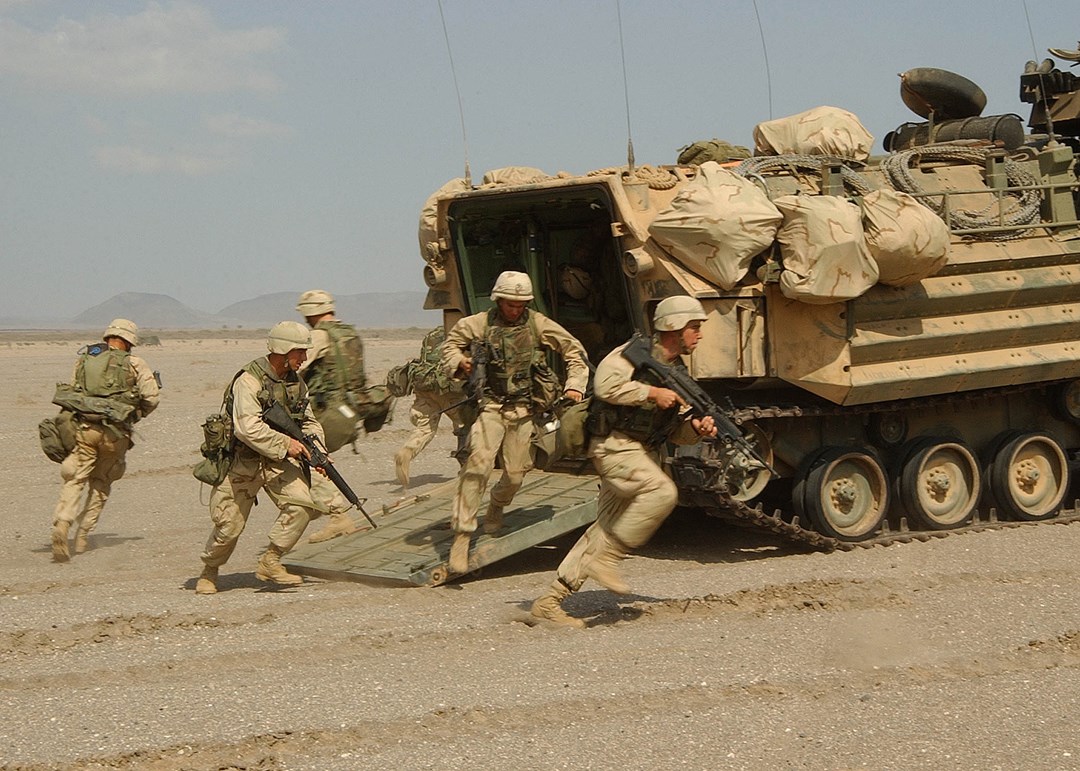

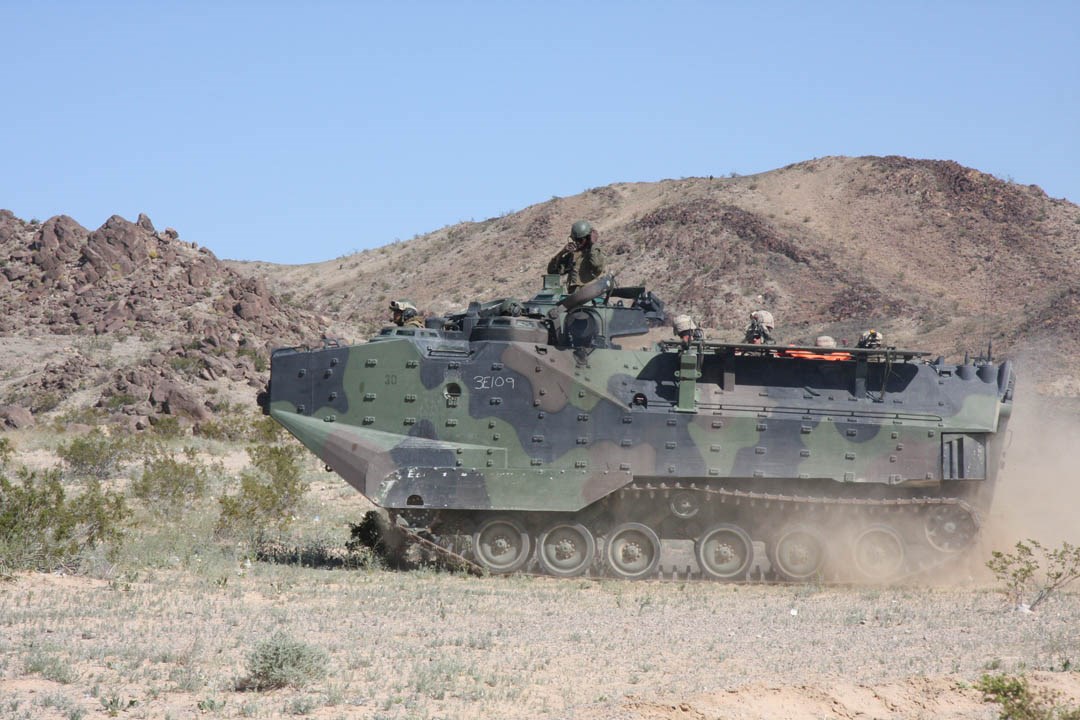

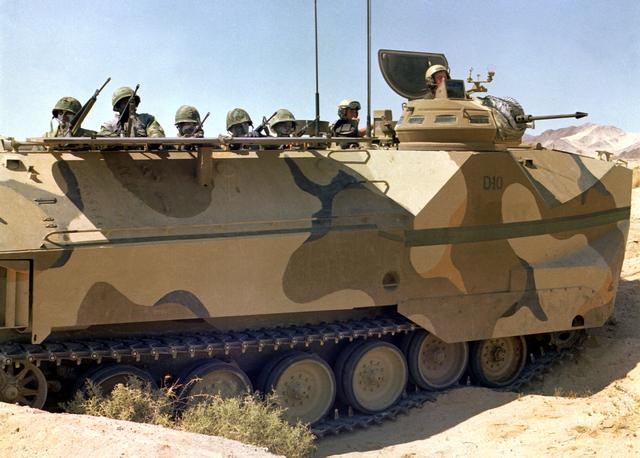

Operational Photo
deagel.com
Basic Information
Name
AAV7
Designation
AAV7
Alternate Designation
—
Equipment Type
Tracked Armored Vehicles
Manufacturer
United Defense
Date of Introduction
—
Description

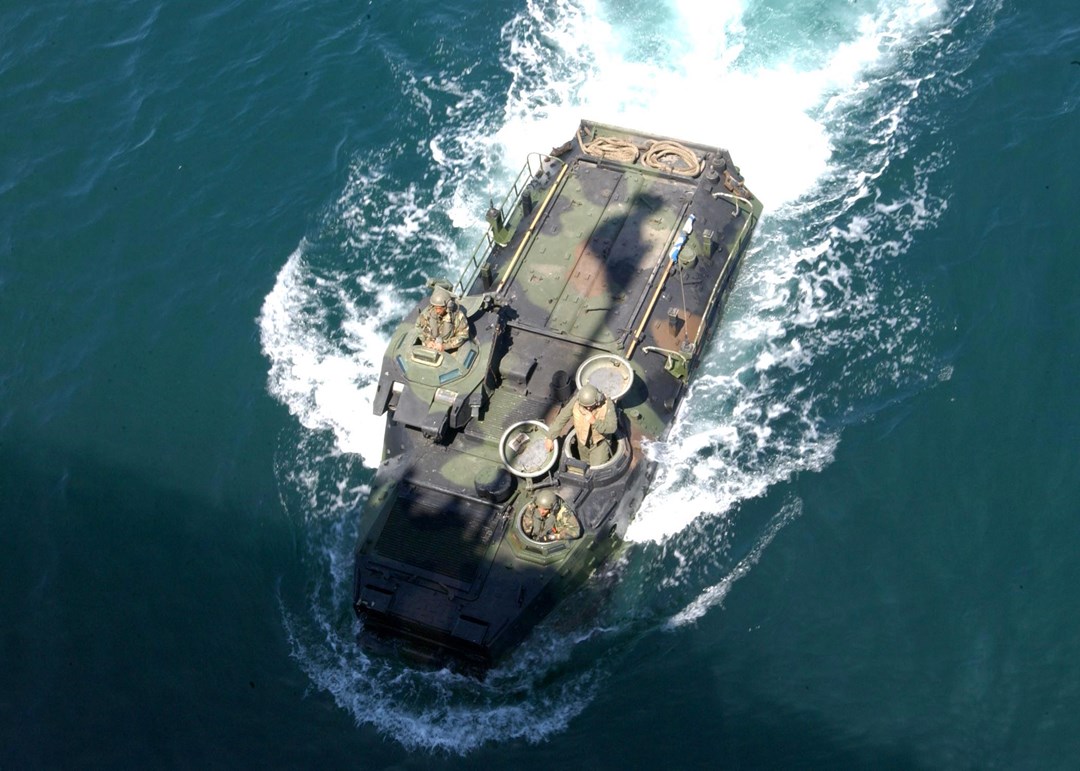

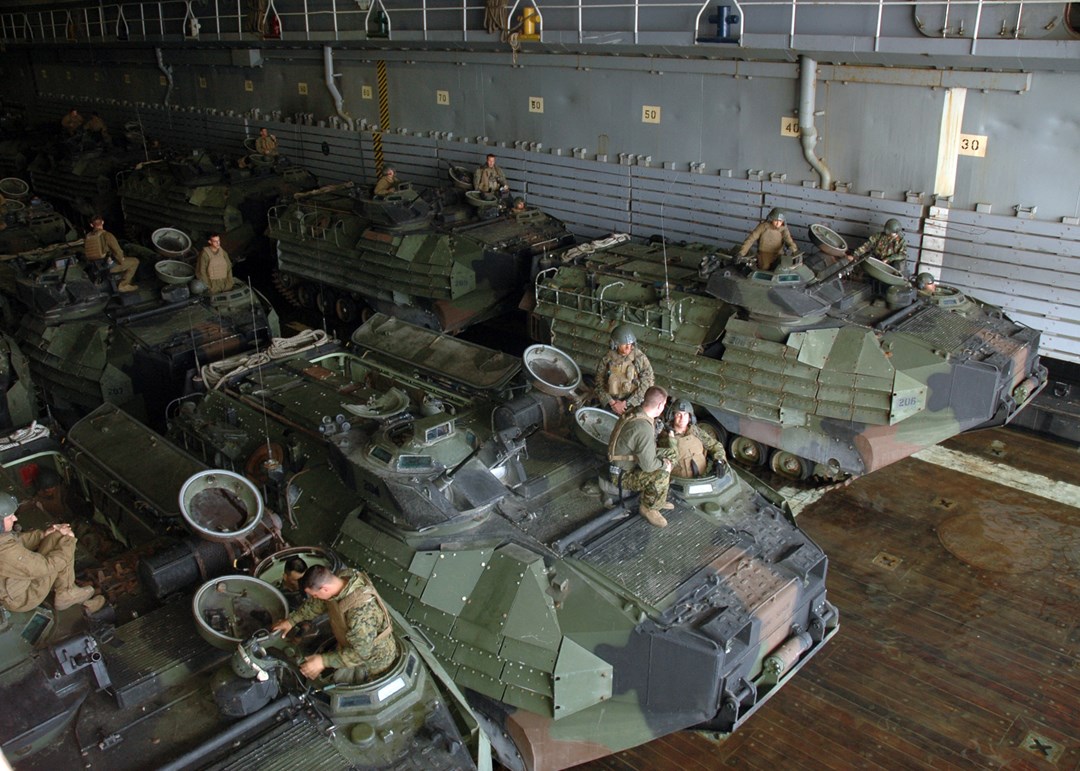

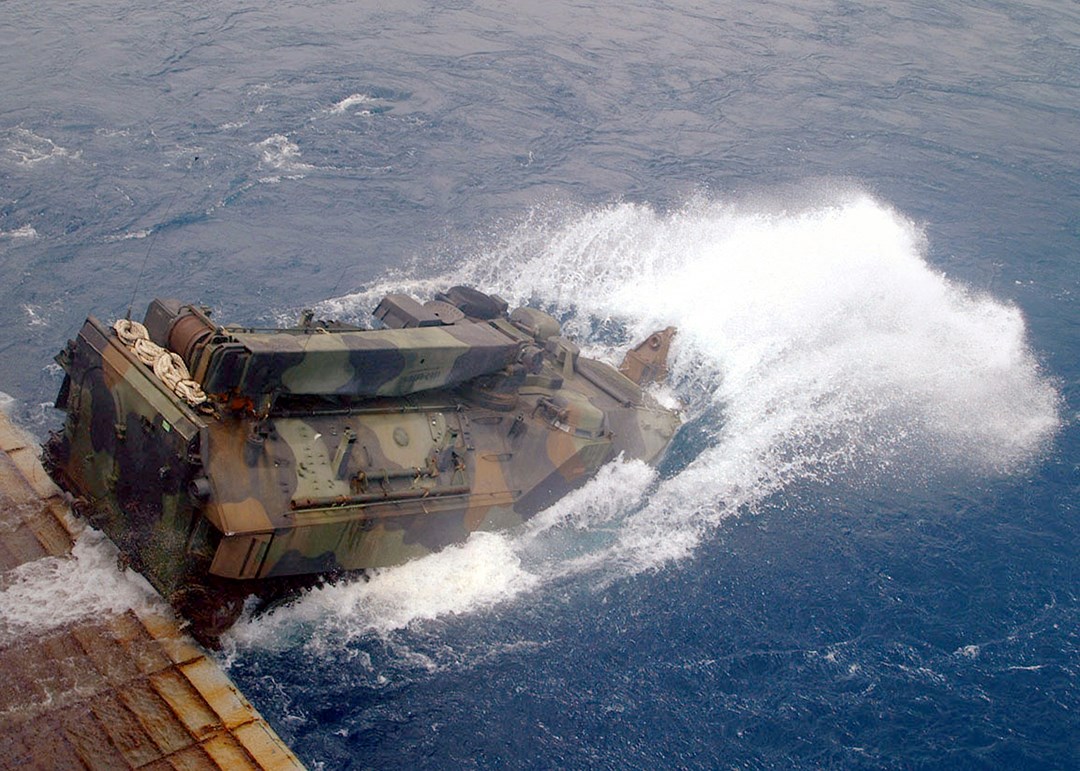

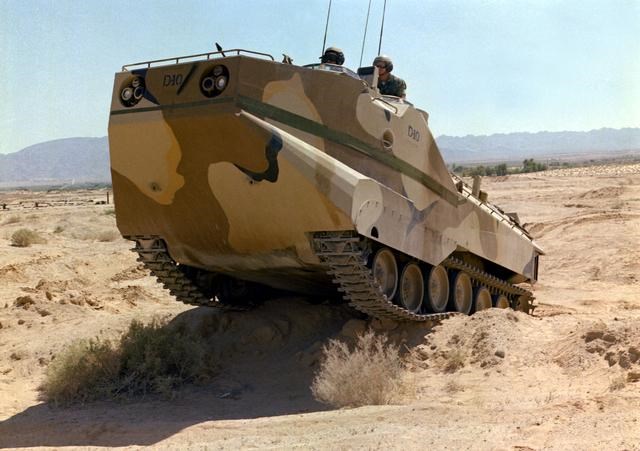

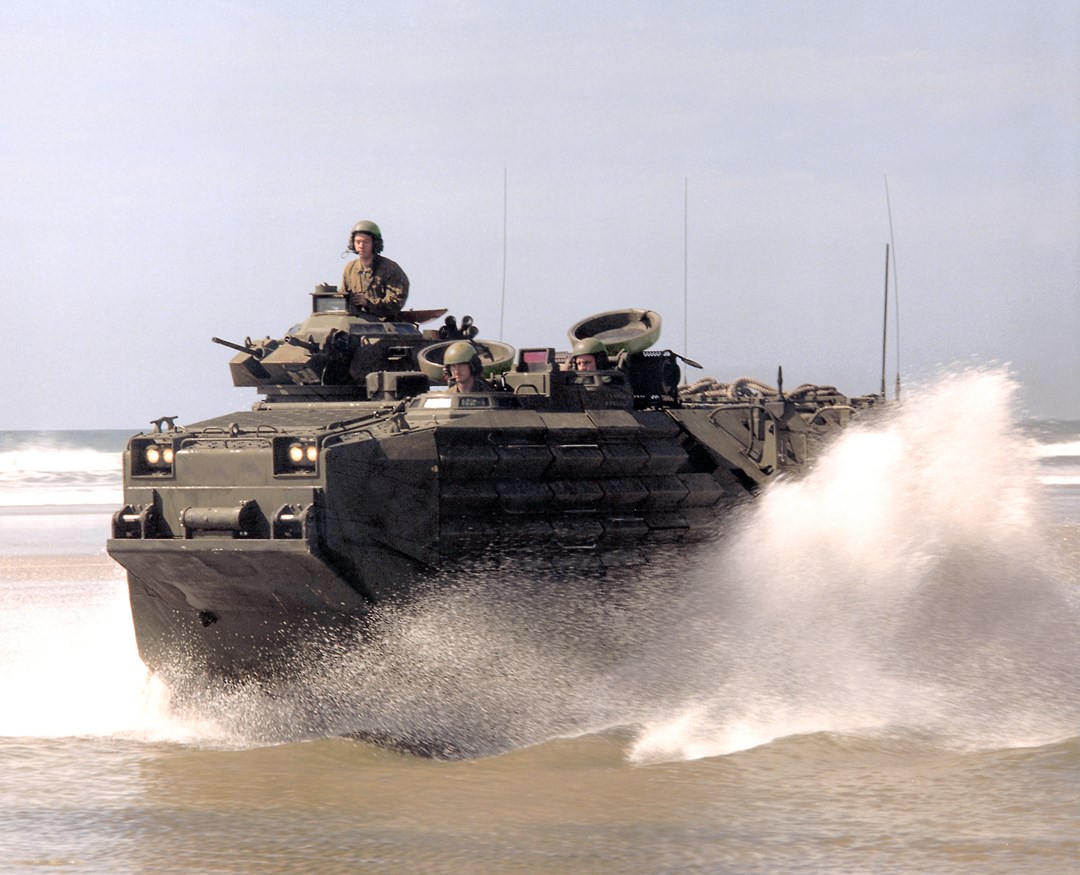

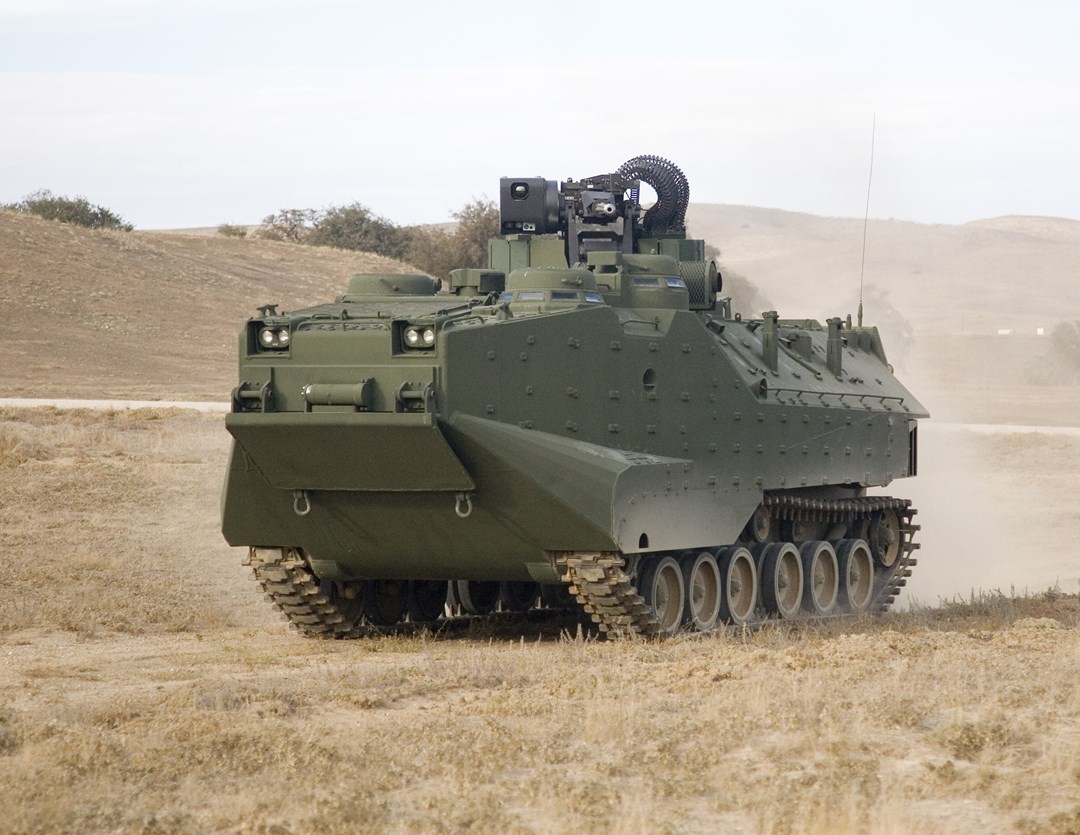

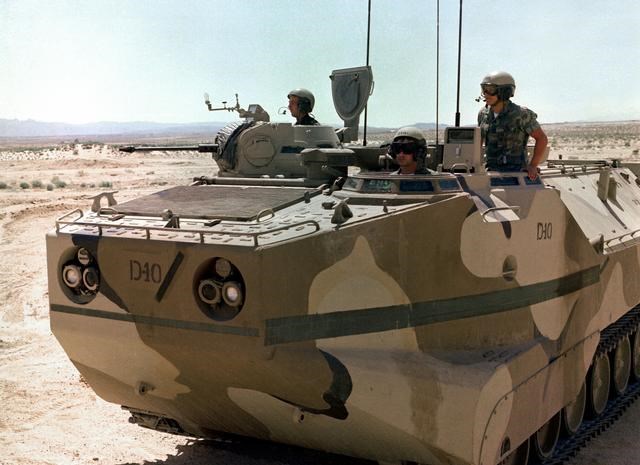

The AAV7A1, formerly known as LVTP7, was designed to meet the requirements of the USMC for an armored, amphibious, fully tracked, assault vehicle. The AAV7A1 replaced the LVTP5 amphibious assault vehicle. The AAV7A1 can transport troops and cargo from ship to shore. It is powered by a single 400-hp turbocharged diesel V8 engine and two water jet pumps providing a cruising speed of 7 knots at sea and 72 km/h on road. The AAV7 survivability can be increased through add-on armor and the use of a 12.7mm machine gun and 40mm grenade launcher. Under the RAM/RS (Reliability, Availability, and Maintainability/Rebuild to Standard) program some AAV7A1 will be powered with a 525-hp diesel engine and the suspension will be replaced with the M2 Bradley's suspension. The RAM/RS upgrade program intends to ensure the availability of the AA7 vehicles until they are replaced by the AAAV advanced amphibious assault vehicles.

Ground Specifications
Crew 3
Mobility Type Tracked
Main Weapon 12.7mm machine gun
Max Speed 72.0 km/h
Range 483.0 km
Overview (Deagel)
Group Tracked Armored Vehicles
Status Active
Also Known As KAAV7A1, KAAVP7A1, LVTP7
Origin United States of America
Contractor United Defense
Initial Operational Capability (IOC) 1984
Total Production ?
Unitary Cost USD $2.5 million
Specifications (Deagel)
Crew 3
Troops 21
Dimensions — Main Gun Caliber 12.7 millimeter
Mass — Combat Weight 27,560 kilogram
Mass — Empty Weight 21,000 kilogram
Mass — Payload 4,536 kilogram
Performance — Max Range 483 kilometer
Power — Power 525 shp
Speed — Cross Country Speed 48 kph
Speed — Top Speed 72 kph
Speed — Top Swimming Speed 7 knot
Variants
Variant 1 AAVP7A1
Variant 2 AAVC7A1
Variant 3 AAVR7A1
Details
Country of Origin United States
Sources

deagel.com: https://www.deagel.com/x/x/a000546

Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
27560 kg
Operators (1)
United States
