Telemax 4x4 German Tracked Unmanned Ground Vehicle (UGV)
Telemax 4x4
Unmanned Ground Vehicle (UGV)
Other
Basic Information
Name
Telemax 4x4 German Tracked Unmanned Ground Vehicle (UGV)
Designation
Telemax 4x4
Alternate Designation
Telemax 4x4
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
Faulhaber
Date of Introduction
2017
Description

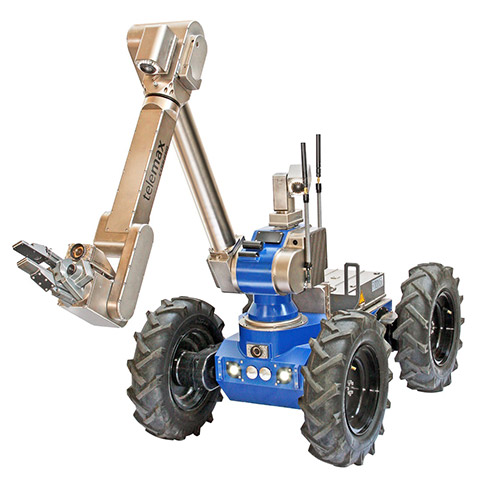

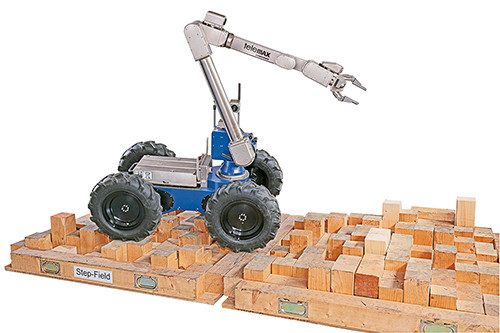

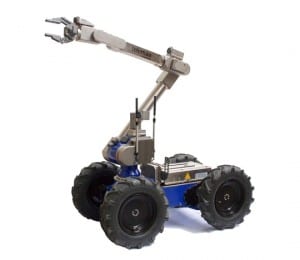

Telemax 4x4 telemax with wheels: Versatile and cost-efficient! The starter version with a broad wheelbase and 4-wheel drive for rapid deployments on challenging terrains and delicate flooring requiring protection. Features: *Precision 6-axis manipulator with TCP control and automatic tool change *Rugged four-wheel drive *Top speed of up to 11.5 km/h (7 mph) *Wide wheelbase with increased surface contact *Lifting capacity up to 20 kg (44 lbs.) *More than 16 pre-programmed automatic manipulator motion sequences *Interchangeability of accessories within the telemax family, e.g. batteries, tools, cameras and sensors
Ground Specifications
Crew
1
Mobility Type
Wheeled (4x4)
Max Speed
11.5 km/h
Variants
Telemax 4x4
elemax with wheels:
Versatile and cost-efficient!
The starter version with a broad wheelbase and 4-wheel drive for rapid deployments on challenging terrains and delicate flooring requiring protection.
Telemax PRO
The original telemax:
Compact design and high reach!
A truly versatile robot capable of handling significant gradients and obstacles, it boasts an impressive manipulator reach, both vertically and horizontally, combined with minimal dimensions. Perfect for deployments in built-up areas and confined spaces.
Telemax HYBRID
The best of both worlds – Compact and strong!
The combination of a powerful arm and compact dimensions for the toughest challenges.
Telemax PLUS
The biggest and strongest telemax:
Versatile and strong!
Our largest and strongest telemax, its exceptional ability to handle gradients and terrains makes it ideal for a particularly broad range of applications.
Telemax RECCE
Fast solution for reconnaissance:
Agile and smart!
Compact and high performance reconnaissance system without a manipulator provides detailed information from the site, especially when equipped with our autonomy/3D mapping accessory.
System
Alternative Designation
Telemax 4x4
Type
Tracked Unmanned Ground Vehicle (UGV)
Manufacturer
Faulhaber
Crew
1 ea
Payload Capacity
up to 20 kg
Note
More than 16 pre-programmed automatic manipulator motion sequences
Dimensions
Length
1018 mm
Width
603 mm
Height
813 mm
Manipulator, Upward Reach
2071 mm
Manipulator, Forward Reach
1586 mm
Manipulator, Downward Reach
1060 mm
Weight
Standard speed version: 66 kg (145 lbs.)
High speed version: 68 kg (149 lbs.)
Firing Channel
3 ea
Payload
35 kg
Automotive
Engine Name
INA
Engine Type
INA
Engine Power
INA
Drive
4 wheels
Maximum Speed
Standard speed version: max. 4.5 km/h (2.7 mph)
High speed version: max. 11.5 km/h (7 mph)
Operational Range
INA
Mobility, Slopes
38° (standard speed version, depending on surface)
Mobility, Stairs
17.5°
Mobility, Obstacle Height
200 mm
Mobility, Gap Width
330 mm
Fording Depth
280 mm
Battery
NiMh battery (24 V, 15 Ah):
Endurance
NiMh battery (24 V, 15 Ah):
approx. 3 h with 1 battery; approx. 6 h with 2 batteries
Li-ion battery (26 V, 40 Ah):
approx. 7.5 h with 1 battery; approx. 15 h with 2 batteries
Protection
Hull Armor
INA
Applique Armor
INA
Details
Country of Origin
Germany
Category
Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
T
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
1.02 m
Width
0.6 m
Height
0.81 m
Weight
29.94 kg
Operators (1)
Germany
