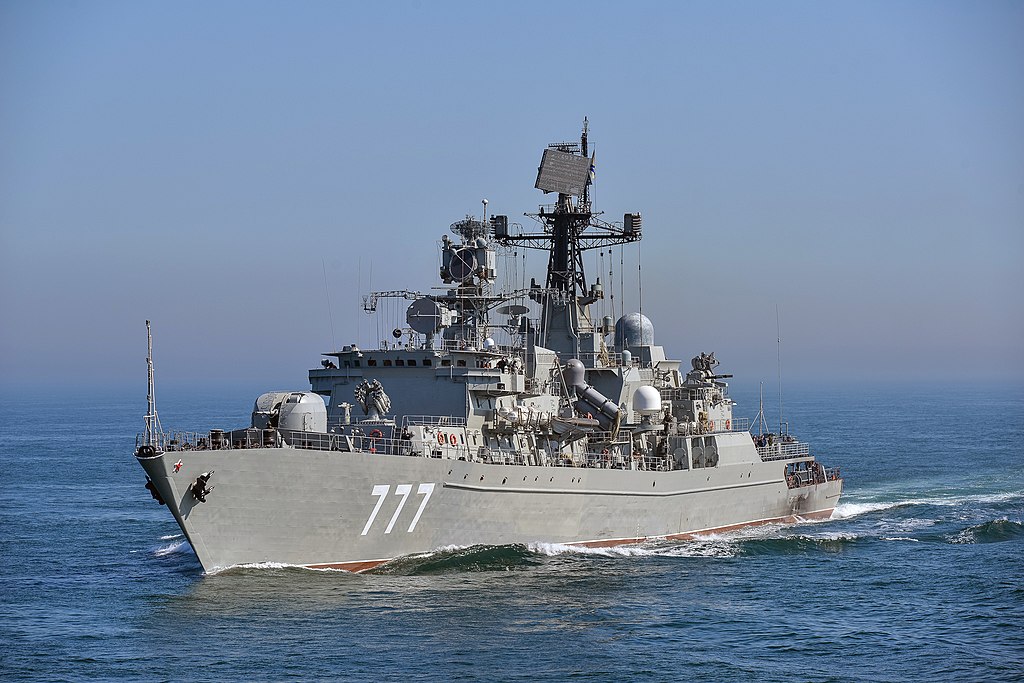

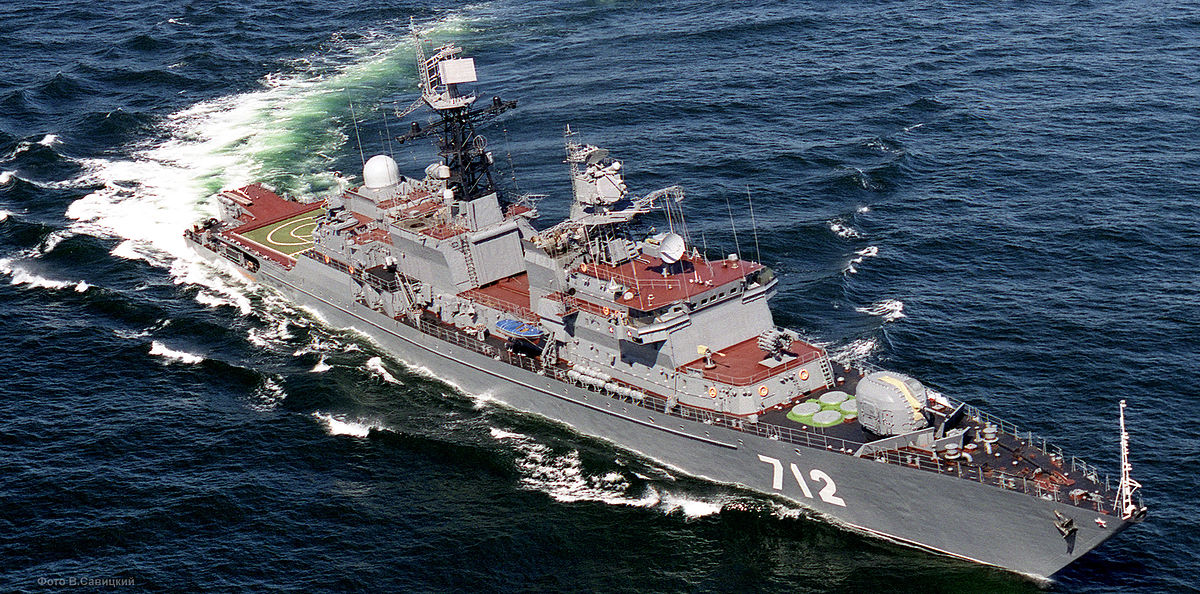

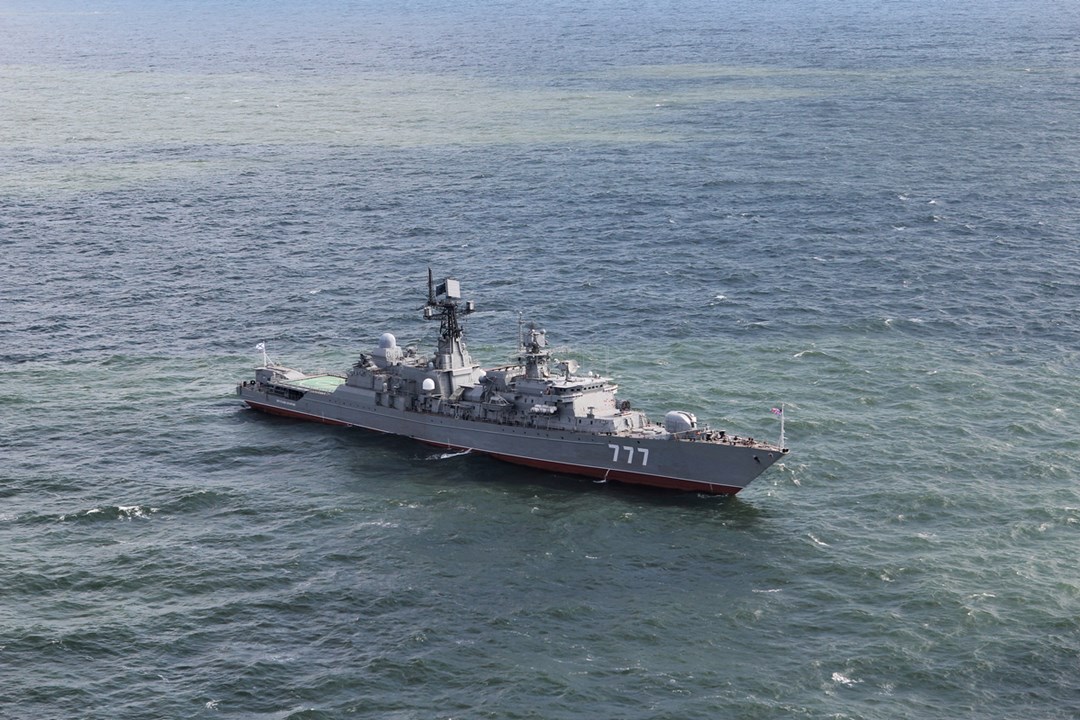

Neustrashimy Class (Project 11540 Class) Russian Frigate
Neustrashimy Class
Frigate
Other
Basic Information
Name
Neustrashimy Class (Project 11540 Class) Russian Frigate
Designation
Neustrashimy Class
Alternate Designation
Neustrashimy Class; Project 11540 Class
Equipment Type
Frigate
Manufacturer
Yantar Zavod 820
Date of Introduction
1993
Description
Neustrashimy Class (Project 11540 Class) Russian Frigate was originally designed as the successor to the GRISHA class, but due to weakness in the Russian economy, only two were completed. The Neustrashimy class (Russian: Неустрашимый, alternate English spelling Neustrashimyy), Soviet designation Project 11540 Yastreb (hawk), is a series of large frigates built for the Soviet Navy and currently in service with the Russian Navy. Seven ships were planned for the Soviet Navy, but the fall of the Soviet Union disrupted those plans. Two ships were completed, both currently in active service with the Russian Baltic Fleet.
Naval & Littoral Specifications
Crew
210
Beam
15.60 m
Draft
8.40 m
Variants
NEUSTRASHIMYY
Commissioned: 1993
Status: Active
Fleet: Baltic Fleet
YAROSLAV MUDRYY
Commissioned: 2009
Status: Active
Fleet: Baltic Fleet
System
Alternative Designation
Neustrashimy Class; Project 11540 Class
Type
Frigate
Builder
Yantar Zavod 820, Kaliningrad, Russia
Crew
210 total (35 off. + 175 enl.)
Dimensions
Length
129.6 m
Beam
15.6 m
Draft
8.4 m
Displacement, Standard
3,210 tons
Displacement, Full Load
4,350 tons
Propulsion System
Engine Name
2 x M-70 cruise gas turbines and 2 x M-90 boost gas turbines
Engine Type
Cruise Gas Turbine and Boost Gas Turbines
Engine Power
M-70: 9,000 shp each; M-90: 19,500 shp each
Maximum Range
2,900 nm at 18 knots or 700 nm at 30 knots
Maximum Speed
30 knots
Gun Weapon Systems
Gun Weapon System # 1
Name
1 x AK-100 100mm Naval Gun
Type
Naval Gun
Caliber
100 mm
Length
INA
Weight
35.5 tons
Elevation
-10 / +85 degrees
Traverse
360 degrees
Rate of Fire
50 to 60 rounds per minute
Gun Weapon Systems #1 Ammunition
Type
Rifle
Caliber
100 mm
Shell Weight
26.8 kg
Basic Load
350 Rounds
Gun Weapon System # 2
Name
2 x Kortik CIWS (CADS-N-1 Kashtan)
Type
Close-In Weapon System
Caliber
30 mm
Main Armament
8 x 9M311 Missile
Secondary Armament
2 × AO-18K autocannon
Length
INA
Height
2,250 mm above deck
Weight
15,500 kg
Barrels
2 × 6 (guns); 2 × 4 launch tubes
Action
Gas-operated rotary cannon
Rate of Fire
9,000 rounds/min (guns) and 1–2 (salvo) missiles per 3–4 sec.
Warhead
Continuous-rod w/ frag layer
Muzzle Velocity
860 m/s
Effective Firing Range, Missiles
1,500–8,000 m
Effective Firing Range, Autocannon
500–4,000 m
Feed System
Link-less, helical; 1000 rounds
Sights
INA
Gun Weapon Systems # 2 Ammunition
Type
Rifle
Caliber
30 mm
Shell
HEI-Frag, Frag-T, APDS-T
Shell Weight
0.39 kg (HEIF, FT)
0.30 kg (APDS-T)
Basic Load
64 x 9M311 Missiles and 3,000 30mm Rounds.
Missile Weapon System
System
Name
4 x Kinzhal (NATO SA-N-9) SAM system fired from 4 x 8-round PS-4S-95 VLS systems
Type
Surface-to-Air (SAM) Missile System
Length
3.5 m
Diameter
0.235 m
Wingspan
0.35 m
Weight
165 kg
Warhead
HE-Frag
Engine
Single-stage solid propellant rocket motor plus ejection motor
Range
12 km
Maximum Speed
700 - 800 m/s
Maximum Altitude
6.0 km
Basic Load
32 x 9M330 Missiles
Anti-Submarine Weapon (ASW) System
Torpedo Tubes
6 x fixed 533mm tubes
Torpedo Name
Type SET-65 and Type 53-65K torpedoes
Torpedo Basic Load
INA
Rocket Launcher
2 x 12-round RBU-6000 ASW rocket launchers
Rocket Name
RGB-60 rockets
Rocket Basic Load
96 x RGB-60 rockets
Mine System
Mine Launcher
2 x rails
Mine Basic Load
16-20 mines
Fire Control Systems (FCS)
Target Designator
1 x MR-352 Pozitiv (Cross Dome) target designator.
Kinzhal (NATO SA-N-9) SAM System FCS
1 x MR-360 Podkat (Cross Sword) SAM fire control
AK-100 FCS
1 x MR-145 Lev (Kite Screech) B 100mm gun fire control.
Kortik CIWS FCS
2 x 3P87 Kortik (Hot Flash) CIWS fire
control.
Aviation
Aviation Facilities
Helipad and Hangar
Aircraft
1 x Ka-27PL Helix-A Helicopter
Radar Systems
3D Air Search Radar
1 x MR-760MA Fregat-MA (Top Plate) 3D air search
Navigation Radar
2 x MR-312 Nayada navigation radar and 1 x MR-212/201 Vaygach-U (Palm Frond) navigation radar.
Sonar Systems
Sonars
1 x MGK-365 Zvezda M-1 suite w/ Ox Yoke bow-mounted, low-frequency and MGK-345 Bronza (Rat Tail) variable depth.
Protection
Hull Armor
INA
NBC Water Washdown System
Yes
EW Suite
MR-407 Vympel-R2 suite
EW Interceptors
2 x Foot Ball-A interceptors; 2 x Half Hat-B interceptors; 2 x Cage Flask interceptors.
EW Jammer
2 x Bell Squat jammers
Decoy
2 x 16-round PK-16 fixed decoy rocket
launchers [400 rockets carried] and 8 x 10-round fixed decoy rocket launchers.
Details
Country of Origin
Russia
Category
Naval
Naval
Filter Label
N
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
129.6 m
Width
15.6 m
Height
—
Weight
—
Operators (1)
Russia
