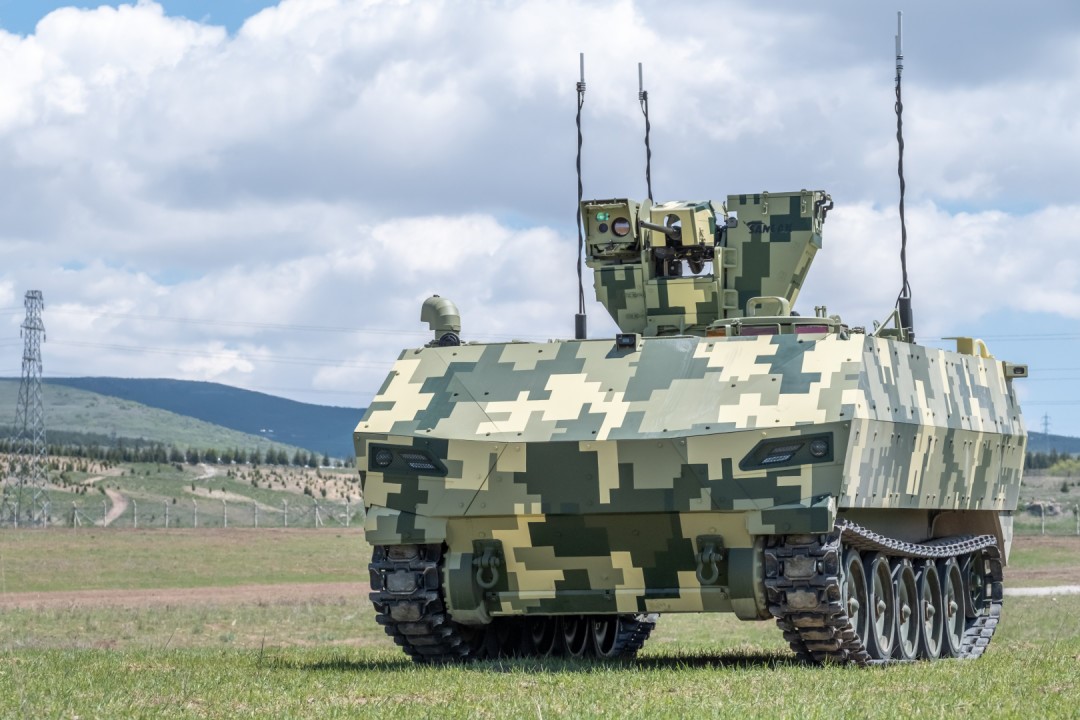

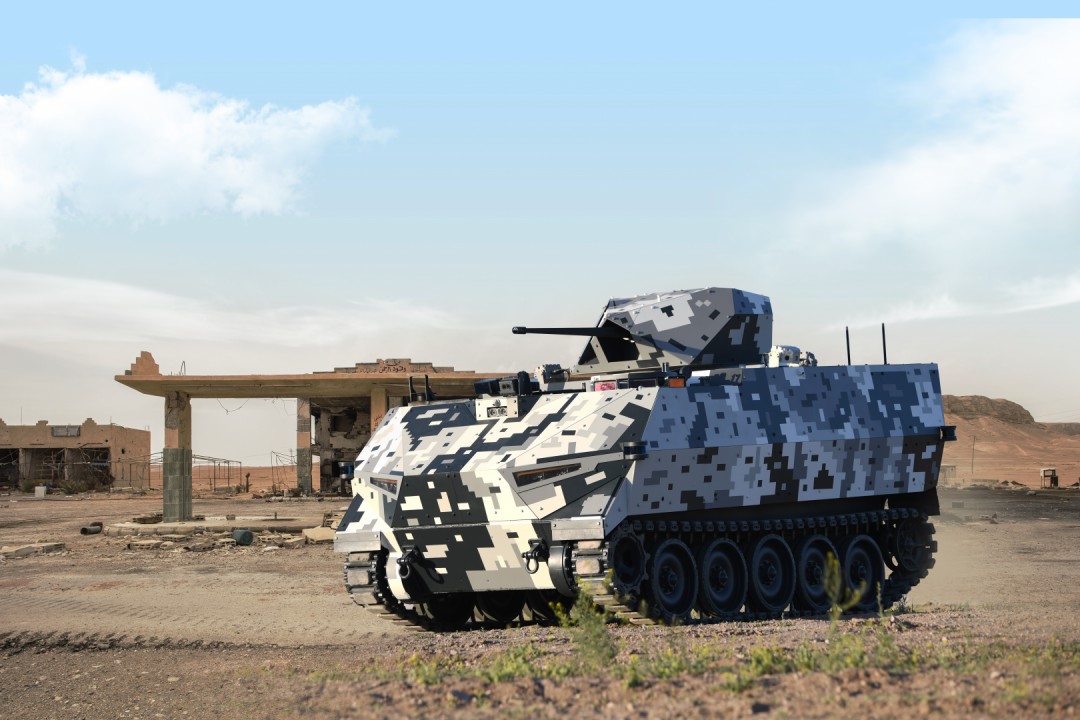

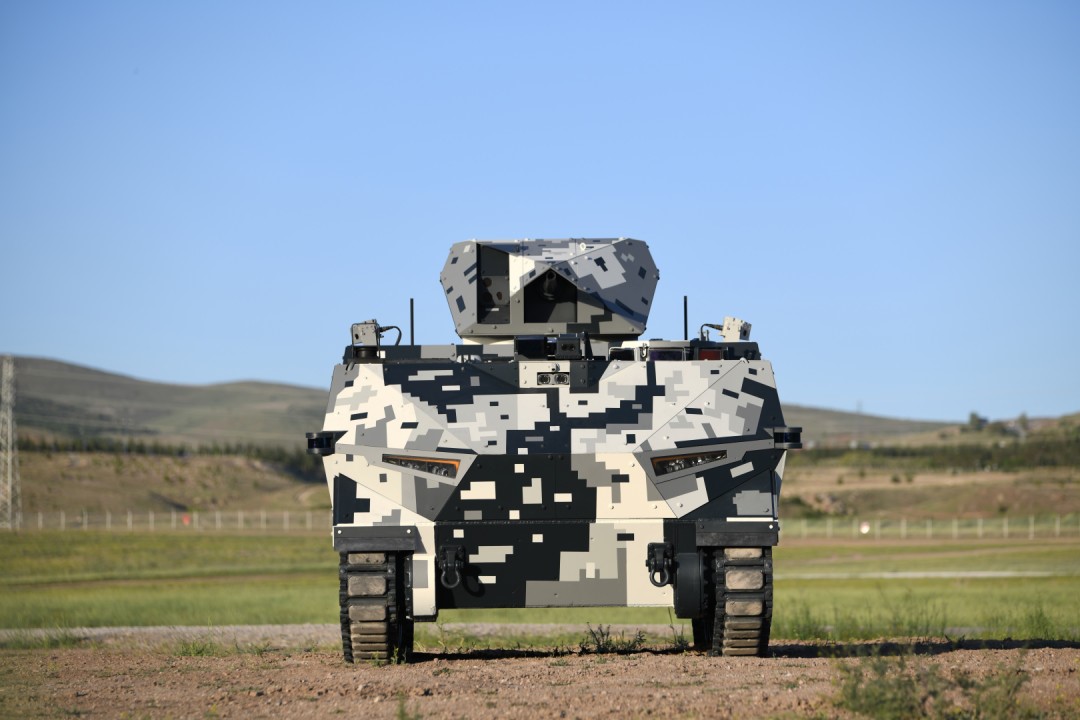

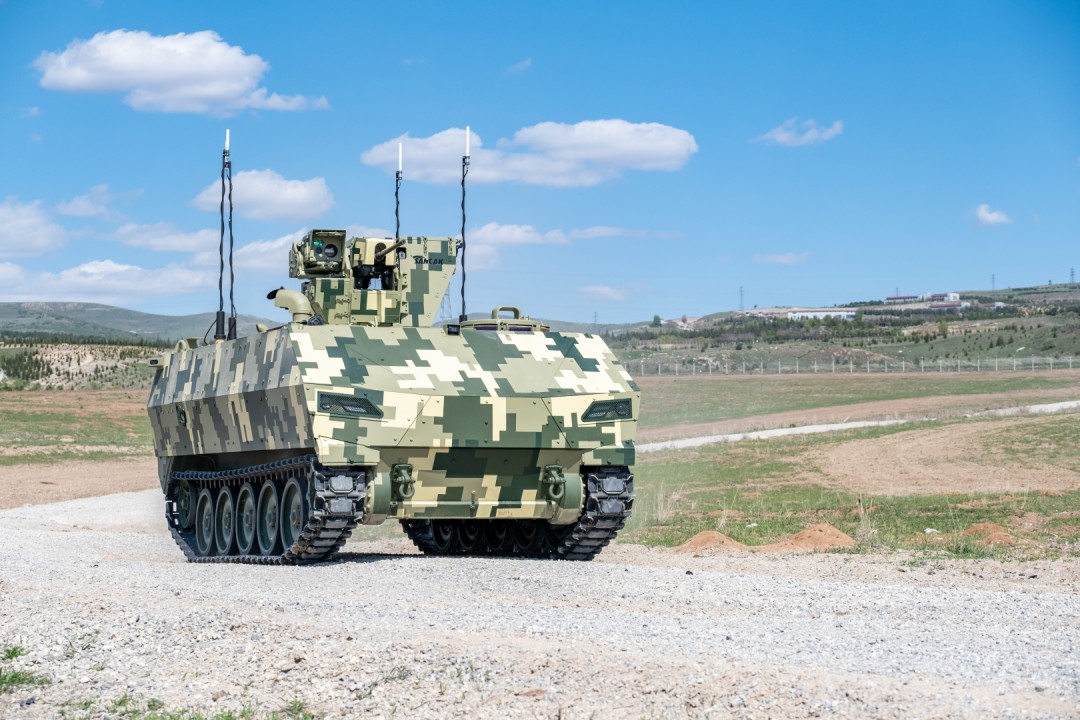

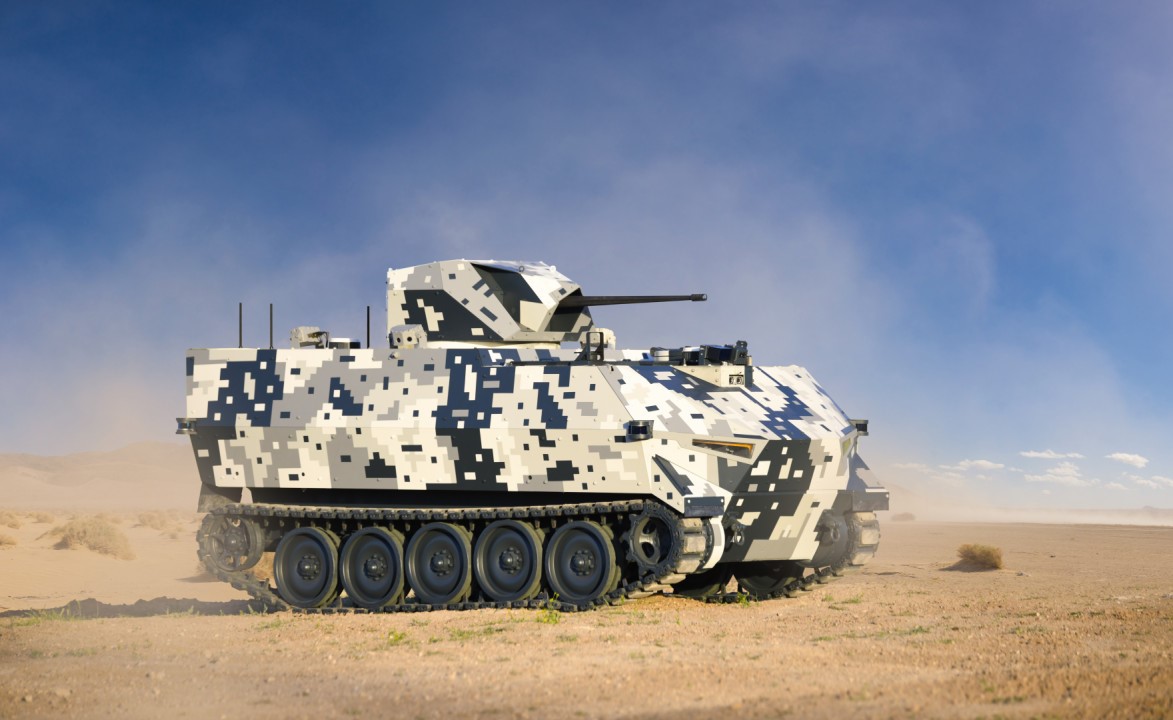

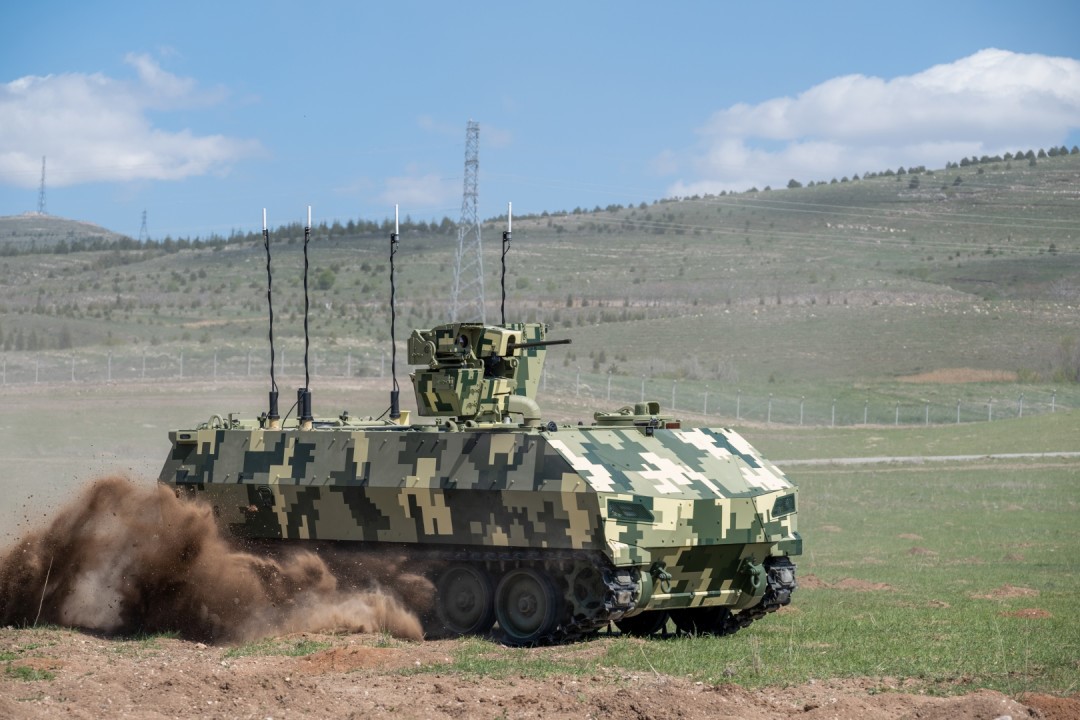

Shadow Rider Turkish Tracked Unmanned Ground Vehicle (UGV)

Shadow Rider

Unmanned Ground Vehicle (UGV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Shadow Rider Turkish Tracked Unmanned Ground Vehicle (UGV)
Designation
Shadow Rider
Alternate Designation
Shadow Rider
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
FNSS
Date of Introduction
2025
Description

The Shadow Rider Turkish Tracked Unmanned Ground Vehicle (UGV) is a family of modular autonomous unmanned ground vehicles designed to meet the multi-operational needs of the modern battlefield and to support soldiers in complex and challenging terrains. The Shadow Rider FoV is a system solution that reduces the soldier's burden on the battlefield and serves as a force multiplier for the user in full-spectrum missions, thanks to its artificial intelligence-supported autonomy kit, decision support systems, sensor suit, and positional and situational awareness systems. The Shadow Rider FoV is equipped with the autonomy kit developed by FNSS, which has autonomous driving modes such as patrol, track, and return to military base, as well as various layers of protection for a safe ride. The FNSS autonomy kit features an open architecture design, enabling rapid adaptation to technological developments. In the armed variant of the Shadow Rider, designed for fire support missions, the “man” is always in the loop in the decision-making process, and the fire decision is not made by the system. The Shadow Rider, which can be commanded remotely and has autonomous mobility, is an unmanned ground vehicle family that can meet all kinds of missions such as reconnaissance and surveillance, logistic support, tactical deception, fortified positions reconnaissance, communication relay, medical evacuation and most of all fire support, its design allowing integrating payloads suitable for those different tasks. The Shadow Rider FoV integrates remote control and autonomous capabilities on a reliable M113 platform. The Shadow Rider offers optional manned operation and features a payload capacity of 4,500 kg.

Ground Specifications
Mobility Type Tracked
Engine Diesel
Max Speed 50.0 km/h
Range 450.0 km
System
Alternative Designation Shadow Rider
Type Unmanned Ground Vehicle (UGV)
Manufacturer FNSS
Configuration Tracked
Crew Unmanned
Payload Capacity 4,500 kg
Features RF and LTE Communication; Antijam GNSS; Waypoint Navigation and Patrol Capabilities; Leader-Follower Capabilities in GNSS Denied Areas; Obstacle Detection and Avoidance Capabilities.
Dimensions
Length 5.5 m
Width 3.0 m
Height 2.0 m
Weight, Combat 13,500 kg
Automotive
Engine Name INA
Engine Type Diesel
Engine Power INA
Maximum Range 450 km
Maximum Speed 50 km/h
Amphibious No
Gradient 60%
Side Slope 30%
Vertical Step 0.6 m
Trench 1.6 m
Main Weapon System
Note Remote Controlled Turrets and Missile Systems from Various Types and Origin Can be Integrated.
Protection
Armor INA
Applique Armor INA
NBC Protection No
Smoke Equipment INA
Details
Country of Origin Turkey
Category Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
S
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
5.5 m
Width
3 m
Height
2 m
Weight
13500 kg
Operators (1)
Turkey
