GJT 211 Type 82 Chinese Tracked Bulldozer
GJT 211 Type 82
Cargo Truck
Other
Basic Information
Name
GJT 211 Type 82 Chinese Tracked Bulldozer
Designation
GJT 211 Type 82
Alternate Designation
GJT 211 Type 82
Equipment Type
Cargo Truck
Manufacturer
NORINCO
Date of Introduction
1983
Description

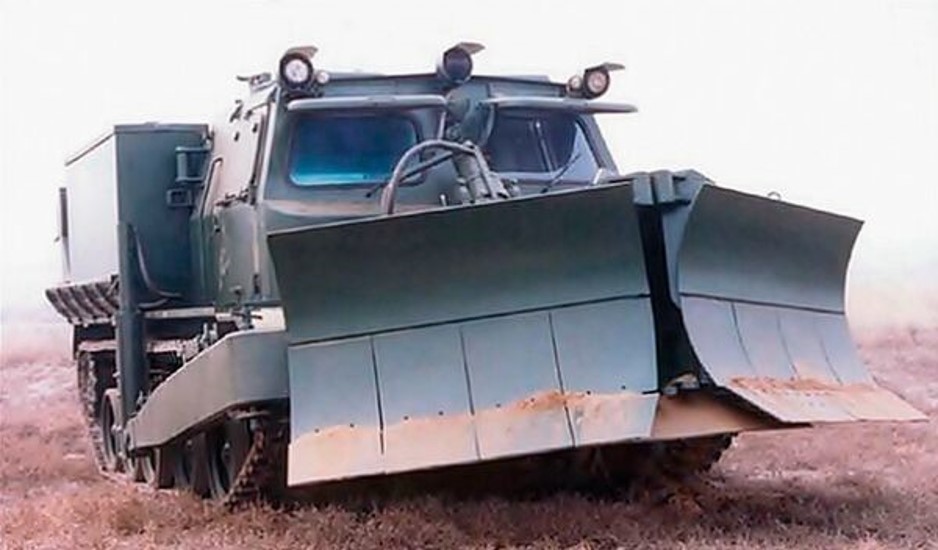

The GJT 211 Type 82 Chinese Tracked Bulldozer was designed from the outset for combat engineer use. Development began in 1979 and it is based on the running gear and automotive of the Type 62 light tank and was preceded by the visually similar GJT 210. Following issues with early production examples, full production of the Type 82 commenced in 1983.
Ground Specifications
Crew
4
Mobility Type
Tracked
Main Weapon
12.7 mm Heavy Machine Gun
Engine
V-12 diesel (430 hp)
Active Protection
None
Max Speed
47.4 km/h
Range
400.0 km
Variants
GSL 131
The GSL 131 mine clearing vehicle is based on the GJT 211 (Type 82) armoured bulldozer. It has a crew of four and is fitted with a mine clearing blade and two GBD 127 mine clearing charges.
System
Alternative Designation
GJT 211 Type 82
Type
Chinese Tracked Bulldozer
Manufacturer
Norinco
Crew
4 ea
Note

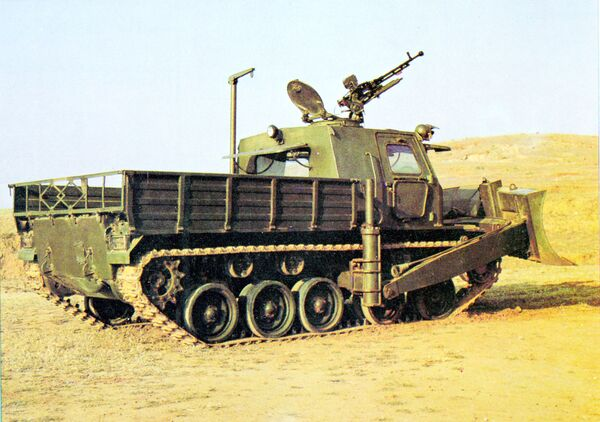

The area behind the cab and over the engine and transmission covers is used as a general cargo or equipment-carrying area and is provided with steel drop sides. There is no tailgate other than a load restraint frame.
Dozer Blade
Maximum Operating Depth
370 mm
Maximum Width
4.4 m
Maximum Height
1.1 m
Maximum Push
Maximum push is 16,000 kg
Note
When operating, the minimum bulldozing speed is 2.4 km/h and when operating within a distance of 30 m, the earthmoving capacity is 262 m3/h.
Dimensions
Length, Overall
7.17 m (with blade)
Length, Hull
5.81 m (without blade)
Width, Overall
4.33 m (operating)
Width, Transport Configuration
3.36 m (travel)
Height, Overall
2.76 m
Height, To top of Roof-Mounted Weapon
3.21 m
Weight
20,500 kg
Length of Track on Ground
3.385 m
Ground Clearance
450 mm
Ground Pressure
.71 kg/cm squared
Automotive
Engine Name
Type 12150L-3
Engine Type
V-12 diesel
Engine Power
430 hp
Range
400 km
Maximum Speed
47.4 km/h
Gradient
30%
Vertical Obstacle
0.700 m
Trench
2.6 m
Main Weapon System
System
Name
1 x Type 54
Type
Heavy Machine Gun
Caliber
12.7 mm
Rate of Fire
600 rpm
Ammunition
Type
Heavy machine gun and anti-material rifle cartridge
Caliber
12.7 mm
Cartridge
12.7 x 108mm
Muzzle Velocity
850 m/s
Effective Range
2 km
Armor Penetration
API: 21mm at 500m and 13mm at 1000m (RHA)
Basic Load
1,250 Rounds
Coaxial Machine Gun
System
Name
1 x Type 59T
Type
General-Purpose Machine Gun
Caliber
7.62 mm
Max Rate of Fire
800 rpm
Sustain Rate of Fire
INA
Ammunition
Caliber
7.62 mm
Muzzle Velocity
8,547 m/s
Effective Range
460 m
Armor Penetration
NA
Basic Load
3,500 Rounds
Fire Control
Computerized FCS
No
Thermal Sight Tank Commander
No
Thermal Sight Gunner
No
Main Gun Stabilization
No
Range, Day Sight
INA
Range, Thermal Sight
NA
Laser Range Finder
Yes
Protection
Hull Armor
16 mm on sides
Roof and Belly Armor
13 mm
Glacis
25 mm
Lower Glacis
20 mm
Turret Armor
32 mm to 50 mm
Applique Armor
No
Explosive Reactive Armor
No
Active Protection System
No
Mine Clearing
No
Self-Entrenching Blade
No
NBC Protection
No
Smoke Equipment
Carries 2 x smoke pots
Image Sources
Details
Country of Origin
China
Category
Land
Land
Filter Label
G
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7.17 m
Width
4.33 m
Height
2.76 m
Weight
20500 kg
Operators (1)
China
