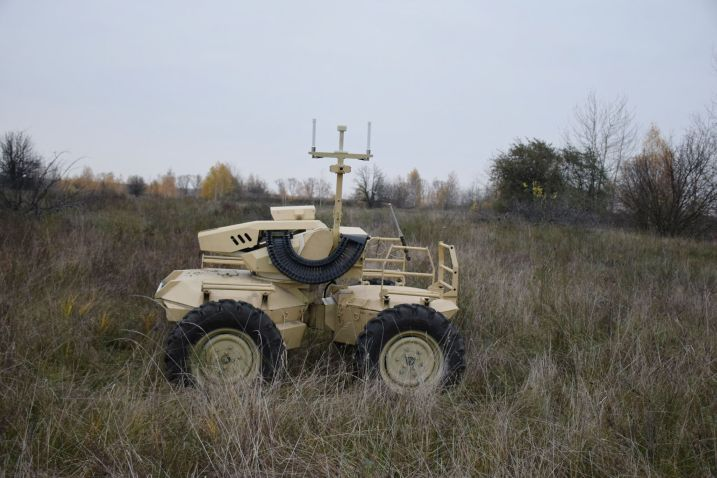

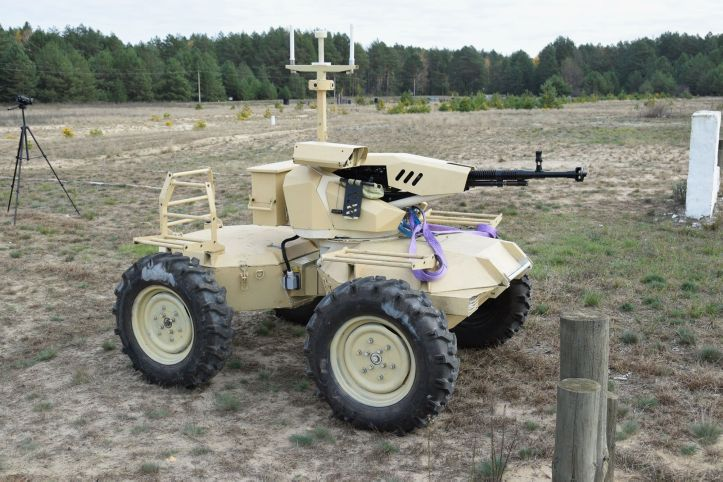

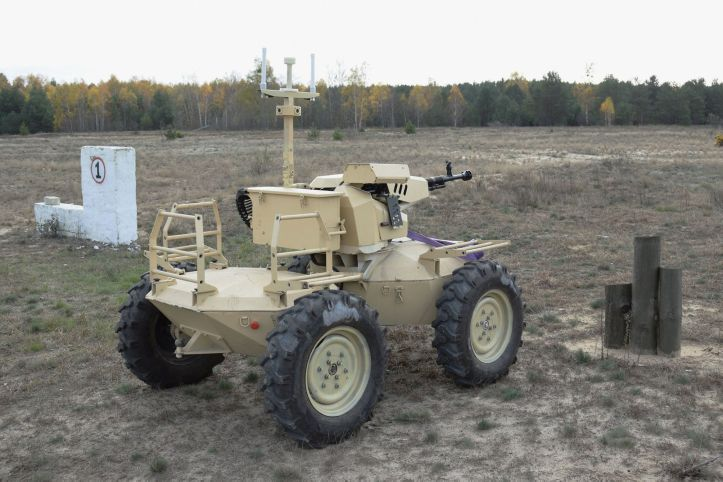

Camel Ukrainian 4x4 Unmanned Ground Vehicles (UGV)
Camel
Unmanned Ground Vehicle (UGV)
Other
Basic Information
Name
Camel Ukrainian 4x4 Unmanned Ground Vehicles (UGV)
Designation
Camel
Alternate Designation
Camel
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
Roboneers
Date of Introduction
2019
Description
The Camel Ukrainian 4x4 Unmanned Ground Vehicles (UGV) can operate in day or night conditions. The platform can be integrated with reconnaissance systems, UAVs, and quadcopters. Camel can also be used to launch UAVs.
Ground Specifications
Mobility Type
Wheeled (4x4)
Engine
The hybrid powertrain allows Camel to operate for weeks in surveillance mode. The onboard generator can be used to supply power in remote areas.
Max Speed
20.0 km/h
Range
130.0 km
System
Alternative Designation
Camel
Type
Unmanned Ground Vehicle (UGV)
Manufacturer
Roboneers
Configuration
4x4
Crew
Unmanned
Operator
Standard portable operator control unit.
Sensors
Various sensors can be mounted so that the platform can double as a surveillance platform, collecting and storing video and sensor data for processing
Software
The unit features the C4VISION system, which specialises in planning supply routes and carrying out waypoint navigation.
Payload Capacity
400 kg
Towing Capacity
1,000 kg
Dimensions
Length
2.8 m
Width
1.7 m
Height
1.3 m
Weight, Combat
500 kg
Ground Clearance
400 mm
Automotive
Engine Name
INA
Engine Type
The hybrid powertrain allows Camel to operate for weeks in surveillance mode. The onboard generator can be used to supply power in remote areas.
Engine Power
INA
Amphibious
No
Maximum Speed
20 km/h
Range
130 km
Maximum Gradient
35°
Side Slope
35°
Endurance
It can operate for up to 11 hours at a time when carrying a normal load. When using just the battery for power, the unit can operate for up to 2 hours. The hybrid power reserve covers a range of up to 130 km.
Main Weapon System
Note
INA
Protection
Armor
INA
Applique Armor
INA
Details
Country of Origin
Ukraine
Category
Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
C
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
2.8 m
Width
1.7 m
Height
1.3 m
Weight
500 kg
Operators (1)
Ukraine
