Basic Information

Name

F-22 Raptor

Designation

F-22 Raptor

Alternate Designation

—

Equipment Type

Multi-Role Fighters

Manufacturer

Lockheed Martin

Date of Introduction

—

Description

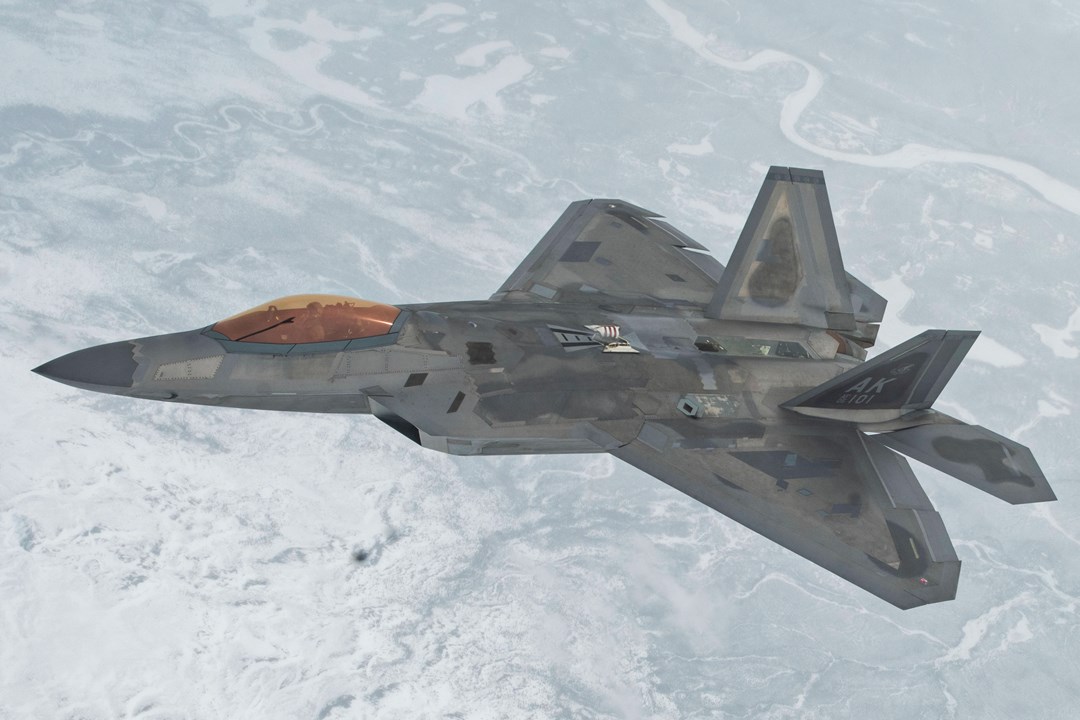

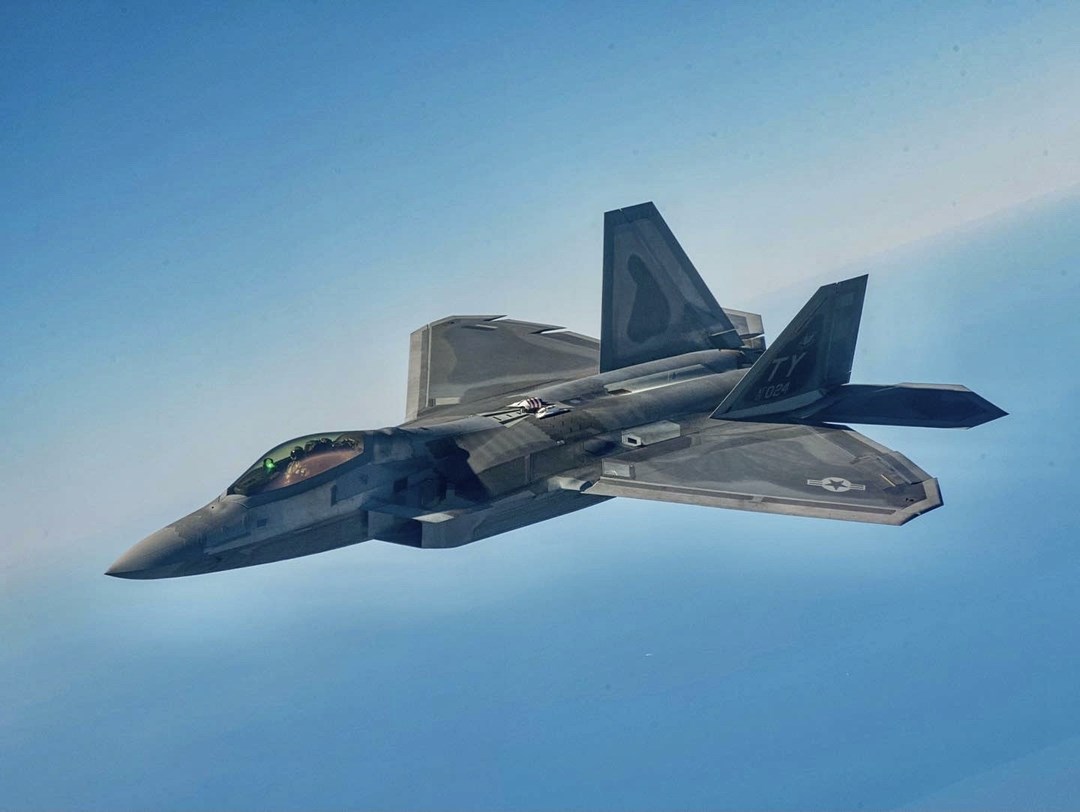

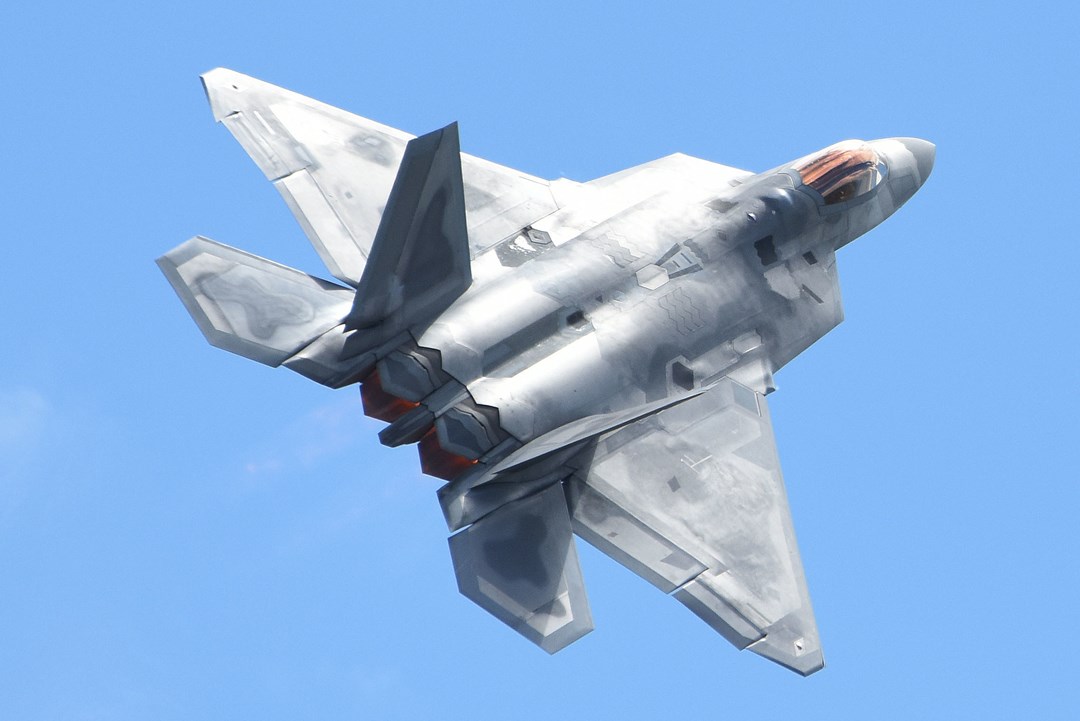

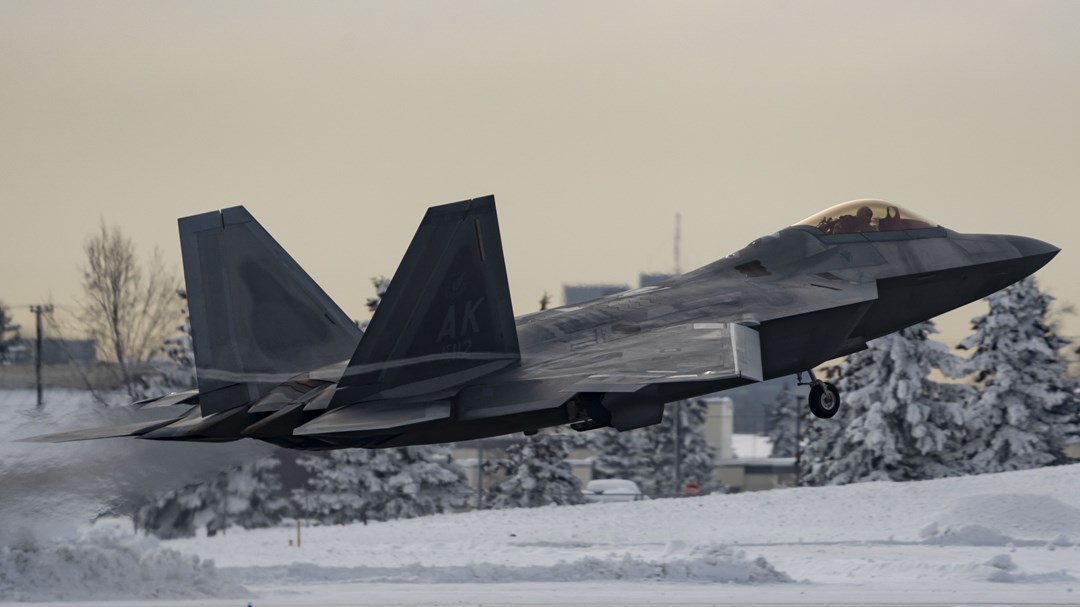

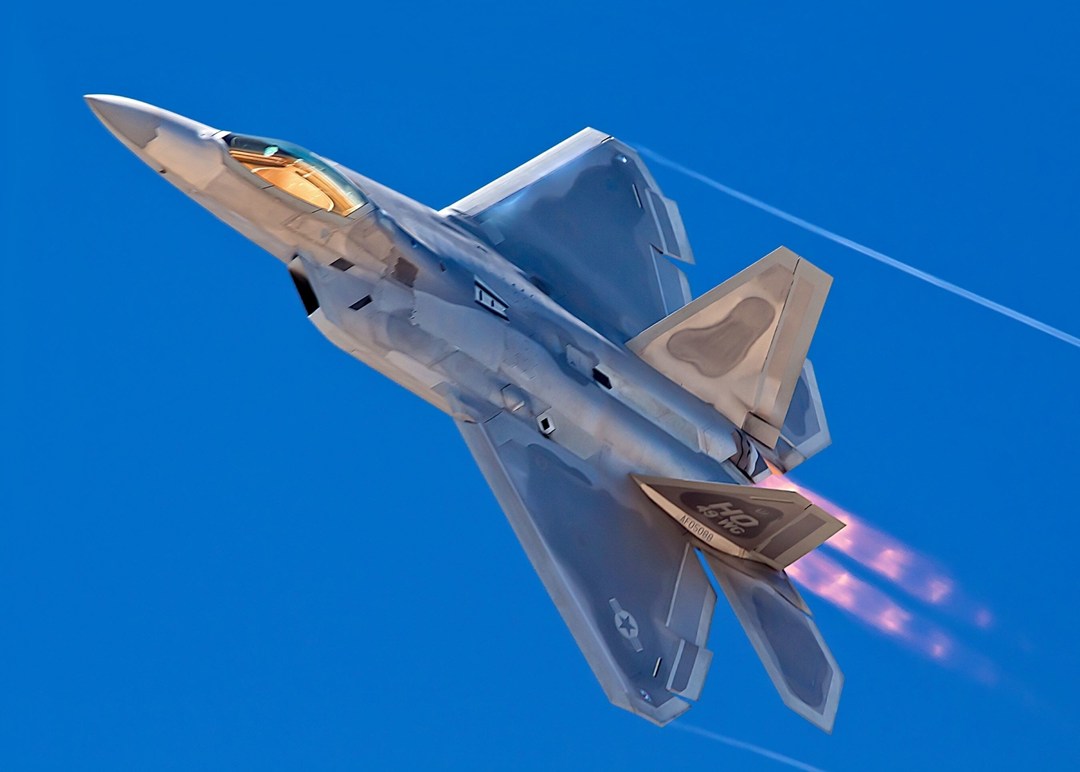

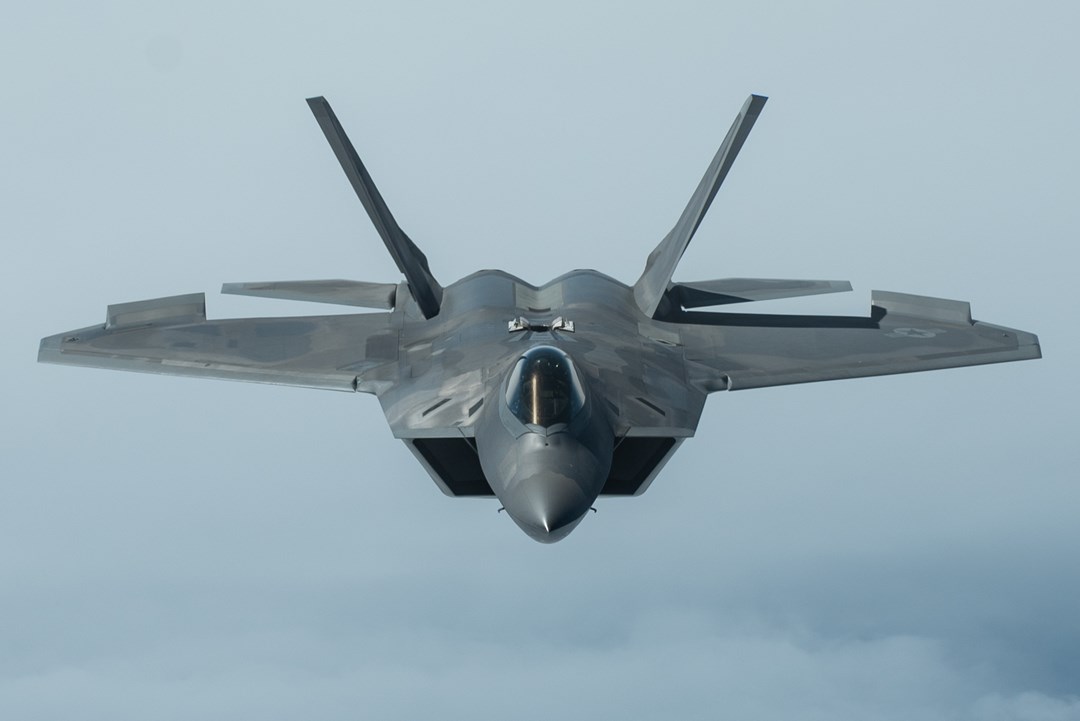

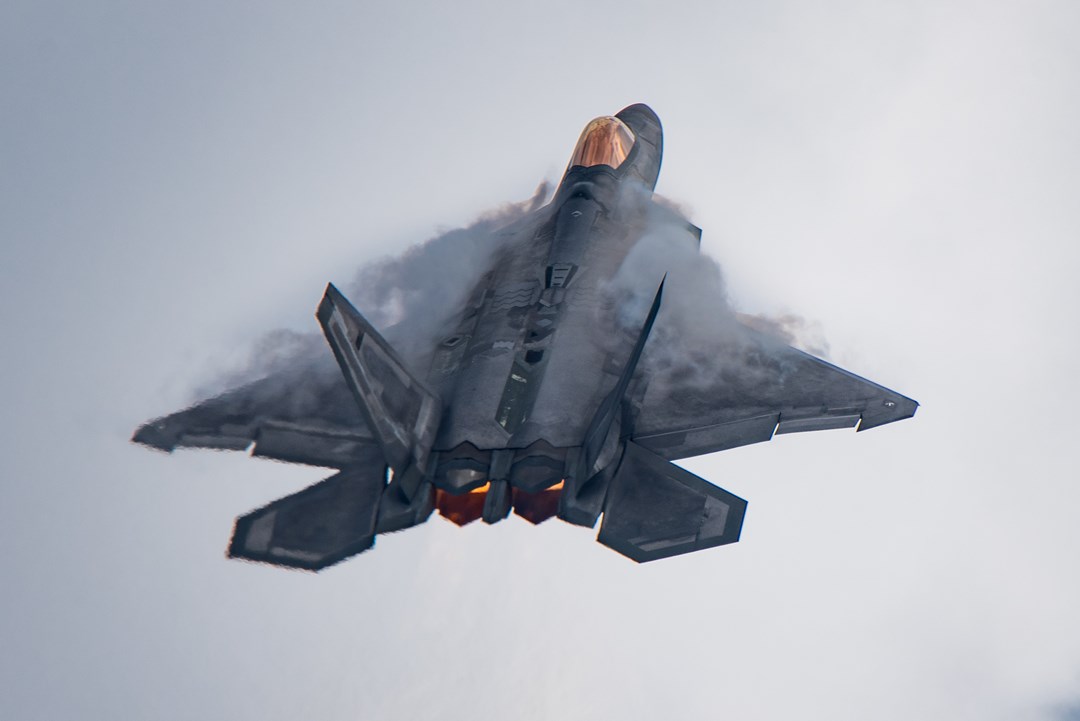

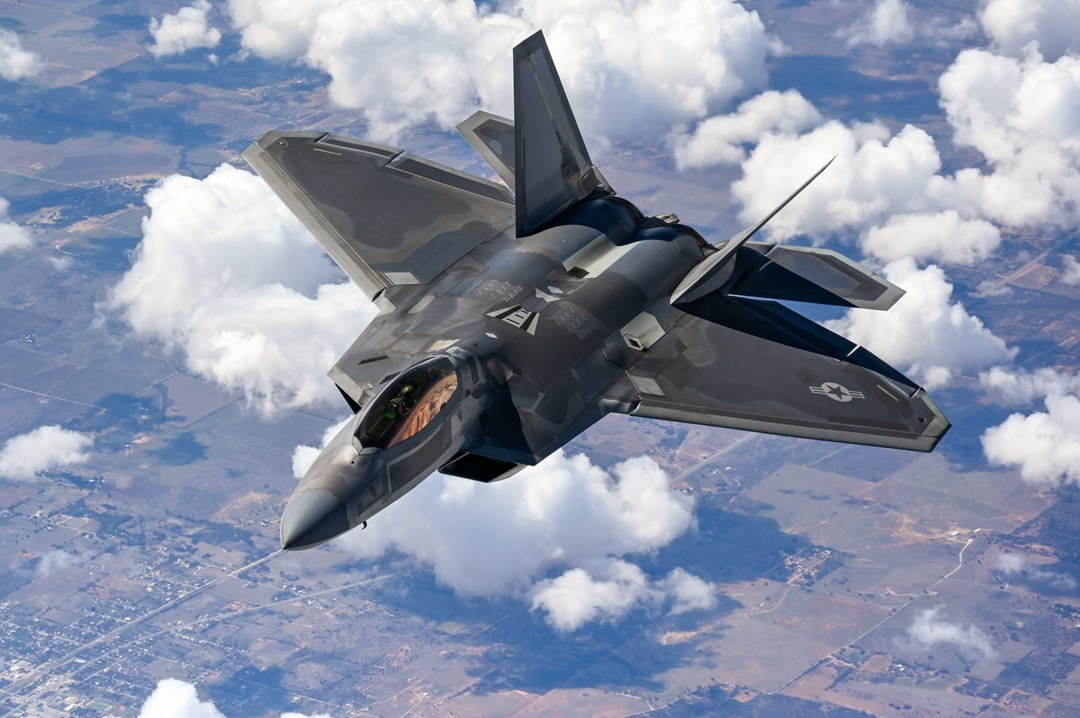

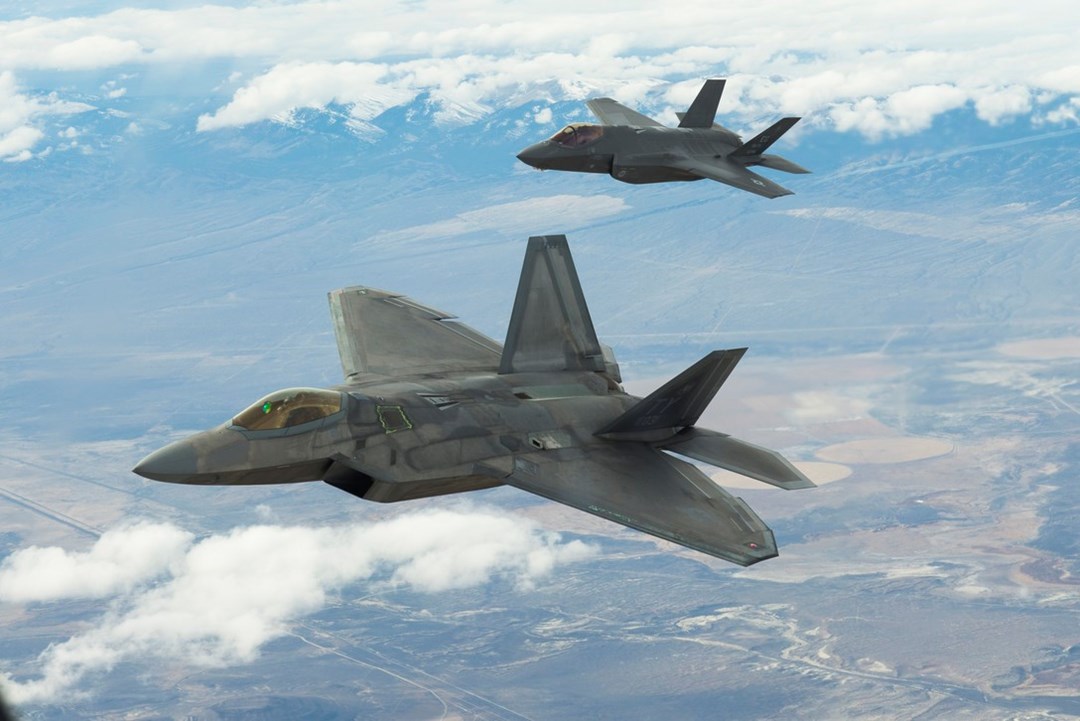

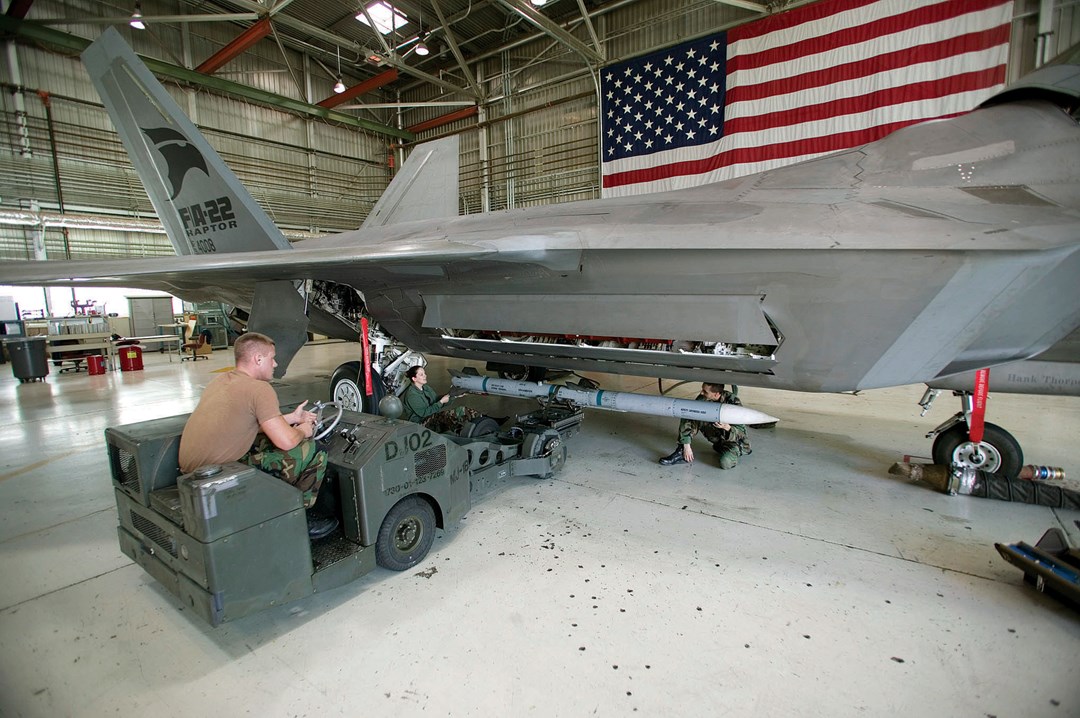

The F/A-22 Raptor is a stealth, long-range, supersonic, multi-role fighter designed to replace the F-15 Eagle ensuring the Us Air Force Air Dominance in the first quarter of the 21st century. It will be able to fight against the most sophisticated integrated air defense networks, as well as to gain and to keep air dominance against sophisticated enemy fighter aircraft fielded or under development. The F/A-22 features two internal side bays and one center bay for weaponry. The side bays will accommodate one AIM-9X Sidewinder each. The center bay will carry up to six AMRAAM missiles or two AMRAAM and two GBU-32 JDAM bombs. A built-in 20mm M61A2 cannon will be provided for close-in air-to-air engagements. In addition, the F/A-22 would load external weaponry and fuel tanks when assured air superiority. The external loads represent to increase radar cross section and drag, as well as lower survivability and aerodynamic performance.

Air & Air Defense Specifications

Crew 1

Max Speed 2470.0 km/h

Range 800.0 km

Overview (Deagel)

Group Multi-Role Fighters

Status Active

Also Known As ATF (Advanced Tactical Fighter), F/A-22A Raptor, F-22 Block 10 (2005), F-22 Block 20 (2007), F-22 Block 30 (2017), F-22 Raptor

Origin United States of America

Contractors Lockheed Martin*, Boeing

Initial Operational Capability (IOC) December 2005

First Flight 1997

Total Production 195

Unitary Cost USD $412 million

Specifications (Deagel)

Crew 1

Number of Engines 2

Service Life Flight Hours 8000

Area — Radar Cross Section (RCS) 0.01 square meter

Dimensions — Height 5.1 meter

Dimensions — Length 19 meter

Dimensions — Main Gun Caliber 20 millimeter

Dimensions — Wingspan 13.6 meter

G-load — Max Maneuvering Load Factor 9.5 g

Mass — Empty Weight 43,340 pound

Mass — Fuel Load 18,000 pound

Mass — Max Takeoff Thrust 70,000 pound

Mass — Max Takeoff Weight 38,000 kilogram

Mass — Operational Weight 29,000 kilogram

Percentage — Availability 60 %

Performance — Ceiling 50,000 foot

Performance — Ferry Range 1,600 nautical mile

Performance — Max Range at Supercruise 100 nautical mile

Performance — Radius of Operation 800 kilometer

Speed — Cruise Speed 0.95 mach

Speed — Supercruise Speed 1.6 mach

Speed — Top Speed at High Altitude 2,470 kph

Gear (Deagel)

Item 1 Air-to-Air Missiles: AIM-120C5/C7 (6)

Item 2 Air-to-Air Missiles: AIM-120D AMRAAM (6)

Item 3 Air-to-Air Missiles: AIM-260A JATM (6)

Item 4 Air-to-Air Missiles: AIM-9X Sidewinder (2)

Item 5 Bombs: GBU-32 JDAM (2)

Item 6 Bombs: GBU-35 JDAM (2)

Item 7 Bombs: GBU-39/B (6)

Item 8 Communications Devices: ICNI

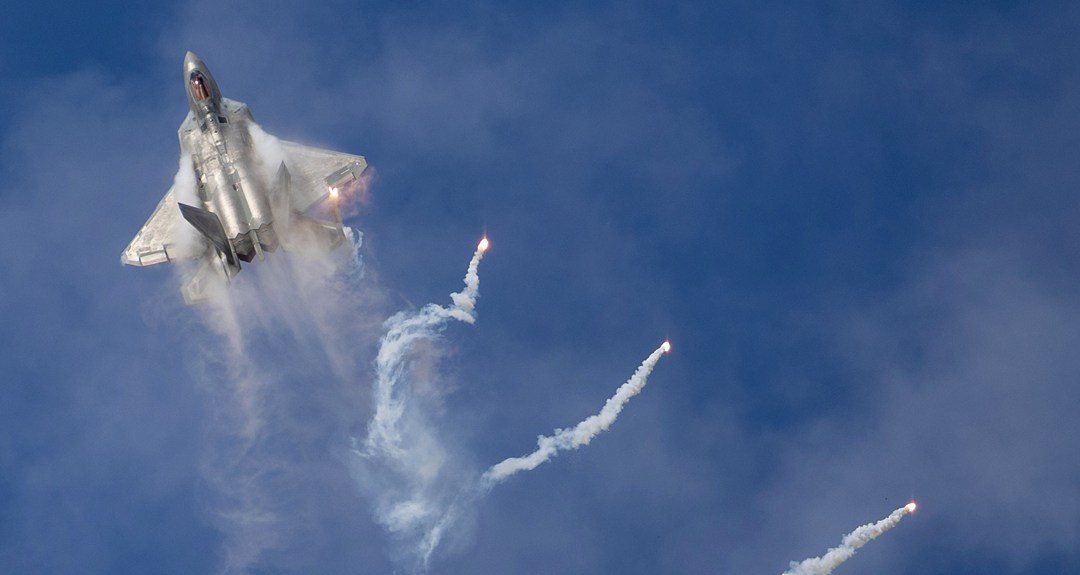

Item 9 Decoy Systems: AN/ALE-52

Item 10 ESM & Warning Systems: AN/AAR-56

Item 11 ESM & Warning Systems: AN/ALR-94

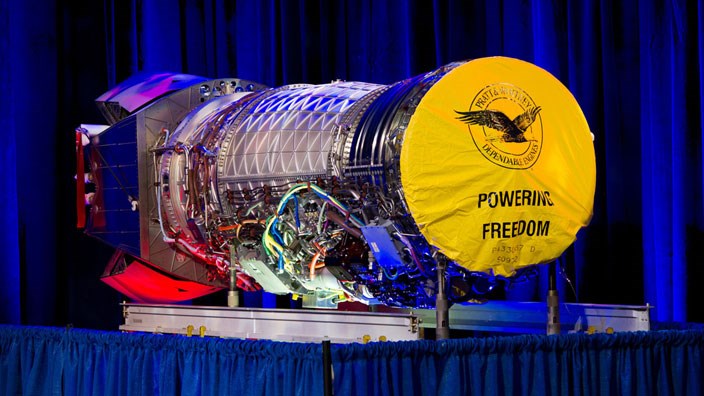

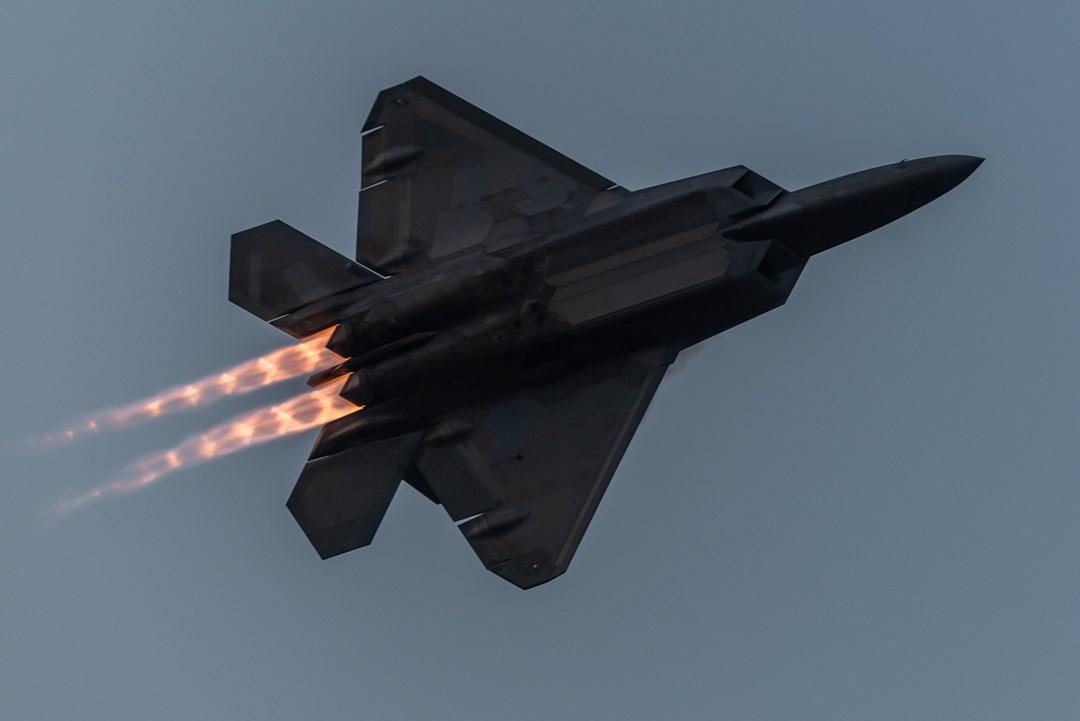

Item 12 Fighter Aircraft Engines: F119-PW-100 (2)

Item 13 Medium Caliber Cannons: M61A2 (1)

Item 14 Radar Systems: AN/APG-77 (1)

Variants

Variant 1 F-22A Raptor

Variant 2 FB-22

Variant 3 F-22C Raptor

Details

Country of Origin United States

Category Multirole Aircraft

Air > Multirole Aircraft

Sources

deagel.com: https://www.deagel.com/x/x/a000531

Classification

Domain

Air & Air Defense

Equipment Status

Active

Dimensions

Length

19 m

Width

13.6 m

Height

5.1 m

Weight

38000 kg

Operators (1)

United States
