MEKO A-100

MEKO A-100

Corvettes
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
MEKO A-100
Designation
MEKO A-100
Alternate Designation
Gawron, Kedah, MEKO 100 RMN, NGPV (RMN designation - Next Generation Patrol Vessel), Project 621
Equipment Type
Corvettes
Manufacturer
Blohm + Voss GmbH, Boustead Naval Shipyard, PGZ Stocznia Wojenna
Date of Introduction
2006
Description

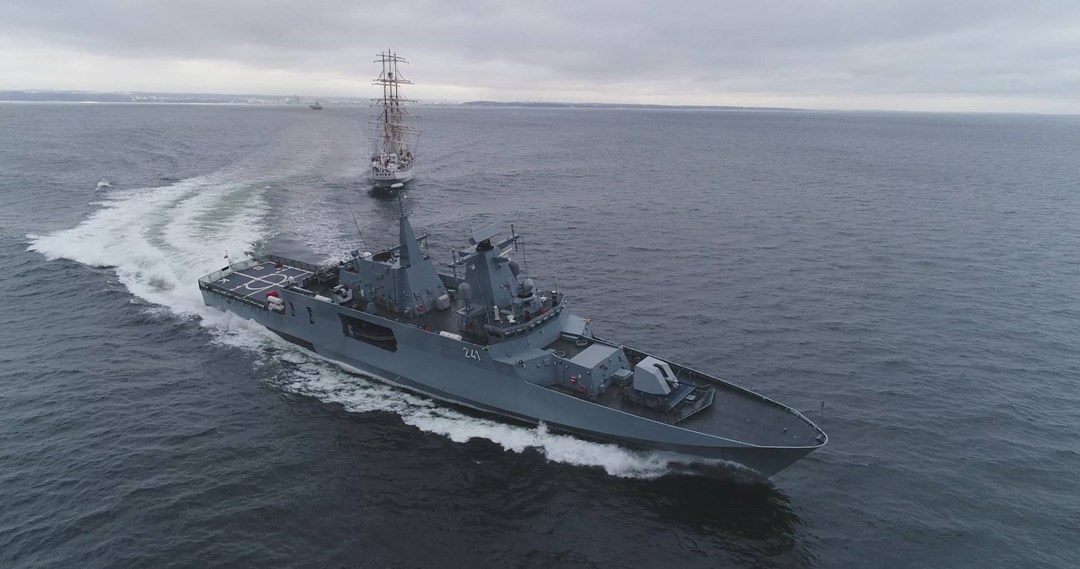

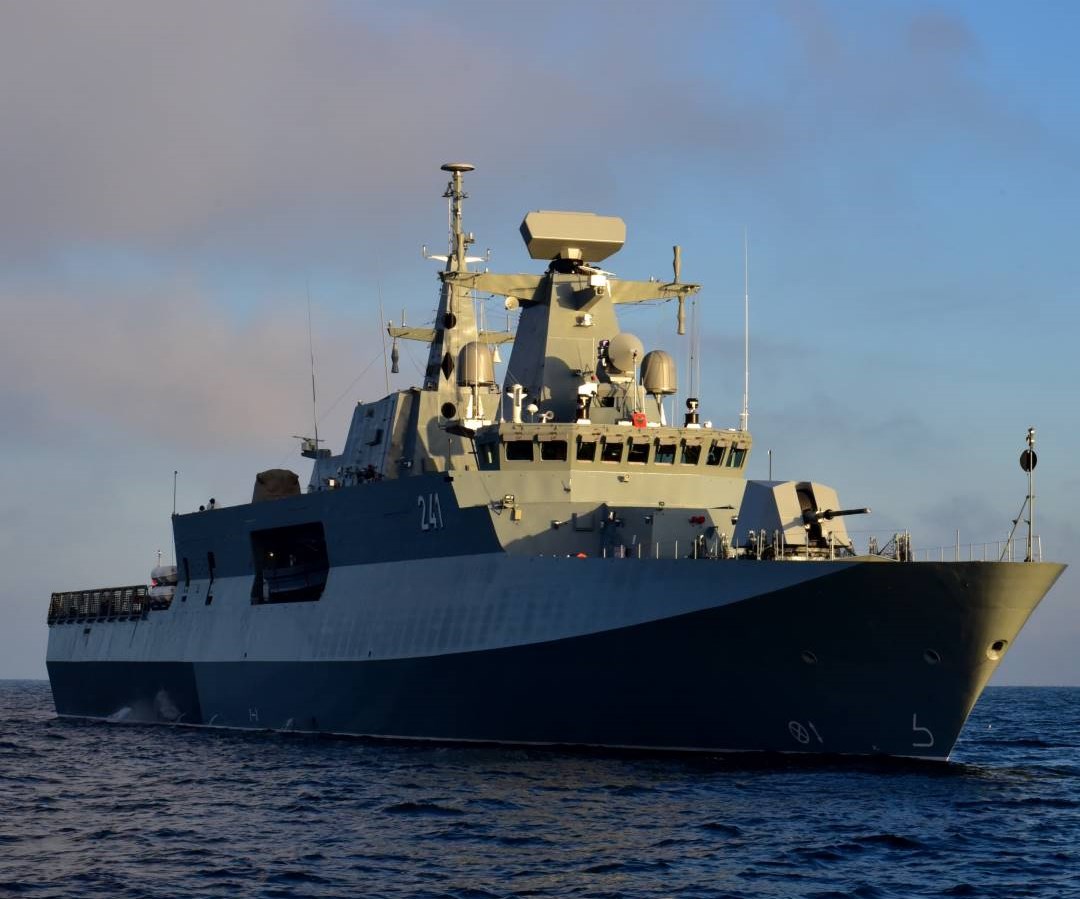

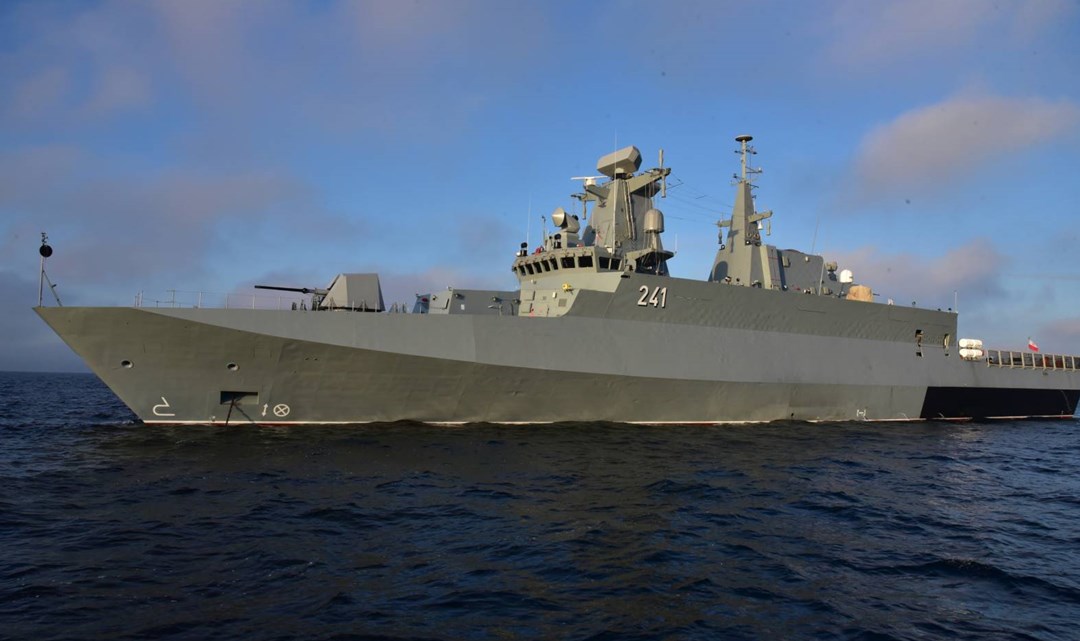

The MEKO A ships are the next generation of surface combatants evolved from the MEKO-family and offered by Germany for the export market. They will accommodate advanced propulsion systems, sensors and weaponry while providing improved survivability using low-observable technologies and design. Retrofit and upgrade processes will be easily carried out thanks to a modular open architecture and cutting-edge construction techniques. The MEKO A-100 corvettes have been designed to perform a wide variety of missions. According to customer specifications the MEKO A-100 ships will feature a displacement ranging from 800 to 2,500 tons. They can accommodate a medium size helicopter, vertical launched missiles (16), 8 anti-ship missiles, Close-In weapons, and small caliber guns. The Polish Navy procured only one ship under the Project 621 Gawron-class built by PGZ Stocznia Wojenna.

Naval & Littoral Specifications
Crew 94
Displacement 1900.00 tonnes
Beam 13.40 m
Max Speed 29.0 knots
Overview (Deagel)
Group Corvettes
Status Active
Also Known As Gawron, Kedah, MEKO 100 RMN, NGPV (RMN designation - Next Generation Patrol Vessel), Project 621
Origin Germany
Contractors Blohm + Voss GmbH*, Boustead Naval Shipyard, PGZ Stocznia Wojenna
Initial Operational Capability (IOC) June 2006
Total Production 7
Specifications (Deagel)
Crew 94
Number of Weapons 24
Dimensions — Beam 13.4 meter
Dimensions — Length 90.6 meter
Dimensions — Main Gun Caliber 76 millimeter
Mass — Full Displacement 1,900 ton
Performance — Max Range 7,400 kilometer
Speed — Top Speed 29 knot
Gear (Deagel)
Item 1 Anti-Ship Missiles: RBS15 Mk3
Item 2 Naval Gun Systems: 76/62 Compact (1)
Item 3 Radar Systems: TRS-3D/16 ES (1)
Item 4 Sea-Based Air Defense Systems: Mk-31 RAM (1)
Item 5 Ship Power Plants: LM2500 (1)
Item 6 Surface-to-Air Missiles: ESSM
Item 7 Torpedoes: MU90 Impact
Variants
Variant 1 MEKO A-100
Variant 2 MEKO A-100 IN
Details
Country of Origin Germany
Category Corvettes
Naval > Corvettes
Classification
Domain
Naval & Littoral
Equipment Status
Active
Dimensions
Length
90.6 m
Width
13.4 m
Height
—
Weight
1900000 kg
Related Equipment (1)
Operators (2)
Poland
Malaysia
