1B75 Penicillin Russian 8x8 Counter-Artillery System
1B75 Penicillin
Artillery Locating Radar
Other
Basic Information
Name
1B75 Penicillin Russian 8x8 Counter-Artillery System
Designation
1B75 Penicillin
Alternate Designation
1B75 Penicillin
Equipment Type
Artillery Locating Radar
Manufacturer
Rostec State Corporation
Date of Introduction
2020
Description

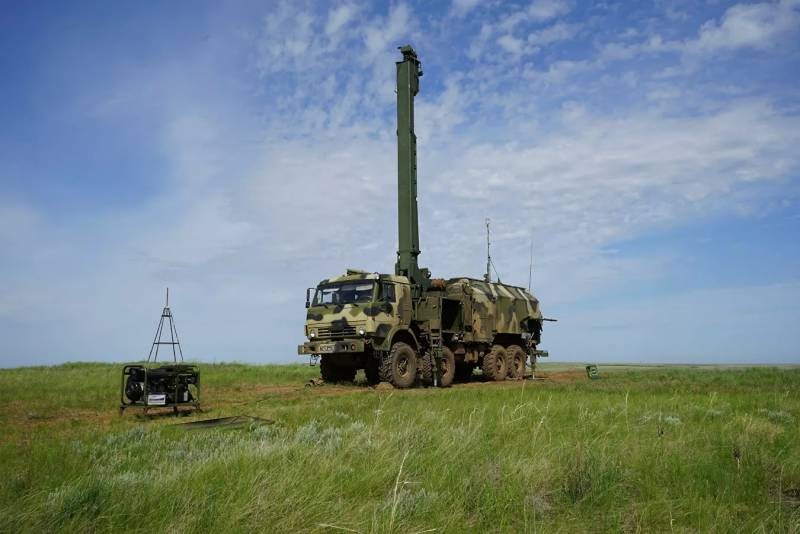

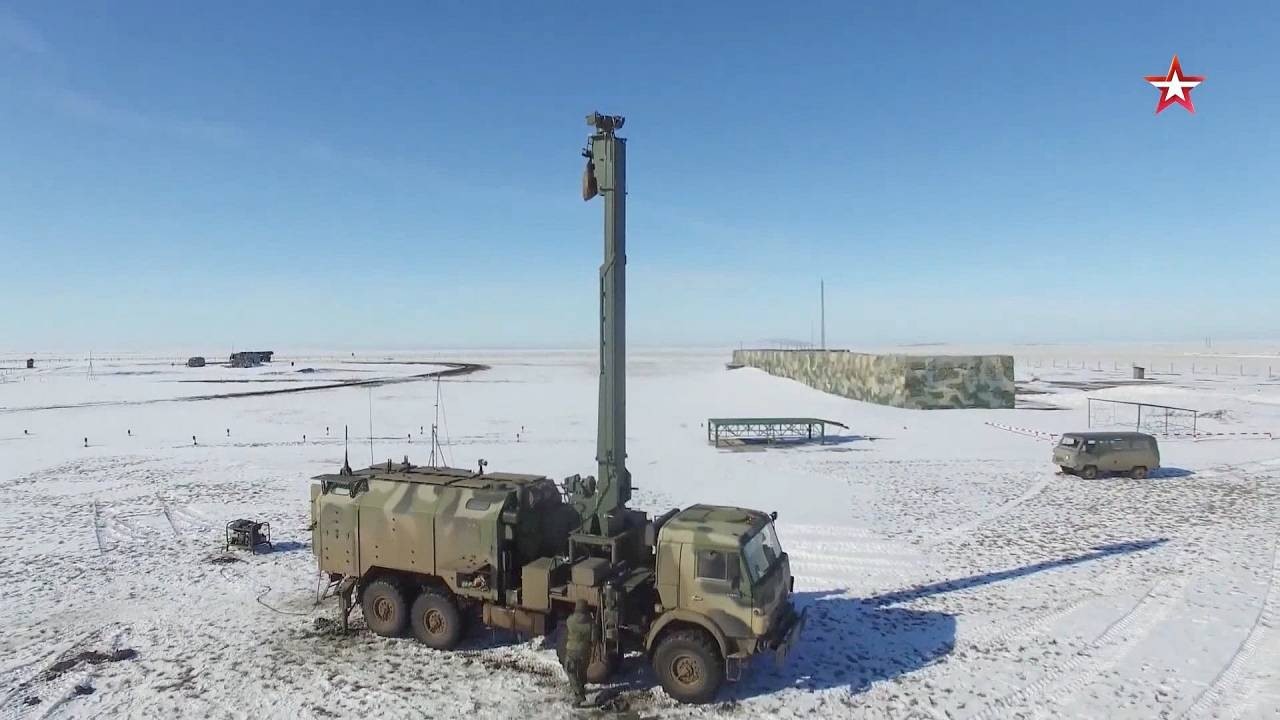

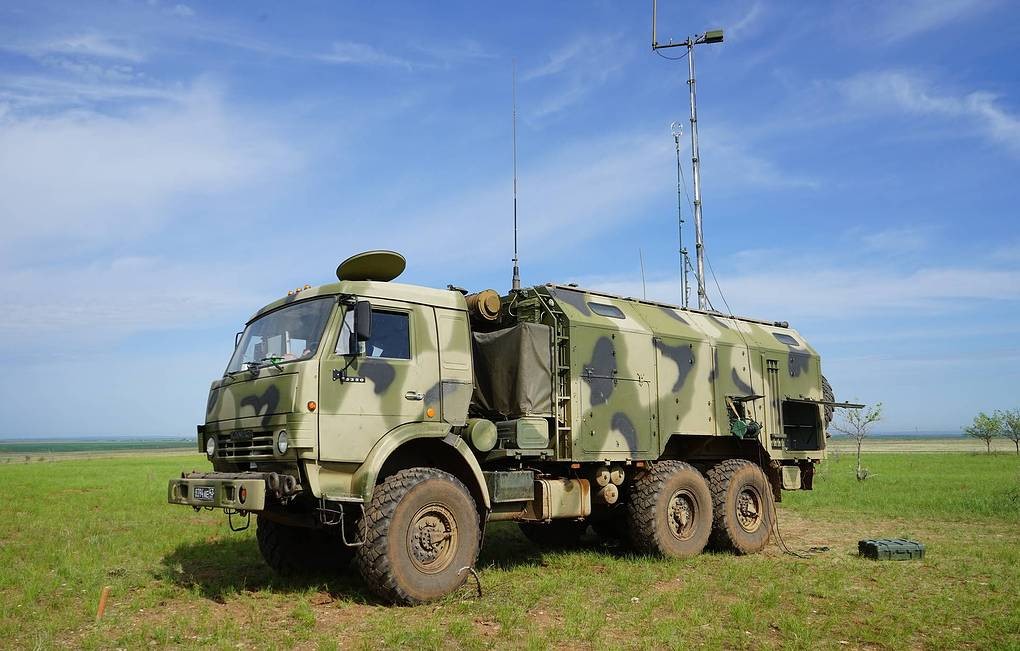

The 1B75 Penicillin Russian 8x8 Counter-Artillery System is a counter-artillery system designed to use acoustic signals and thermal imaging to detect enemy artillery and direct counter-battery fire. The 1B75 has an effective detection range of 25 km and can direct a single battery at a time.
Ground Specifications
Mobility Type
Wheeled (8x8)
Engine
Diesel (360 hp)
Active Protection
None
NBC Protection
Yes
Max Speed
95.0 km/h
Range
25.0 km
Variants
1B76 Penicillin
The IB76 is an acoustic/thermal reconnaissance and target acquisition platform mounted on a KamAZ-63501 chassis. This variant relies principally on combining thermal and acoustic data to provide counter-battery capability.
System
Alternative Designation
1B75 Penicillin
Type
Counter-Artillery System
Manufacturer
Rostec State Corporatio
Chassis
Kamaz 6350
Configuration
8x8
Crew
INA
Towing Capacity
12,000 kg
Dimensions (Chassis: Kamaz 6350)
Length
9.3 m
Width
2.5 m
Height
3.25 m
Weight, Combat
11.4 tons
Automotive
Engine Name
KamAZ-740.50.360
Engine Type
Diesel
Engine Power
360 hp
Cruising Range
1,000 km
Speed, Maximum Road
95 km/h
Speed, Average Cross
INA
Speed Maximum Swim
Not Amphibious
Gradient
60 %
Side Slope
40 %
Vertical Step
0.6 m
Trench
0.6 - 1.4 m
Fording Depth
1.75 m
Reconnaissance and Artillery Target-Acquisition Platform
Optical-Electronics Module
A stabilised platform that can support an array of six thermal and six optical cameras with an angle view of 70° in azimuth and 10° in elevation. These cameras are co-located in two separate box housings that have mechanized covers to protect them during transport and operation. The opto-electronics module can operate continuously for 18 hours, after which a one-hour break is required.
Workstation
The rear of the chassis contains a C2 element that may house workstations and communication interfaces.
Flat field angle in the infrared channel of the OEM in azimuth
not less than 70 (1.22) degrees (rad)
Flat angle of view in the infrared channel of the OEM by elevation
not less than 10 (0.17) degrees (rad)
Flat angle of view in Azimuth TV Channel
not less than 70 (1.22) degrees (rad)
Flat field of view in the television channel on the OEM angle of elevation
not less than 10 (0.17) degrees (rad)
Optical linking error of individual optical-electronic cameras (both information channels)
no more than 1.5 angular minutes
The error of levelling the angle of view of the OEM, at the angles of inclination of the mating plane of the turntable of the OEM to ± 15 degrees
no more than 2 angular minutes
Accuracy error of the angle of view of the turntable of the OEM in azimuth ± 150 degrees
no more than ± 30
The error of movement of the angle of view of the turntable of the OEM in the elevation angle by ± 15 degrees
no more than ± 30
OEM is operational at supply voltage values from an external DC source
27 V
Mortar Detection Ranges
10 km
Artillery Detection Ranges
25 km
Protection
Armor
Proposed with concealed built-in internal armor.
Applique Armor
INA
Active Protection System
No
Mine Clearing
No
Self-Entrenching Blade
No
NBC Protection
Yes
Smoke Equipment
No
IR Signature
No
Details
Country of Origin
Russia
Category
Land Based Electronic Warfare (EW) Systems
Land > Land Based Electronic Warfare (EW) Systems
Filter Label
1
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
9.3 m
Width
2.5 m
Height
3.25 m
Weight
11400 kg
Operators (1)
Russia
