Type 701 Class (Yunsong Class) Chinese Integrated Support Vessel
Type 701 Class
Immediate Support Vessel
Other
Basic Information
Name
Type 701 Class (Yunsong Class) Chinese Integrated Support Vessel
Designation
Type 701 Class
Alternate Designation

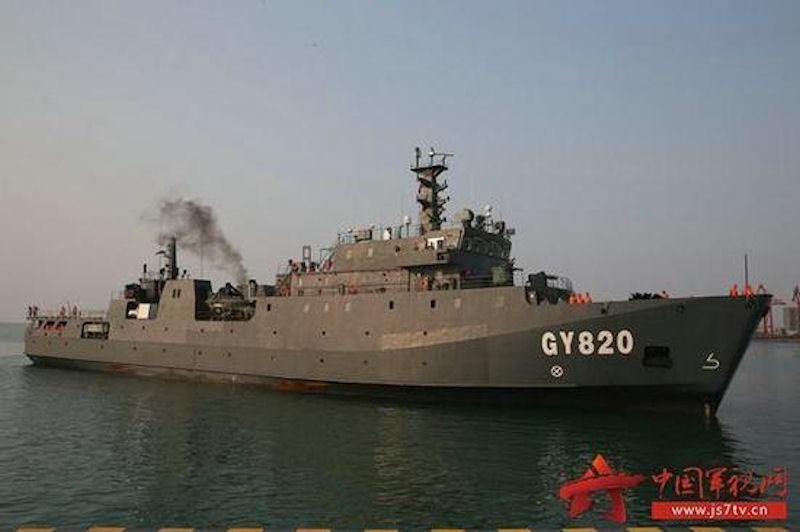

Type 701 Class; Yunsong Class; GY820
Equipment Type
Immediate Support Vessel
Manufacturer
Dalian Songliao Shipyard
Date of Introduction
2022
Description

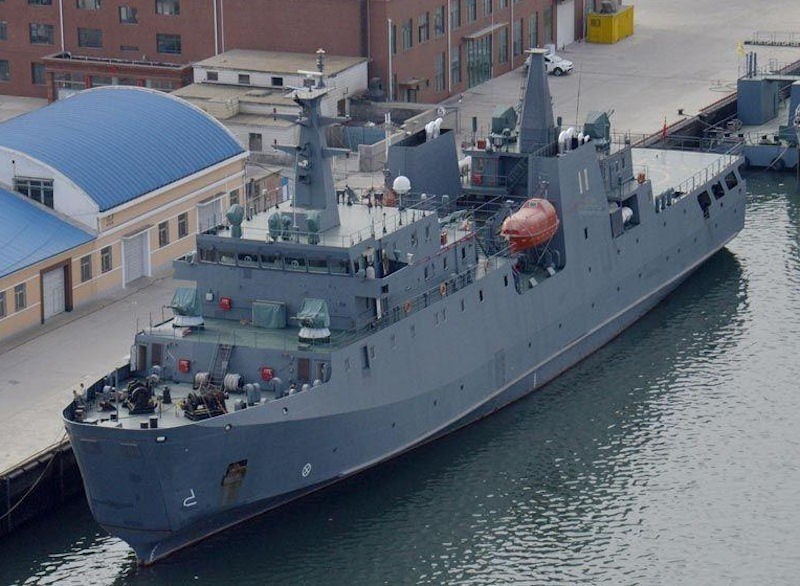

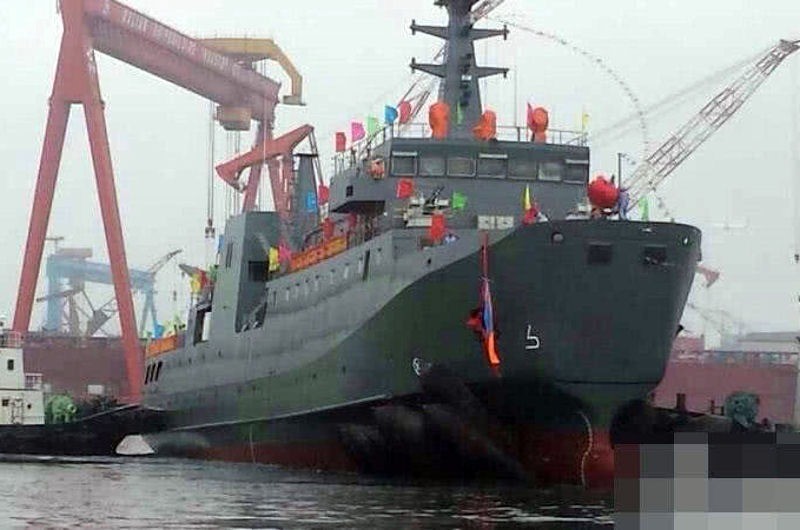

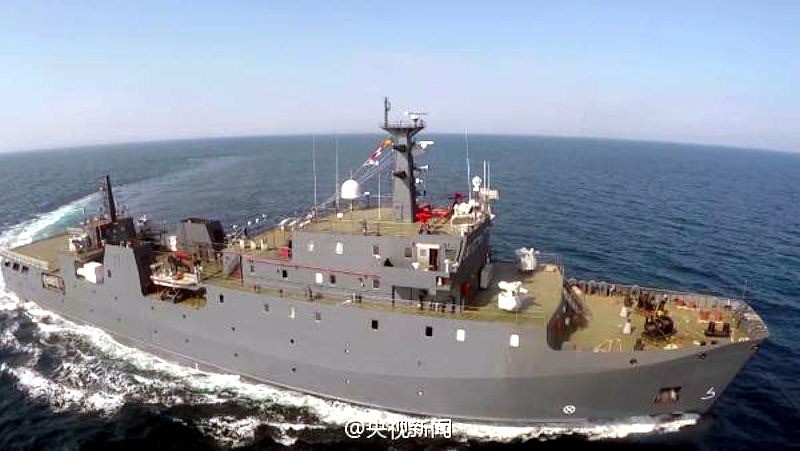

The Type 701 Class (Yunsong Class) Chinese Integrated Support Vessel is actually a RO-RO ship with a springboard and a through-loading deck at the bow and tail. The nearest American counterpart is probably the 4,000 ton Logistics Support Vessels [LSVs], the US Army's largest powered watercraft. The front of the 701 has a loading and unloading ramp and a bulb nose, which is not suitable for landing operations. The nose indicates the ship is not intended to offload directly to beaches, but rather only to prepared docks.
Ground Specifications
Main Weapon
23mm or 30mm Guns
Max Speed
37.0 km/h
Range
5556.0 km
System
Alternative Designation
Type 701 Class; Yunsong Class; GY820
Type
Integrated Support Vessel
Builder
Dalian Songliao Shipyard
Crew
INA
Dimensions
Length
90.0 m
Height
INA
Beam
14.6 m
Draft
INA
Displacement, Full Load
2,700 tons
Propulsion System
Engine Name
INA
Engine Type
CODAD; 4 diesels; 2 shafts; 1 bow thruster
Engine Power
INA
Maximum Range
3,000 n miles (5,556.0 km) (3,452.3 miles) at 12 kt (22.2 km/h) (13.8 mph)
Maximum Speed
20 kt (37.0 km/h) (23.0 mph)
Main Weapon System
Note
4 x 23mm or 30mm Guns for self-defense.
Aviation
Aviation Facilities

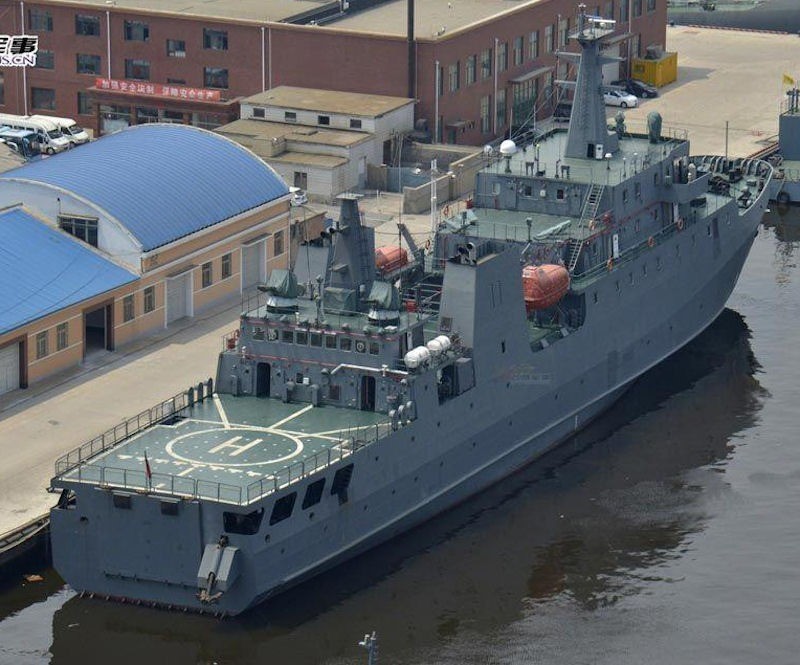

A helicopter landing deck at the rear of the vessel. The ship's rear deck can be used for helicopters or vertical takeoff and landing drones, but there is no hangar.
Protection
Hull
Steel
Countermeasures
None
NBC Water Washdown System
Yes
Image Sources
Details
Country of Origin
China
Category
Naval
Naval
Filter Label
T
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
90 m
Width
14.6 m
Height
—
Weight
2700000 kg
Operators (1)
China
