Type 01 LMAT Japanese Anti-Tank Guided Missile (ATGM)
Spotted an error? Sign in to suggest an edit.
Other
Basic Information
Name
Type 01 LMAT Japanese Anti-Tank Guided Missile (ATGM)
Designation
—
Alternate Designation
—
Equipment Type
—
Manufacturer
Kawasaki Heavy Industries
Date of Introduction
2001
Description

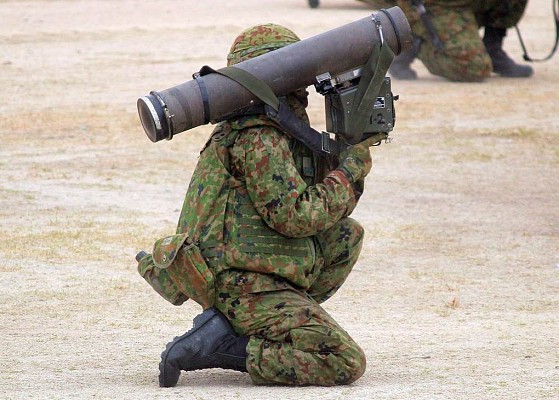

The Type 01 LMAT is a Japanese man-portable fire-and-forget anti-tank missile. Development began in 1993 at Kawasaki Heavy Industries and was accepted into service in 2001. During development, the missile was designated with the codename XATM-5. It was later known shortly as the ATM-5.
Ground Specifications
Main Weapon
Anti-Tank Guided Missile
Range
4.0 km
System
Anti-Tank Guided Missile (ATGM)
Name
Type 01 LMAT
Type
Anti-Tank Guided Missile
Caliber
140 mm
Manufacturer
Kawasaki Heavy Industries
Length
860 mm
Missile Weight
11.4kg
Total Weight
17.5kg
Engine
Solid Fuel Rocket
Warhead
Tandem-charged HEAT warhead
Effective Firing Range
4 km
Sights

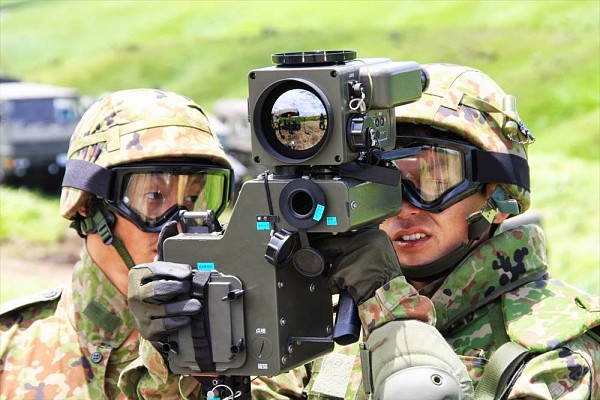

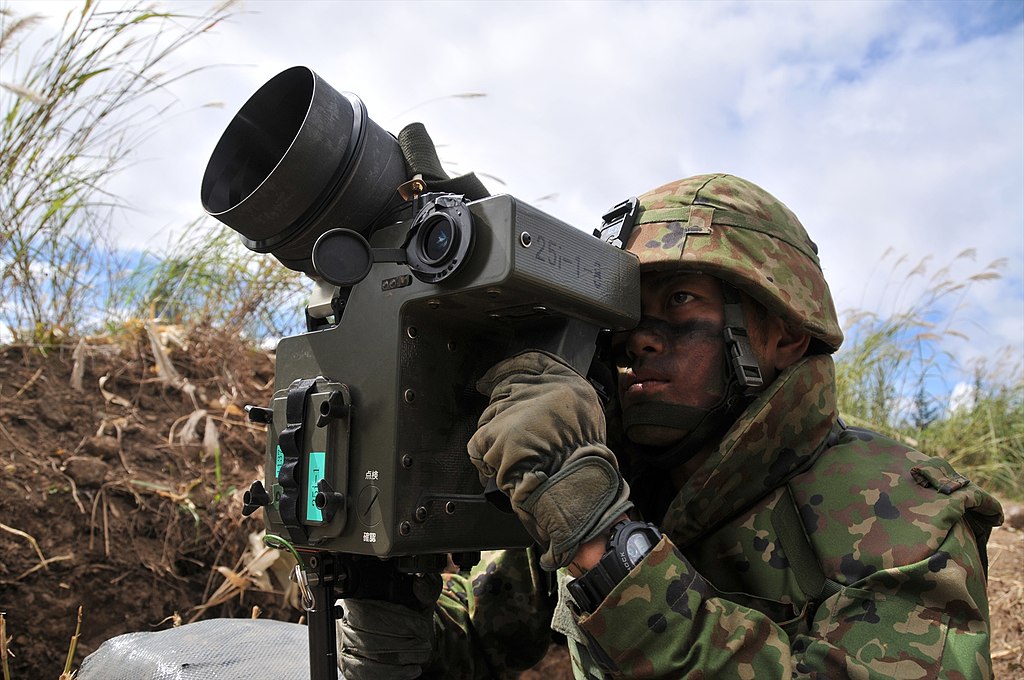

Thermographic camera (Uncooled infrared detector)
Guidance System
Infrared homing, CCD
Image Sources
Details
Country of Origin
Japan
Category
Land
Land
Filter Label
T
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
0.86 m
Width
0.14 m
Height
—
Weight
17.5 kg
Operators (1)
Japan
