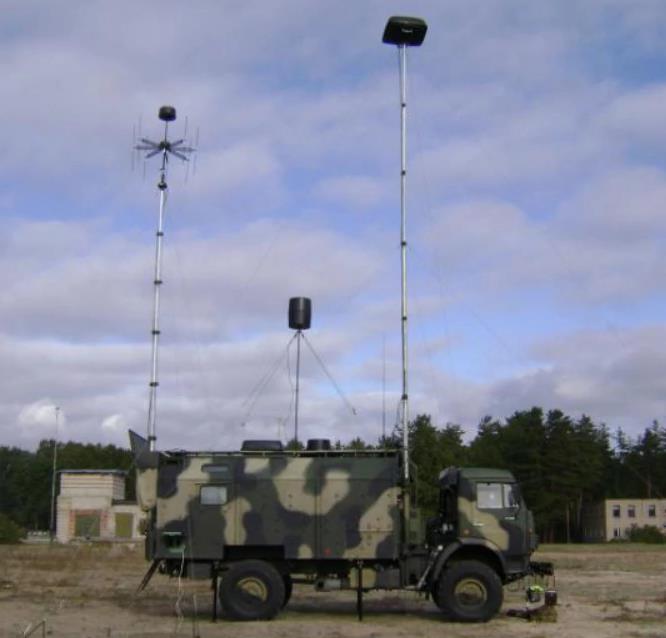

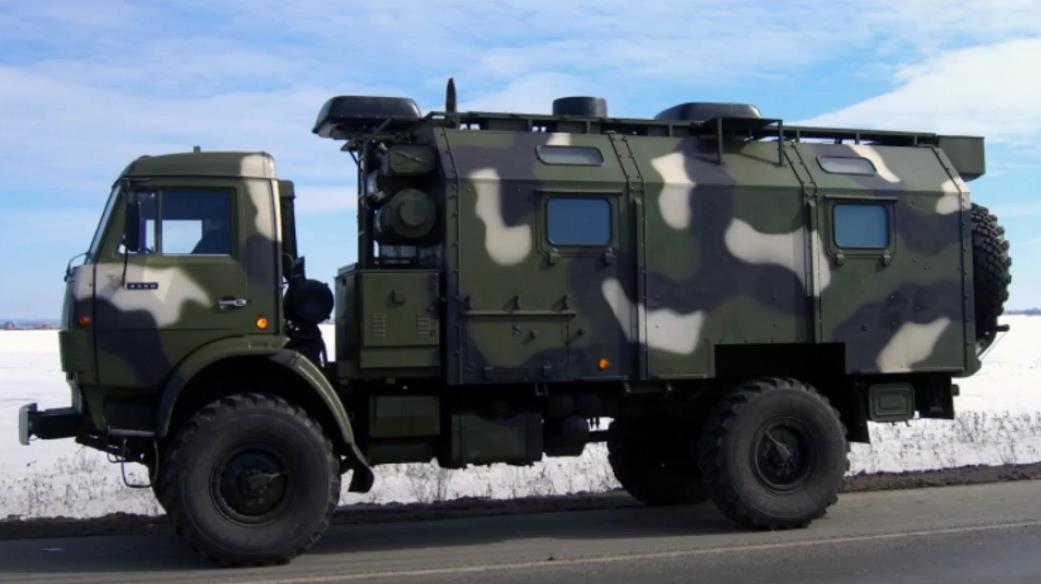

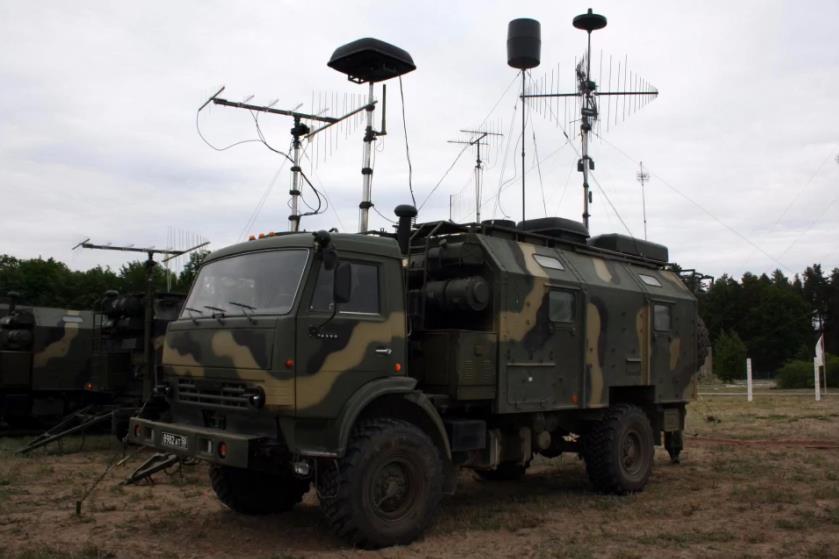

MKTK-1A Judoist (МКТК-1А Дзюдоист) Russian Electronic Warfare System

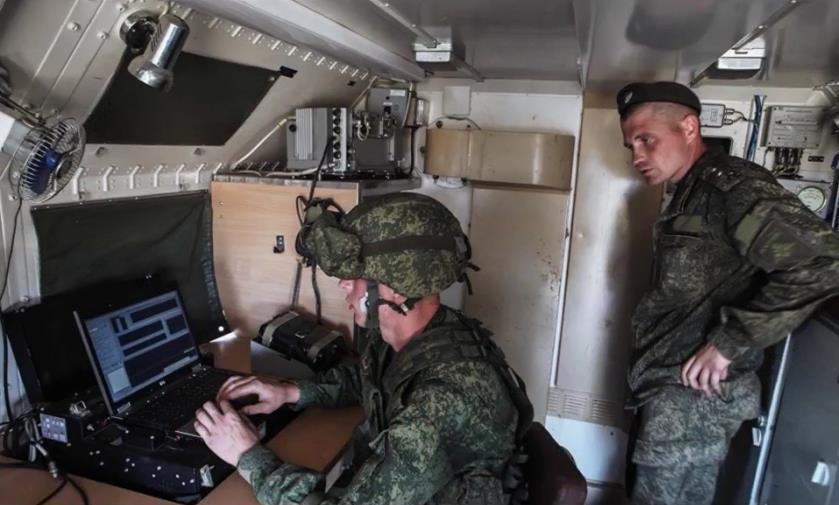

Intended for detection, measuring parameters and determining the location of radio emission sources, anti-missile defense (ABM), verification of compliance with the requirements for countering the technical means of reconnaissance of foreign states and blocking technical channels of information leakage. Bandwidth/Frequencies: 0.0001–18 GHz (radio and radio control) Additional Information: • Complex includes three automated workstations - for radio and radio control, technical analysis and special control • Specialized software installed on workstations displays results of monitoring and analysis of the electromagnetic spectrum on a digital map of the area and identifies sources of radiation Performance Specifications: • Frequency range (radio and radio control): 0.0001–18 GHz • Frequency range of acoustic & vibroacoustic control: 10–20,000 Hz • Time of setup/breakdown: 30 min • Power consumption: 3.5 kW • Working temperature range: -50 to +50°C • Communication range with portable radio station: < 20 km • Direction finding error: Less than 2 to 3° • Chassis: KamAZ-4350 • Navigation reference accuracy: < 50 m • Crew: 3 --- COGINT Report Data (7 June 2023, UNCLASSIFIED) --- Bandwidth/Frequencies: Radio and radio control frequency range is 0.0001–18 GHz Additional Information: • Complex includes three automated workstations - for radio and radio control, technical analysis and special control • Specialized software installed on workstations displays results of monitoring and analysis of the electromagnetic spectrum on a digital map of the area and identifies sources of radiation Performance Specifications: • Frequency range (radio and radio control) [GHz]: 0.0001–18 • Frequency range of acoustic & vibroacoustic control [Hz]: 10–20000 • Time of setup/breakdown [min]: 30 • Power consumption [kW]: 3.5 • Working temperature range [Celsius]: -50 to +50 • Power supply frequency [Hz]: 50 • Communication range with portable radio station [km]: < 20 • Direction finding error [deg]: Less than 2 to 3 • Chassis: KamAZ-4350 • Navigation reference accuracy [m]: < 50
