Zhanshi

Tactical Vehicles

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

Zhanshi

Designation

Zhanshi

Alternate Designation

Mengshi, Yongshi

Equipment Type

Tactical Vehicles

Manufacturer

Dongfeng Motor Corporation

Date of Introduction

2007

Description

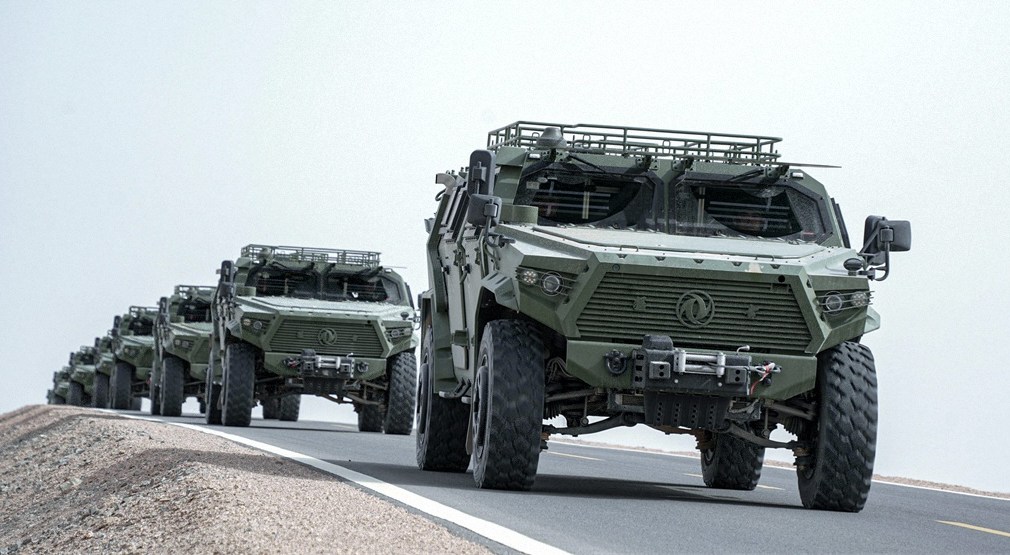

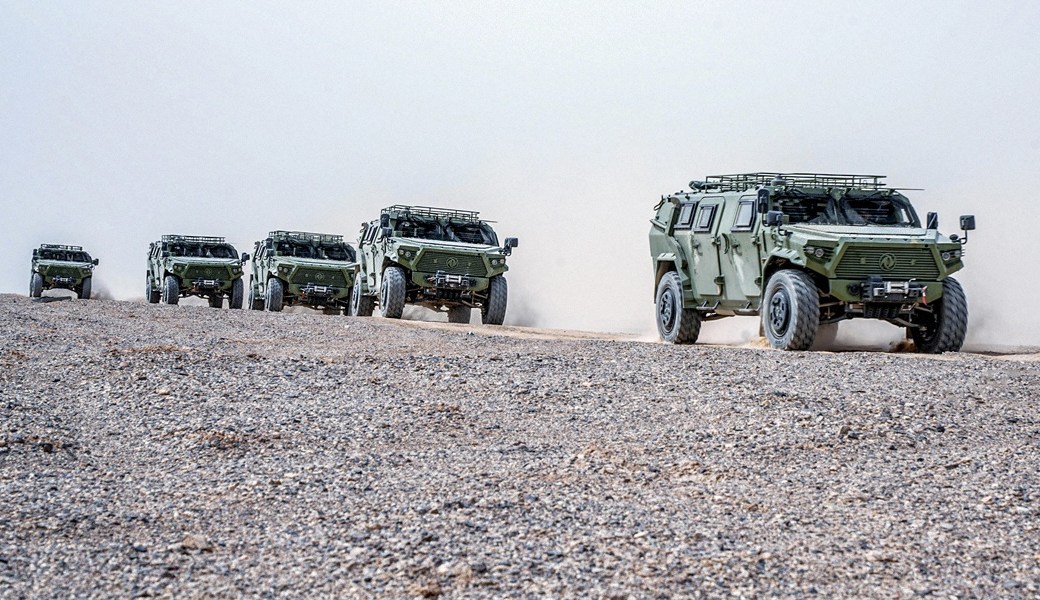

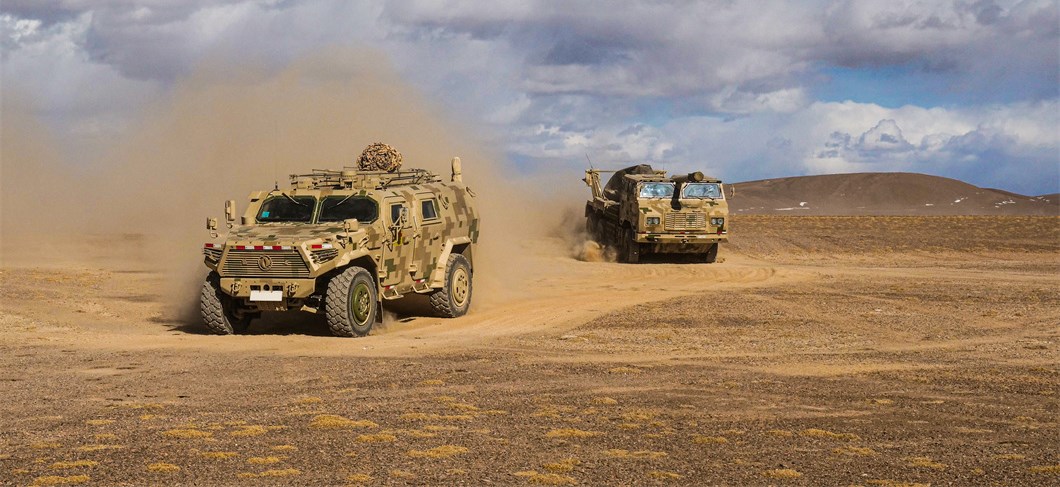

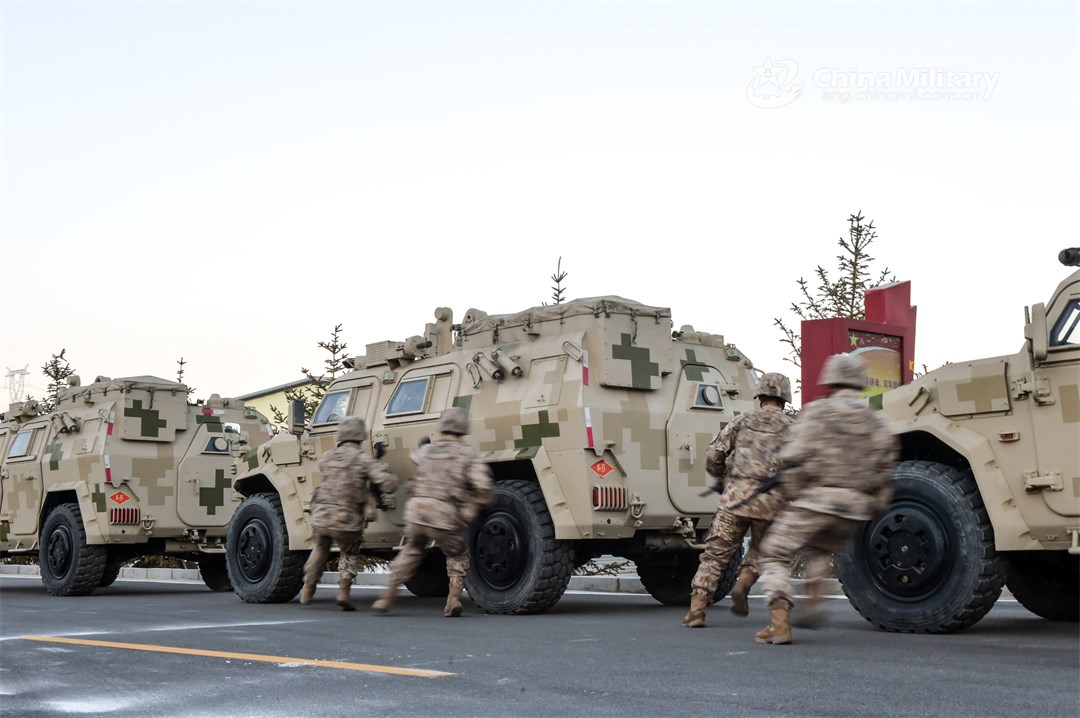

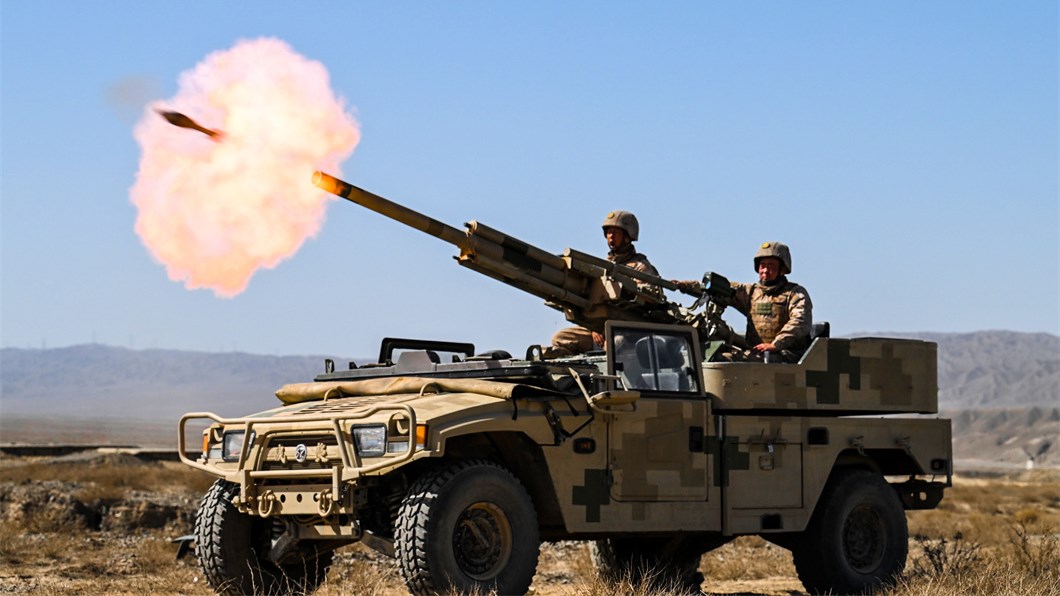

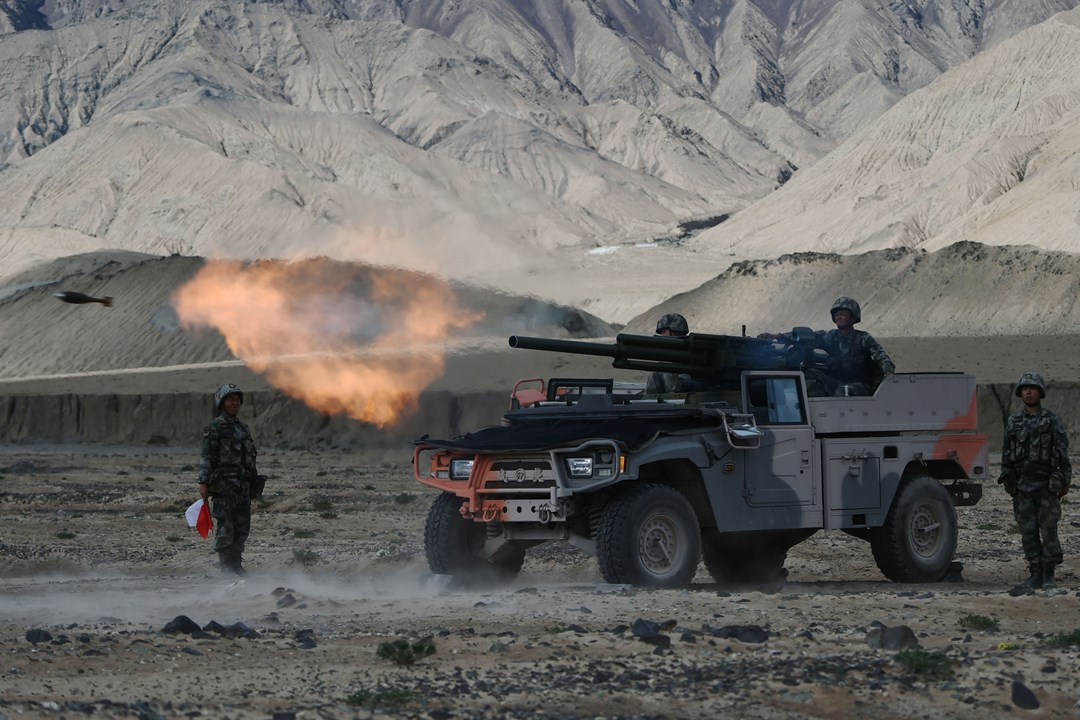

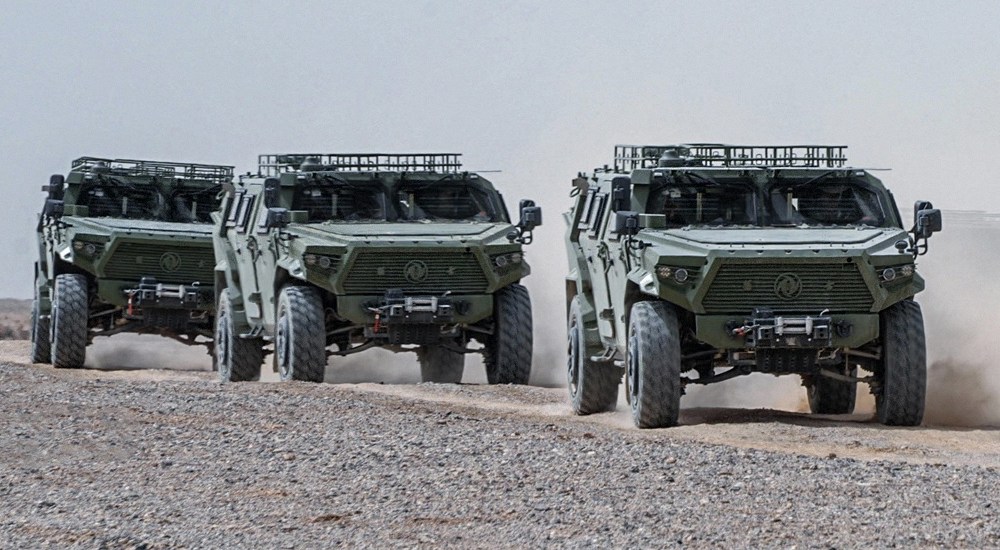

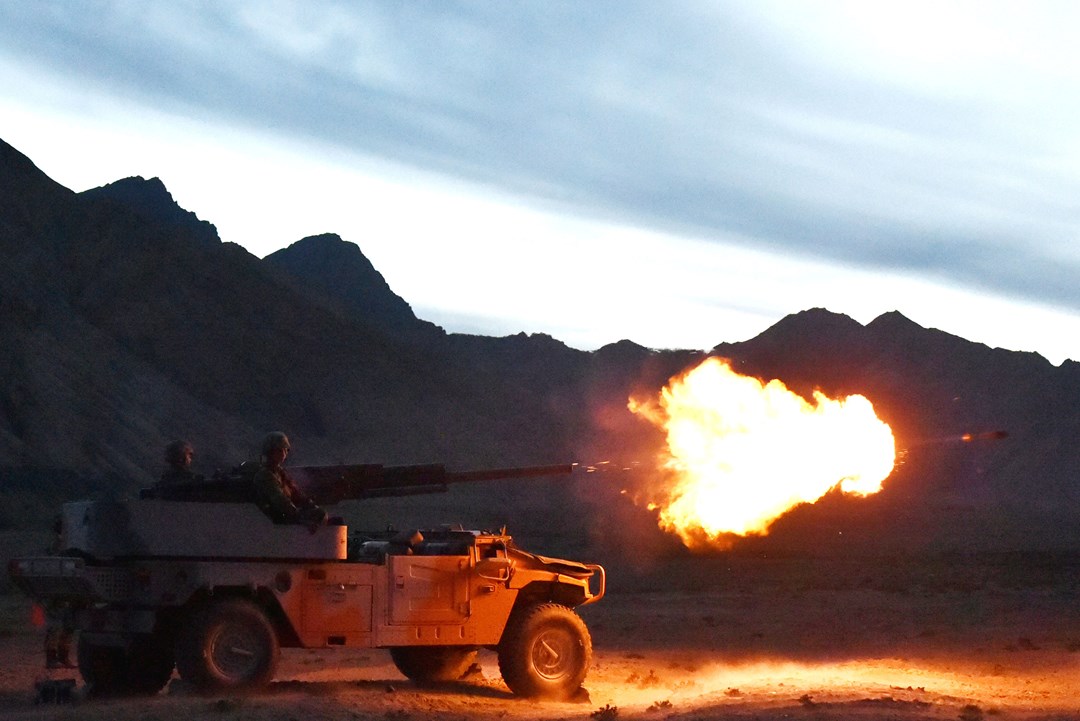

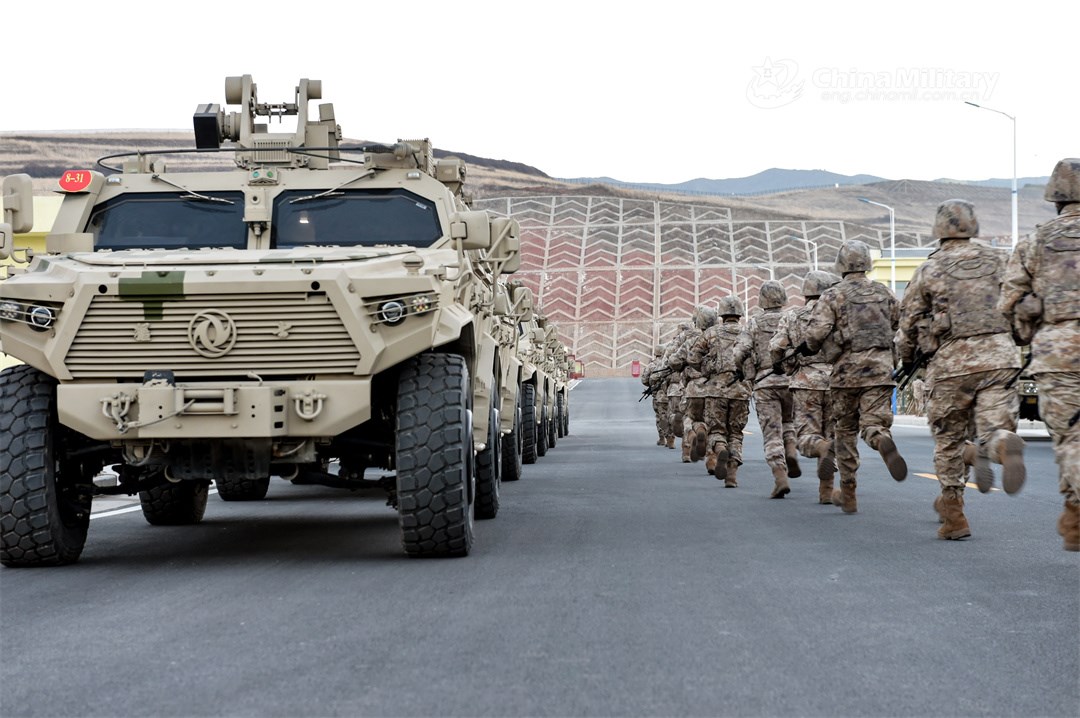

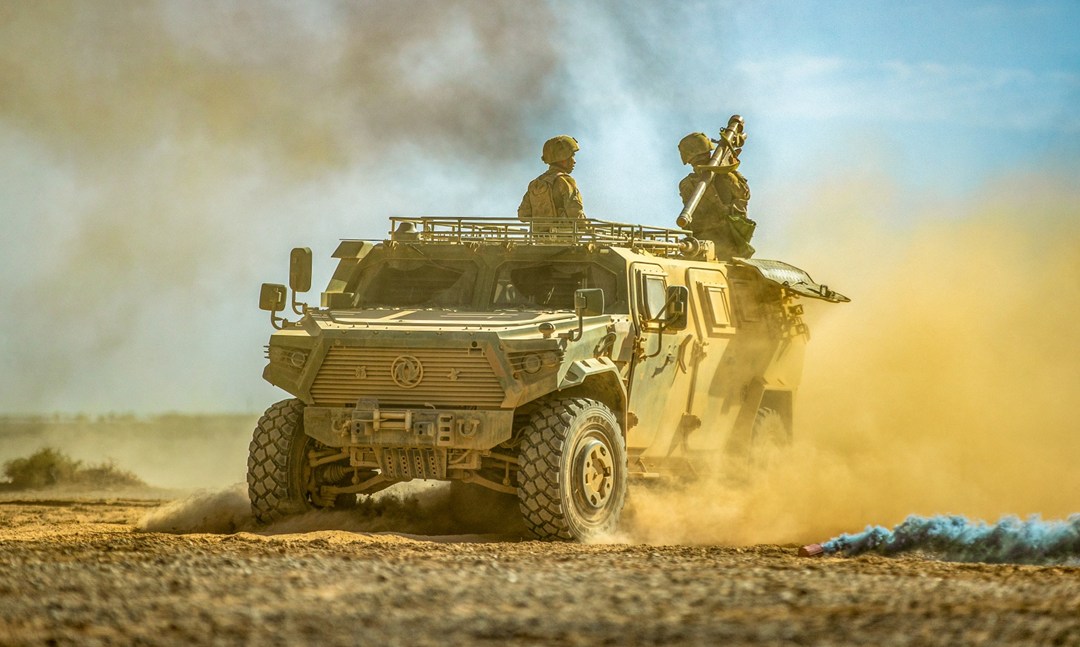

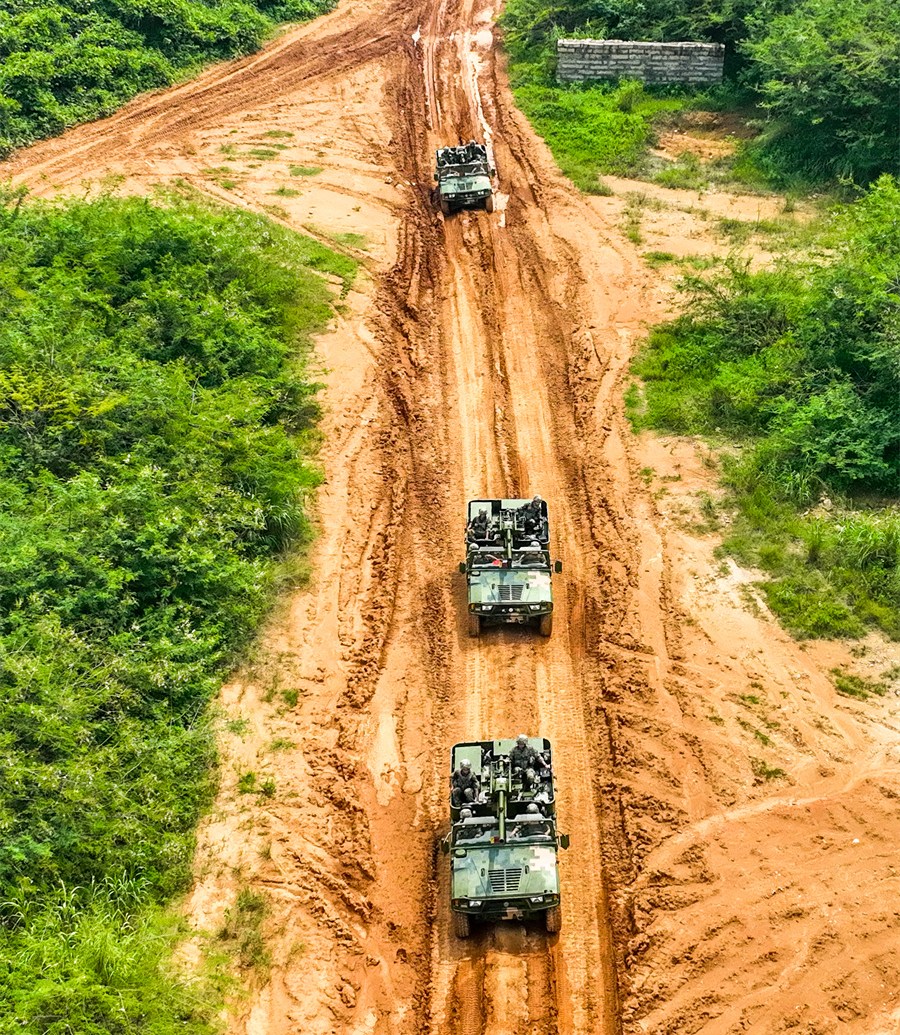

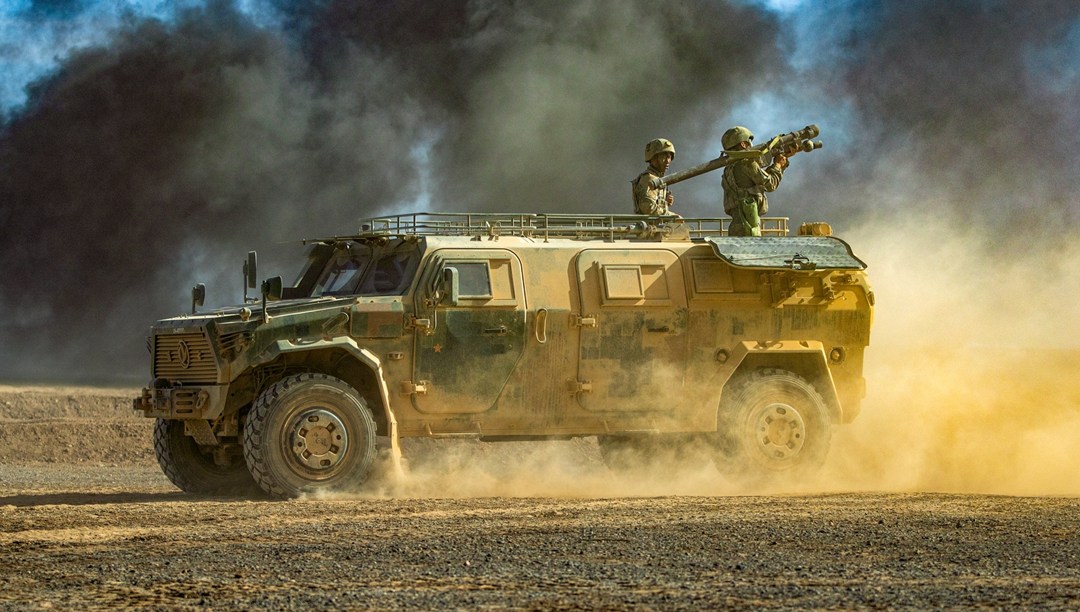

The Zhanshi, 'Warrior' in English, is a third generation 4x4 light tactical vehicle developed and produced in the People's Republic of China (PRC) for its Armed Forces. The PRC's People's Liberation Army (PLA) issued the initial requirement in 2002 and the Dongfeng Motor Corporation (DFMC) Zhanshi was ready for production in December 2006 after the construction of 63 prototypes. The tactical vehicle is very similar in shape and performance to the United States Army Humvee and actually some sources suggest that the vehicle was developed based on the very Humvee design. This high mobility vehicle is powered by a Cummins V4 supercharged diesel engine developing 112-Kw and allowing a top speed of 150 kph on road. There are several versions using the same chassis: topless, hard top, soft top, fastback soft, had top van, high hard top etc. The lighter version of the vehicle without top weighs 1.5 tons. The vehicle can airlifted by fixed- and rotary-wing aircraft.

Ground Specifications

Mobility Type Wheeled (4x4)

Max Speed 150.0 km/h

Range 750.0 km

Overview (Deagel)

Group Tactical Vehicles

Status Active

Also Known As Mengshi, Yongshi

Origin China

Contractor Dongfeng Motor Corporation

Initial Operational Capability (IOC) 2007

Total Production ?

Specifications (Deagel)

Wheel Drive 4

Wheels 4

Degree — Approach Angle 70 °

Degree — Departure Angle 45 °

Dimensions — Ground Clearance 410 millimeter

Energy — Max Torque 502 Nm

Mass — Empty Weight 1,500 kilogram

Mass — Max Weight 5,000 kilogram

Mass — Operational Weight 2,000 kilogram

Mass — Payload 1,750 kilogram

Percentage — Gradient 61 %

Percentage — Side Slope 40 %

Performance — Fording Depth 0.75 meter

Performance — Max Range 750 kilometer

Performance — Turning Radius 7.5 meter

Power — Power 112 kW

Pressure — Ground Pressure 140 kPa

Speed — Cross Country Speed 40 kph

Speed — Top Speed 150 kph

Variants

Variant 1 Zhanshi

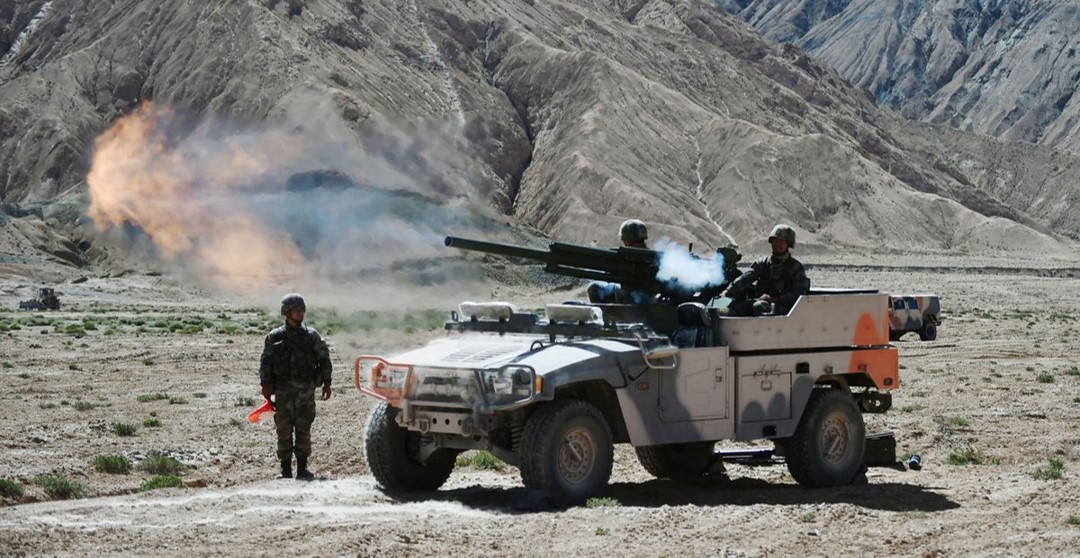

Variant 2 PCP-001

Details

Country of Origin China

Sources

deagel.com: https://www.deagel.com/x/x/a002878

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

—

Width

—

Height

—

Weight

5000 kg

Operators (1)

China
