Igla-1M

Surface-to-Air Missiles

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

Igla-1M

Designation

Igla-1M

Alternate Designation

3M47 Gibka (naval missile launcher with four Igla-1Ms), 9K310 (system), 9M310, 9M313, Igla-1, Igla-M, SA-16 Gimlet, SA-N-10 Gimlet

Equipment Type

Surface-to-Air Missiles

Manufacturer

Degtyarev, KBM

Date of Introduction

1986

Description

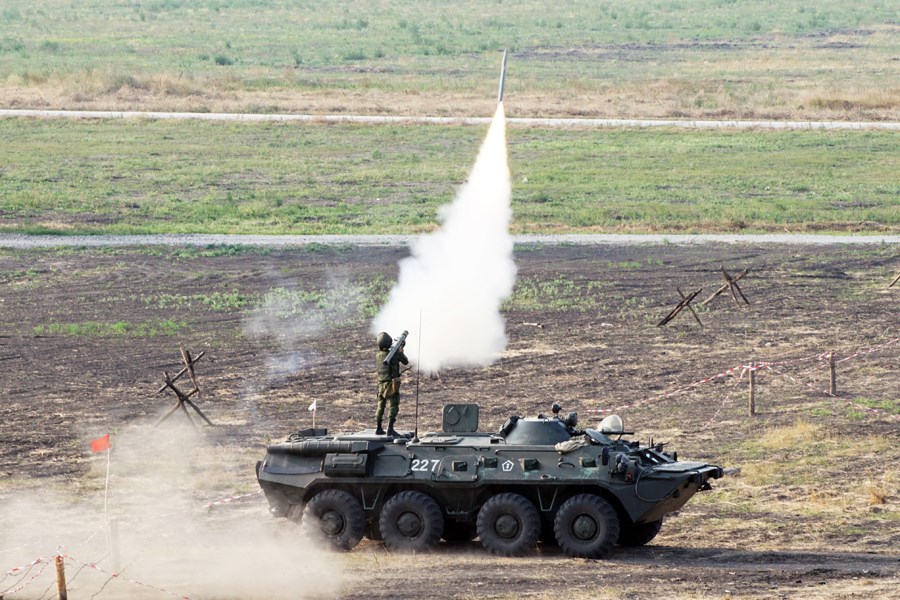

The Igla-1/Igla-1M is an improved version of Igla man-portable missile system introduced three years later than early Igla. The SAM system comprises the 9M310 (Igla-1?) and 9M313 (Igla-1M?) missiles, and the 9K310 launch unit with an integrated sight. A double seeker infrared and ultraviolet homing head has been provided to achieve the fire and forget capability. The IR/UV seeker has been designed for improved resistance in presence of InfraRed IR jammers, which makes Igal-1 far more lethal than previous systems. The Igla employing the Mach 2+ 9M310/9M313 missiles is able to engage targets flying at Mach 1.2, between 10 and 3,500 meters of altitude, and at a maximum range of 5,000 meters. It is the Soviet counterpart to the American Stinger missile. The missile system is still available for export customers.

Air & Air Defense Specifications

Max Speed 2412.0 km/h

Range 5.0 km

Overview (Deagel)

Group Surface-to-Air Missiles

Status Active

Also Known As 3M47 Gibka (naval missile launcher with four Igla-1Ms), 9K310 (system), 9M310, 9M313, Igla-1, Igla-M, SA-16 Gimlet, SA-N-10 Gimlet

Origin Russia

Contractors Degtyarev, KBM

Initial Operational Capability (IOC) 1986

Total Production ?

Specifications (Deagel)

System Crew 1

Dimensions — Diameter 72 millimeter

Dimensions — Length 1,670 millimeter

Mass — Launch Unit Weight 6.4 kilogram

Mass — Warhead 2 kilogram

Mass — Weight 10.6 kilogram

Performance — Max Range 5,000 meter

Performance — Min Range 500 meter

Performance — Target's Max Altitude 3,500 meter

Performance — Target's Min Altitude 10 meter

Speed — Target's Max Speed 400 mps

Speed — Top Speed 670 mps

Variants

Variant 1 Igla

Variant 2 Igla-1M

Variant 3 Igla-S

Details

Country of Origin Russia

Sources

deagel.com: https://www.deagel.com/x/x/a000995

Classification

Domain

Air & Air Defense

Equipment Status

Active

Dimensions

Length

—

Width

—

Height

—

Weight

6.4 kg

Operators (6)

Russia

Ukraine

Belarus

Hungary

Myanmar

Syria
