BS-903A Chinese Ground Surveillance Radar System
BS-903A
Ground Surveillance Radar System
Other
Basic Information
Name
BS-903A Chinese Ground Surveillance Radar System
Designation
BS-903A
Alternate Designation
BS-903A
Equipment Type
Ground Surveillance Radar System
Manufacturer
China North Industries Corporation
Date of Introduction
2000
Description

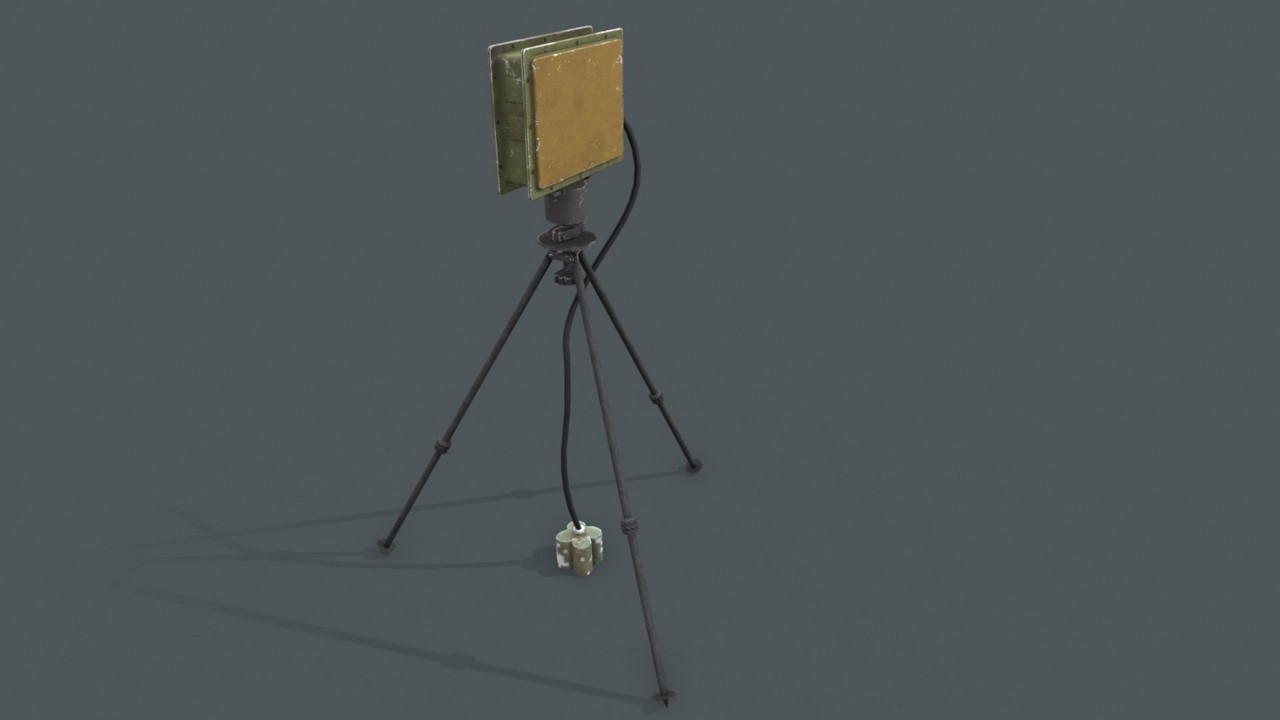

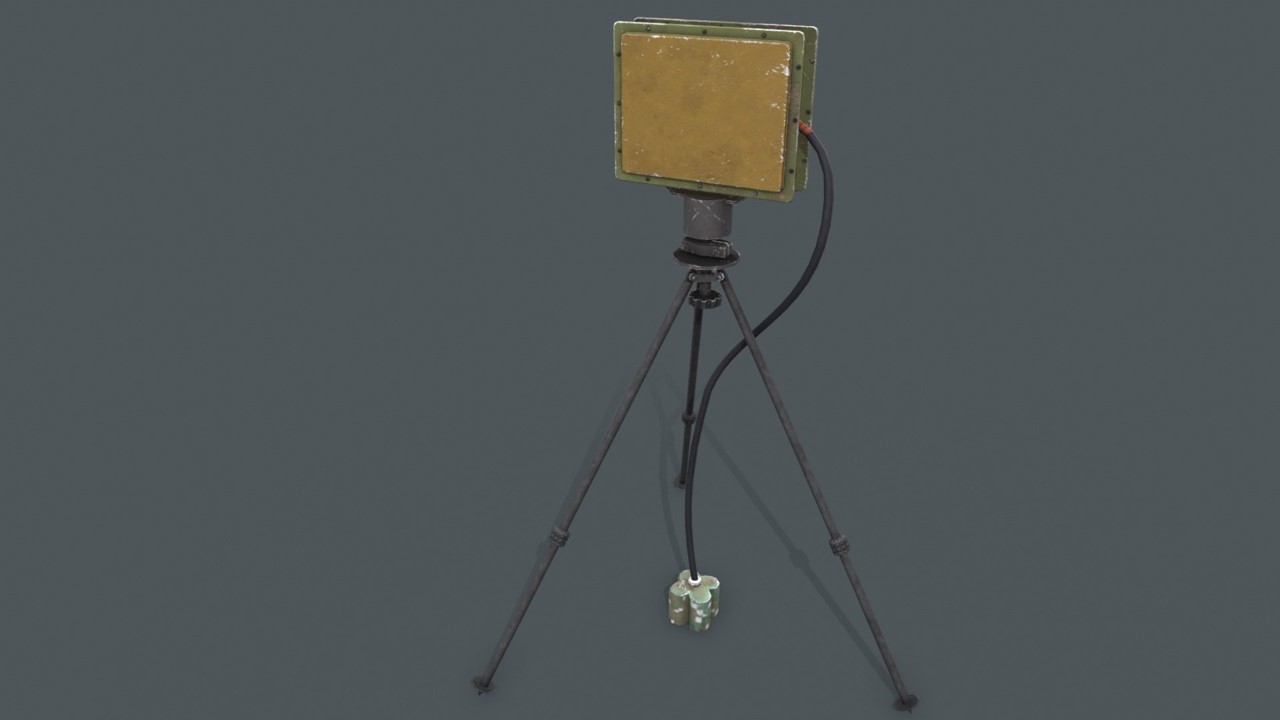

The Chinese BS-903A is a small, lightweight modular designed ground surveillance radar (GSR) that is able to detect, identify, and locate moving ground targets using a microstrip antenna at any time of the day regardless of the season, and also in conditions of low visibility (fog, rain, snow, dust, or smoke). The GSR is produced by China North Industries Corporation (NORINCO) and has been in production since 2000. A low probability of intercept is achieved through frequency agility and advanced waveform ability such as continuous wave low-power transmission. The GSR is composed of two components: a tripod-mounted antenna and a display unit. No picture is available at this time.
System
Alternative Designation
BS-903A
Type
Ground Surveillance Radar System
In Service
2000-Present
Family
INA
Crew
INA
Operating Frequency Range
10–20 GHz (J-band)
Detection Range, Tank
20 km
Detection Range, Truck
15 km
Detection Range, Person
8 km
Detection Range, 155mm Shell Explosion
N/A
Azimuth, Scan Zone
INA
Range, Scan Zone
INA
Maximum Elevation, Scan Zone
INA
Minimum Elevation, Scan Zone
INA
Azimuth
360 deg
Accuracy (Range/Azimuth)
10 m/0.4° m/deg
Resolution (Range/Azimuth)
50 m/3° m/deg
Scan Rate, Rotational
0°/s; 2°/s; 6°/s; 12°/s
Median Errors in Determining the Coordinates for Range
INA
Median Errors in Determining the coordinates for Direction
INA
Power Consumption
INA
Continuous Operating Time
24 hours
Antenna
Type
Micro Strip (strip line)
Transmitter
Type
Solid State
Dimensions
Length
INA
Width
INA
Height
INA
Weight, Combat
20 kg
Image Sources
Details
Country of Origin
China
Category
Radars
Land > Radars
Filter Label
B
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
—
Width
—
Height
—
Weight
20 kg
Operators (1)
China
