Dingo

Tactical Vehicles

Spotted an error? Sign in to suggest an edit.

Basic Information

Name

Dingo

Designation

Dingo

Alternate Designation

—

Equipment Type

Tactical Vehicles

Manufacturer

Krauss-Maffei Wegmann

Date of Introduction

—

Description

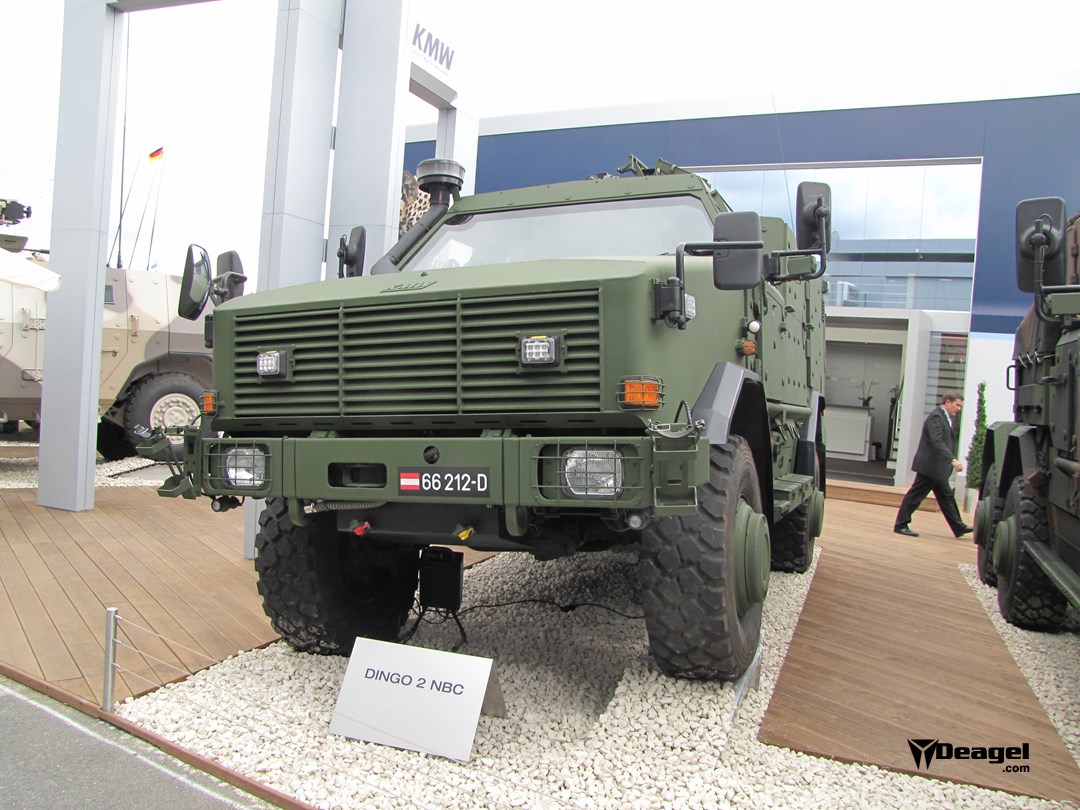

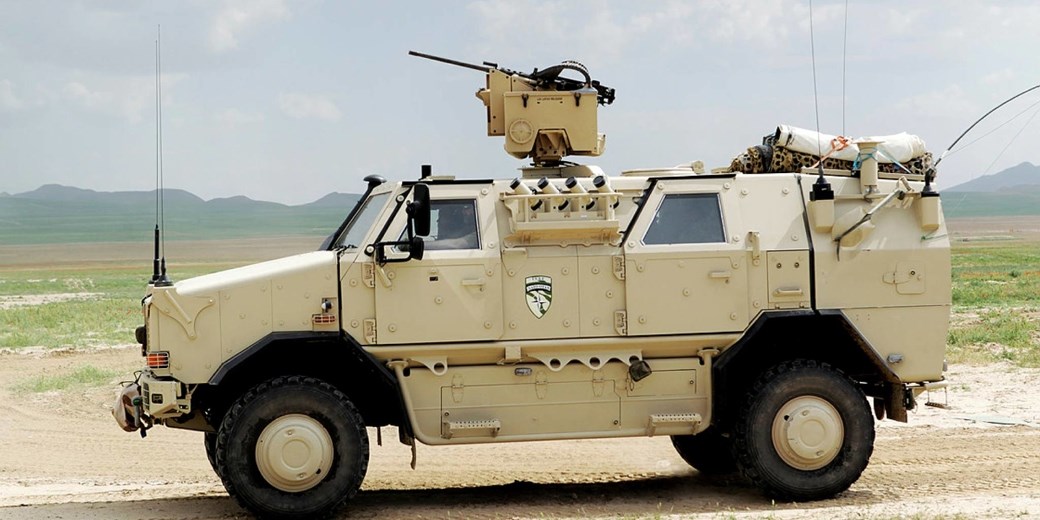

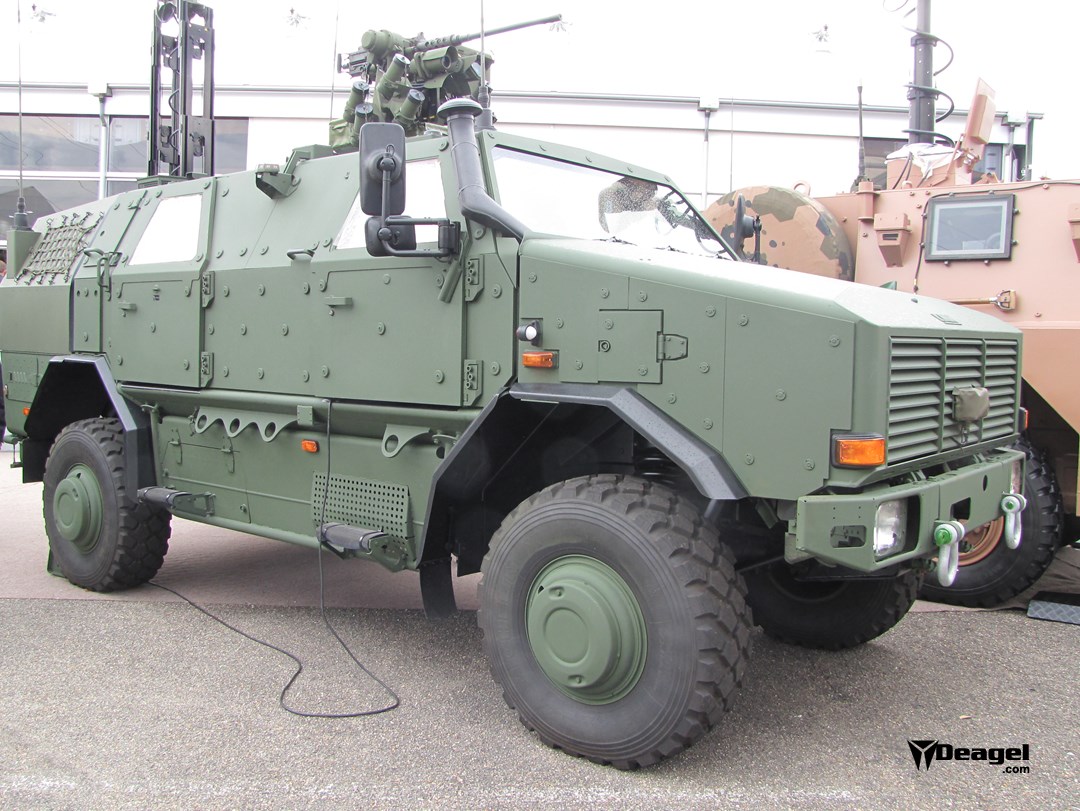

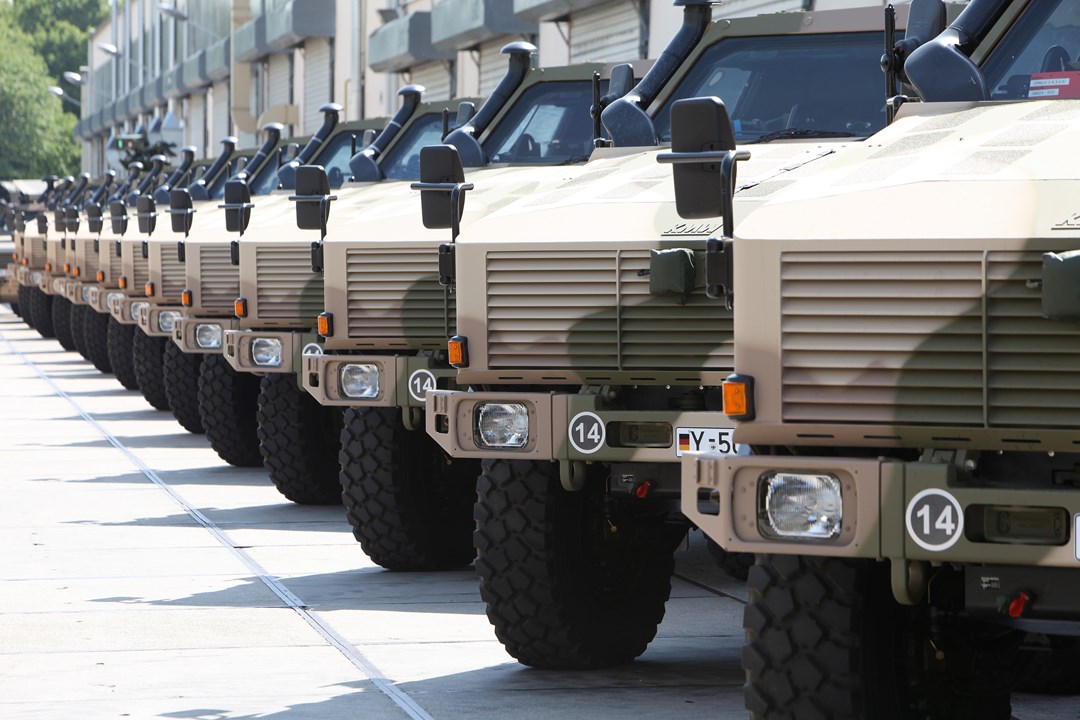

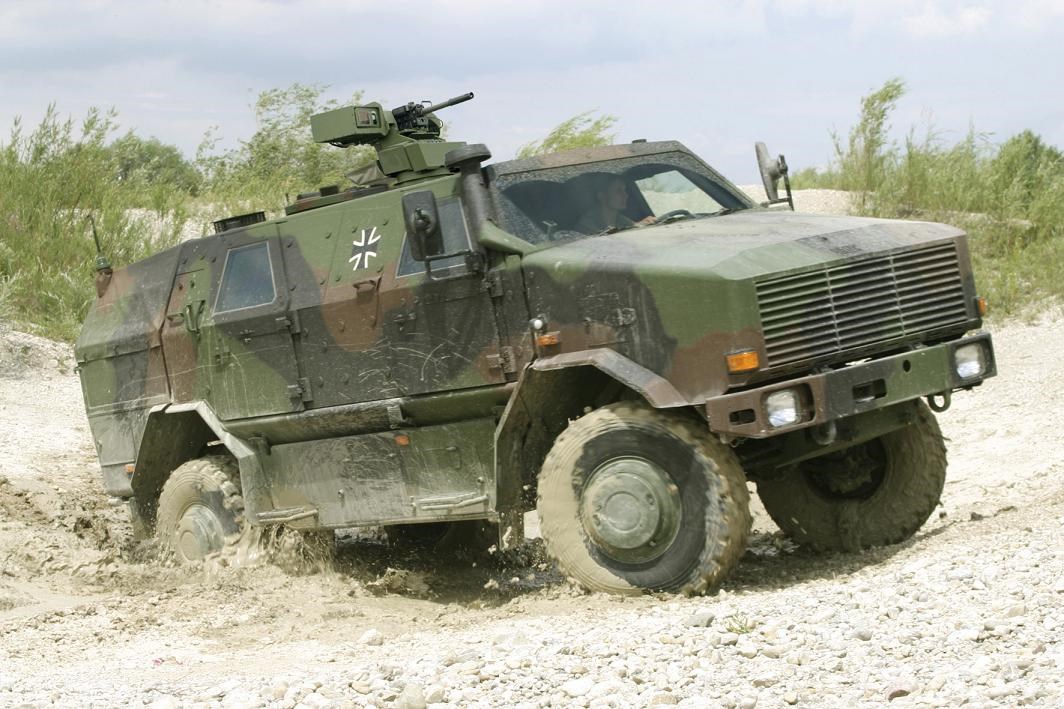

The Krauss-Maffei Wegmann Dingo is a family of 4x4 (and 6x6) all-protected, high mobility, armored vehicles suitable for peacekeeping operations. The basic model features a seating capacity for an eight-man crew. Its armored hull can withstand small arms fire, anti-tank and anti-personnel mine detonations, artillery fragments and NBC agents threats. It is based on a high cross-country mobility DaimlerChrysler UNIMOG U 5000 chassis and is powered by a 237-hp diesel engine allowing for a top speed of 120 kph. The Dingo tactical vehicles can be deployed by C-130, C-160 and A400M tactical transport aircraft. More than 15 variants have been developed so far including patrol and reconnaissance versions, mobile command posts, ambulance and NBC-reconnaissance versions. The Dingo tactical vehicle family has been successfully fielded in peacekeeping missions in Afghanistan providing a high level of protection always saving the lives of the crew members.

Ground Specifications

Crew 8

Mobility Type Wheeled (4x4)

Max Speed 120.0 km/h

Range 700.0 km

Overview (Deagel)

Group Tactical Vehicles

Status Active

Also Known As Dingo 1, Dingo 2 GE (2011 standard), Dingo 2 GFF, Dingo 2 GSI (upgraded version introduced in 2010)

Origin Germany

Contractor Krauss-Maffei Wegmann

Initial Operational Capability (IOC) 2005

Total Production 1,399

Unitary Cost USD $1.0 million

Specifications (Deagel)

Crew 8

Wheel Drive 4

Wheels 4

Dimensions — Height 2.4 meter

Dimensions — Length 5.4 meter

Dimensions — Width 2.3 meter

Mass — Max Weight 8,800 kilogram

Mass — Payload 1,400 kilogram

Performance — Max Range 700 kilometer

Power — Power 237 shp

Speed — Top Speed 33.4 mps

Gear (Deagel)

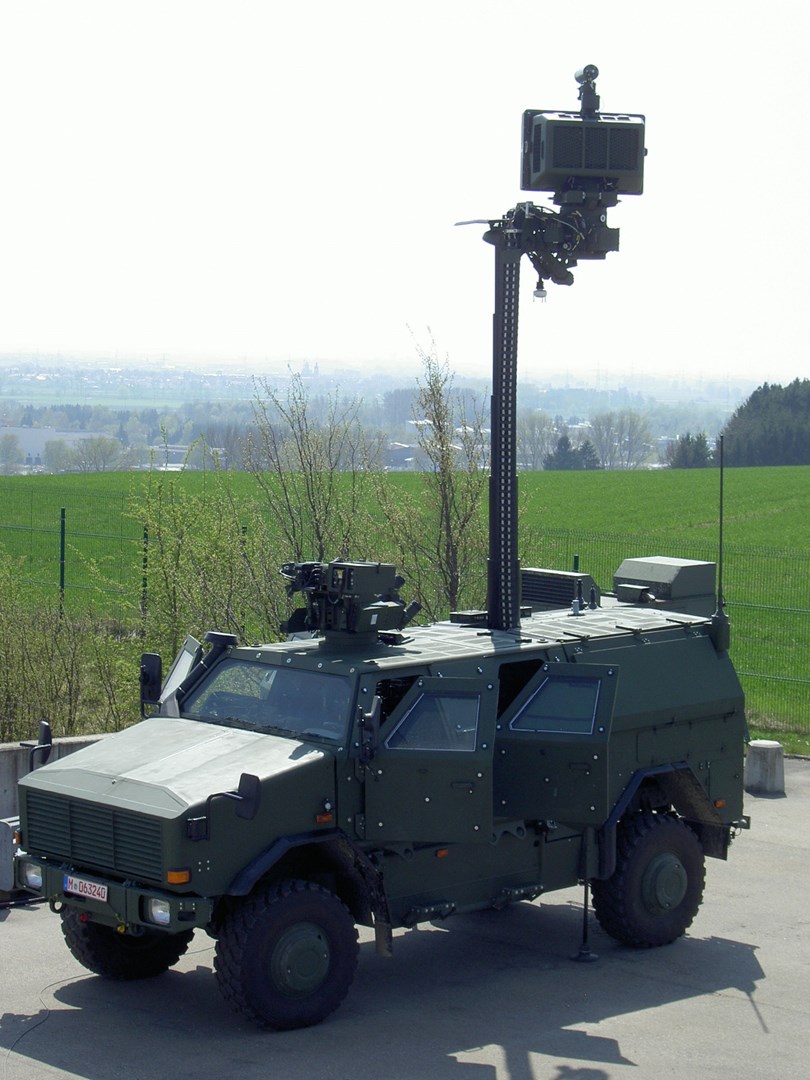

Item 1 Radar Systems: BUR (1)

Item 2 Weapon Stations: FLW 100 (1)

Item 3 Weapon Stations: FLW 200 (1)

Variants

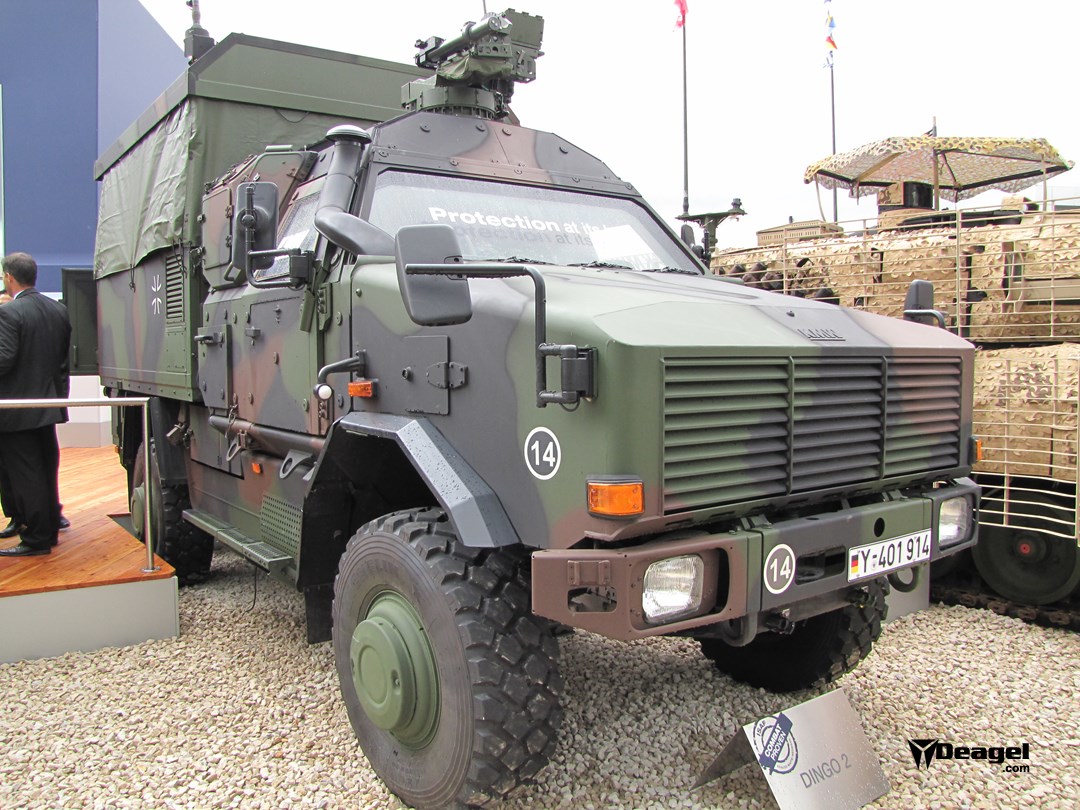

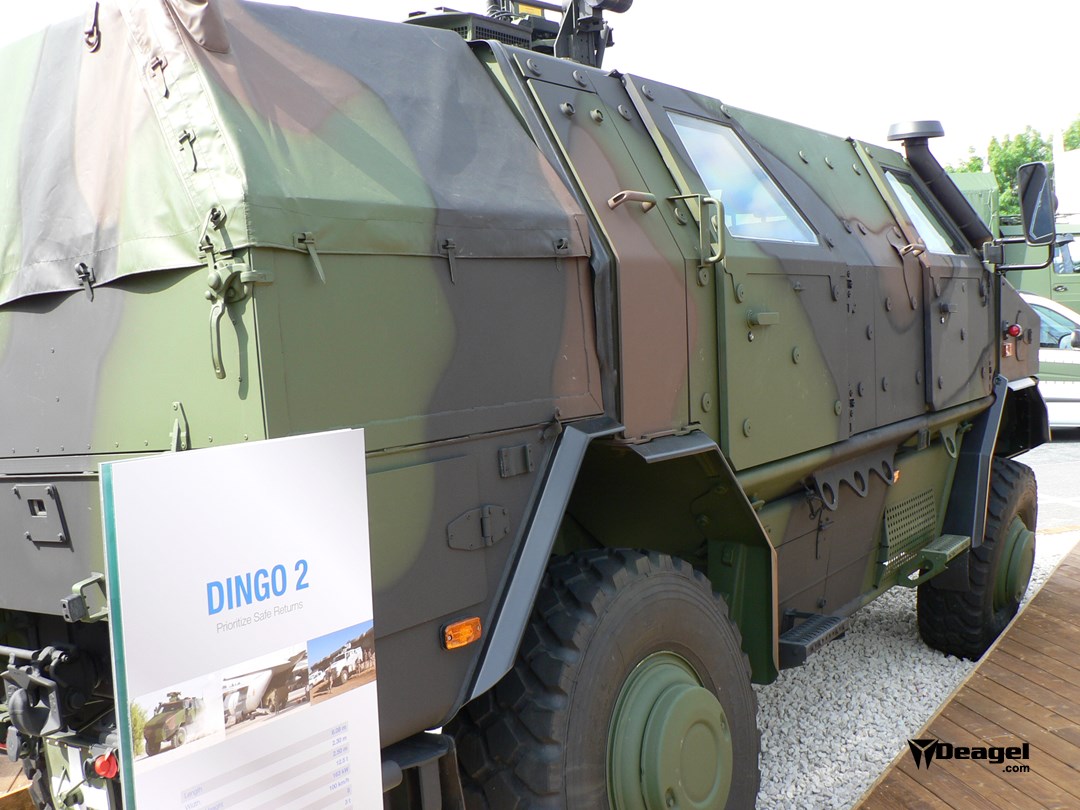

Variant 1 Dingo 2

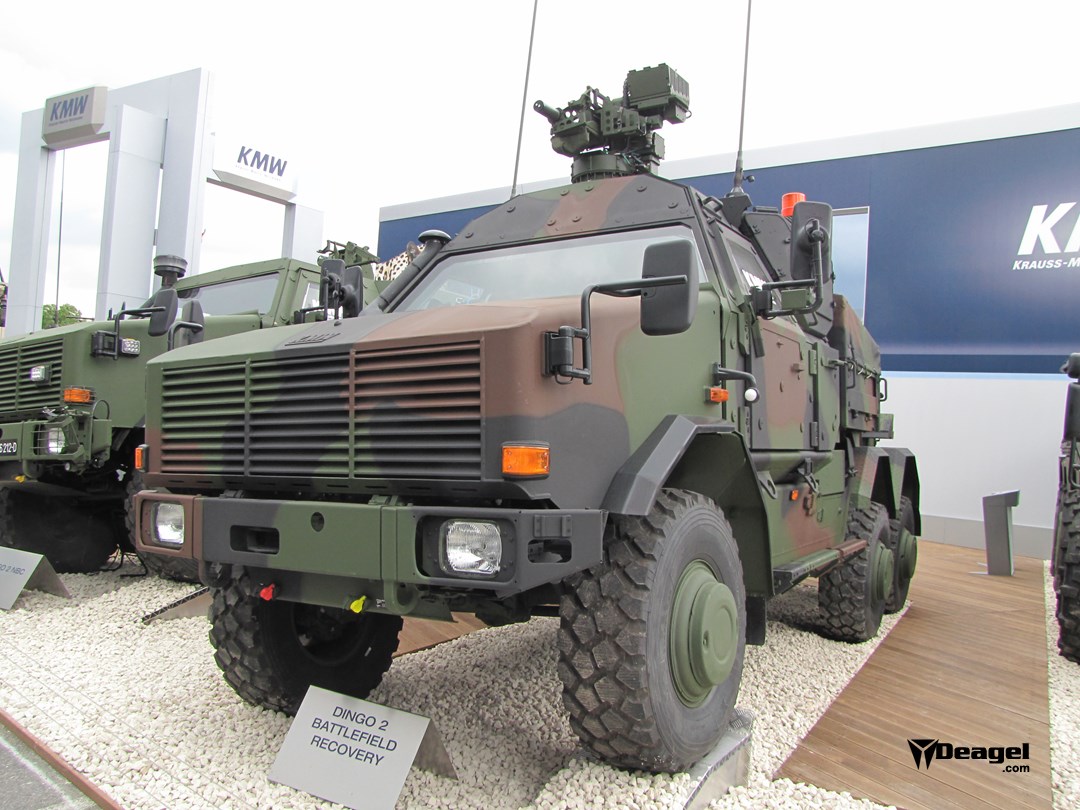

Variant 2 Dingo 2 Recovery Vehicle

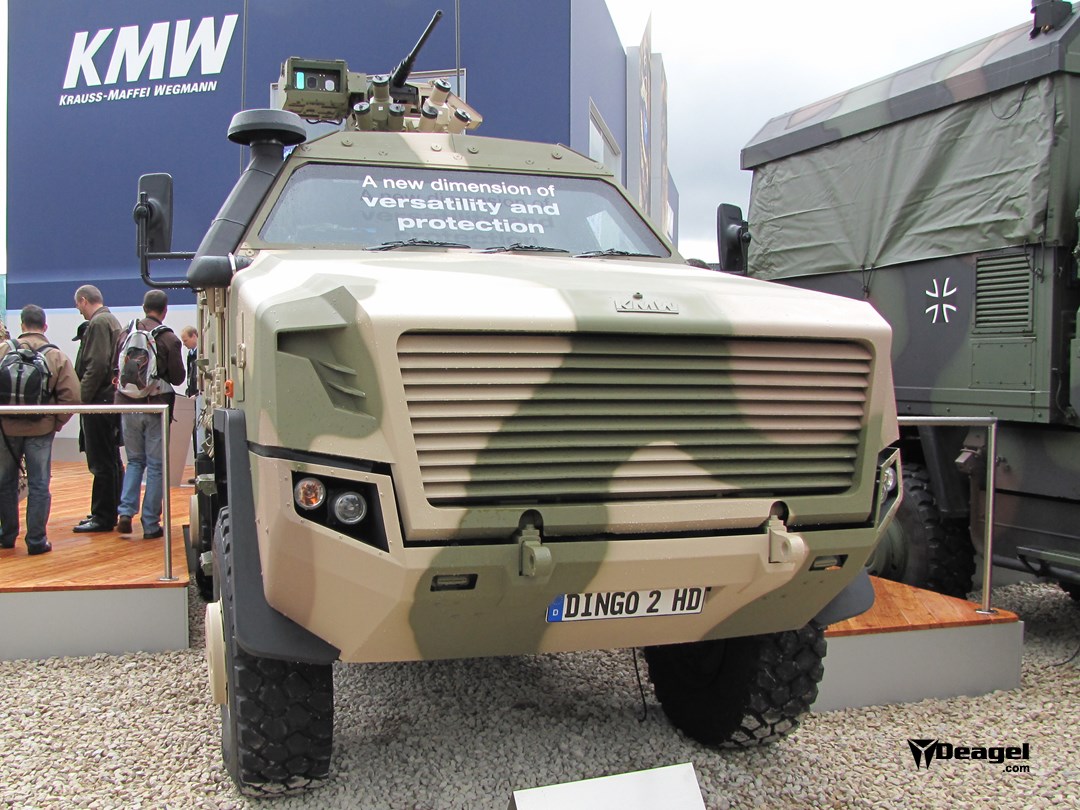

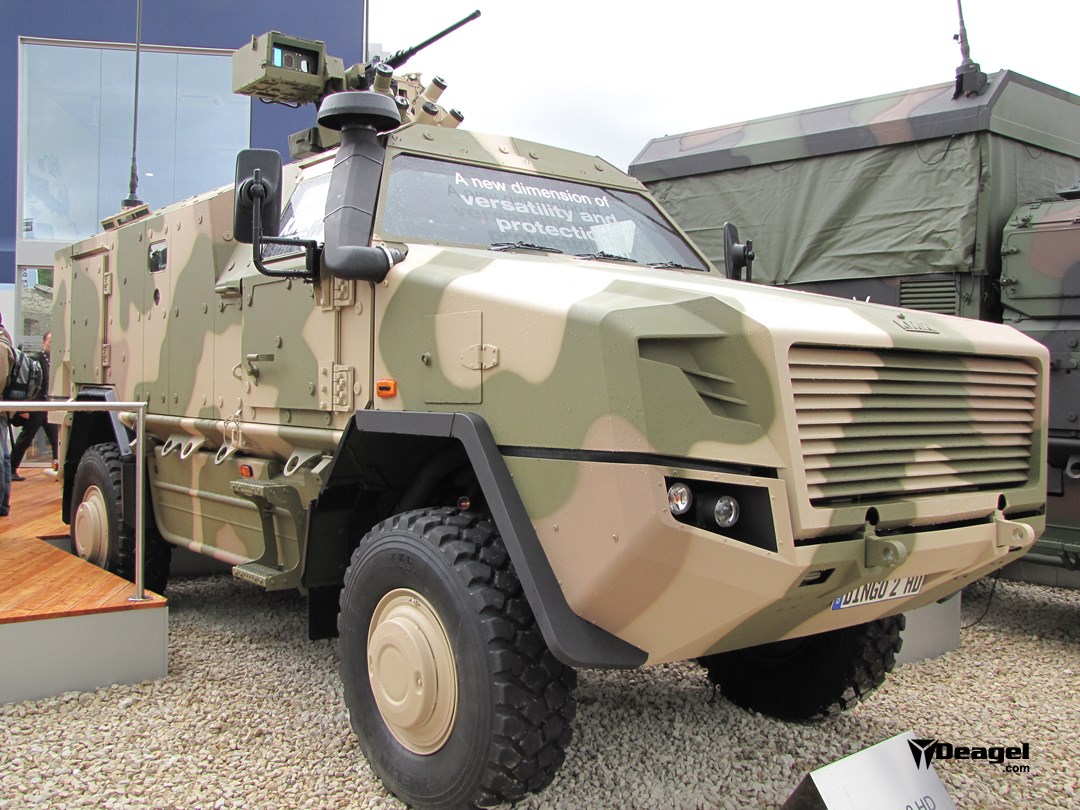

Variant 3 Dingo 2 Heavy Duty

Details

Country of Origin Germany

Sources

deagel.com: https://www.deagel.com/x/x/a000668

Classification

Domain

Ground

Equipment Status

Active

Dimensions

Length

5.4 m

Width

2.3 m

Height

2.4 m

Weight

8800 kg
