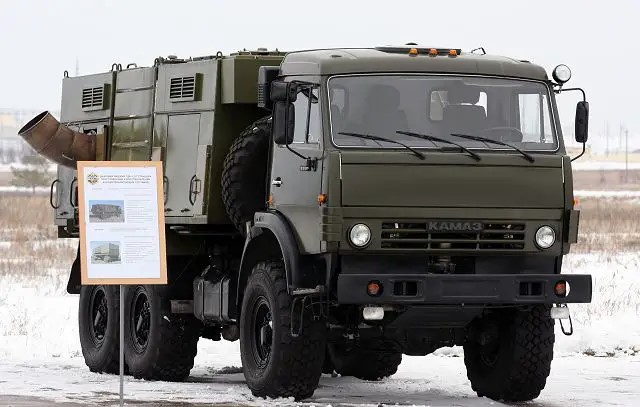

TDA-3 Russian 6x6 Mobile Smokescreen Generator
TDA-3
Mobile Smokescreen Generator
Other
Basic Information
Name
TDA-3 Russian 6x6 Mobile Smokescreen Generator
Designation
TDA-3
Alternate Designation
TDA-3
Equipment Type
Mobile Smokescreen Generator
Manufacturer
NPP INPROCOM (Balakirevo settlement, Vladimir region)
Date of Introduction
2016
Description
The TDA-3 Russian 6x6 Mobile Smokescreen Generator is two to three times superior of its predecessors in terms of smokescreen output, generation speed and coverage area. In addition, the sophisticated aerosols it uses mask friendly forces from both visual observation and surveillance radars.
Ground Specifications
Crew
2
Mobility Type
Wheeled (6x6)
Engine
Diesel (260 hp)
NBC Protection
Yes
Max Speed
100.0 km/h
Range
1000.0 km
System
Alternative Designation
TDA-3
Type
Mobile Smokescreen Generator
Manufacturer
NPP INPROCOM (Balakirevo settlement, Vladimir region)
Configuration
6x6
Chassis
KamAZ-5350 Russian 6x6 General Utility Truck
Crew
2 ea
Emplacment Time
Preparation of TDA-3 for work by calculation forces takes 5,5 minutes.
Displacment Time
INA
Dimensions
Length
7.85 m
Width
2.5 m
Height
3.29 m
Weight, Combat
15,75 tons
Automotive
Engine Name
KamAZ-740.13-260
Engine Type
Diesel
Engine Power
260 hp
Maximum Range
1,000 km
Maximum Speed
100 km/h
Amphibious
No
Gradient
60 %
Side Slope
40 %
Vertical Step
0.6 m
Trench
0.6 m
Fording
1.75 m
Note #1
The engine is also equipped with cold weather starting device and can be started at temperatures down to -50°C.
Note #2
The vehicle has a full-time all-wheel drive and is fitted with a central tyre inflation system.
Modular Smoke Installation (MDU)
Modes
The MDU of the TDA-3 machine is capable of operating in two main modes - to put up aerosol curtains or to spray chemical compositions of various kinds. At the same time, different tasks related to the protection of troops from various threats are solved. The main function of the machine is to set up smoke screens and protect troops from surveillance. Depending on the flow rate of the mixture, the duration of operation and weather conditions, the thermal smoke equipment forms an aerosol cloud of the required area and height with the required functions. So, when using only the smoke mixture, the cloud blocks visual observation, and the AOS-IR powder makes it opaque in the infrared range as well.
In this mode, the TDA-3 is capable of protecting troops from optical reconnaissance, and in two ranges at once. In addition, the veil covers them from high-precision weaponsusing infrared or laser guidance.
A dense smoke screen with different components is also designed to counteract the light emission of a nuclear explosion. The aerosol is able to absorb a significant part of the light energy and reduces the negative impact on the protected objects. The third function of TDA-3 is the fight against various types of infection. Thus, by spraying the appropriate chemical compositions, disinfection, degassing or decontamination of these areas, structures or equipment is carried out. Also, the machine can carry out pest control.
Module Composition

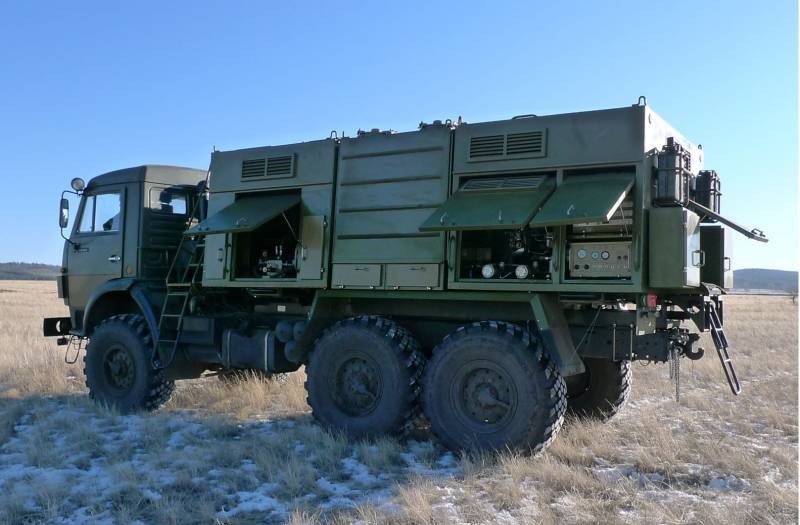

MDU includes three modules with devices for different purposes. They are made in separate rectangular cases and are arranged one behind the other. Each of the modules has its own equipment and performs certain tasks.
Module #1
The first module includes an auxiliary power unit, a power unit and electrical appliances, incl. accumulators. A stationary control panel is also assigned to this module.
Module #2
Module No. 2 includes two tanks for the smoke mixture or its components for 2500 and 900 liters. It also has fuel tanks and level indicators.
Module #3
The third module holds a 2700 liter powder tank, acoustic mixer, mix pumps and other equipment.
Auxiliary Power Unit
Auxiliary power plant in the form of a TA-6A gas turbine engine with a power of 320 hp. The power from the shaft is transferred to the generator to power all systems.
Note

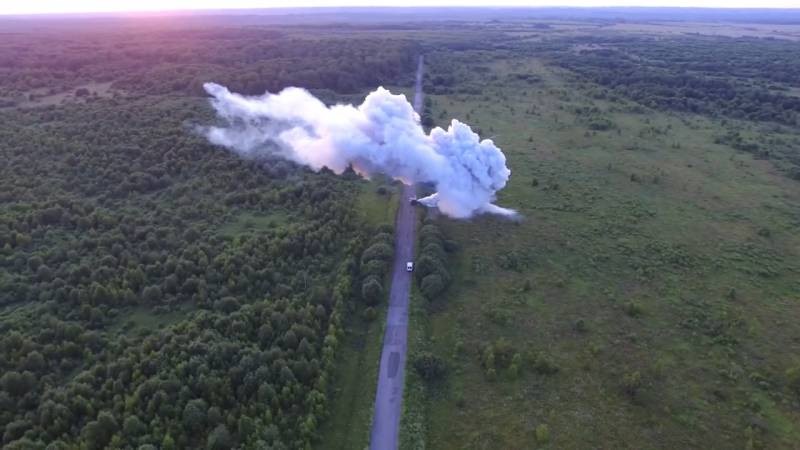

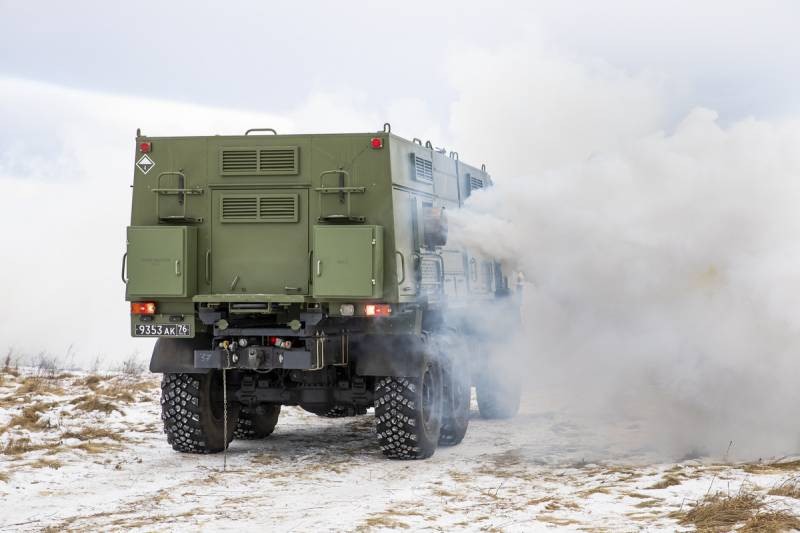

Thermal smoke equipment is installed on the GTE nozzle assembly. Liquid components are fed into a jet of hot gases and evaporate, while powdered components are crushed. The hot gas mixture is expelled to the outside and condensation occurs in air to form an opaque white aerosol.
Protection
Armor
INA
Applique Armor
No
NBC Protection
Yes
Smoke Equipment
Yes
Details
Country of Origin
Russia
Category
Land
Land
Filter Label
T
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
7.85 m
Width
2.5 m
Height
3.29 m
Weight
1575000 kg
Operators (1)
Russia
