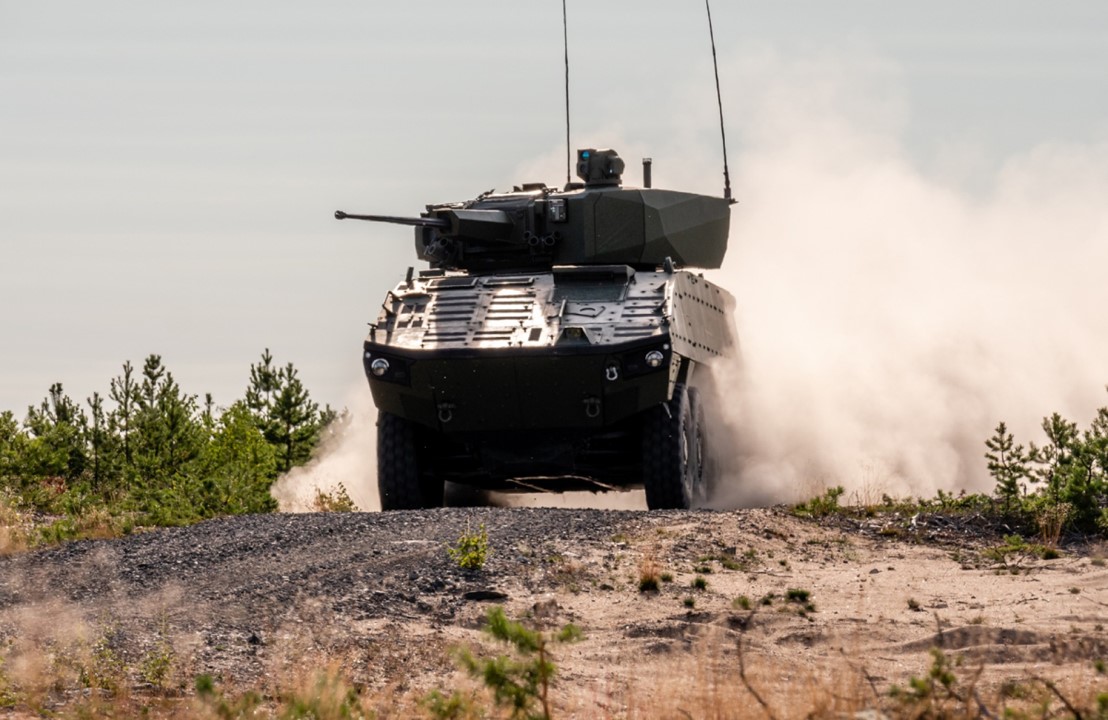

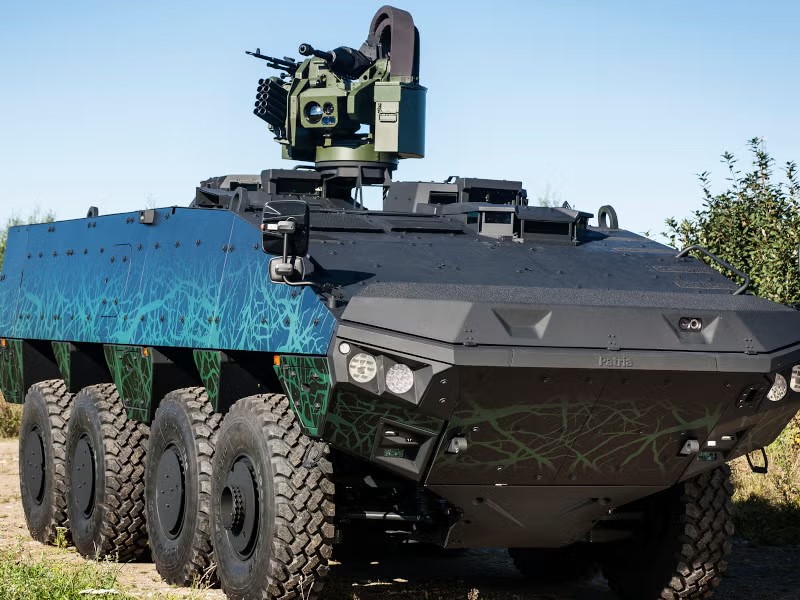

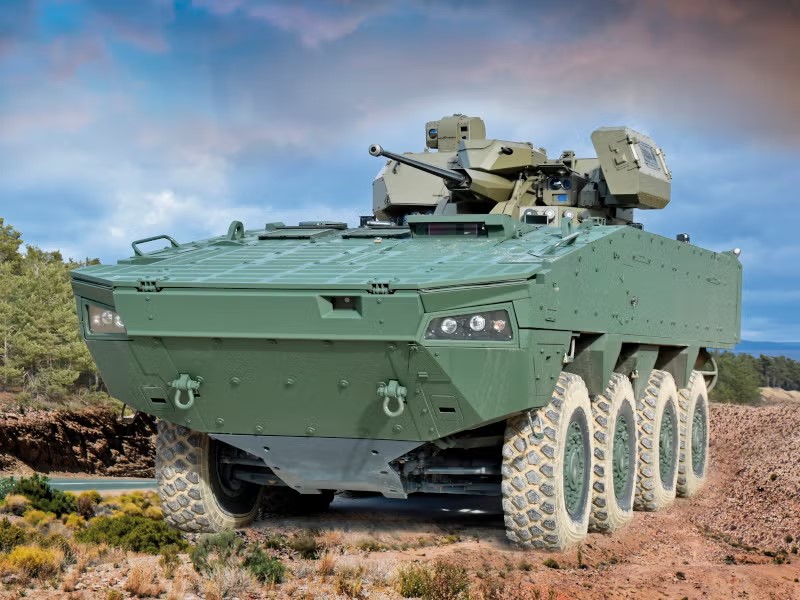

Patria AMV XP Finnish 8x8 Armored Wheeled Vehicle
Patria AMV XP
Wheeled Armored Vehicle
Other
Basic Information
Name
Patria AMV XP Finnish 8x8 Armored Wheeled Vehicle
Designation
Patria AMV XP
Alternate Designation
Patria AMV XP
Equipment Type
Wheeled Armored Vehicle
Manufacturer
Patria
Date of Introduction
2013
Description
The Patria AMV XP Finnish 8x8 Armored Wheeled Vehicle represents Finland's next-generation 8×8 armored modular vehicle platform, delivering enhanced payload capacity (15,000kg), protection levels, and performance over the baseline AMV design.
Ground Specifications
Crew
2
Mobility Type
Wheeled (8x8)
Engine
Inline 6-cylinder diesel (612 hp)
NBC Protection
Yes
Max Speed
100.0 km/h
Range
600.0 km
Variants
Armored Personnel Carrier (APC)
Baseline 2+8 configuration.
Infantry Fighting Vehicle (IFV)
With 30-120mm turret systems.
Command Vehicle
High-roof variant with C4I workstations.
Ambulance
Medical evacuation with 4 litter stations (Slovak program delivered 10 units).
Reconnaissance Vehicle
Sensor suite integration.
Anti-Tank Guided Missile Vehicle
Spike or comparable ATGM launchers.
Armored Repair & Recovery Vehicle
Recovery winch and crane.
Fire Support Vehicle
105-120mm mobile gun system.
Mortar Carrier
Patria NEMO/AMOS 120mm systems.
CBRN Reconnaissance
Specialized detection equipment.
Workshop Vehicle
Maintenance support operations.
Air Defense
With anti-aircraft missile systems.
System
Alternative Designation
Patria AMV XP
Type
Armored Wheeled Vehicle
Manufacturer
Patria
Configuration
8x8
Crew
2 ea
Passengers
8 ea
Payload Capacity
15,000 kg
Dimensions
Length
8.1 m
Width
2.8 m
Height
2.4 m
Weight, Combat
32,000 kg
Automotive
Engine Name
Scania DC13
Engine Type
Inline 6-cylinder diesel
Engine Power
612 hp
Maximum Range
600-1,000 km (Dependent on armor and mission configuration)
Maximum Speed
100 km/h
Amphibious
Optional amphibious kit; negated with maximum armor
Gradient
60%
Side Slope
30%
Vertical Step
0.7 m
Trench
2.1 m
Fording
1.8 m (without preparation)
Main Weapon System
Direct Fire Systems

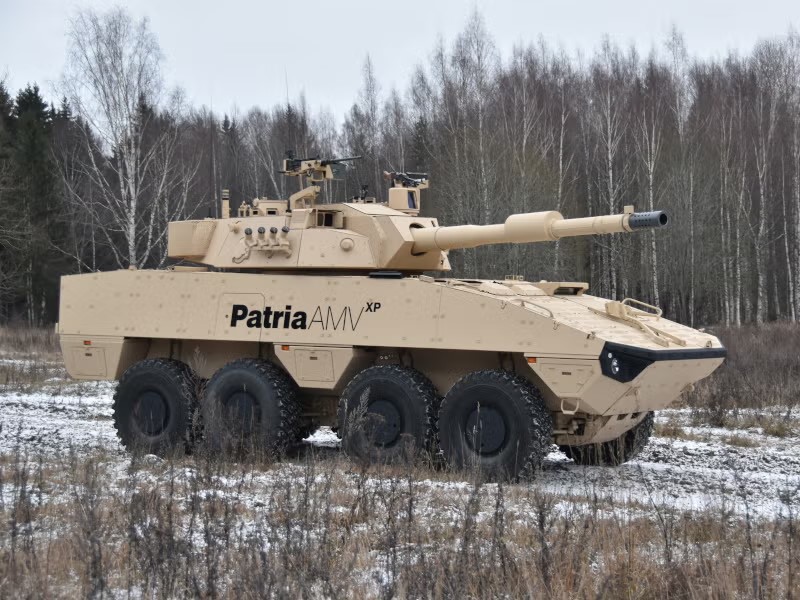

Leonardo HITFACT 120mm smoothbore low-recoil cannon (45-caliber) with coaxial 7.62mm machine gun and independent commander/gunner sights with hunter-killer capability. Cockerill CT-CV 105HP 105mm high-pressure gun for fire support roles. Rafael Samson Mk II remote weapon station with 30mm cannon and Spike anti-tank missiles.
Medium Caliber Systems
EVPU Turra 30 V10 (2025 configuration): 30mm automatic cannon (350 rounds), 7.62mm coaxial MG (600 rounds), integrated HARPIA AI-driven active protection system, VIPER multi-role drone launcher, multi-mission radar, and acoustic sniper detection. Protector RWS with M2HB .50 caliber machine gun (Slovak variant).
Indirect Fire
Patria NEMO 120mm turreted mortar system with automatic loader and direct/indirect fire capability. AMOS twin-barrel 120mm mortar turret.
Fire Control
All turret configurations support network-centric warfare through integrated C4I systems, battlefield management systems, and health/usage monitoring (HUMS). The electrical power generation capacity is specifically designed to support future sensor and electronic warfare suites.
Protection
Ballistic Protection
The AMV XP employs a modular ballistic protection system scalable to customer requirements. At maximum configuration, the frontal arc withstands 30mm armor-piercing rounds, while all-round protection defeats 14.5mm AP projectiles. The vehicle's armor packages meet STANAG 4569 Level K5+ standards against kinetic energy threats.
Mine and IED Protection
Mine protection exceeds STANAG Level 4a/4b, with the hull designed to survive 10kg TNT equivalent blasts under any wheel position or beneath the hull center. The double-V hull geometry and suspended seating systems mitigate blast transmission to occupants. Up-armored variants demonstrate survivability against RPG-7 rocket attacks.
NBC Protection
Yes
Smoke Equipment
Available
Details
Country of Origin
Finland
Category
Land
Land
Filter Label
P
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
8.1 m
Width
2.8 m
Height
2.4 m
Weight
32000 kg
Operators (7)
Japan
Poland
Sweden
South Africa
Croatia
Finland
Slovakia
