Type 90
Type 90
Recovery & Repair Vehicles
Operational Photo
Basic Information
Name
Type 90
Designation
Type 90
Alternate Designation
Kyuumaru, TK-X (development program started in 1977)
Equipment Type
Recovery & Repair Vehicles
Manufacturer
Mitsubishi Heavy Industries
Date of Introduction
1996
Description

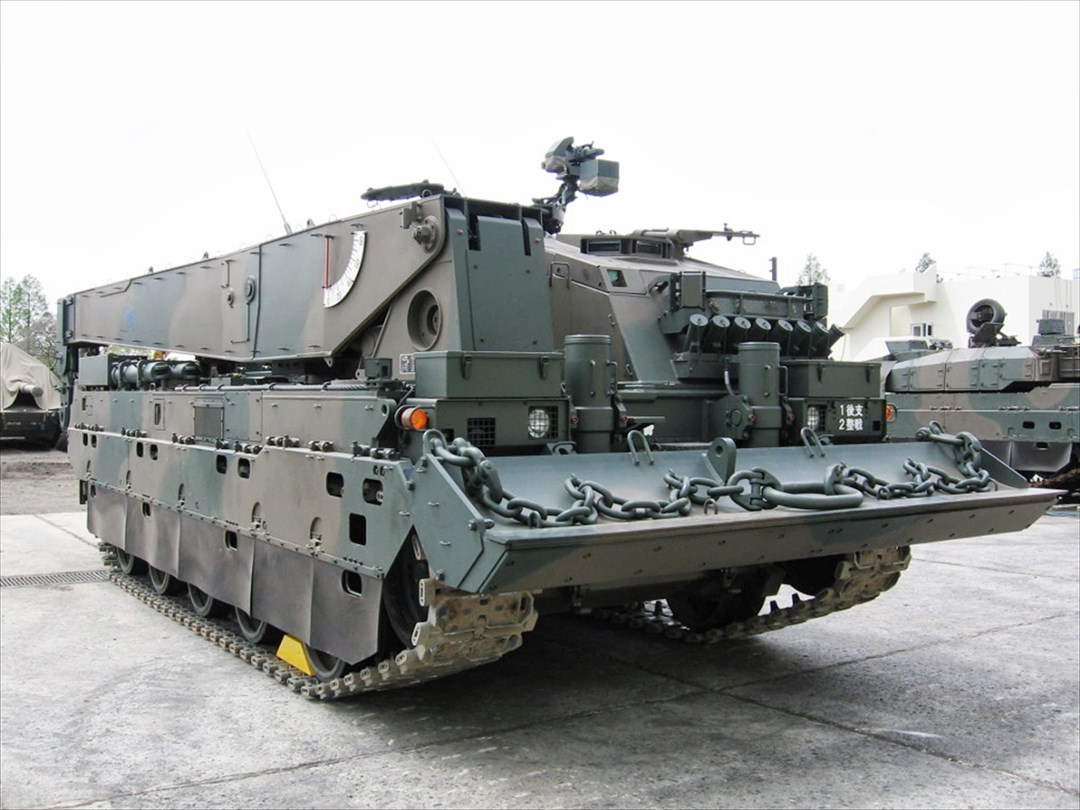

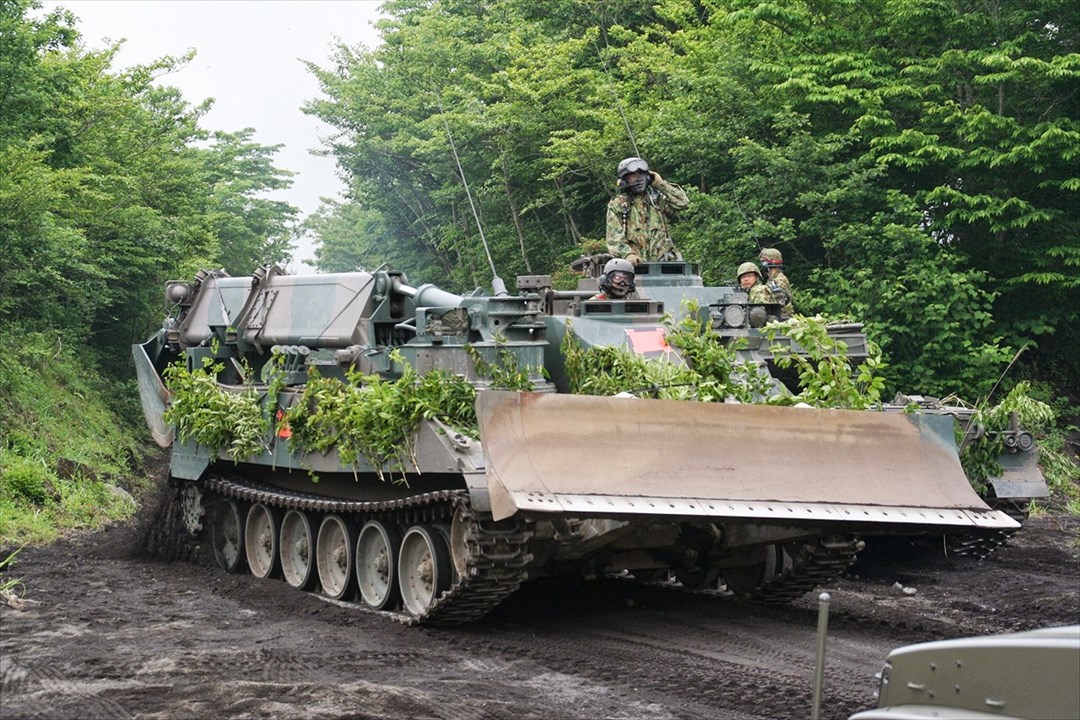

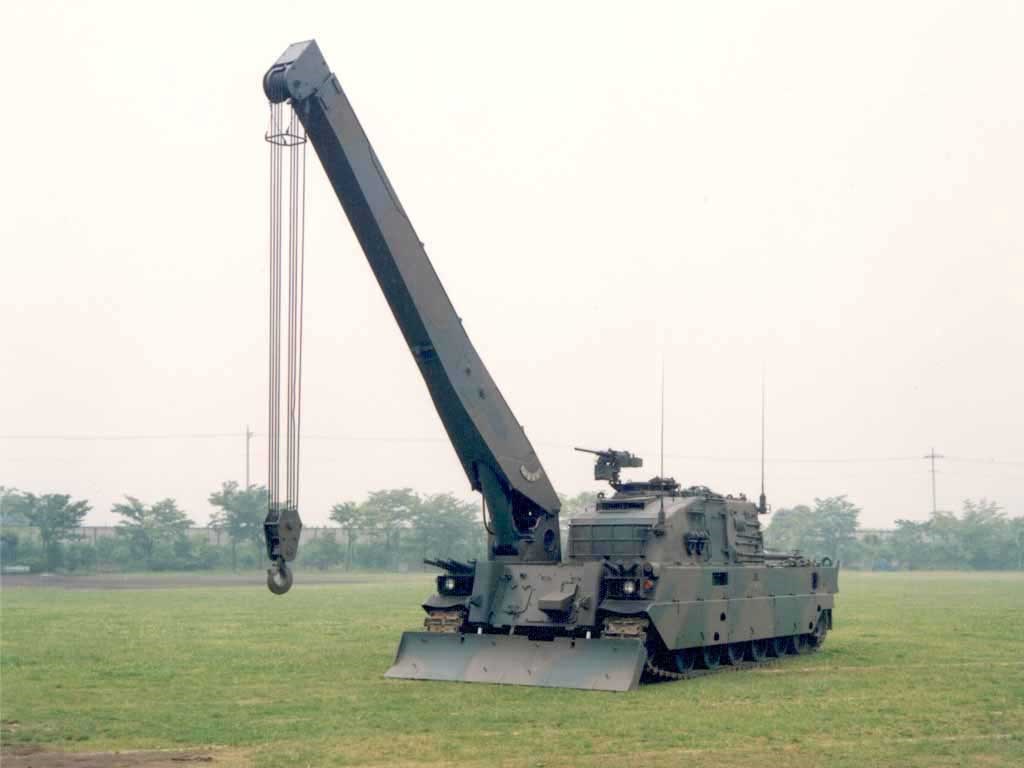

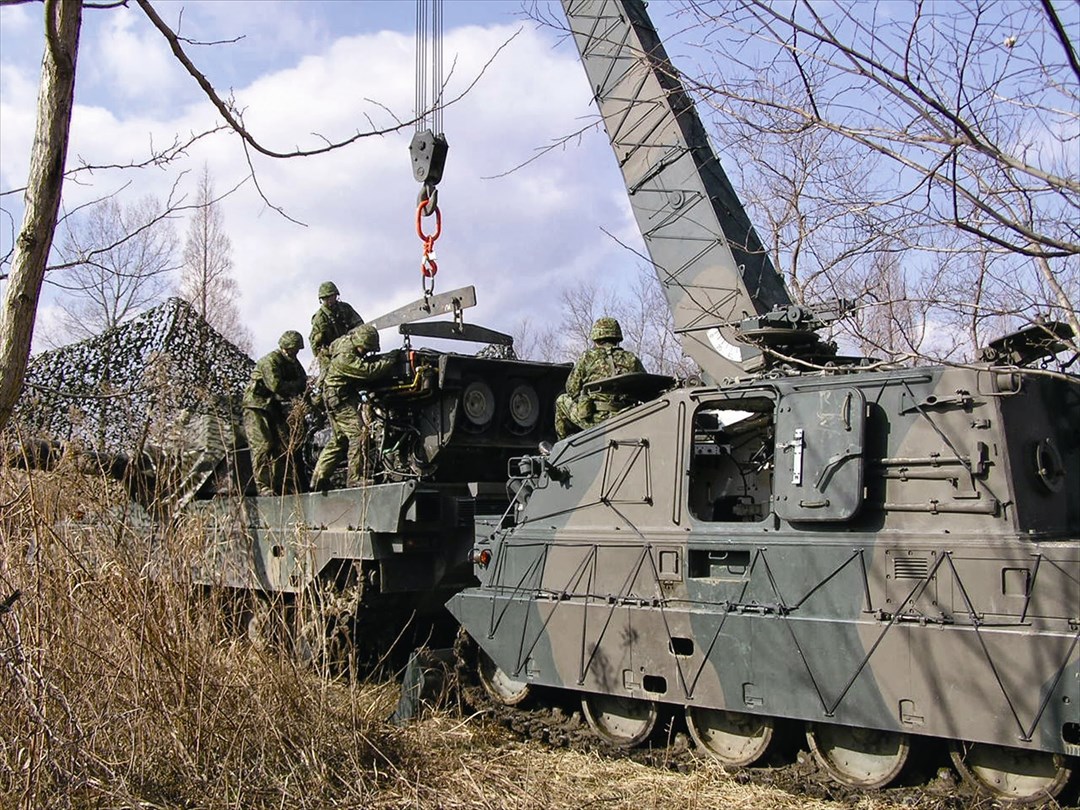

The Type 90, also known as TKR-90, is an Armored Recovery Vehicle (ARV) derived from the Japan Ground Self-Defense Force's (JGSDF) Type 90 main battle tank (MBT). It has been designed to perform recovery of 50-ton class vehicles and engineering missions on the battlefield. The Type 90 ARV is equipped with a crane, a dozer blade, and one roof-mounted M2 12.7mm machine gun for self-defense purposes only. The recovery vehicle can achieve a top speed of 70 kph due to its 1,500-hp ten-cylinder air-cooled two-cycle diesel engine. As of 2006, the JGSDF had fielded 21 Type 90 recovery vehicles since 1996.
Ground Specifications
Crew
4
Main Weapon
12.7 millimeter machine gun (13mm)
Max Speed
70.0 km/h
Range
340.0 km
Overview (Deagel)
Group
Recovery & Repair Vehicles
Status
Active
Origin
Japan
Contractor
Mitsubishi Heavy Industries
Initial Operational Capability (IOC)
1996
Total Production
43
Specifications (Deagel)
Crew
4
Dimensions — Height
2.7 meter
Dimensions — Length
9.2 meter
Dimensions — Main Gun Caliber
12.7 millimeter
Dimensions — Width
3.4 meter
Mass — Max Weight
50,000 kilogram
Mass — Towed Load
50 ton
Power — Power
1,500 hp
Speed — Top Speed
70 kph
Details
Country of Origin
Japan
Sources
deagel.com: https://www.deagel.com/x/x/a000388 deagel.com: https://www.deagel.com/x/x/a000390
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
9.2 m
Width
3.4 m
Height
2.7 m
Weight
50000 kg
Operators (1)
Japan
