R-340RP Field 21, Pole 21 (Р-340РП Полюс 21, Поле 21) Russian Electronic Warfare System

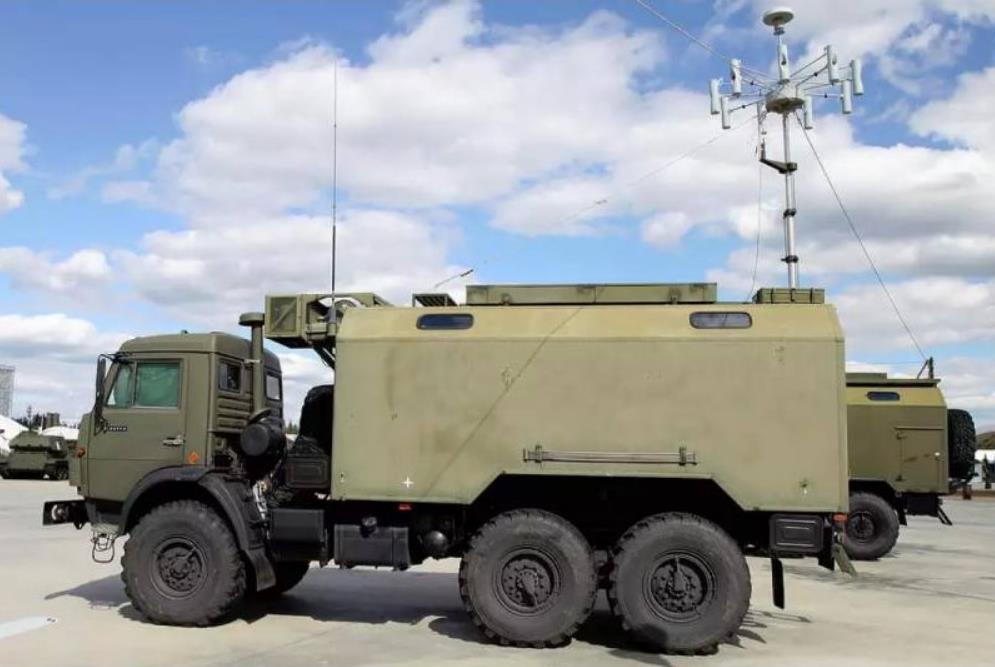

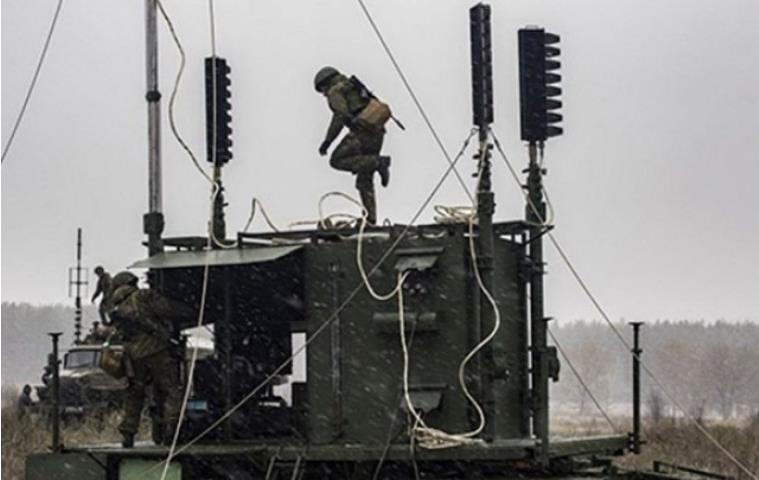

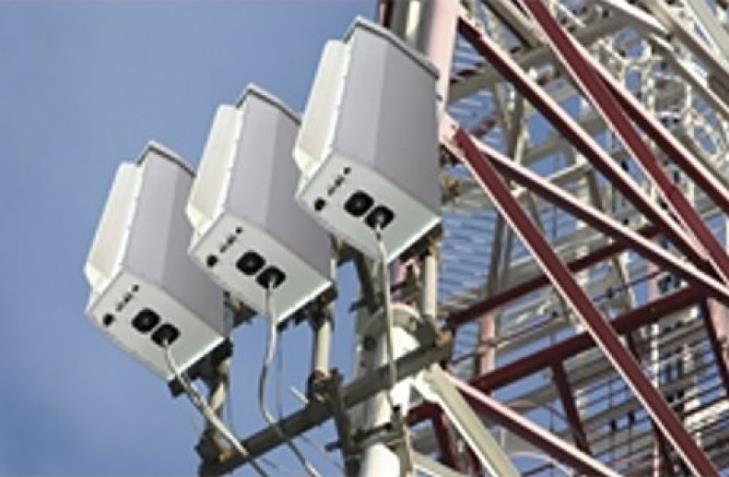

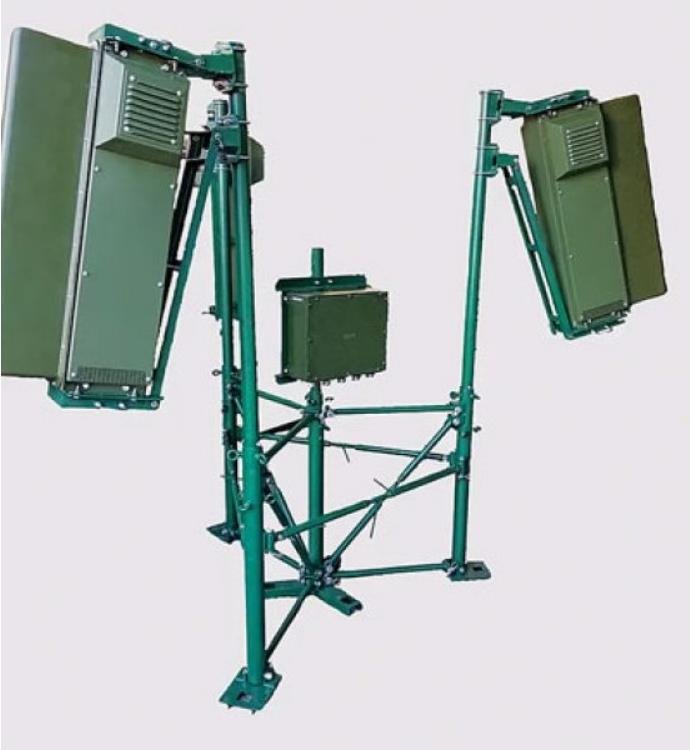

Suppression of GPS, GLONASS, Galileo, and BeiDou navigation satellites, drones, Bandwidth/Frequencies: Operating frequencies 1.176-1.602 GHz Range: 25–75 km Variants: None Additional Information: • Modular and scalable • One complex with 100 antenna posts can jam area of 150x150 km • R-340RP mobile stations and stationary Pole-21 units attached to buildings and towers R-340RP FIELD 21, POLE 21 Pole-21 unit installed in stationary ground mount. Source: © 28 March 2023, Focus.ua Performance Specifications: • Signal technical analysis range [GHz]: 1.176–1.602 • Signal emission source jamming range [km]: 25–75 • Power consumption [W]: 600 • Azimuth operational limits [deg]: 125 • Elevation operational limits [deg]: 25 Source: COGINT Analytic Insight Report - Russian EW Systems, 7 June 2023 (UNCLASSIFIED)
