Kalibr-PL

Kalibr-PL

Cruise Missiles
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
Kalibr-PL
Designation
Kalibr-PL
Alternate Designation
3M14K (submarine variant), 3M14T (surface ship variant), 3M14TE, Kalibr-NK, SS-N-30A Sizzler
Equipment Type
Cruise Missiles
Manufacturer
Agat Concern
Date of Introduction
2015
Description

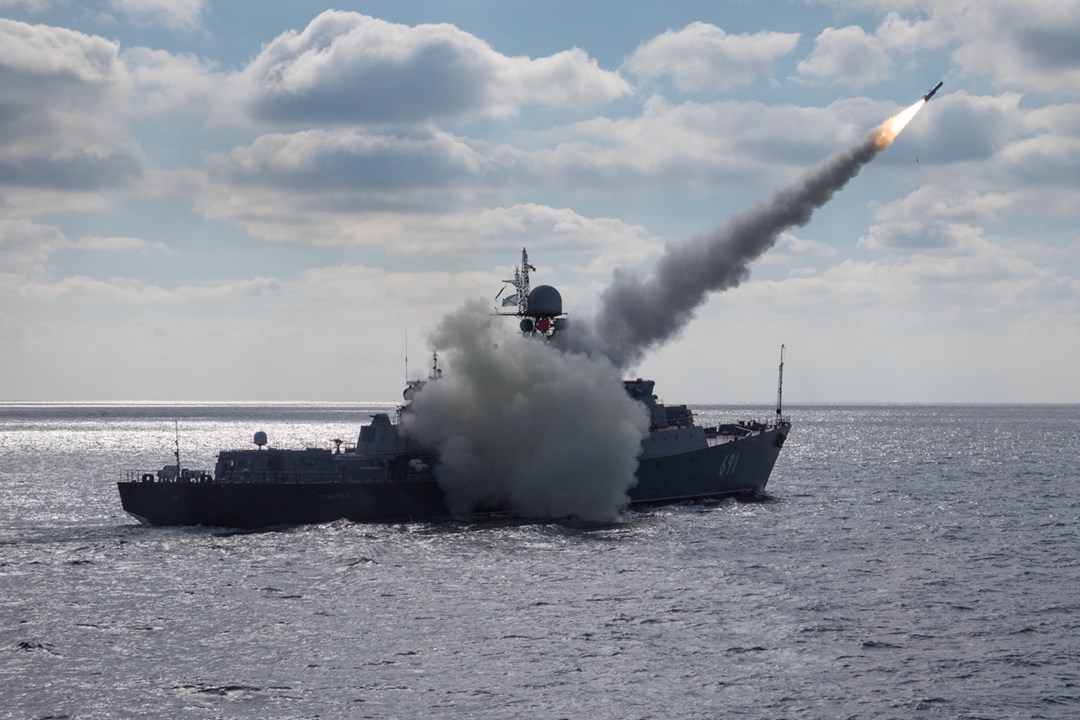

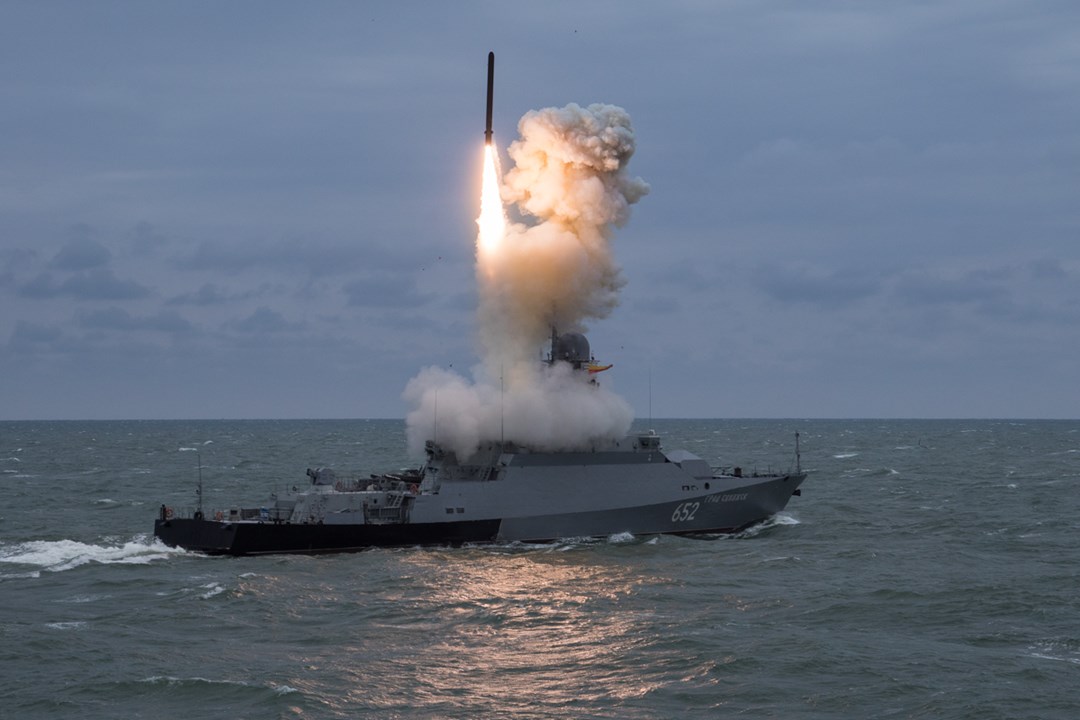

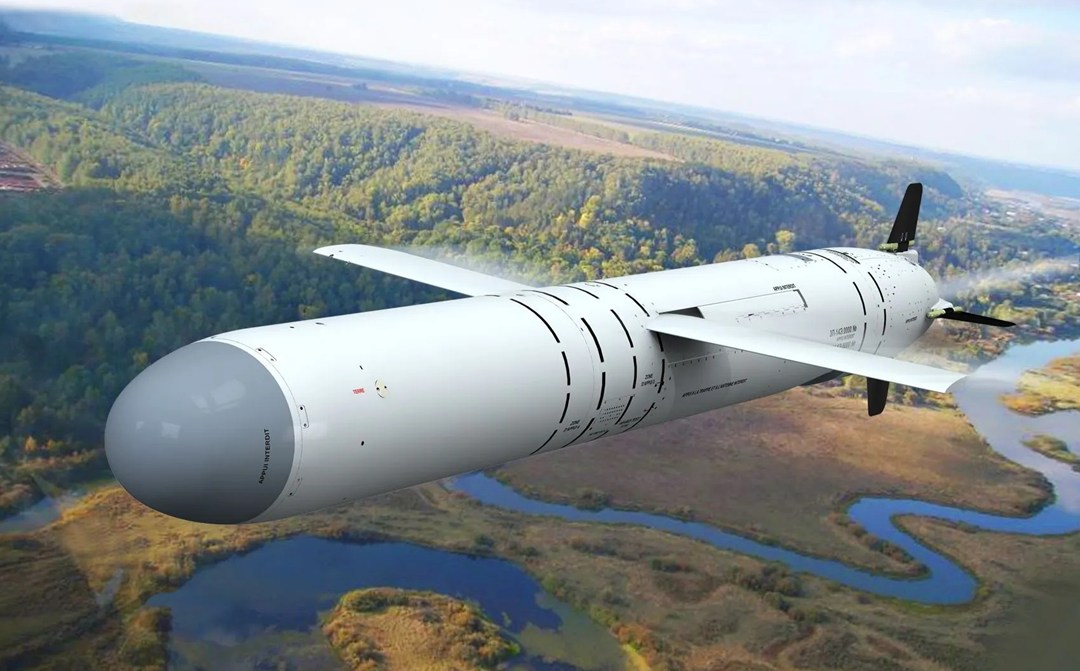

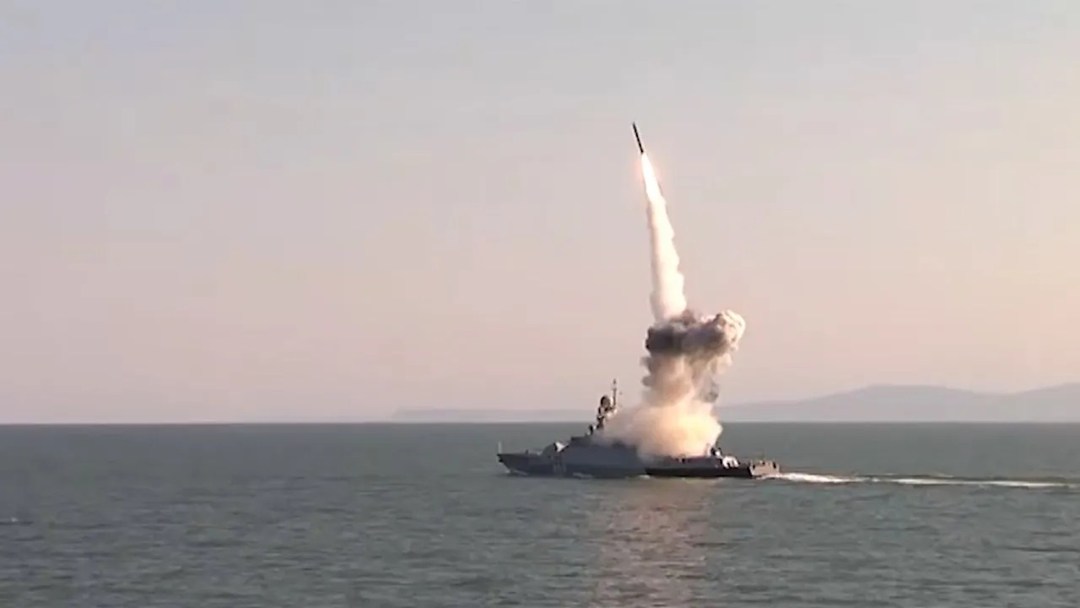

The Russian Navy Kalibr-PL or Kalibr-NK, also known as SS-N-30, is a long-range cruise developed as part of the Kalibr ship borne missile system. This weapon is intended to hit targets with pinpoint accuracy at ranges of up to 2,500 kilometers equipped with a conventional warhead and flying at altitudes of 50 to 150 meters from the ground. It is highly subsonic with a booster in the launch phase. The navigation system seems to be built around the Inertial Navigation System (INS) and satellite guidance (GLONASS). The existence of the Kalibr-NK cruise missile was revealed on October 7, 2015, when Russia launched 26 missiles against 11 targets in Syria from the Caspian Sea traveling 1,500 km. The four ships involved in this operation were three Buyan-M gunboats and a Gepard corvette. Western intelligence was unaware of the existence of the Kalibr-NK missile at that time. As of early 2022, some reports suggest the missile might have been exported to China.

Air & Air Defense Specifications
Range 2600.0 km
Overview (Deagel)
Group Cruise Missiles
Status Active
Also Known As 3M14K (submarine variant), 3M14T (surface ship variant), 3M14TE, Kalibr-NK, SS-N-30A Sizzler
Origin Russia
Contractor Agat Concern
Initial Operational Capability (IOC) October 2015
Total Production ?
Specifications (Deagel)
Dimensions — Diameter 645 millimeter
Dimensions — Length 8.9 meter
Mass — Warhead 450 kilogram
Mass — Weight 3,200 kilogram
Performance — CEP 3 meter
Performance — Max Cruising Flight Altitude 150 meter
Performance — Max Range 2,600 kilometer
Performance — Min Cruising Flight Altitude 50 meter
Speed — Cruise Speed 958 kph
Variants
Variant 1 Kalibr-PL
Variant 2 Kalibr-M
Variant 3 Kalibr INF
Details
Country of Origin Russia
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
8.9 m
Width
Height
Weight
Operators (2)
Russia
China
