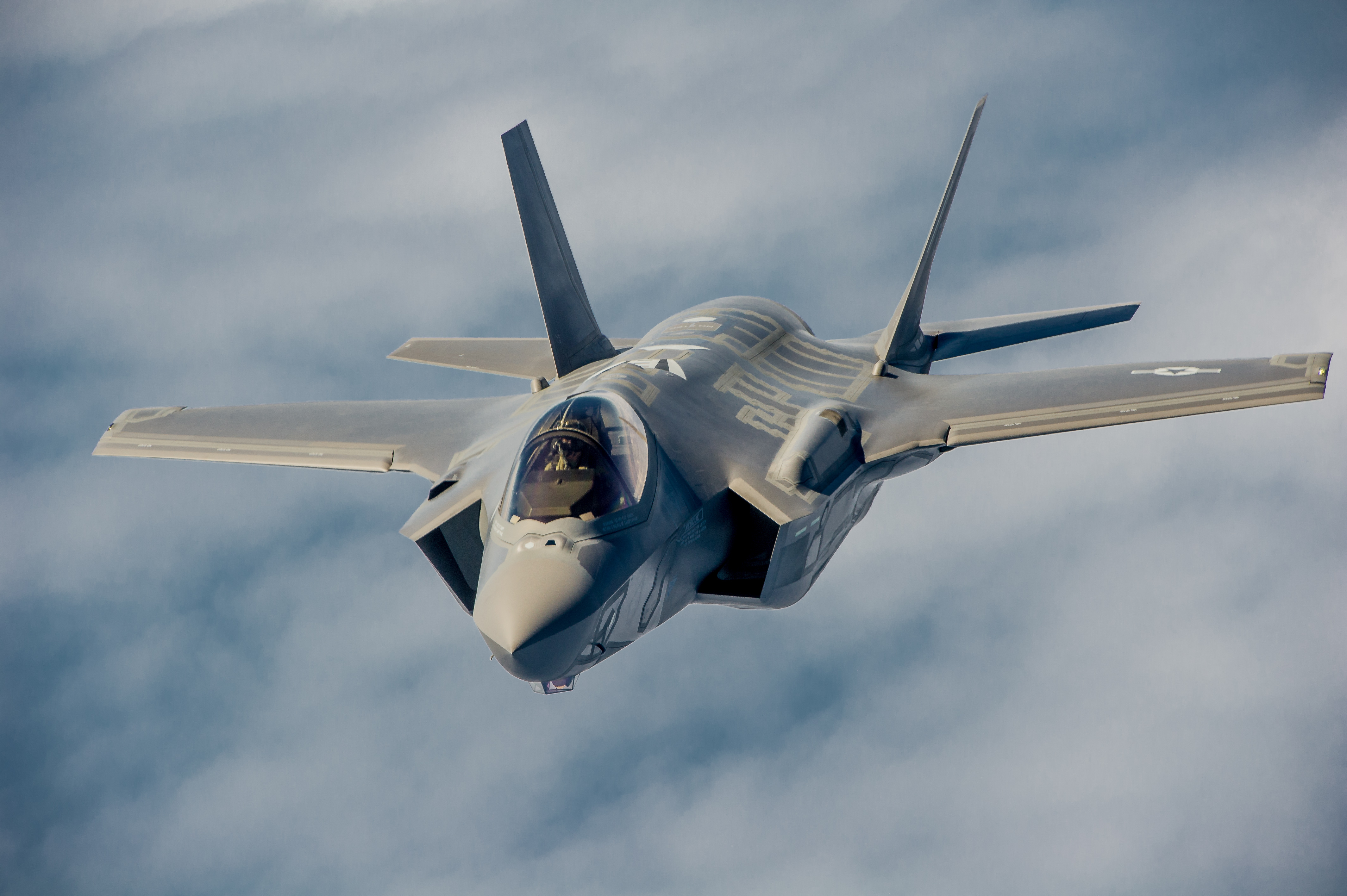

F-35A Lightning II

F-35A Lightning II

Multi-Role Fighters
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
F-35A Lightning II
Designation
F-35A Lightning II
Alternate Designation
CF-35 (Canadian Air Force), F-35 CTOL, F-35 Husarz (Polish variant), Joint Strike Fighter, JSF
Equipment Type
Multi-Role Fighters
Manufacturer
Lockheed Martin, BAE Systems, Northrop Grumman
Date of Introduction
2016
Description

The Conventional Take-Off and Landing (CTOL) F-35A stealth fighter aircraft was developed to replace the F-16C/D and A-10A/C in the US Air Force inventory as well as the F-15C/D Eagle and F-15E Strike Eagle after the shut down of the F-22 assembly line and the cancellation of the FB-22 stealth strike fighter. As of 2005 the United States and the partner countries the United Kingdom, Italy, Canada, the Netherlands, Turkey, Australia, Denmark, and Norway were involved in the F-35 program. Israel and Singapore were security cooperative participants. The partner countries are expected to sign orders for 500 to 600 F-35s in late 2006. On April 28, 2006 Lockheed Martin was awarded the first advance acquisition contract in support of Lot 1 Low Rate Initial Production (LRIP) for five F-35A Joint Strike Fighters. The contract was valued at $901 million and was slated for completion by January 2010. The F-35A performed its first flight on December 16, 2006 and is expected to achieve Initial Operational Capability (IOC) by December 2016 with the USAF. The F-35A is a big success in the export market with the aircraft expected to replace the F-16, F-18, Tornado and F-4 in several allied nations Air Forces.

Air & Air Defense Specifications
Crew 1
Max Speed 1975.7 km/h
Range 2222.4 km
Service Ceiling 18288 m
Wingspan 10.67 m
Overview (Deagel)
Group Multi-Role Fighters
Status Active
Also Known As CF-35 (Canadian Air Force), F-35 CTOL, F-35 Husarz (Polish variant), Joint Strike Fighter, JSF
Origin United States of America
Contractors Lockheed Martin*, BAE Systems, Northrop Grumman
Initial Operational Capability (IOC) August 2, 2016
First Flight December 15, 2006
Total Production 1,413
Development Cost USD $56 billion
Unitary Cost USD $143 million
Specifications (Deagel)
Crew 1
External Stations 6
Internal Stations 4
Number of Engines 1
Service Life Flight Hours 8000
Sorties a day 0
Area — Radar Cross Section (RCS) 0.10 square meter
Area — Wing Area 460 square foot
Dimensions — Height 14.2 foot
Dimensions — Length 51.4 foot
Dimensions — Main Gun Caliber 25 millimeter
Dimensions — Wingspan 35 foot
G-load — Max Maneuvering Load Factor 9 g
Mass — Empty Weight 29,300 pound
Mass — External Payload 15,000 pound
Mass — Fuel Load 18,480 pound
Mass — Max Takeoff Thrust 40,000 pound
Mass — Max Takeoff Weight 70,000 pound
Mass — Operational Weight 49,540 pound
Mass — Payload 18,000 pound
Percentage — Availability 37 %
Performance — Ceiling 60,000 foot
Performance — Max Range 1,200 nautical mile
Performance — Radius of Operation 584 nautical mile
Speed — Top Speed at High Altitude 1.6 mach
Time — Service Life 40 year
Gear (Deagel)
Item 1 Air-to-Air Missiles: AIM-120D AMRAAM (2)
Item 2 Air-to-Air Missiles: AIM-9X-2 Sidewinder (2)
Item 3 Anti-Ship Missiles: AGM-184 JSM (2)
Item 4 Bombs: GBU-12 Paveway II (2)
Item 5 Bombs: GBU-31 JDAM (2)
Item 6 Bombs: GBU-32 JDAM (2)
Item 7 Bombs: GBU-49 Paveway II (2)
Item 8 Communications Devices: AN/ASQ-242 (1)
Item 9 Fighter Aircraft Engines: F135-PW-100 (1)
Item 10 Helmets: JSF HMD (1)
Item 11 Jamming Systems: AN/ASQ-239 (1)
Item 12 Medium Caliber Cannons: GAU-22/A (1)
Item 13 Optronic Systems: EO DAS (1)
Item 14 Optronic Systems: EOTS (1)
Item 15 Radar Systems: AN/APG-81 (1)
Variants
Variant 1 F-35B Lightning II
Variant 2 F-35A Lightning II
Variant 3 F-35I Adir
Variant 4 F-35C Lightning II
Variant 5 F-35E
Details
Country of Origin United States
Category Multirole Aircraft
Air > Multirole Aircraft
Classification
Domain
Air & Air Defense
Equipment Status
Active
Dimensions
Length
15.67 m
Width
10.67 m
Height
4.33 m
Weight
31751.44 kg
Related Equipment (1)
Operators (16)
United States
Germany
Italy
Japan
South Korea
Poland
Czech Republic
Australia
Belgium
Canada
Denmark
Finland
Greece
Netherlands
Norway
Romania
