Alexander Anishchenko Class (Project 19920 Class) Russian Hydrographic Survey Vessel

Alexander Anishchenko Class

Hydrographic Research Vessel / Medium Intelligence Ship

Spotted an error? Sign in to suggest an edit.

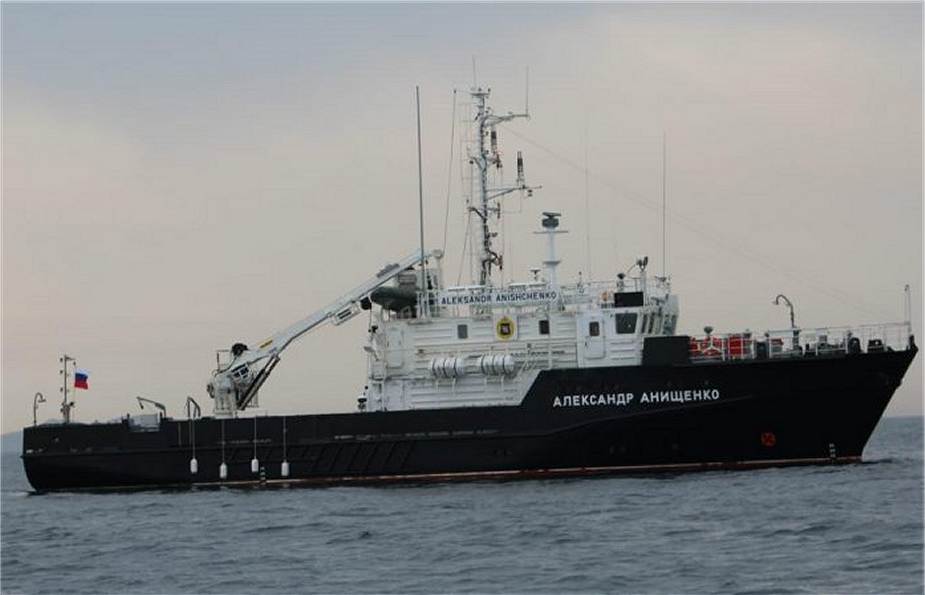

Alexander Anishchenko Class (Project 19920 Class) Russian Hydrographic Survey Vessel — Alexander_Anishchenko_Project_19920_(AA).jpgTRADOC ODIN WEG

Basic Information

Name

Alexander Anishchenko Class (Project 19920 Class) Russian Hydrographic Survey Vessel

Designation

Alexander Anishchenko Class

Alternate Designation

Alexander Anishchenko Class; Project 19920 Class

Equipment Type

Hydrographic Research Vessel / Medium Intelligence Ship

Manufacturer

OJSC Vympel Shipyard

Date of Introduction

2008

Description

Alexander Anishchenko Class (Project 19920 Class) Russian Hydrographic Survey Vessel, a large hydrographic survey boat designed and built by OJSC Vympel Shipyard, performs hydrographic and navigation survey works for the Ministry of Defence of the Russian Federation. The large survey boat is intended to perform buoy laying, a survey of inshore waters and maintenance works. It can also carry out other missions such as inspection, maintenance, recharge, and repair of onshore and floating navigational equipment. It is further used to transport cargo, special-purpose equipment, and personnel to unprepared shores. Alexander Anishchenko-Class (Project 19920 Class) Russian Hydrographic Survey Vessel, features a single deck with a continuous main deck and long forecastle. The Middle section of the boathouses the deckhouse and the engine room. The ship’s bow stem is raked forward to provide a comfortable ride, while its stern has a transom shape.

Naval & Littoral Specifications

Crew 11

Beam 7.80 m

Draft 2.10 m

Variants

BGK-2090 Commissioned: 2008 Status: Active Fleet: Caspian Flotilla

BGK-2148 Commissioned: 2012 Status: Active Fleet: Northern Fleet

BGK-2149 Commissioned: 2015 Status: Active Fleet: Northern Fleet

BGK-2150 Commissioned: 2016 Status: Active Fleet: Black Sea Fleet

BGK-2154 Commissioned: 2016 Status: Active Fleet: Northern Fleet

Alexander Makorta Commissioned: 2020 Status: Active Fleet: Northern Fleet

System

Alternative Designation Alexander Anishchenko Class; Project 19920 Class

Type Hydrographic Survey Vessel

Builder OJSC Vympel Shipyard

Crew 11 ea

Note The large survey boat is intended to perform buoy laying, survey of inshore waters and maintenance works. It can also carry out other missions such as inspection, maintenance, recharge and repair of onshore and floating navigational equipment. It is further used to transport cargo, special-purpose equipment and personnel to unprepared shores.

Dimensions

Length 36.44 m

Beam 7.8 m

Draft 2.1 m

Displacement, Standard 279 tons

Displacement, Full Load 320 tons

Propulsion System

Engine Name 2 x Deutz BF6M 1015MC

Engine Type Diesel

Engine Power 2 x 337 hp

Azimuth Thrusters 2 x Azimuth Thrusters

Bow Thruster 1 x Bow Thruster

Generators 2 x 80 kW DGA-80-VA2-MPS diesel-generators, or 2 x 80 kW DGA-80-VA3-MPS diesel-generators.

Maximum Range 1000 nmi at 11 knots

Maximum Speed 11.5 knots

Endurance 10 days

Communications

Note Communications systems aboard the watercraft include Inmarsat-C two-way packet data service system, transponder, VHF and HF/MF radio systems, portable VHF radio telephones and a satellite EPIRB with radar transponder.

Hydrographic Survey Equipment

Note The Project 19920 boat is installed with a range of hydrographic survey equipment to provide accurate data for nautical charting activities. It features surveying profilograph, automated mareograph, sounding depth finder, roll parameter measurement system, self-contained returnable hydrological probe, and sound-in-water velocity meter. It is also equipped with a multi-beam echo sounder with data acquisition/processing equipment to map the bottom water for efficient underwater navigation purposes.

Radar Systems

Navigation Radar 2 x Navigation Radars (Name: INA)

Sonar Systems

Echo Sounder 1 x Echo Sounder (Name: INA)

Protection

Hull Alexander Anishchenko-Class (Project 19920 Class) Russian Hydrographic Survey Vessel, features a single deck with a continuous main deck and long forecastle. The Middle section of the boat houses the deckhouse and the engine room. The ship’s bow stem is raked forward to provide a comfortable ride, while its stern has a transom shape.

Countermeasures No

NBC Water Washdown System Yes

Image Sources

Notes https://en.topwar.ru/174549-bgk-proekta-19920-dlja-tof-spuschen-na-vodu-v-blagoveschenske.html; https://navyrecognition.com/index.php/naval-news/naval-news-archive/2021/april/10027-alexander-anishchenko-project-19920-hydrographic-boat-for-russian-navy-completes-acceptance-trials.html;

Details

Country of Origin Russia

Category Naval

Naval

Classification

Domain

Naval & Littoral

Equipment Status

Active

Dimensions

Length

36.44 m

Width

7.8 m

Height

—

Weight

320000 kg

Operators (1)

Russia
