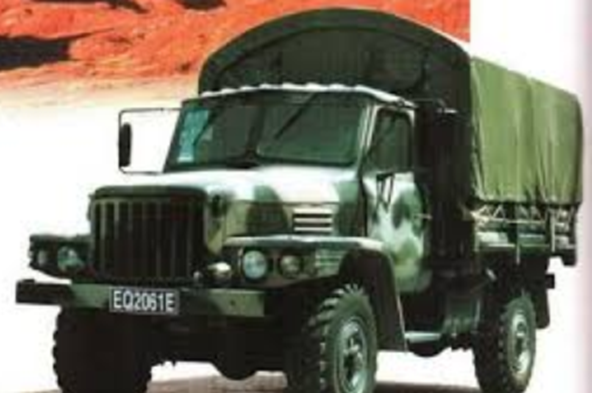

EQ2061E Chinese 4x4 Truck
Aeolus (export name)
Spotted an error? Sign in to suggest an edit.
Other
Basic Information
Name
EQ2061E Chinese 4x4 Truck
Designation
Aeolus (export name)
Alternate Designation
Aeolus (export name)
Equipment Type
—
Manufacturer
—
Date of Introduction
1975
Description
The EQ2061E Chinese 4x4 Truck is is intended for mountainous areas, rough roads, and tracks. It has a conventional layout with the engine forward, a steel cab for one driver and two passengers, and a load area in the rear. The diesel version of this truck uses 18 liters of fuel per 100 kilometers. This vehicle is mainly used for command and control, reconnaissance, troop carrier, aircraft towing, and other general purposes.
Ground Specifications
Crew
3
Troop Capacity
3
Mobility Type
Wheeled (4x4)
Engine
EQ6100-1B, gasoline, 135hp or B140-20, diesel, 138hp
Max Speed
88.0 km/h
Range
550.0 km
System
Alternative Designation
Aeolus (export name)
Brake system
Air, split-circuit, drums front and rear
Cooling
Water
Curb Weight (
4.39 mt
Number of Axles
2 ea
Number of Tires
4 ea
Payload
8.1 on road; 1.5 off road mt
Towing Capability, Off
1.5
Troop Capacity
3 in cab ea
Weight, Gross Vehicle
6.10 mt
Wheels Central Tire Pressure Regulation System
No
Wheels Size
11.00X18 in
Towing Capability On Road
2 mt
Dimensions
Height, Overall
2.86 m
Length, Overall
5.472 m
Width, Overall
2.4 m
Wheelbase
3.4 m
Automotive
Engine Type
EQ6100-1B, gasoline, 135hp or
B140-20, diesel, 138hp
Fording Depth
0.85 m
Ground Clearance
286 mm
Range, Cruising
550 km
Speed
88 km/h
Turning Radius
7.5 m
Gradient (Loaded)
60%
Angle of Approach
45 without winch, 31.5 with winch degrees
Angle of Departure
38 degrees
Trench
0.7 m
Fuel
Fuel Capacity
145 liters
Armament
Armament
None
Payload
Cargo Payload On Road
8.1 mt
Cargo Space Cargo Bed Area
5.668 m2
Cargo Space Height
1.338 m
Cargo Space Length
2.6 m
Cargo Space Width
2.18 m
Curb Weight
4.39 kg
Gradient, Loaded
60% deg
Cargo Payload Off Road
1.5 mt
Payload Weight
Payload on/off Highway
8.1 / 1.5 kg
Trailer Payload On
2
Trailer Payload off
1.5 mt
Utility
Transport
PTO and a 4,500kg winch on front bumper
Details
Country of Origin
China
Category
Transportation
Land > Combat Support Vehicles > Transportation
Filter Label
E
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
5.47 m
Width
2.4 m
Height
2.86 m
Weight
6100 kg
Operators (3)
China
Bangladesh
Peru
