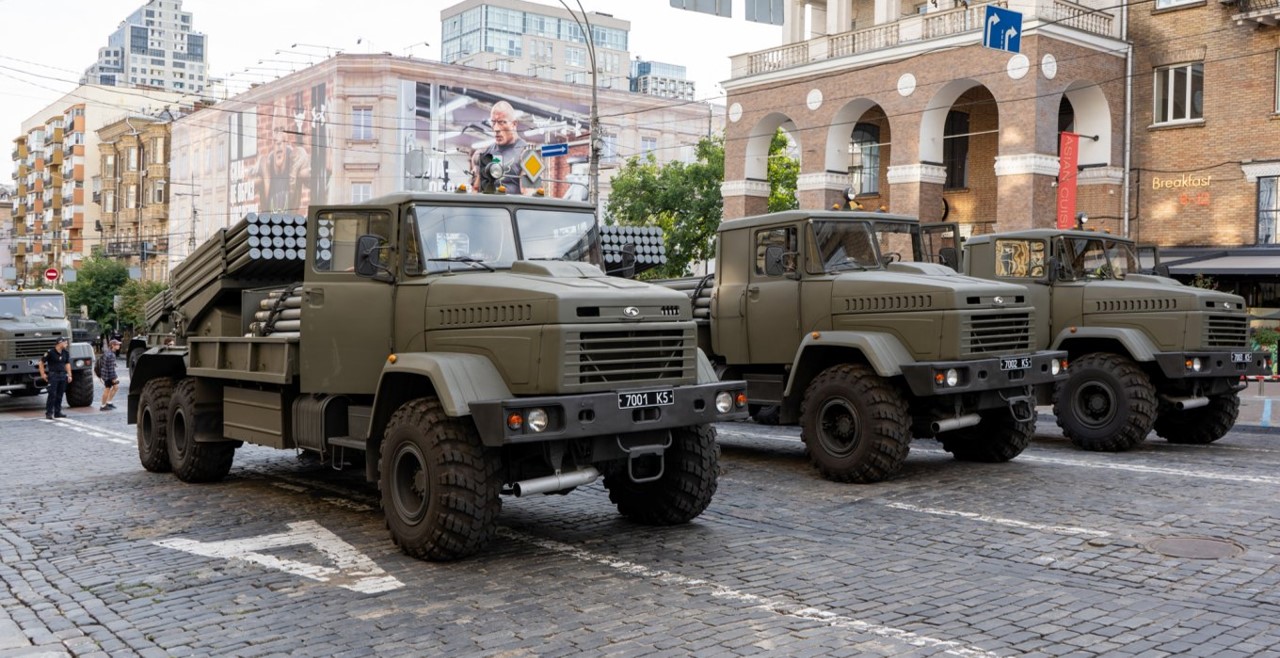

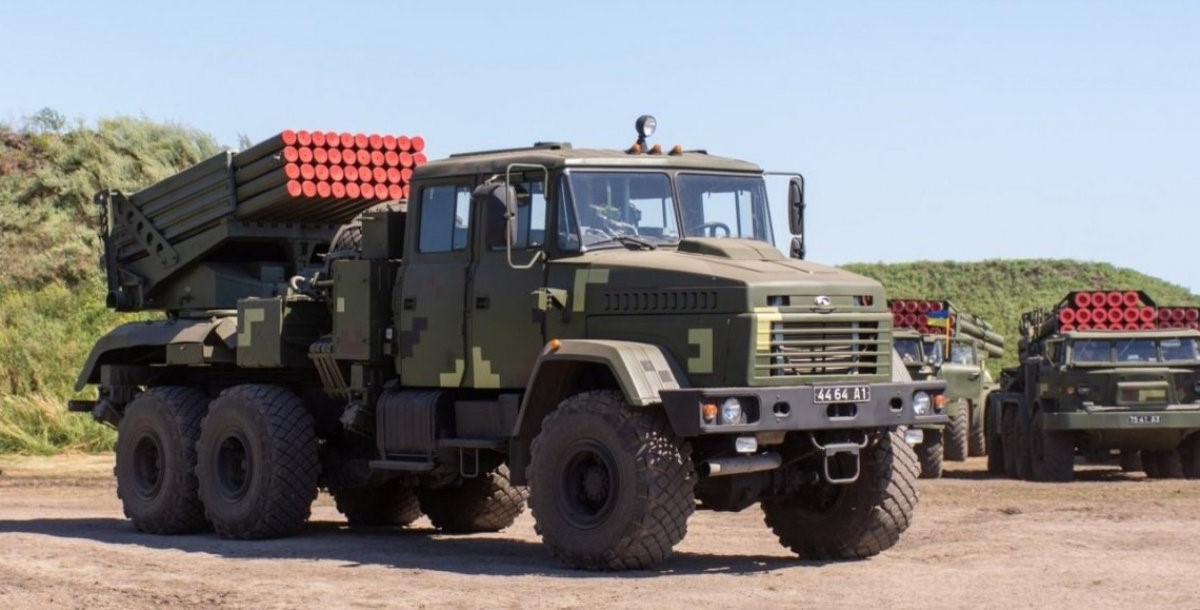

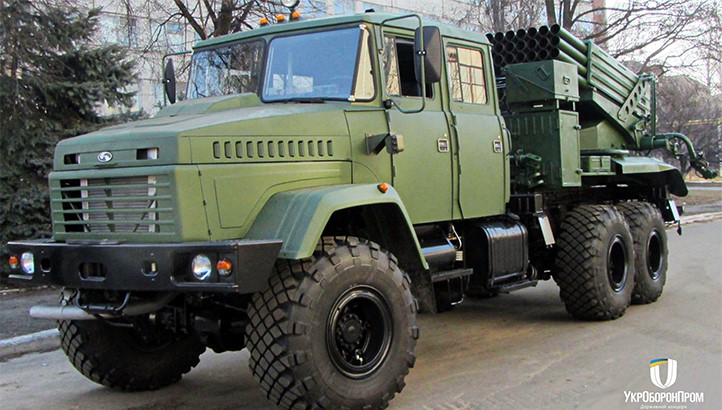

BM-21U Grad Ukrainian 122mm Multiple Rocket Launcher

BM-21U Grad

Multiple Launch Rocket System (MLRS)
Spotted an error? Sign in to suggest an edit.
BM-21U Grad Ukrainian 122mm Multiple Rocket Launcher
Other
BM-21U_Grad_(B).jpgTRADOC ODIN WEG
Thumbnail
Thumbnail
Thumbnail
Basic Information
Name
BM-21U Grad Ukrainian 122mm Multiple Rocket Launcher
Designation
BM-21U Grad
Alternate Designation
BM-21U Grad
Equipment Type
Multiple Launch Rocket System (MLRS)
Manufacturer
krAZ
Date of Introduction
1986
Description

The BM-21U Grad Ukrainian 122mm Multiple Rocket Launcher is a further development of the previous BM-21K.

Ground Specifications
Crew 4
Mobility Type Wheeled (6x6)
Main Weapon 122mm Multiple Rocket Launcher
Engine 4.86 liter, V-8, turbocharged, direct injection, water cooled, 4 stroke, diesel (330 hp)
Range 40.0 km
System
Alternative Designation BM-21U Grad
Type Multiple Rocket Launcher
Caliber 122 mm
Manufacturer krAZ
Chassis KrAZ-6322
Configuration 6x6
Crew 4 ea
Emplacement Time INA
Displacement Time INA
Dimensions
Length 9.10 m
Width 2.72 m
Height 3.09 m
Wheelbase 4.6 m + 1.4 m
Empty Weight 14 tons
Combat Weight 18 tons
Automotive
Engine Name YaMZ 238D
Engine Type 4.86 litre, V-8, turbocharged, direct injection, water cooled, 4 stroke, diesel
Engine Power 330 hp at 2,100 rpm
Power-to-Weight Ratio INA
Fuel Capacity 500 liters
Electrical System 24V
Steering mechanical with hydraulic booster; right-hand drive optional
Suspension (front) semi-elliptic leaf springs and hydraulic shock-absorbers; (rear bogie) inverted semi-elliptic leaf springs
Brakes dual circuit, air, drums on all axles; supplementary engine exhaust brake
Tires options including 525/70R 21, 530/70-21, 445/65R 22.5, 1600R 20
Angle of Approach 38 deg
Angle of Departure 30 deg
Gradient 58%
Fording 1.2 m
Amphibious No
Turning Radius 14 m
Main Weapon System
System
Name INA
Type Multiple Rocket Launcher
Caliber 122 mm
Tuber of Tubes 40 ea
Maximum Firing Range 40 km
Full Salvo Duration 20 seconds
Reloading Time 7 minutes
CEP 90 m
Ammunition
Type HE-FRAG
Caliber 122 mm
Length INA
Diameter INA
Rocket Weight 66.4 kg
Warhead Weight 18.4 kg
Protection
Hull Armor INA
Applique Armor INA
NBC Protection INA
Smoke Equipment No
Image Sources
Notes https://en.wikipedia.org/wiki/Verba_%28MRLS%29; https://defence24.com/ukraine-modernizes-its-rocket-artillery;
Details
Country of Origin Ukraine
Category Rocket Artillery Systems
Land > Artillery > Rocket Artillery Systems
Filter Label
B
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
9.1 m
Width
2.72 m
Height
3.09 m
Weight
14000 kg
Operators (1)
Ukraine
