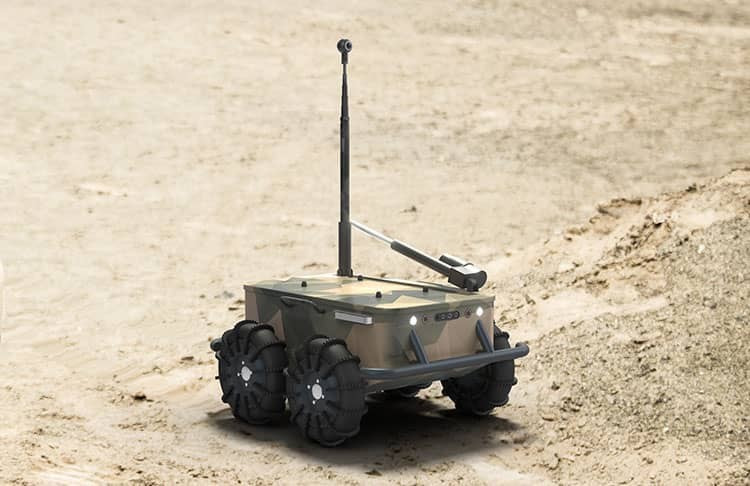

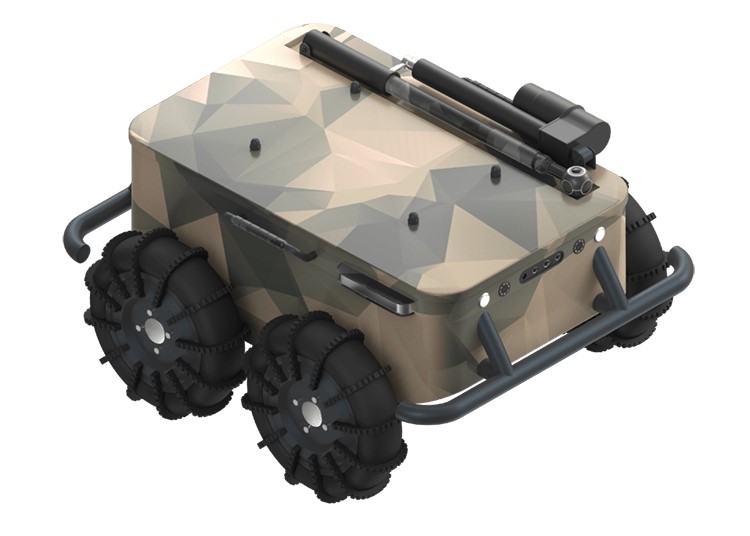

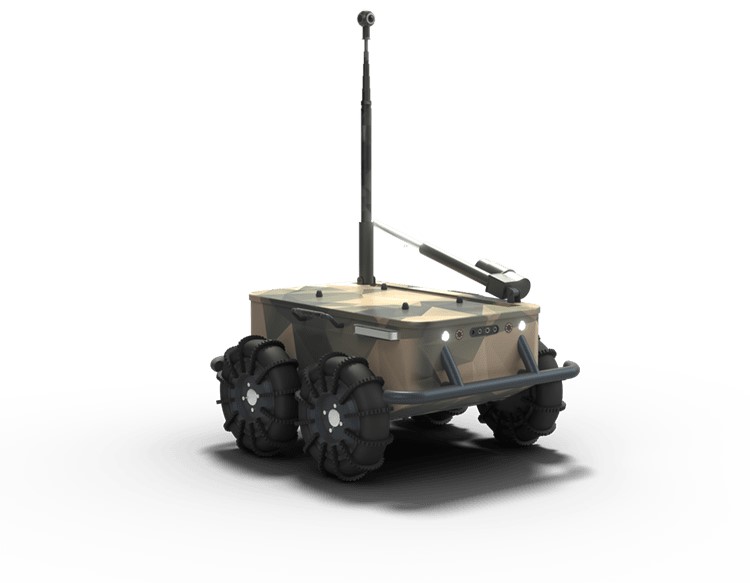

GNOM Ukrainian 4x4 Unmanned Ground Vehicle (UGV)

GNOM

Unmanned Ground Vehicle (UGV)
Spotted an error? Sign in to suggest an edit.
Basic Information
Name
GNOM Ukrainian 4x4 Unmanned Ground Vehicle (UGV)
Designation
GNOM
Alternate Designation
GNOM
Equipment Type
Unmanned Ground Vehicle (UGV)
Manufacturer
Timberland Military Solutions
Date of Introduction
2020
Description

The GNOM Ukrainian 4x4 Unmanned Ground Vehicle (UGV) can conduct covert surveillance using a circular survey camera on a telescopic mast. The communication system and energy reserve enable reconnaissance and surveillance up to 5 km away. Developed by the Ukrainian company Temerland, a specialist in unmanned ground vehicles (UGVs), the GNOME had already undergone testing in September 2024. Recently, it was tested by the 65th Mechanized Brigade of the Ukrainian Armed Forces in an infantry support configuration. On this occasion, GNOME was equipped with two RPG-7 rocket launchers, armed with 40 mm OG-7V high-explosive fragmentation warheads, and a 7.62 mm PKM machine gun. According to its developers, the drone is a multifunctional platform that can be used not only to support the infantry but also to lay mines and conduct remote mine clearance. It can carry 2 TM-62 mines and one MON-90 mine. The first, an anti-personnel mine, weighs 12.1 kg, while the second, an anti-tank mine (depending on the variant), can weigh up to 10 kg. The GNOME weighs 88 kg and can reach a maximum speed of 5.5 km/h. The payload is 40 kg, with a control range of up to 2,000 m. According to Temerland engineers, the drone would be able to operate even in environments saturated by electronic warfare systems.

Ground Specifications
Mobility Type Wheeled (4x4)
Main Weapon two RPG-7 rocket launchers, armed with 40 mm OG-7V high-explosive fragmentation warheads, and a 7.62 mm PKM machine gun
Engine Electric (5 hp)
Max Speed 5.5 km/h
Range 5.0 km
System
Alternative Designation GNOM
Type Unmanned Ground Vehicle (UGV)
Manufacturer Timberland Military Solutions
Configuration 4x4
Crew Unmanned
Camera Depth camera for operator control and autonomous movement; 360 ° panoramic camera on a telescopic mast; IR illuminator (illumination for movement in the darkness).
Communication Channel WiFi 5 GHz
Operating Temperature – 25 ° to + 60 ° C
Dimensions
Length 600 mm
Width 570 mm
Height 380 mm
Weight (without Weapons and Ammunition) 50 kg
Clearance 90 mm
Automotive
Engine Name INA
Engine Type Electric, Li-ion 7.6 B
Engine Power 5.44 hp
Battery Capacity 60 Ah
Control Range 5 km
Maximum Speed INA
Protection
Armor steel, 2 mm
Details
Country of Origin Ukraine
Category Unmanned Ground Vehicles (UGV)
Land > Unmanned Ground Vehicles (UGV)
Filter Label
G
Classification
Domain
Ground
Equipment Status
Active
Dimensions
Length
0.6 m
Width
0.57 m
Height
0.38 m
Weight
50 kg
Operators (1)
Ukraine
